SitaDrain Terra
Drainage
Attributes
Article number
25404014
Grate design
bubble design grating
Width
400 mm
Length
400 mm
Height
25 mm
Material
Rust-proof stainless steel
Material number
1.4301
Load rating class
K 3 - max. 300 kg / 3.0 kN
Material class
Euroclass A1 /A1 non-flammable
Height adjustment min (mm)
70 mm
Height setting, max (mm)
110 mm

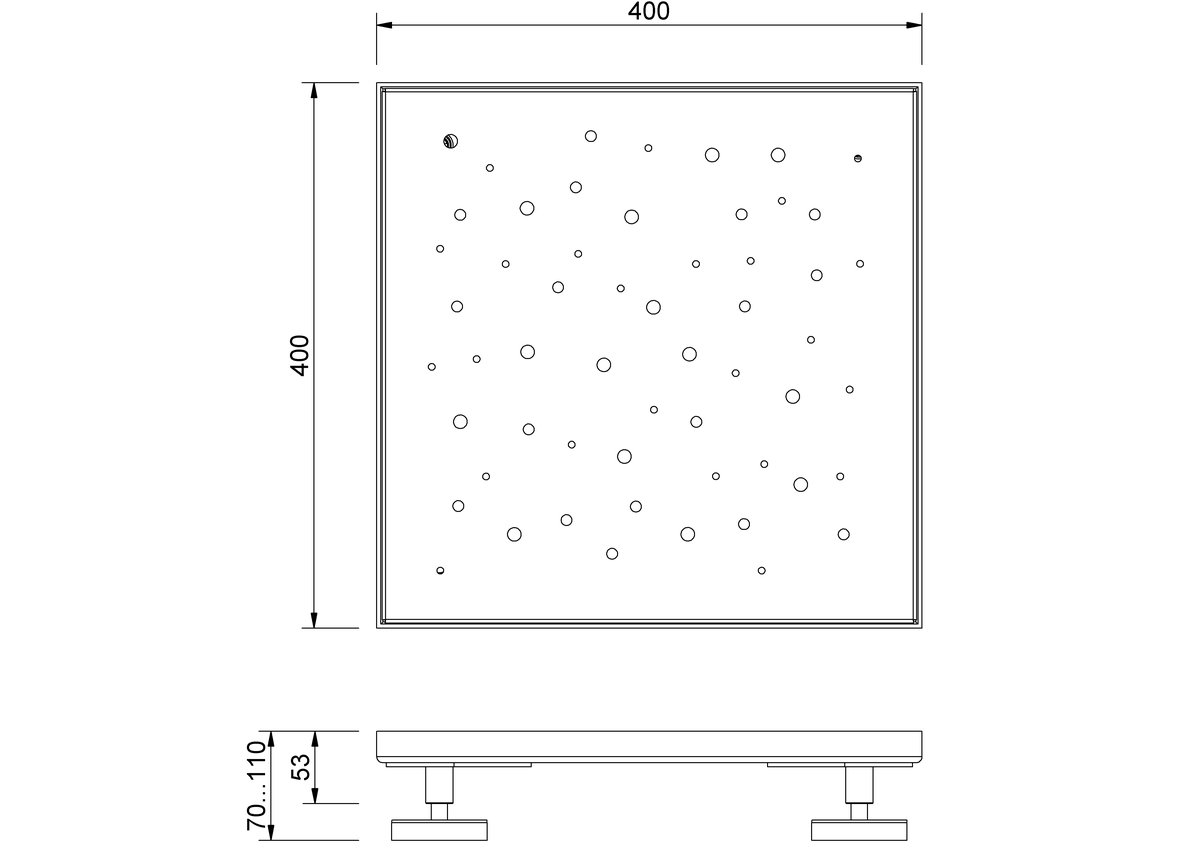

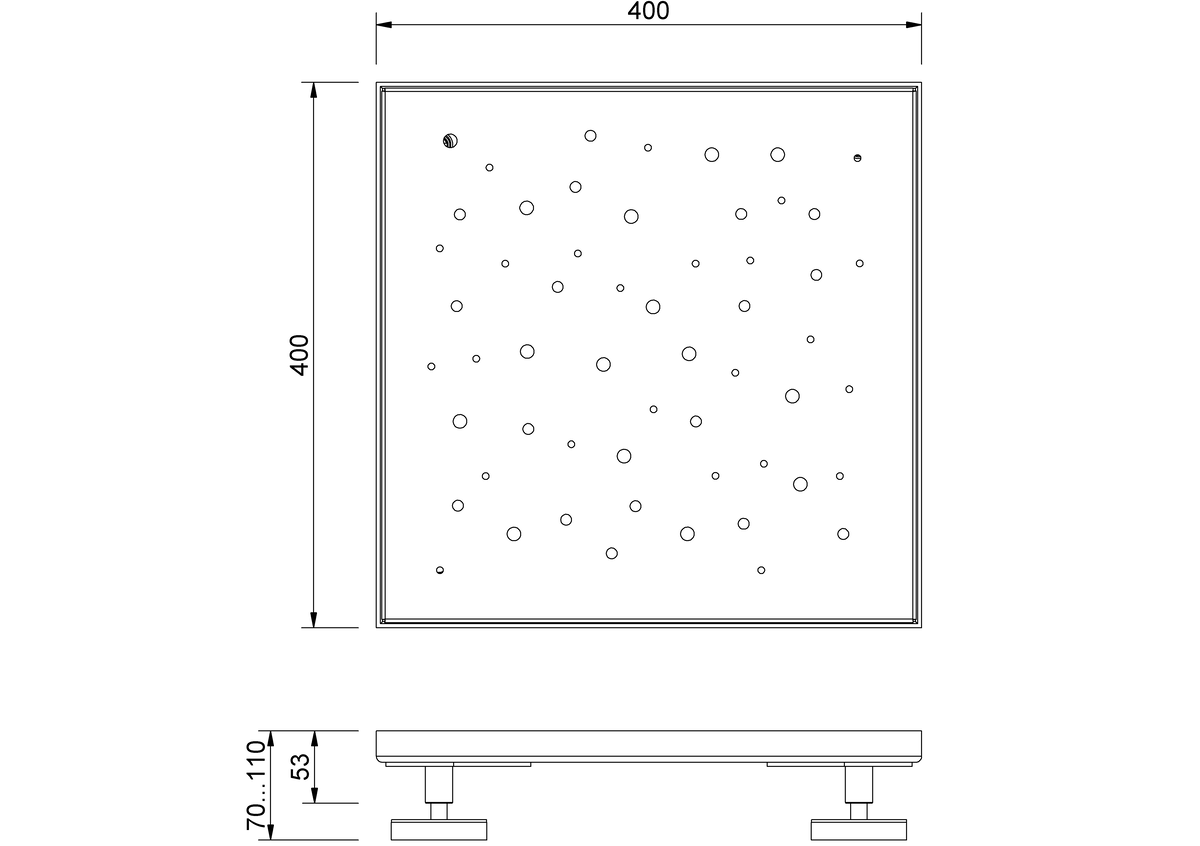

Technical drawing

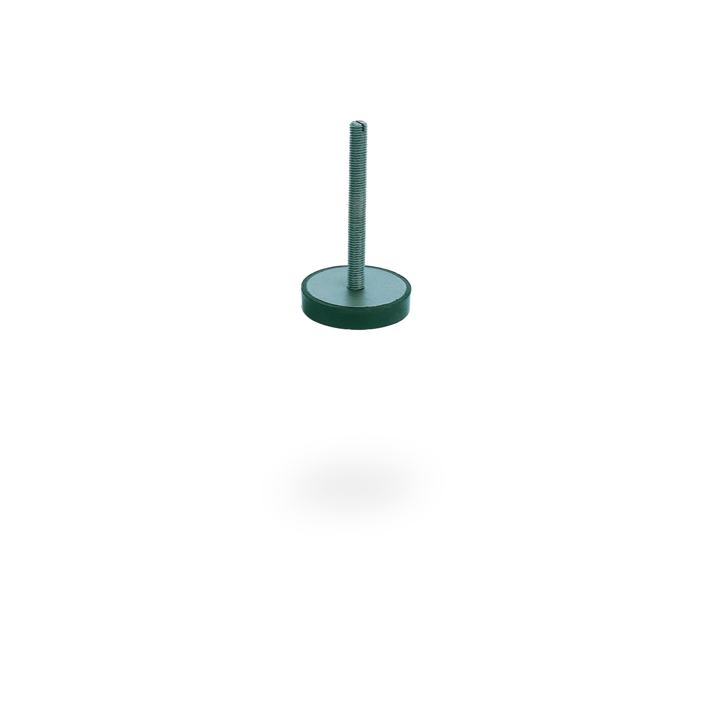

The SitaDrain Terra is used as an inspection shaft on terraces and green roofs. Its four infinitely height-adjustable rubber feet give it a secure hold, allowing it to be set to any height level.
+
