SitaDrain® Terra
Drainage
- Products
SitaDrain Terra
Drainage
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable
- Infinitely adjustable height between 70 - 110 mm

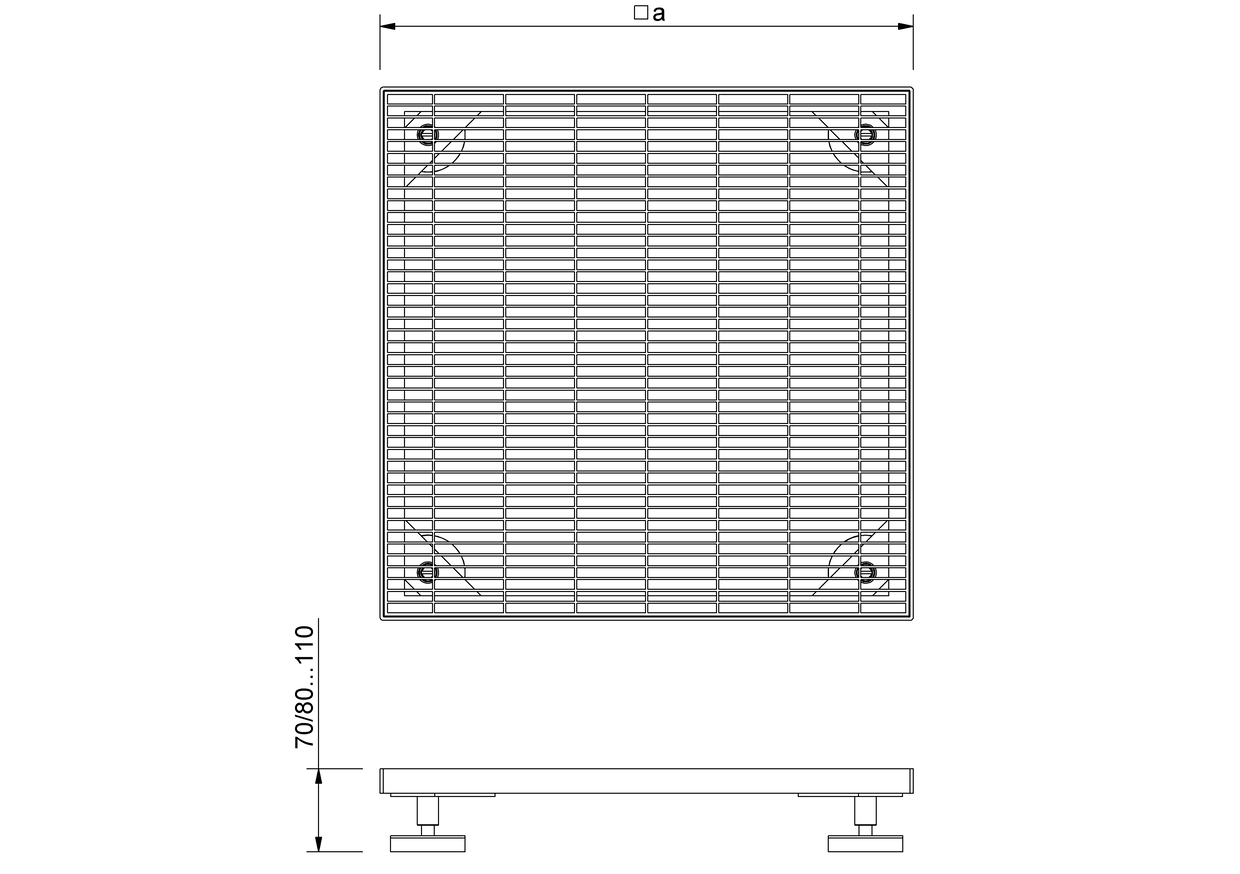

Technical drawing

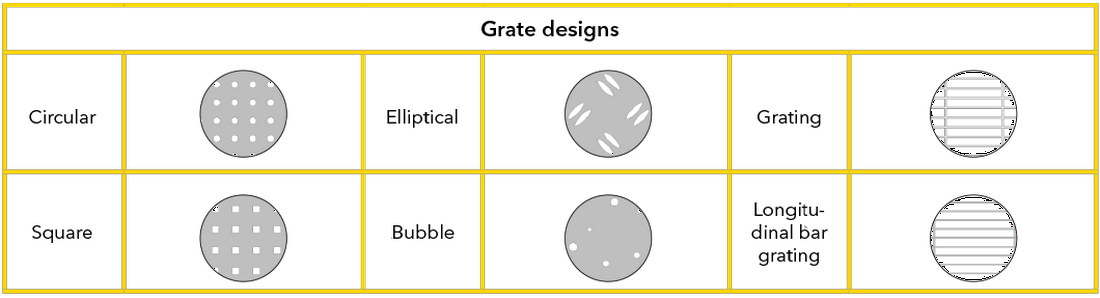

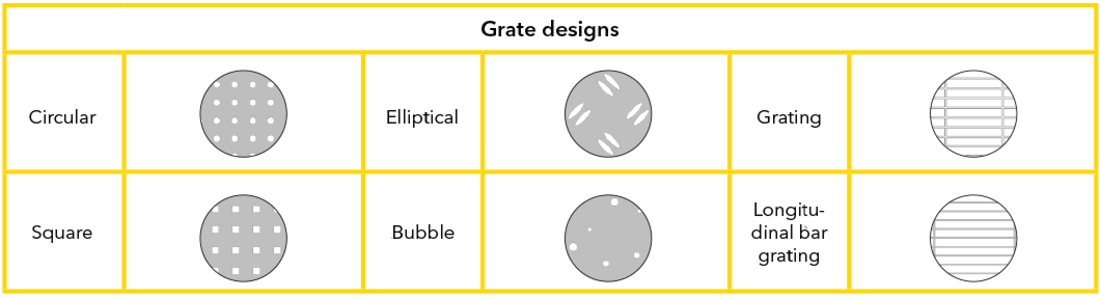

| Grate design | a (mm) | Height adjustment min (mm) | Height setting, max (mm) |
|---|---|---|---|
| bubble design grating | 400 | 70 | 110 |
| square design grating | 400 | 70 | 110 |
| circular design grating | 400 | 70 | 110 |
| grating | 400 | 70 | 110 |
| longitudinal bar grating | 400 | 80 | 110 |
| elliptical design grating | 400 | 70 | 110 |
| longitudinal bar grating | 500 | 80 | 110 |
| grating | 500 | 70 | 110 |
Performance text
Installation Examples
MultiCAD und BIM-Daten
Downloads
DWG EB_SitaTrendy_mit_SitaDrain_Terra_HE_mit Plattenbelag_im_Splittbett.DWG
DWG EB_SitaEasy_Go_Notentwässerung_Balkon_Terrasse.DWG
DWG EB_SitaCompact_mit_Anstauring_im_nicht_beluefteten_Dachaufbau_mit_Plattenbelag.DWG
PDF SitaTrendy_und_SitaDrain_Terra_bei_Plattenbelag_auf_Splittbett_ohne_Waermedaemmung.pdf
PDF SitaEasy_Go_fuer_die_Notentwaesserung_im_nicht_beluefteten_Dachaufbau_bei_Plattenbelag_im_Splittbett.pdf
PDF SitaCompact_abgewinkelt_mit_SitaCompact_Anstauring_im_nicht_beluefteten_Dachaufbau_mit_Plattenbelag.pdf
PDF TechnischeZeichnung_25404012_en.pdf
PDF TechnischeZeichnung_25404013_en.pdf
PDF TechnischeZeichnung_25404014_en.pdf
PDF TechnischeZeichnung_25404015_en.pdf
PDF TechnischeZeichnung_254040_en.pdf
PDF TechnischeZeichnung_25505015_en.pdf
PDF TechnischeZeichnung_255050_en.pdf
DWG TZ_DB_SitaDrain_Terra_Bubblerost_400_400_Edelstahl.DWG
DWG TZ_DB_SitaDrain_Terra_Ellipsenrost_400_400_Edelstahl.DWG
DWG TZ_DB_SitaDrain_Terra_Gitterrost_400_400_Edelstahl.DWG
DWG TZ_DB_SitaDrain_Terra_Gitterrost_500_500_Edelstahl.DWG
DWG TZ_DB_SitaDrain_Terra_Kreisrost_400_400_Edelstahl.DWG
DWG TZ_DB_SitaDrain_Terra_Laengsstabrost_400_400_Edelstahl.DWG
DWG TZ_DB_SitaDrain_Terra_Laengsstabrost_500_500_Edelstahl.DWG
DWG TZ_DB_SitaDrain_Terra_Quadratrost_400_400_Edelstahl.DWG
Article selection

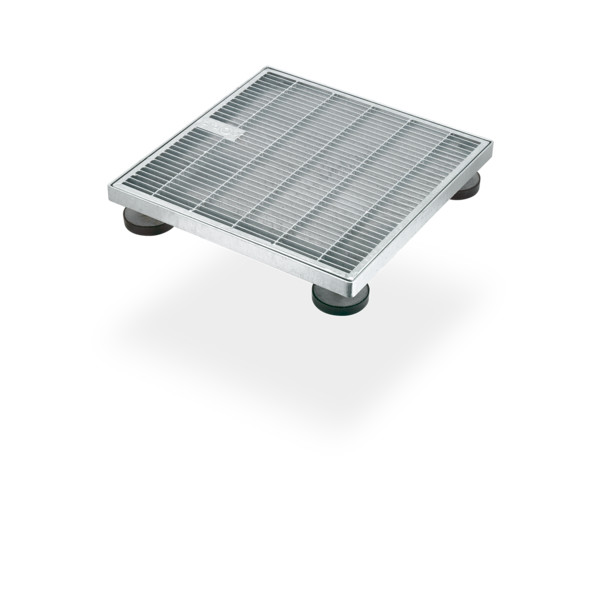

SitaDrain® Terra drainage grate, made of pickled stainless steel, with surrounding stainless steel frame to hold the mesh cover (mesh size 9 mm x 64 mm), with four welded threaded sockets M12 made of stainless steel to hold the pre-assembled rubber feet for infinite height adjustment from 70–110 mm, in the dimensions 400 x 400 mm, 500 x 500 mm, supply and install to professional standards. Rust-proof treated stainless steel with surrounding stainless steel frame to hold the mesh cover (mesh size 9 mm x 64 mm). Supply and install to professional standards.
SitaDrain Terra with SitaEasy in a non-ventilated roof structure with slab paving
1 SitaPipe Edelstahl pipe
2 SitaMore vapour barrier plate flex
3 SitaPipe Edelstahl safety clamp
4 SitaEasy
SitaDrain® Terra consisting of:
5.1 Inspection grate

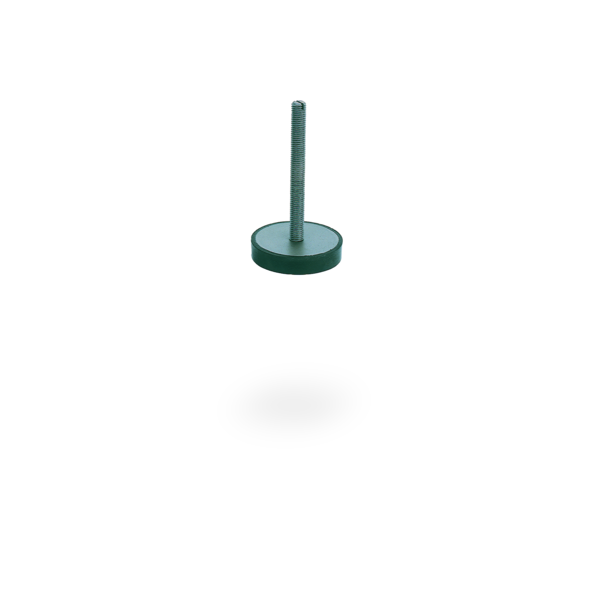

5.2 Height-adjustable rubber feet
5.3 Frame
2 SitaMore vapour barrier plate flex
3 SitaPipe Edelstahl safety clamp
4 SitaEasy
SitaDrain® Terra consisting of:
5.1 Inspection grate
5.2 Height-adjustable rubber feet
5.3 Frame
Non-ventilated roof structure with slab paving on support pads to the general rules of engineering with:
- Slab paving on support pad
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure

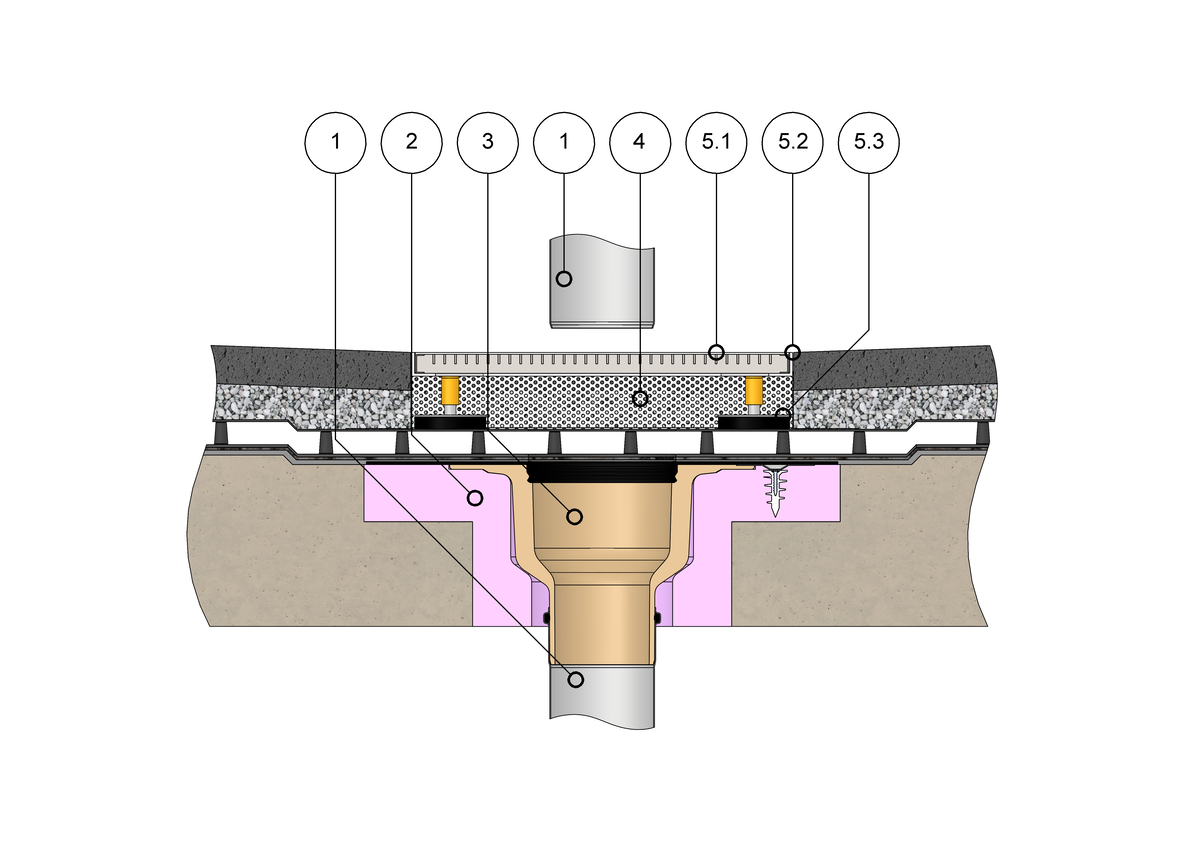

SitaTrendy and SitaDrain® Terra for the main drainage of slab paving on gravel bed without thermal insulation
1 SitaPipe Edelstahl pipe
2 SitaTrendy insulating body for outlet
3 SitaTrendy vertical
4 SitaDrain gravel strip
SitaDrain® Terra consisting of:
5.1 Inspection grate
5.2 Frame
5.3 Height-adjustable rubber-metal buffers
2 SitaTrendy insulating body for outlet
3 SitaTrendy vertical
4 SitaDrain gravel strip
SitaDrain® Terra consisting of:
5.1 Inspection grate
5.2 Frame
5.3 Height-adjustable rubber-metal buffers
Ventilated roof structure with slab paving in gravel bed to the general rules of engineering with:
- Slab paving
- Grit or gravel bed
- Drainage mat
- Protective mat
- Waterproof membrane
- Substructure

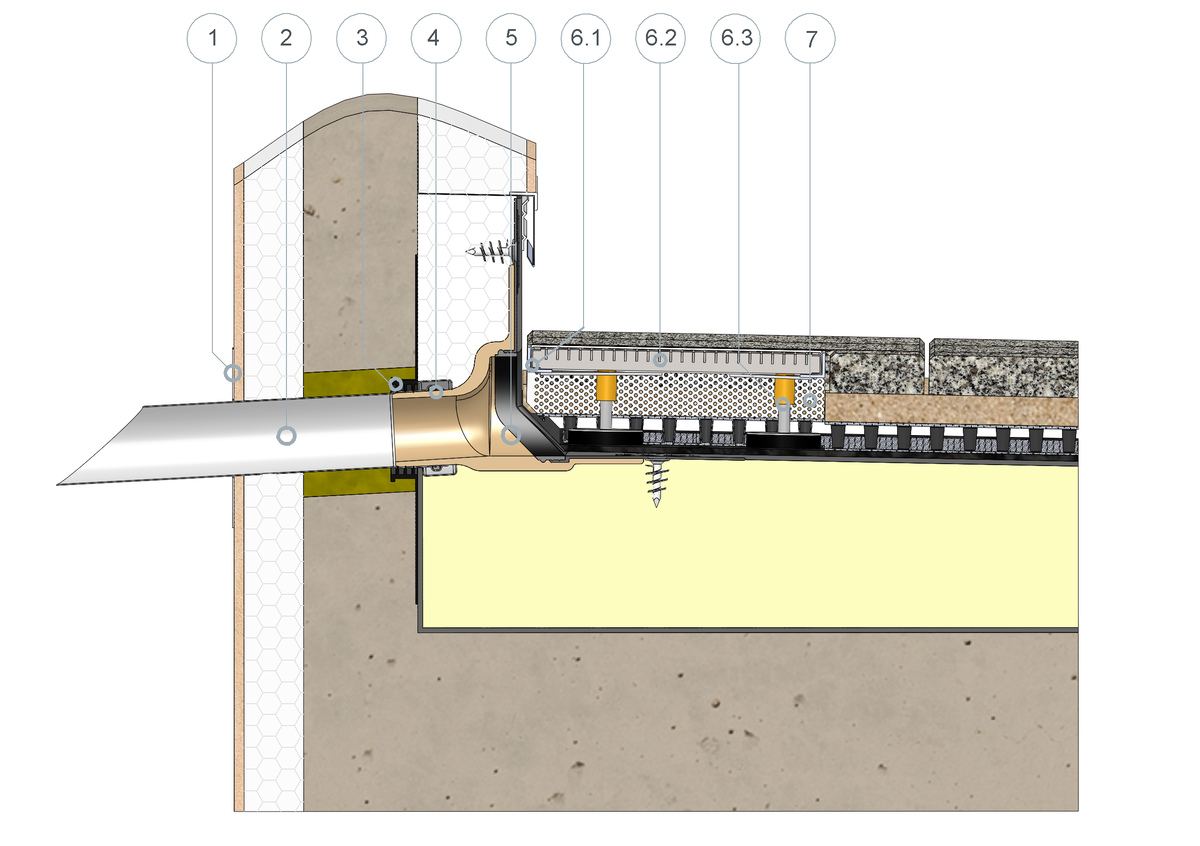

SitaEasy Go for emergency drainage in a non-ventilated roof structure with slab paving in a gravel bed
1 SitaAttika cladding cover plate
2 SitaPipe stainless steel pipe
3 SitaMore vapour barrier plate flex
4 SitaPipe Edelstahl safety clamp
5 SitaEasy Go
SitaDrain® Terra consisting of:
6.1 Frame
6.2 Inspection grate
6.3 Height-adjustable rubber feet
7 SitaDrain® gravel strip
2 SitaPipe stainless steel pipe
3 SitaMore vapour barrier plate flex
4 SitaPipe Edelstahl safety clamp
5 SitaEasy Go
SitaDrain® Terra consisting of:
6.1 Frame
6.2 Inspection grate
6.3 Height-adjustable rubber feet
7 SitaDrain® gravel strip
Non-ventilated roof structure with slab paving in a gravel bed to the general rules of engineering with:
- Slab paving
- Gravel bed
- Filter fabric
- Surface drainage
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
- Parapet lead-through with joint tape

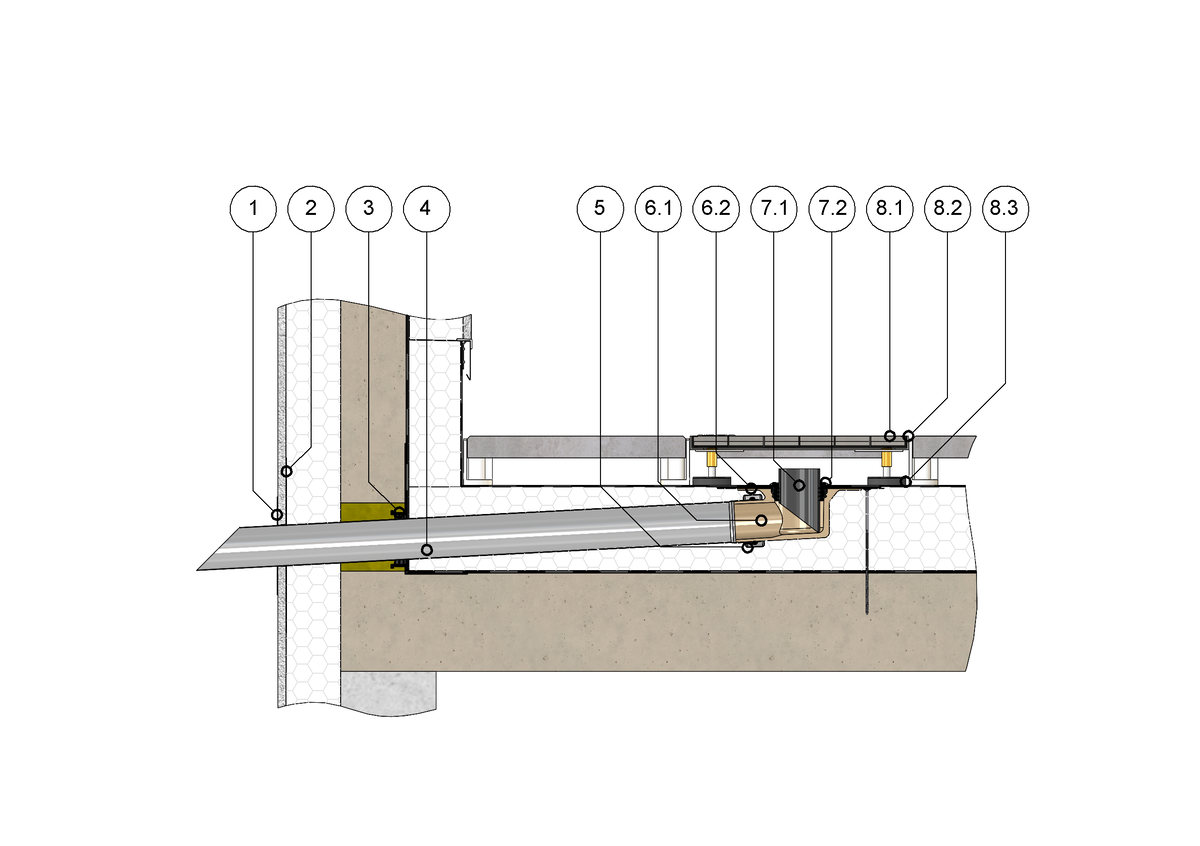

SitaCompact angled with SitaCompact retaining ring in a non-ventilated roof structure with slab paving and SitaDrain Terra
1 SitaAttika cladding cover plate
2 SitaMore sealing sleeve for WDVS
3 SitaMore vapour barrier plate
4 SitaPipe stainless steel pipe
5 SitaPipe Edelstahl safety clamp
SitaCompact angled consisting of:
6.1 Base body
6.2 Connection sleeve of choice
SitaCompact retaining ring consisting of:
7.1 Retaining ring
7.2 Sealing ring
SitaDrain® Terra consisting of:
8.1 Inspection grate
8.2 Frame
8.3 Height-adjustable rubber feet
2 SitaMore sealing sleeve for WDVS
3 SitaMore vapour barrier plate
4 SitaPipe stainless steel pipe
5 SitaPipe Edelstahl safety clamp
SitaCompact angled consisting of:
6.1 Base body
6.2 Connection sleeve of choice
SitaCompact retaining ring consisting of:
7.1 Retaining ring
7.2 Sealing ring
SitaDrain® Terra consisting of:
8.1 Inspection grate
8.2 Frame
8.3 Height-adjustable rubber feet
Non-ventilated roof structure to the general rules of engineering with:
- Slab paving
- Waterproofing
- Thermal insulation
- Vapour barrier
- Substructure
