SitaSani® DN 165
Refurbishment outlet
Attributes
Standards
DIN EN 1253-2
Article number
102948
connection
Köster TPO 2.0 F-sleeve
Execution
200 mm
External diameter OD (mm)
160 mm
Support length
200 mm
Pot height
25 mm
Pot inner diameter
146 mm
Temperature resistance, min.
-40 °C
Temperature resistance, max.
80 °C
Material class
Euroclass E / B2 normal flammability
Backflow safe for refurbishing internal diameters from– to (mm) with lip sealing ring
165 - 178
Backflow safe for refurbishing internal diameters from– to (mm) with profiled sealing ring
178 - 205

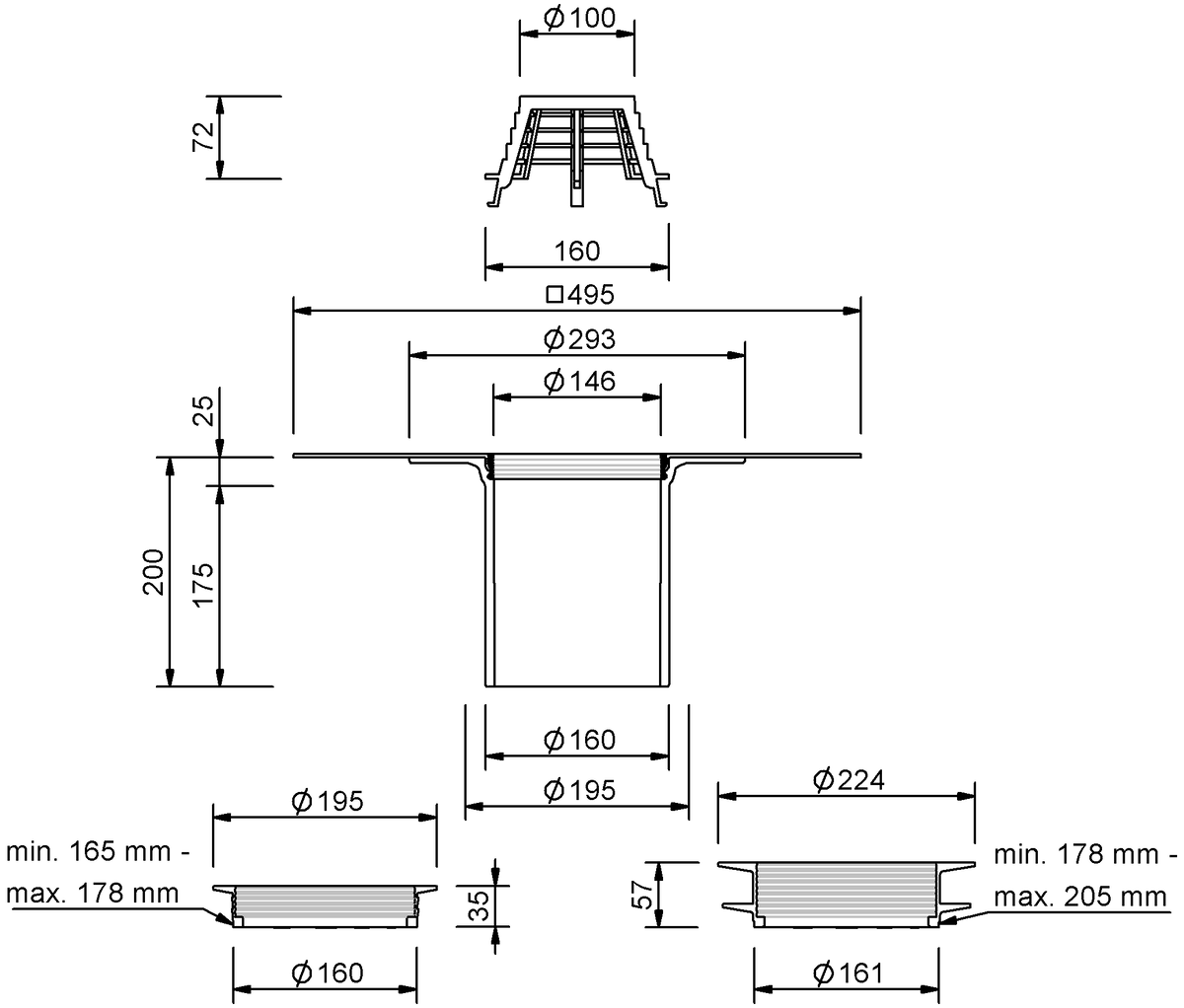

Technical drawing
The problem-solver with long spigot and sealing ring. This compensates for the existing waterproofing and insulation layers to the roof outlet or downpipe in place. Multi-compatible for almost any make of roof outlet, the roof outlets of this series can solve almost any refurbishment task. The various sealing rings are used to match the existing internal diameters. The foamed-in and additionally fixed connecting sleeve of choice offers a homogeneous connection to the roofing membrane.
+
