SitaMore

Terrace kit

Attributes

Simply attach to the outlet flange
Height can be adjusted to up to ten times higher
Mounting without tools

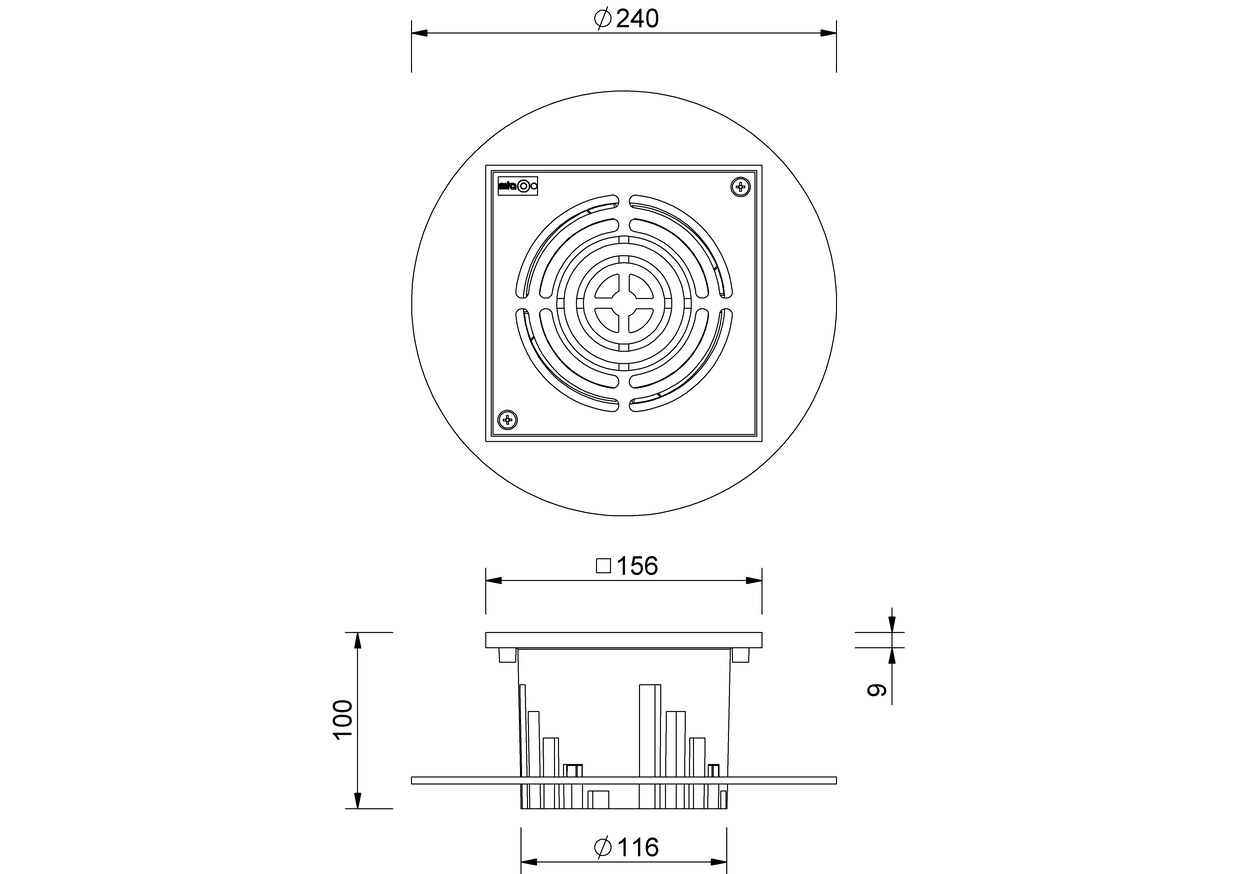

Technical drawing

Height adjustment min (mm)	Height setting, max (mm)
34	100

Performance text

SitaMore terrace kit, made of aluminium, for roof outlets and extension units with connection sleeve of choice of the SitaStandard, SitaTrendy, SitaIndra, SitaSani® 63, SitaSani® 90, SitaSani® 105 and SitaSani® 165 series. Consisting of height adjustment ring, housing (height-adjustable from 34 - 100 mm) and end grate with built-in slots to hold a downpipe in size DN 50 and DN 70, supply and install to professional standards.

Installation Examples

SitaTrendy screw-on flange in a non-ventilated roof structure with terrace slabs in a gravel bed

1 SitaTrendy insulating body for extension unit

SitaTrendy extension unit consisting of:
2.1 Sealing ring
2.2 Base body

SitaMore terrace kit consisting of:
3.1 End grate
3.2 Housing
3.3 Height adjustment ring

SitaTrendy screw-on flange vertical consisting of:
4.1 Base body
4.2 Loose flange, seals and screws

5 SitaTrendy insulating body for outlet

Non-ventilated roof structure with slab paving in gravel bed to the general rules of engineering with:

Slab paving
Grit or gravel bed
Drainage mat
Protective mat
Sealing
Thermal insulation
Vapour barrier
Substructure
