SitaSani® DN 165
Refurbishment outlet
Attributes
Standards
DIN EN 1253-2
Article number
104029
connection
Thermoplan TL pearl white-sleeve
Execution
550 mm
External diameter OD (mm)
160 mm
Support length
490 mm
Pot height
60 mm
Pot inner diameter
146 mm
Temperature resistance, min.
-40 °C
Temperature resistance, max.
80 °C
Material class
Euroclass E / B2 normal flammability
Backflow safe for refurbishing internal diameters from– to (mm) with lip sealing ring
165 - 178
Backflow safe for refurbishing internal diameters from– to (mm) with profiled sealing ring
178 - 205

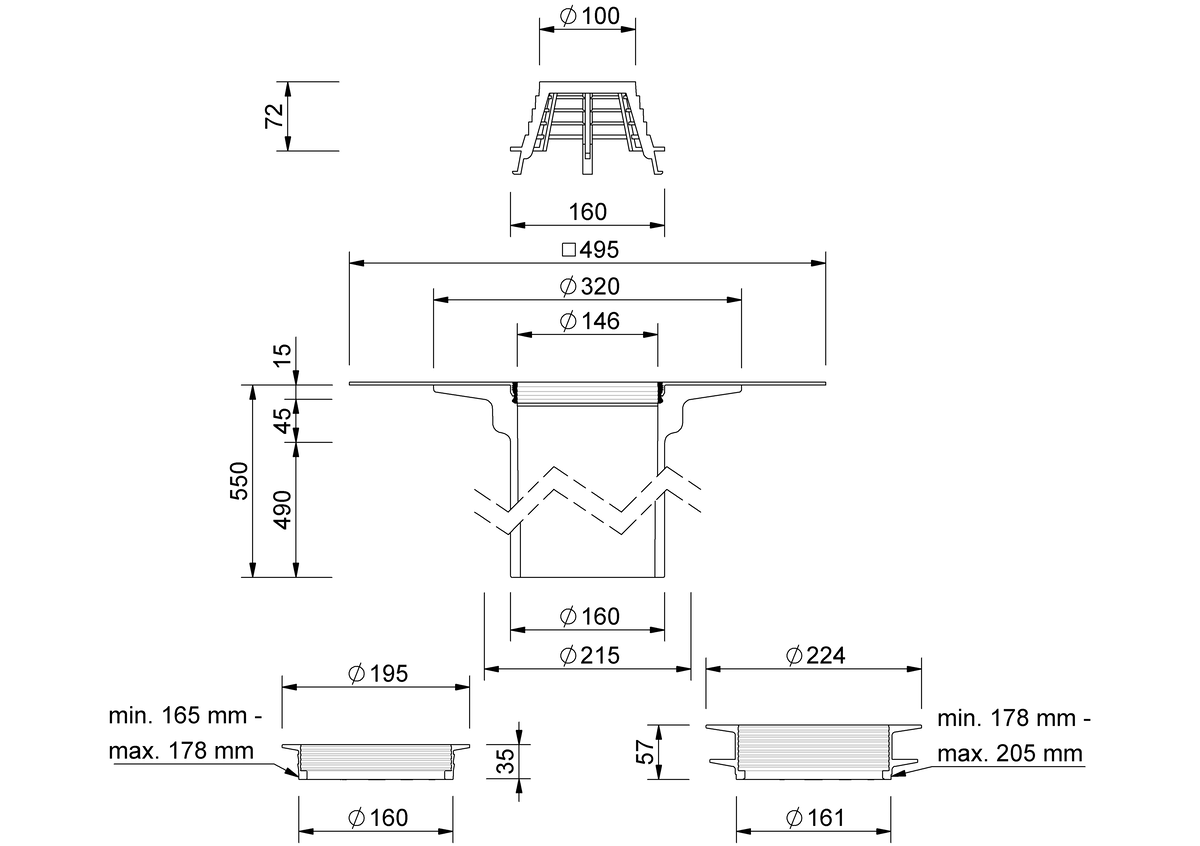

Technical drawing

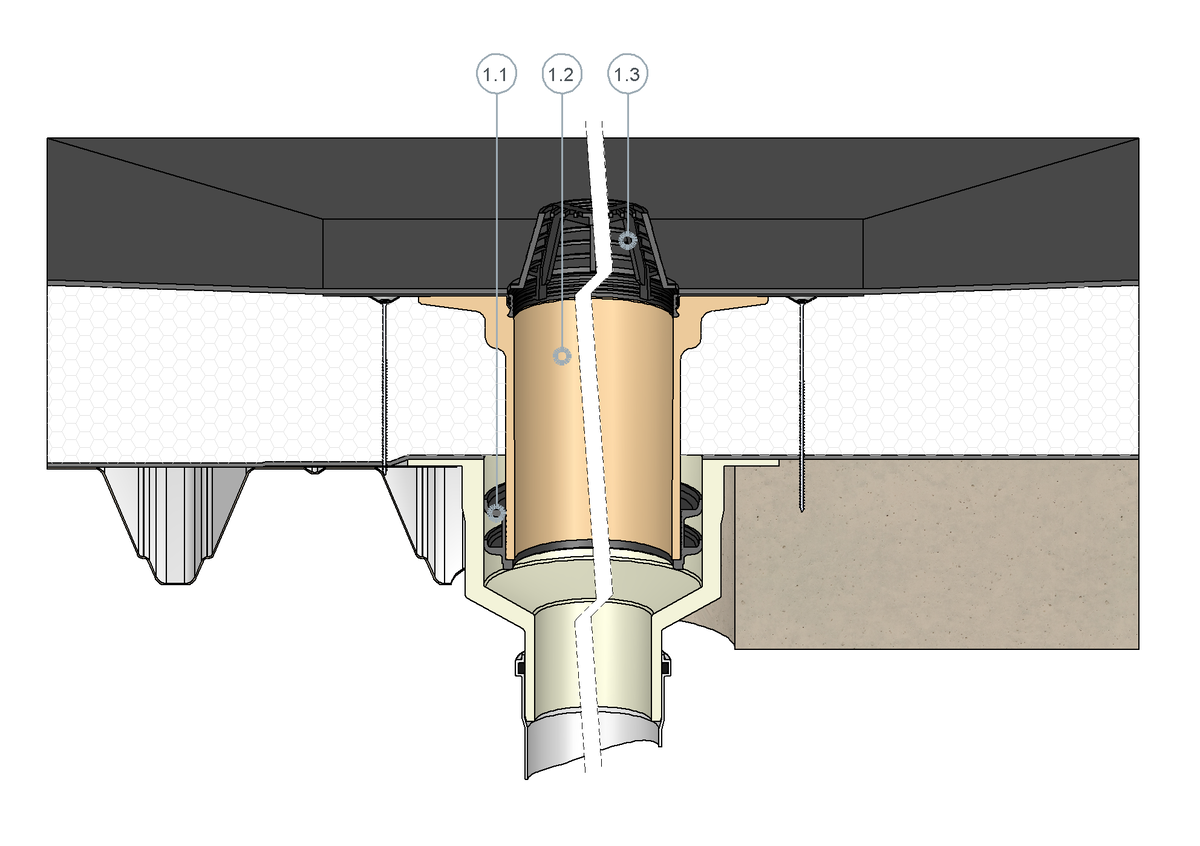

The problem-solver with long spigot and sealing ring. This compensates for the existing waterproofing and insulation layers to the roof outlet or downpipe in place. Multi-compatible for almost any make of roof outlet, the roof outlets of this series can solve almost any refurbishment task. The various sealing rings are used to match the existing internal diameters. The foamed-in and additionally fixed connecting sleeve of choice offers a homogeneous connection to the roofing membrane.
+
