SitaCompact Fluid

Pipe holder

Foto_S_SitaCompact_Fluid_Rohraufnhame.tif

Products
Accessories
SitaCompact Fluid
199023

Attributes

Article number

199023

Compatibility

SitaCompact Fluid, SitaConcrete

Material

ABS (acrylonitrile butadiene styrene)

Colour

Grey

Height

160 mm

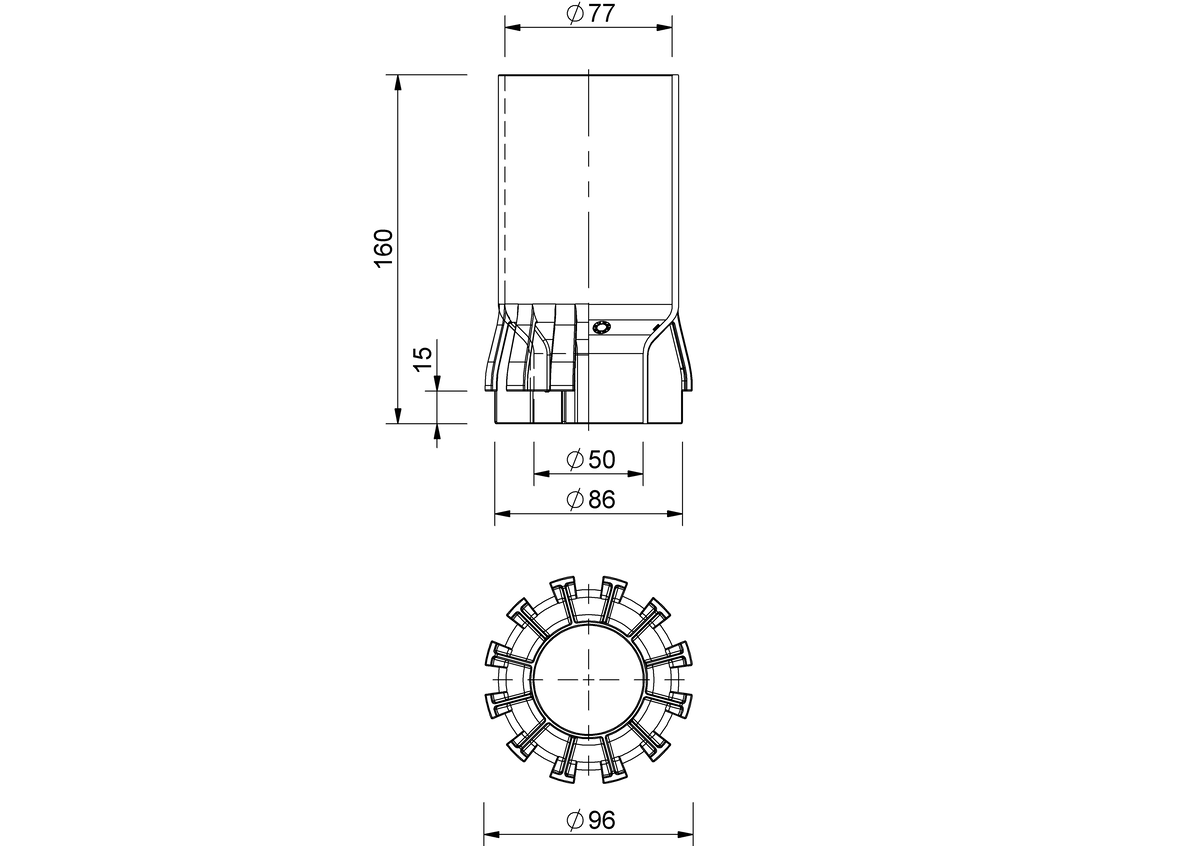

Technical drawing

Invitations to tender

SitaCompact Fluid pipe holder, made of ABS (acrylonitrile butadiene styrene), to hold the downpipe from the balcony above and to direct the rainwater to the outlet, for pipes up to an external diameter of 75 mm, supply and install to professional standards.

Installation Examples

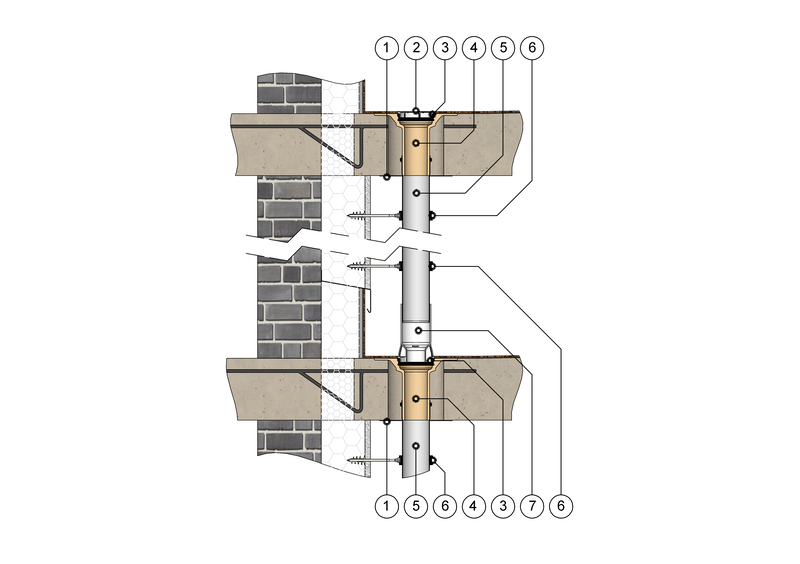

SitaCompact Fluid linear drainage for balconies with liquid applied waterproofing and slab paving

1 SitaPipe Edelstahl pipe
2 SitaAttika cladding cover plate
3 SitaCompact Fluid grating
4 SitaCompact Fluid
5 SitaCompact Fluid flat grate
6 SitaPipe Edelstahl pipe clamp
7 SitaCompact Fluid height compensation piece
8 SitaCompact Fluid pipe holder

Roof structure 1 with liquid applied waterproofing according to the general rules of engineering with:

Sealing with liquid applied waterproofing
Substructure

Roof structure 2 with liquid applied waterproofing according to the general rules of engineering with:

Slab paving
Protective mat
Sealing with liquid applied waterproofing
Substructure

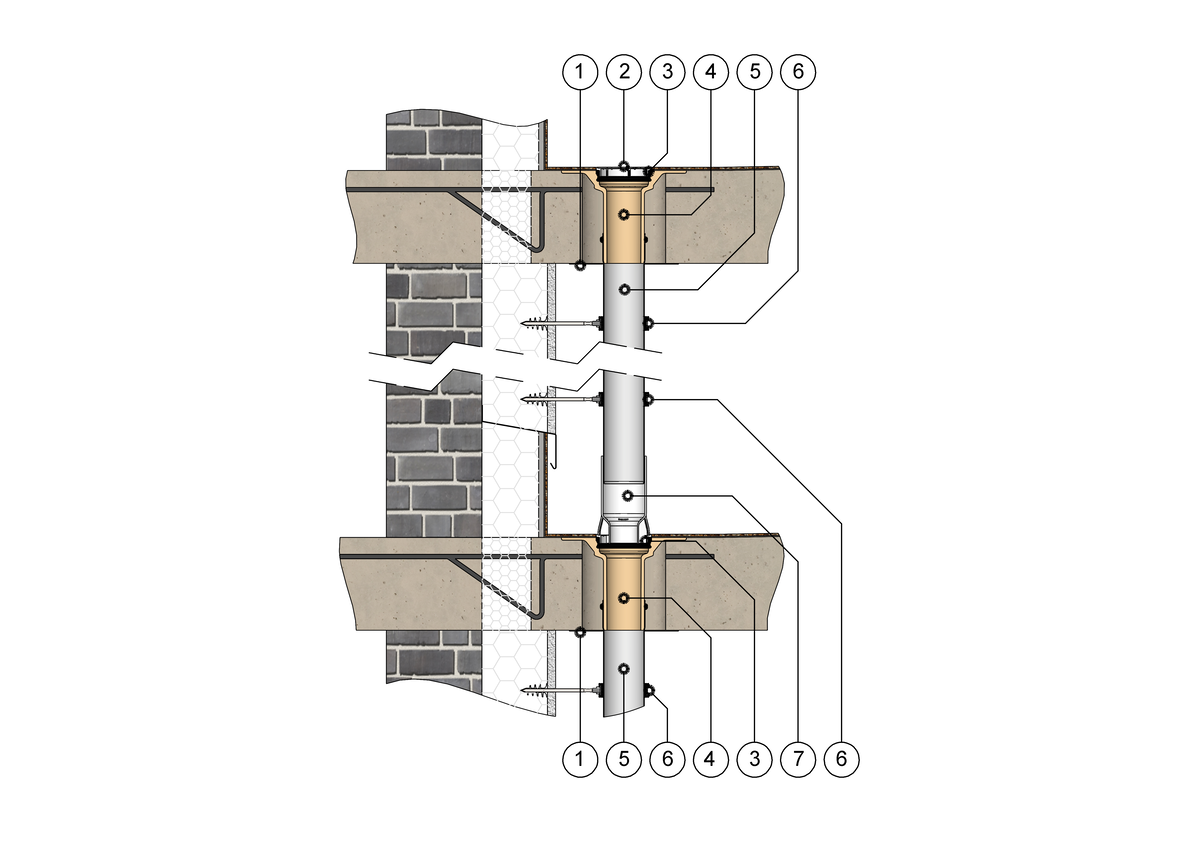

SitaCompact Fluid linear drainage for balconies with liquid applied waterproofing

1 SitaAttika cladding cover plate
2 SitaCompact Fluid flat grate
3 SitaCompact Fluid grating
4 SitaCompact Fluid
5 SitaPipe Edelstahl pipe
6 SitaPipe Edelstahl pipe clamp
7 SitaCompact Fluid pipe holder

Roof structure 1 & 2 with liquid applied waterproofing according to the general rules of engineering with:

Sealing with liquid applied waterproofing
Substructure
