SitaEasy Go

Dome grate

Products
SitaEasy Go
SitaEasy Go
189071

Attributes

Article number

189071

Colour

Black

Length

250 mm

Width

101 mm

Height

140 mm

Material class

Euroclass E / B2 normal flammability

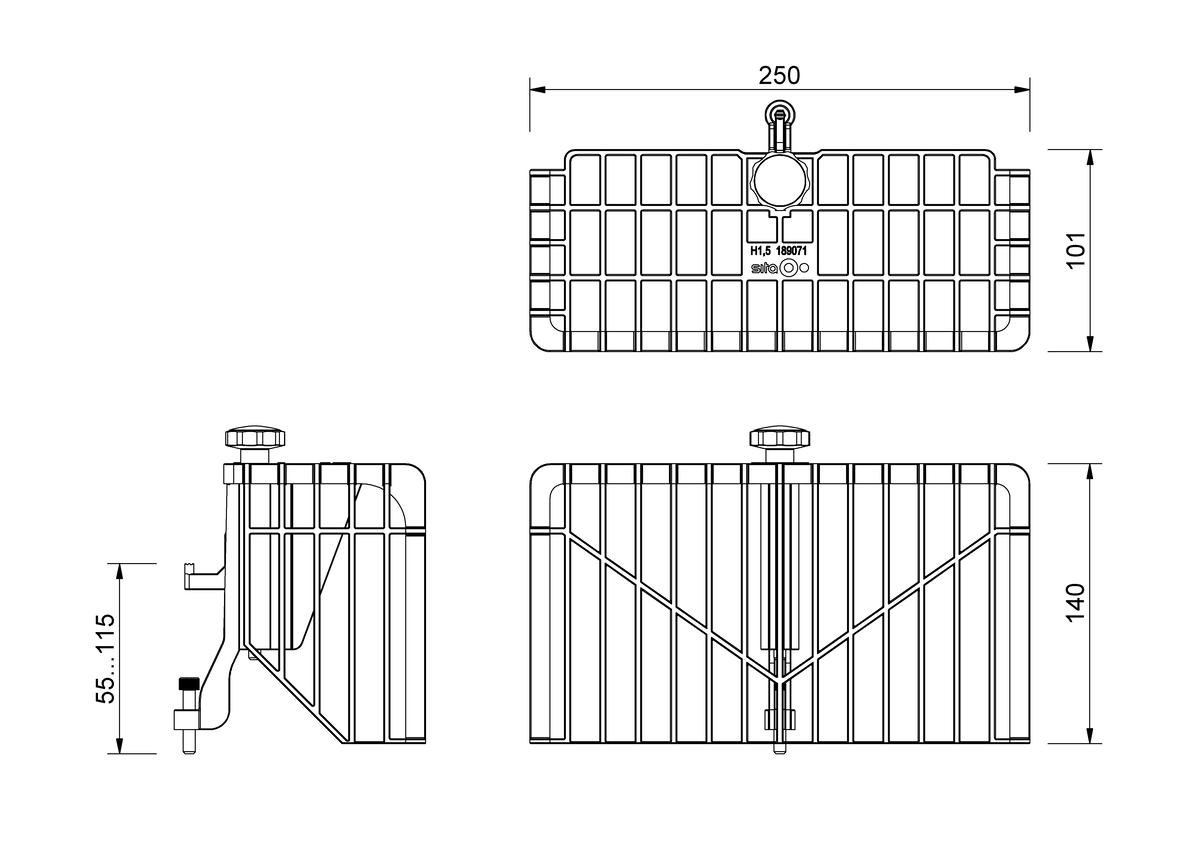

Technical drawing

Made of polyamide for clamping in the roof outlets

Invitations to tender

SitaEasy Go grating, made of polyamide. For clamping in the securing ring. Deliver and install expertly.

Installation Examples

SitaEasy Go for main drainage in a non-ventilated roof structure

1 SitaPipe Edelstahl pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl bend
5 SitaAttika cladding cover plate
6 SitaMore vapour barrier plate flex
7 SitaEasy Go

SitaEasy dome grate consisting of:
8.1 Latch
8.2 Dome grate basket

9 SitaPipe Edelstahl cleaning pipe

Non-ventilated roof structure to the general rules of engineering with:

Sealing
Thermal insulation
Vapour barrier
Substructure
Parapet lead-through with joint tape

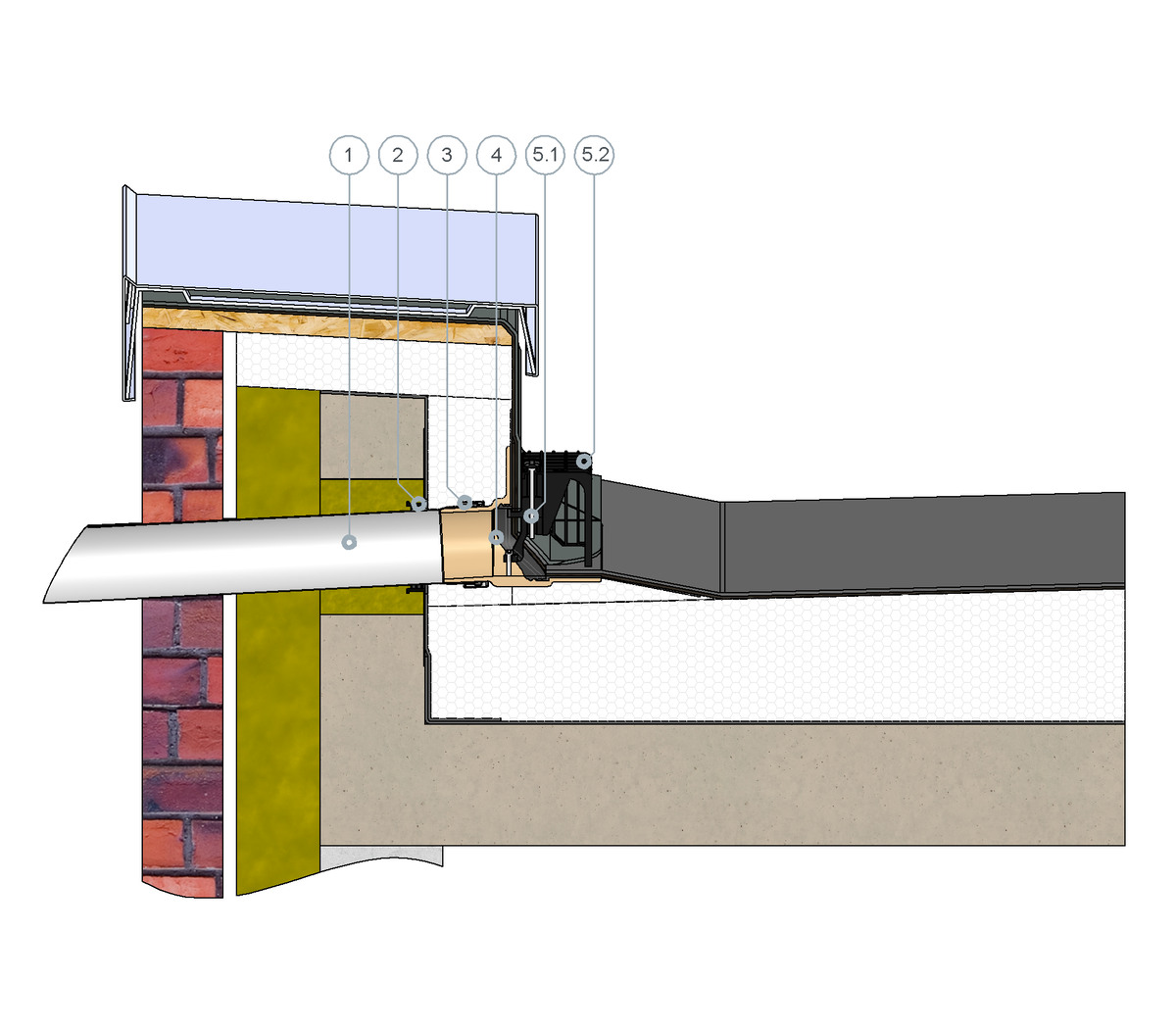

SitaEasy Go for emergency drainage, installed higher in a non-ventilated roof structure

1 SitaPipe Edelstahl pipe
2 SitaMore vapour barrier plate flex
3 SitaPipe Edelstahl safety clamp
4 SitaEasy Go

SitaEasy Go dome grate consisting of:
5.1 Latch
5.2 Dome grate basket

Non-ventilated roof structure to the general rules of engineering with:

Sealing
Thermal insulation
Vapour barrier
Substructure
Parapet lead-through with joint tape
