SitaSpy DN 50
Emergency drainage outlet
Attributes
Standards
DIN EN 1253-2
Article number
184199
External diameter OD (mm)
50 mm
Opening/Core borehole (mm)
110 mm
Support length
800 mm
Temperature resistance, min.
-20 °C
Material class
Euroclass A1 /A1 non-flammable
Technical drawing

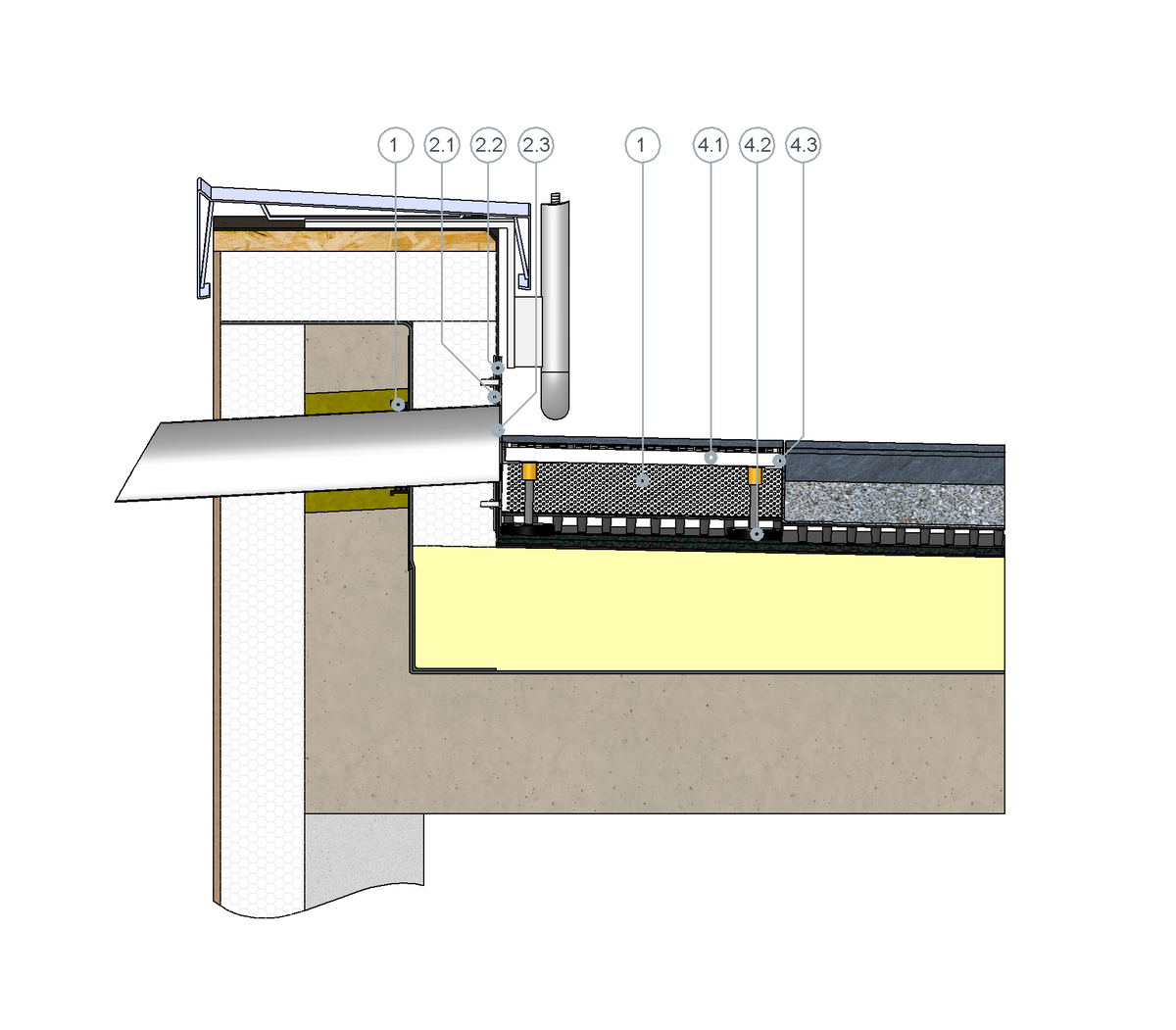

For emergency drainage of small roof areas according to DIN 1986-100, such as balconies, loggias and terraces. SitaSpy is characterised by a visually attractive screw-on flange construction, without protruding screws or threaded rods.
+
