SitaVent pipe fairlead DN 150
pipe fairlead
Attributes
Article number
176816
connection
Polyfin 4020 v-sleeve
Material
Base plate: Polyurethane, vent pipe: Polyethylene, rejector: Polyamide
Colour
Yellow
Opening/Core borehole (mm)
220 mm
External diameter OD (mm)
160 mm
Temperature resistance, min.
-20 °C
Temperature resistance, max.
80 °C
Material class
Euroclass E / B2 normal flammability

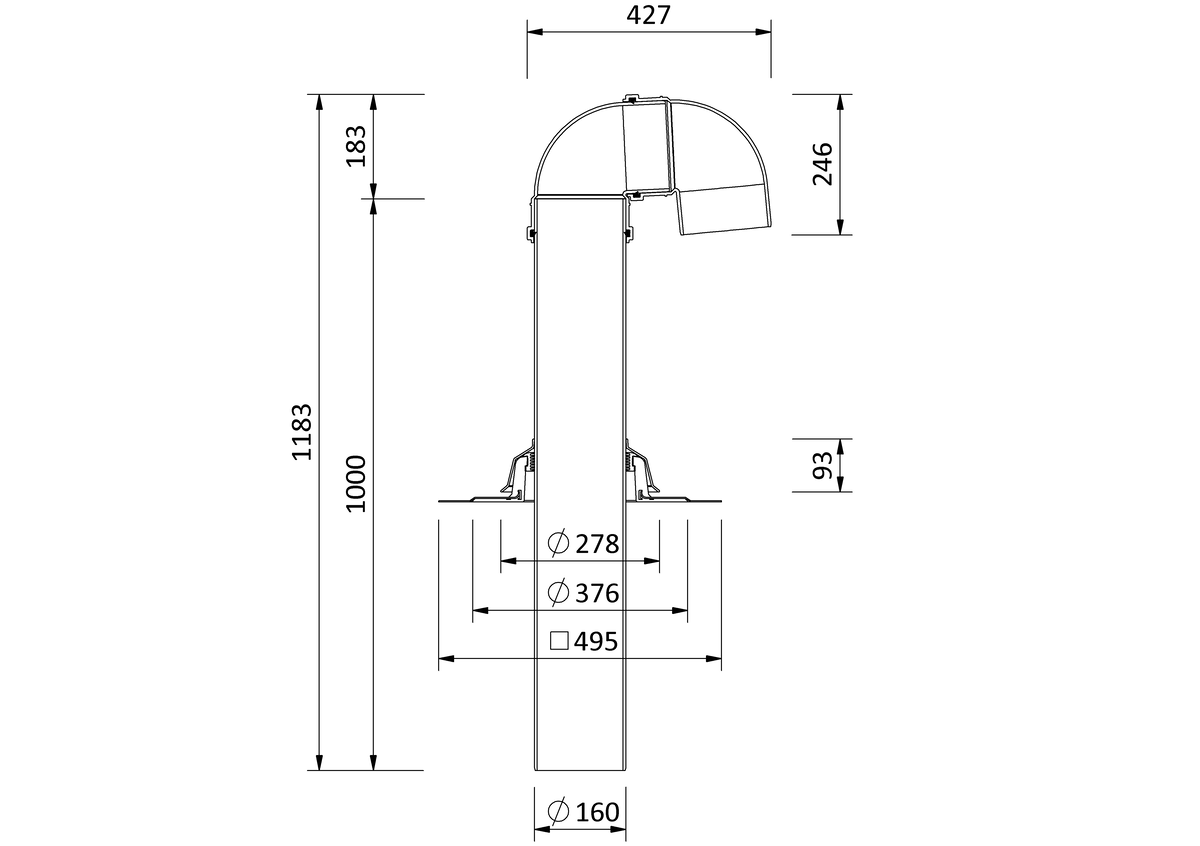

Technical drawing

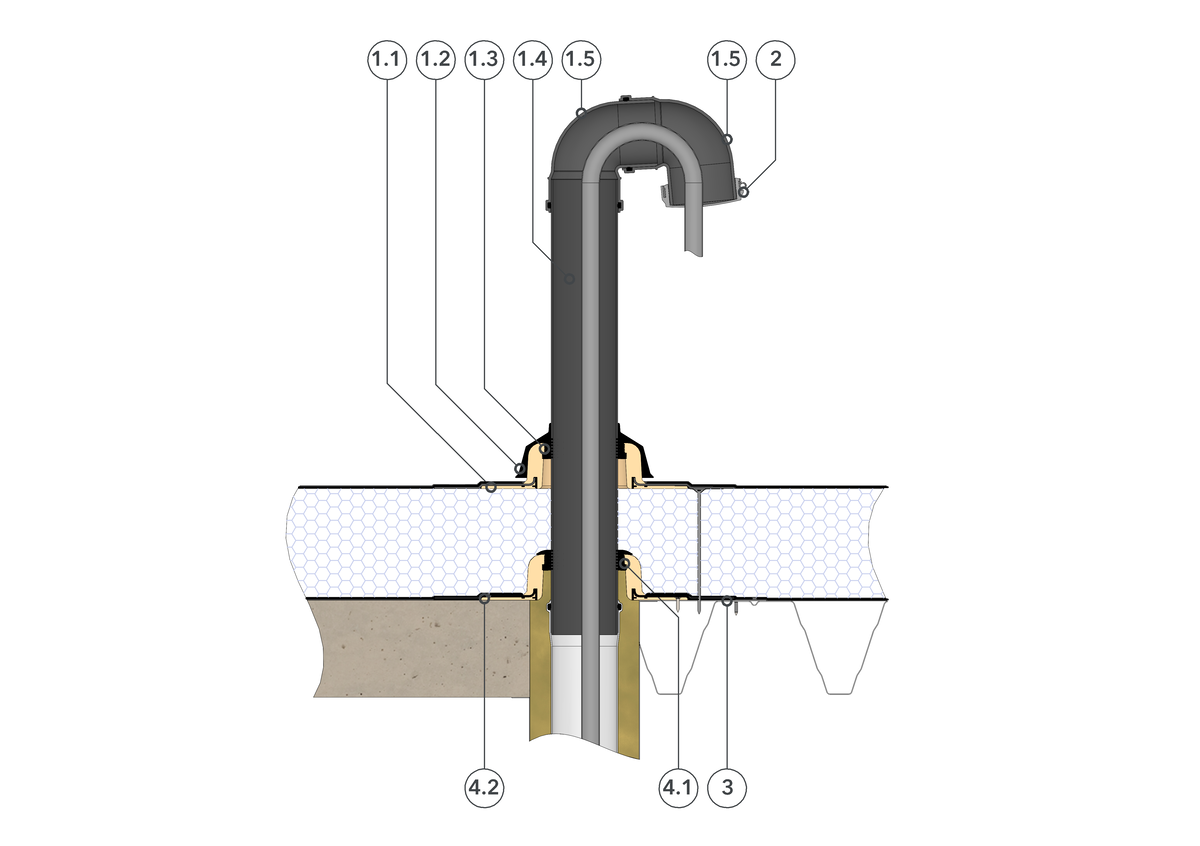

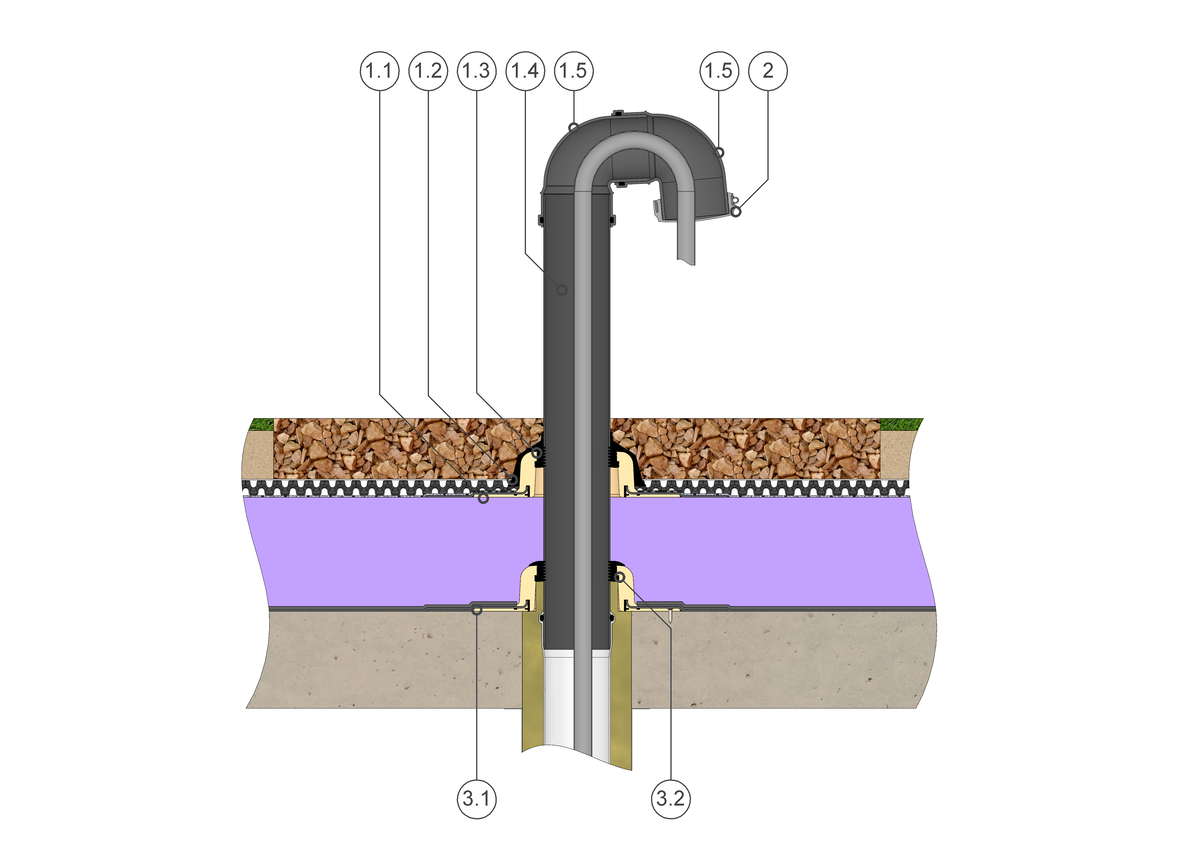

The SitaVent pipe lead-through is the secure roof connection for all cable and media lead-throughs on used and unused flat roofs. The base plate including the foamed-in connection sleeve of choice can cover almost every sealing connection. A multi-lip seal provides backflow protection up to a water column of 2m. The two removable 87.3° pipe bends also allow the cables/media to be retrofitted easily.
+
