SitaVent
Base plate insulating body
Attributes
- Pressure-resistant
- Stable dimensions
- Resistant to rotting

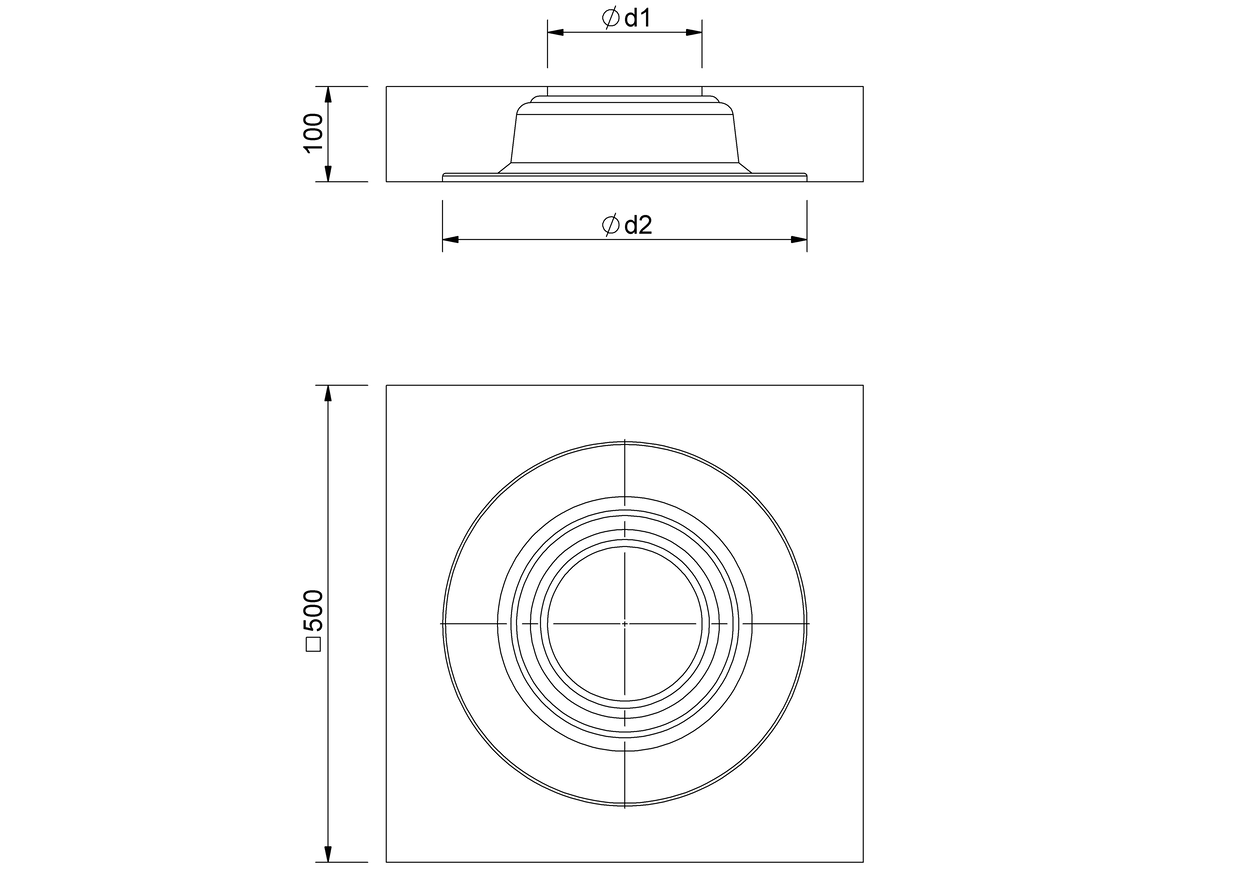

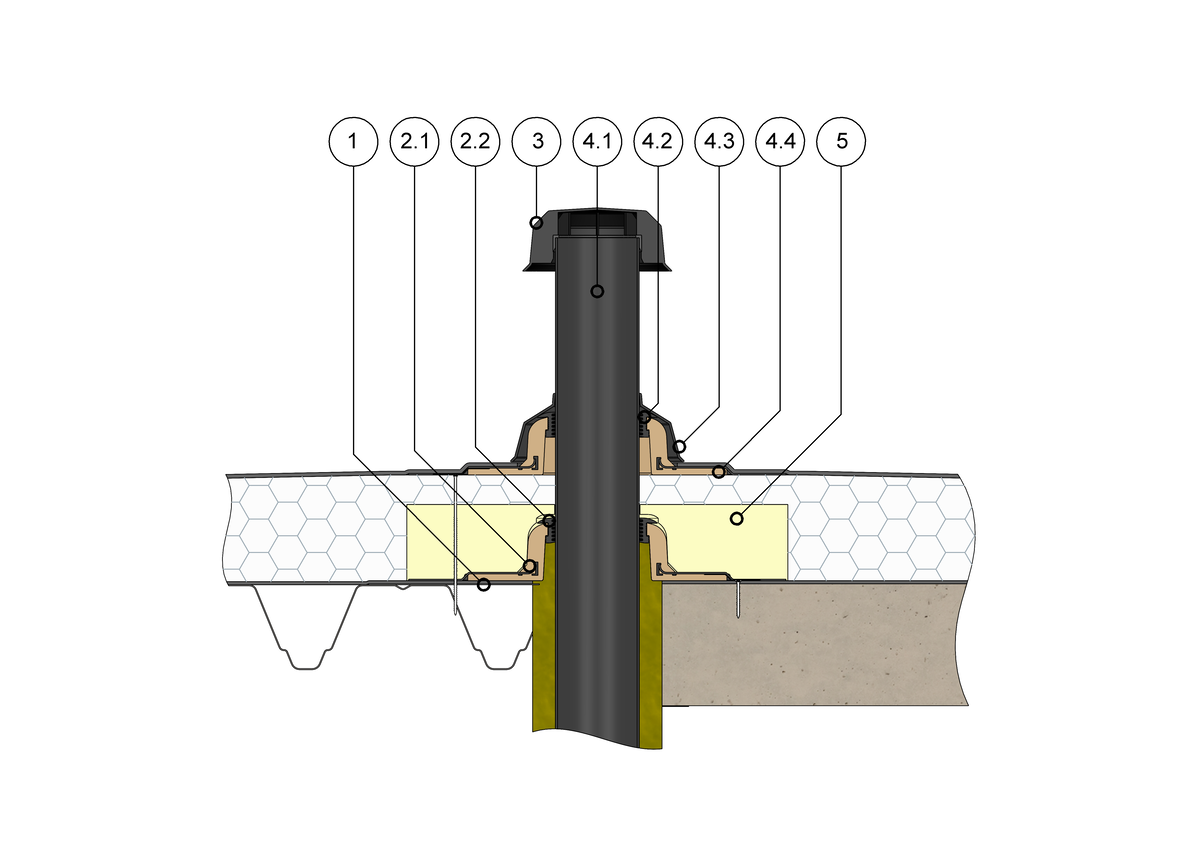

Technical drawing
| Size DN | a (mm) | d1 (mm) | d2 (mm) | d3 (mm) |
|---|---|---|---|---|
| 100 | 76 | 112 | 214 | 349 |
| 150 | 83 | 162 | 239 | 382 |
Accessories
Base plate insulating body
| Size DN | a (mm) | d1 (mm) | d2 (mm) | d3 (mm) |
|---|---|---|---|---|
| 100 | 76 | 112 | 214 | 349 |
| 150 | 83 | 162 | 239 | 382 |

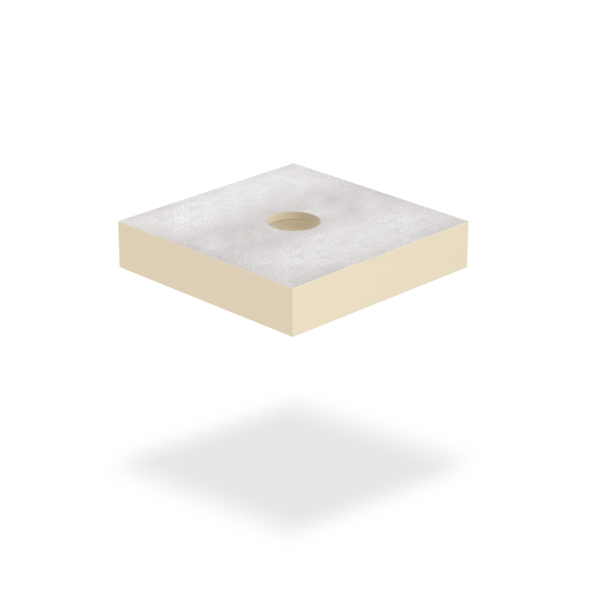

SitaVent base plate insulating body, made of polyurethane with aluminium cover layers, in size 500 x 500 x 100 mm, thermal conductivity lambda = 0.023 W/mK, compressive strength 120 kPa, to aid installation and for thermal insulation to prevent thermal bridges, supply and install to professional standards.
| SitaVent | Article no. | |||
|---|---|---|---|---|
Base plate insulating body | ||||
| DN 100 | SitaVent base plate DN 100 | 175498 | Show product | |
| DN 100 | SitaVent base plate DN 150 | 175898 | Show product |
