SitaDrain® Wood
Drainage
- Products
SitaDrain Wood
Drainage
Performance text
Installation Examples
MultiCAD und BIM-Daten
Downloads
PDF TechnischeZeichnung_222010_en.pdf
PDF TechnischeZeichnung_222011_en.pdf
PDF TechnischeZeichnung_222012_en.pdf
PDF TechnischeZeichnung_222013_en.pdf
PDF TechnischeZeichnung_222014_en.pdf
DWG TZ_DB_SitaDrain_Wood_Bubblerost.DWG
DWG TZ_DB_SitaDrain_Wood_Ellipsenrost.DWG
DWG TZ_DB_SitaDrain_Wood_Gitterrost.DWG
DWG TZ_DB_SitaDrain_Wood_Kreisrost.DWG
DWG TZ_DB_SitaDrain_Wood_Quadratrost.DWG
DWG TZ_DB_SitaDrain_Wood_Stegrost.DWG
Article selection
SitaDrain® Wood with grate insert, gutter and grate insert made of rust-proof stainless steel, material number 1.4301, with a material thickness of 1.5 mm, meets the requirements of load rating class K3 to DIN EN 1253-2, can be travelled over in a wheelchair, in the dimensions 150 mm x 1000 mm x 22 mm, suitable for used roof surfaces covered with timber, WPC, etc., directly laid on substructure on site, supply and install to professional standards.

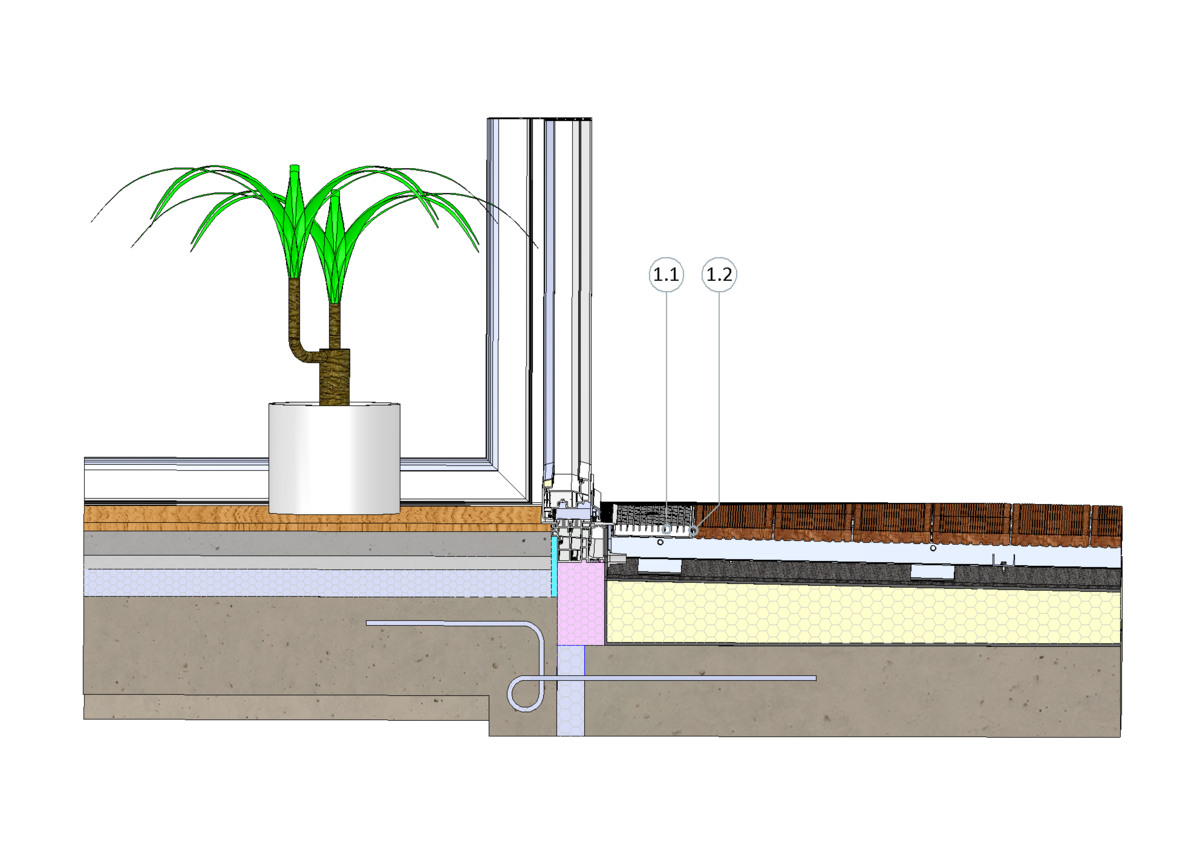

SitaDrain Wood in a non-ventilated roof structure with accessible threshold and timber board covering

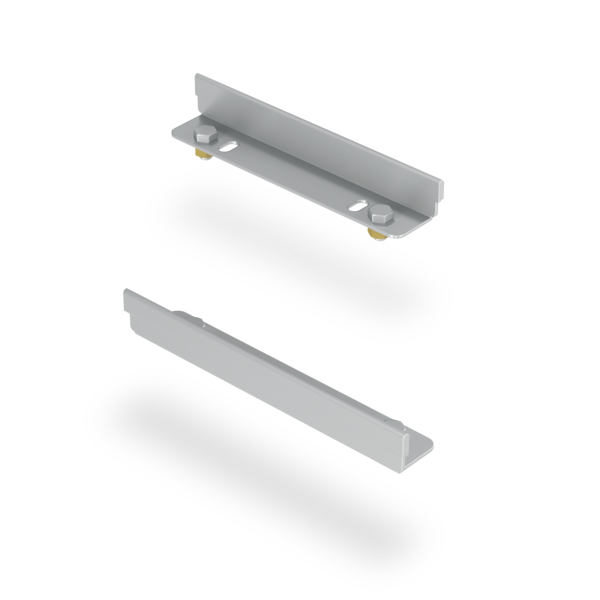

SitaDrain® Wood consisting of:
1.1 Inspection grate
1.2 Base body
1.1 Inspection grate
1.2 Base body
Non-ventilated roof structure with timber covering on aluminium substructure according to the general rules of engineering with:
- Wood decking
- Aluminium substructure according to system provider
- Building protection mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.

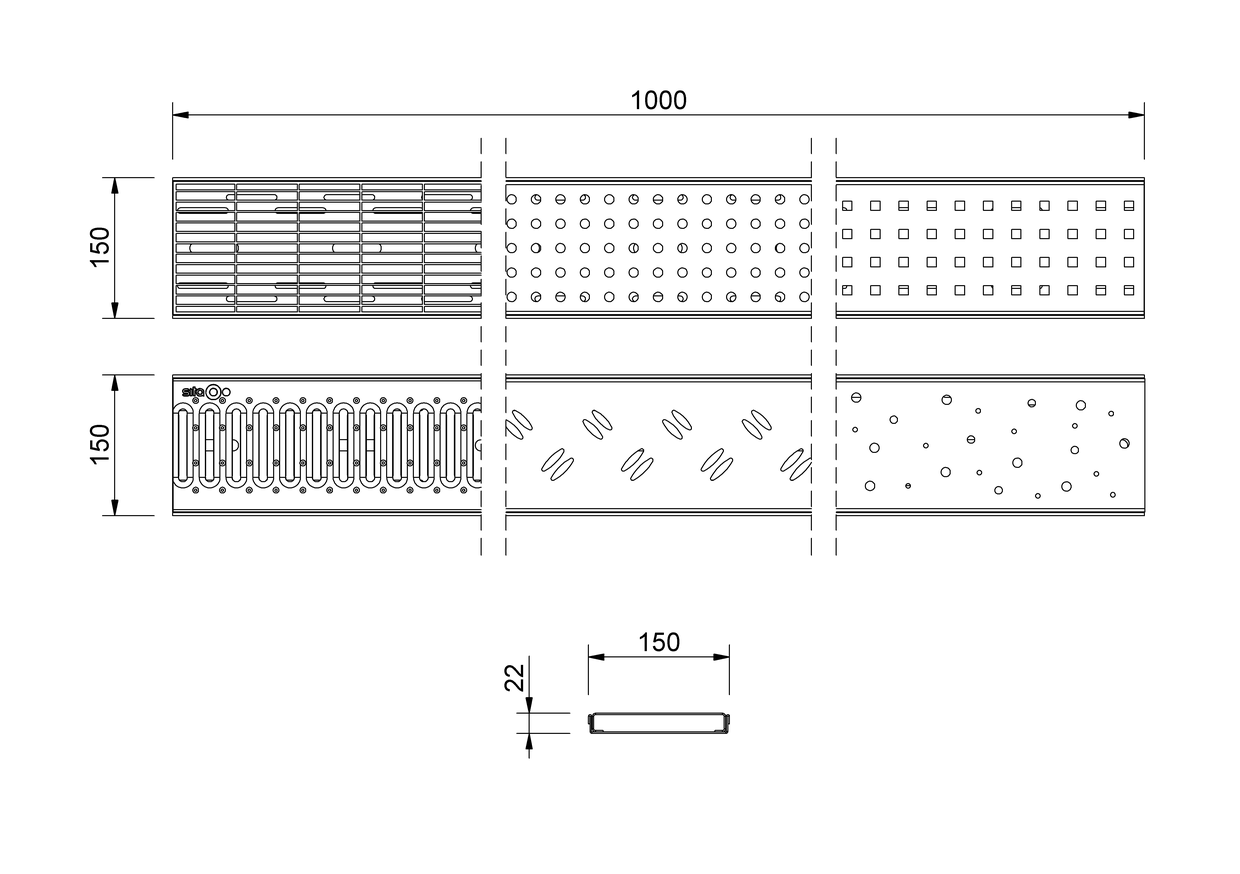

Technical drawings
PDF TechnischeZeichnung_222005_en.pdfPDF TechnischeZeichnung_222010_en.pdf
PDF TechnischeZeichnung_222011_en.pdf
PDF TechnischeZeichnung_222012_en.pdf
PDF TechnischeZeichnung_222013_en.pdf
PDF TechnischeZeichnung_222014_en.pdf
DWG TZ_DB_SitaDrain_Wood_Bubblerost.DWG
DWG TZ_DB_SitaDrain_Wood_Ellipsenrost.DWG
DWG TZ_DB_SitaDrain_Wood_Gitterrost.DWG
DWG TZ_DB_SitaDrain_Wood_Kreisrost.DWG
DWG TZ_DB_SitaDrain_Wood_Quadratrost.DWG
DWG TZ_DB_SitaDrain_Wood_Stegrost.DWG

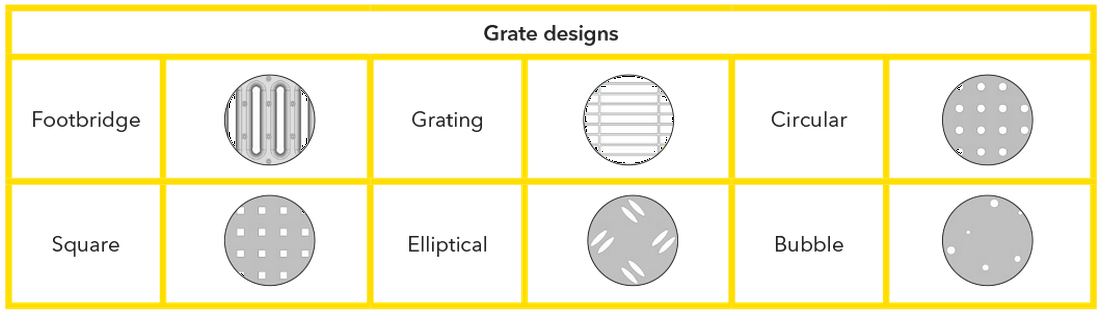

| SitaDrain® Wood | Article no. | |||
|---|---|---|---|---|
Rust-proof stainless steel | ||||
| grating | 22 mm | 222005 | Show product | |
| footbridge | 22 mm | 222010 | Show product | |
| circular design grating | 22 mm | 222011 | Show product | |
| square design grating | 22 mm | 222012 | Show product | |
| elliptical design grating | 22 mm | 222013 | Show product | |
| bubble design grating | 22 mm | 222014 | Show product |
+
