SitaMini
Balcony and terrace drainage rainwater outlet
Attributes
- Thermally insulated
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

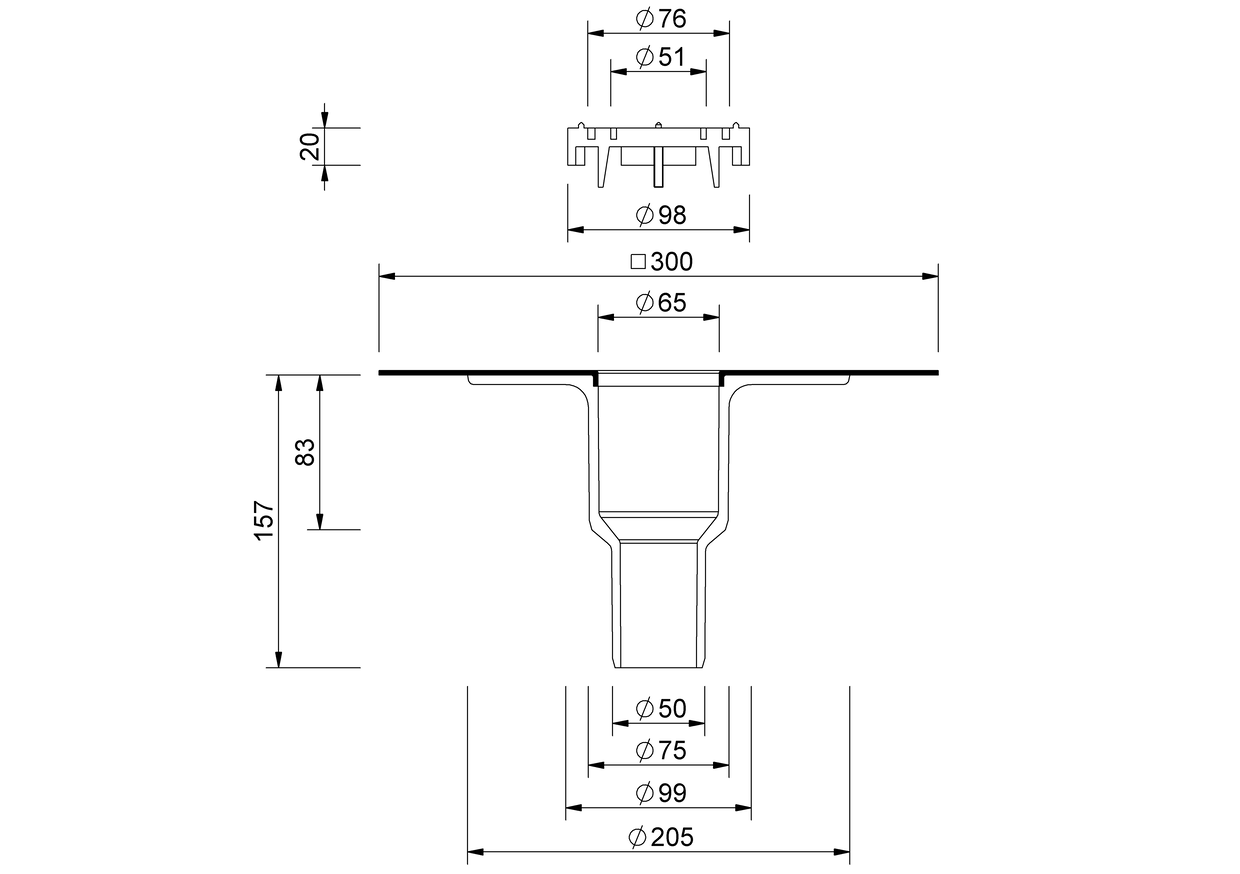

Technical drawing
| Size DN | External diameter OD (mm) | Opening/Core borehole (mm) |
|---|---|---|
| 50 / 70 | 50 | 99 |
Performance text
Installation Examples
Downloads
Article selection

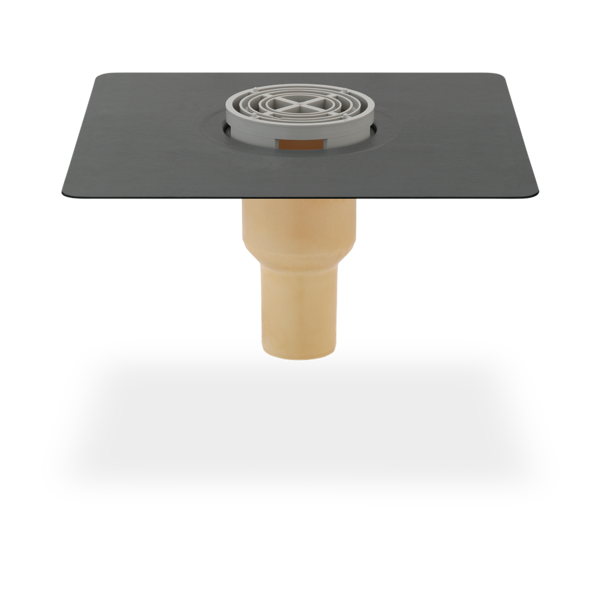

SitaMini balcony outlet, vertical, made of polyurethane, thermally insulated, two sizes in one: DN 50 and DN 70. With prefabricated foamed-in connection sleeve of choice (300 mm x 300 mm) to suit the roofing membrane, complete including round filter grille, supply and install to professional standards.

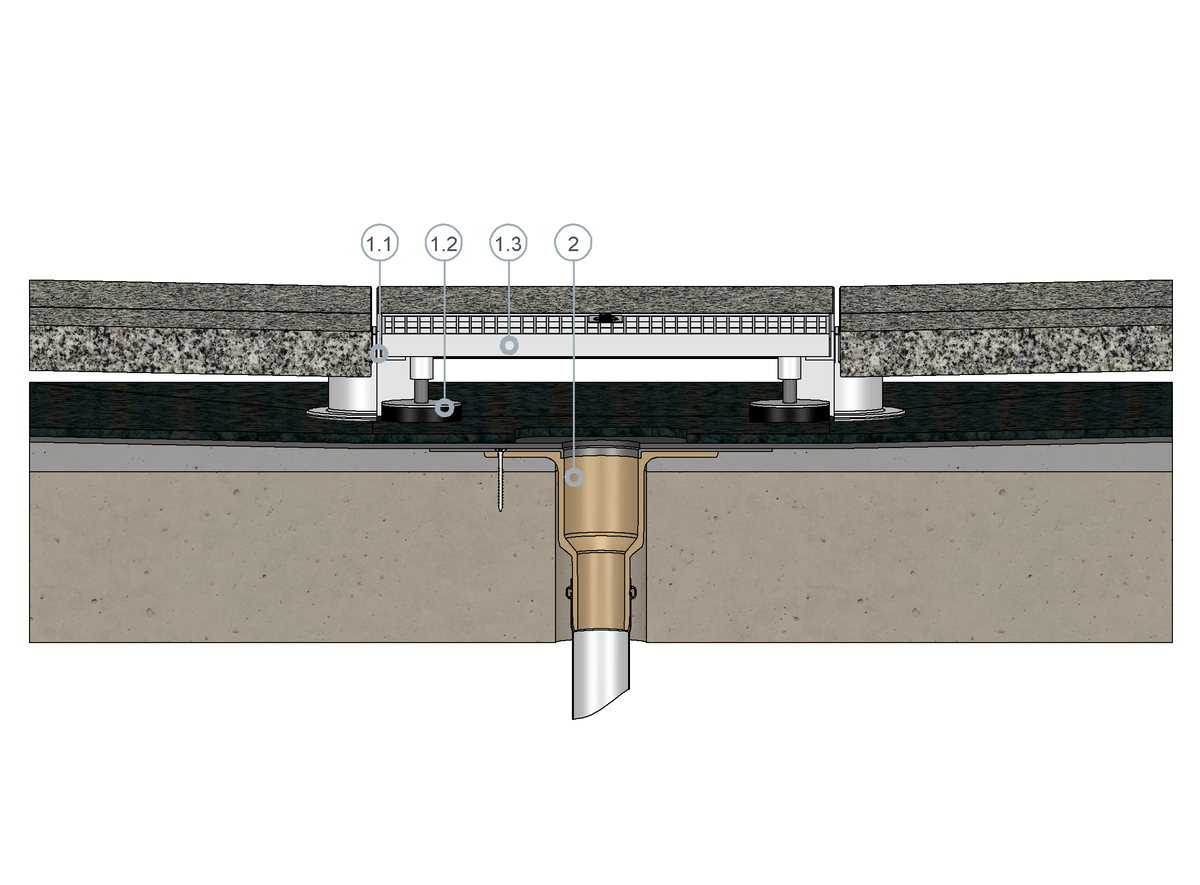

SitaMini and SitaDrain Terra in a ventilated roof structure with slab paving on support pads
SitaDrain® Terra consisting of:
1.1 Frame
1.2 Height-adjustable rubber-metal buffers
1.3 Inspection grate
2 SitaMini vertical
1.1 Frame
1.2 Height-adjustable rubber-metal buffers
1.3 Inspection grate
2 SitaMini vertical
Ventilated roof structure with slab paving on support pads to the general rules of engineering with:
- Slab paving on support pad
- Protective mat
- Sealing
- Sloping screed
- Substructure
+
