SitaSani® Disc
Refurbishment outlet
- Products
SitaSani Disc
Refurbishment outlet
Attributes
- Thermally insulated
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable
- Backflow safe up to a water column of 2 m

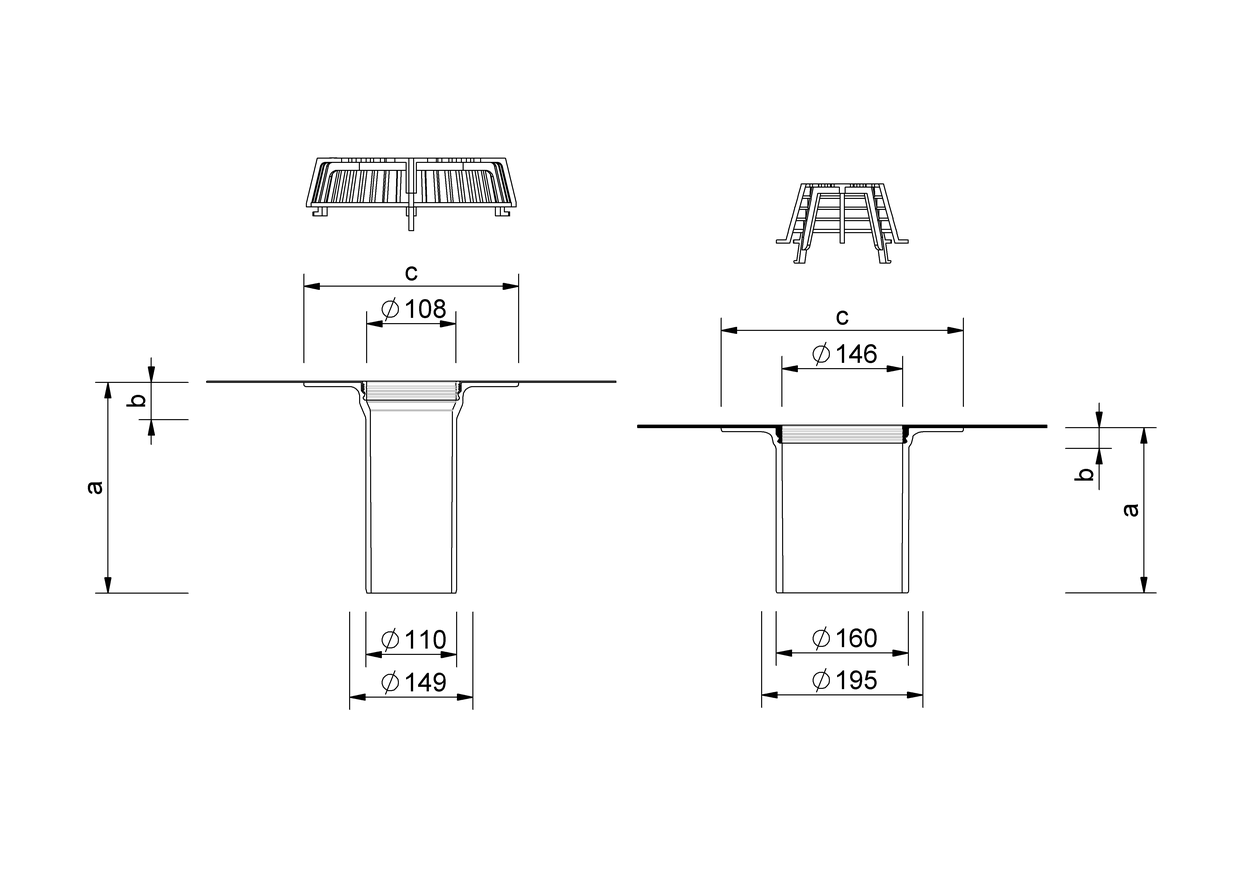

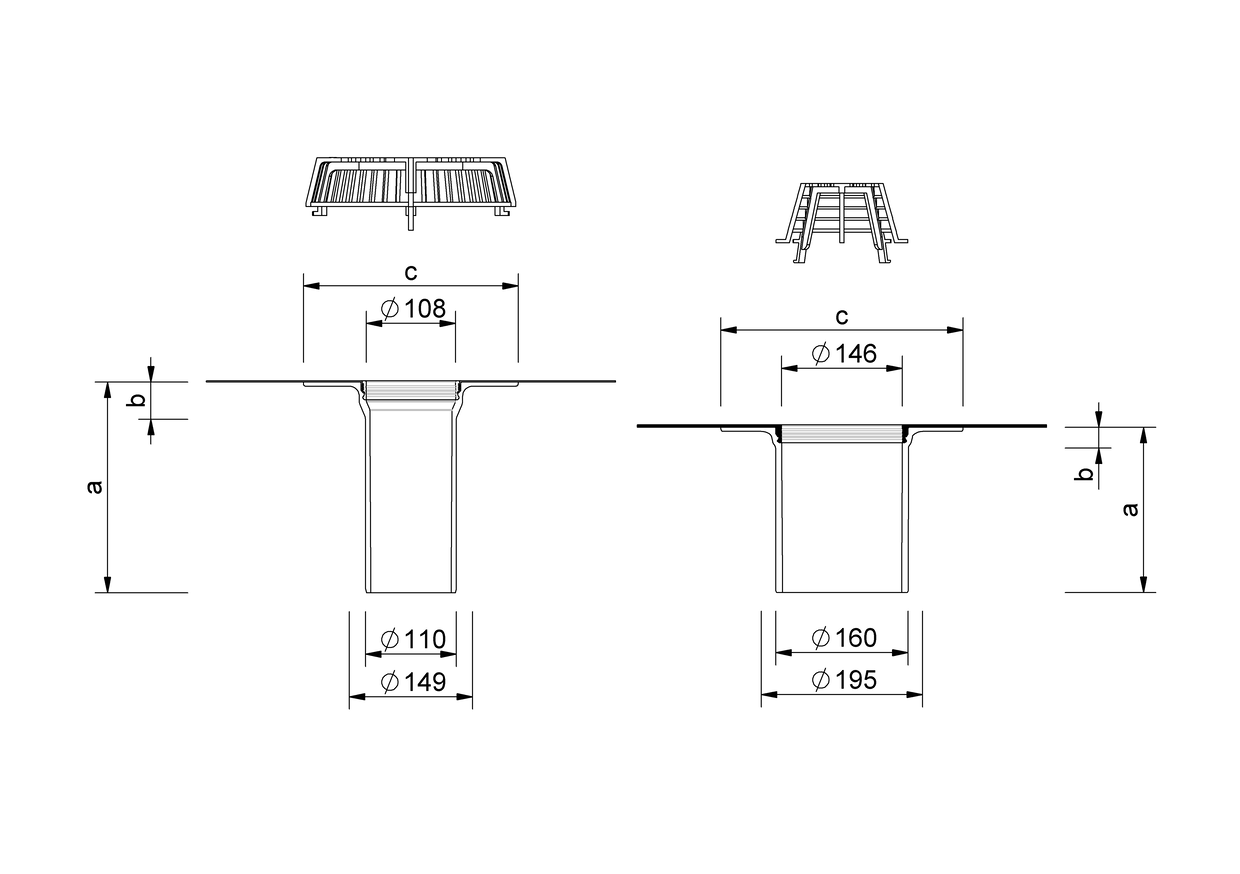

Technical drawing
| Size DN | External diameter OD (mm) | a (mm) | b (mm) | c (mm) | Bridging of thermal insulation min. (mm) | Bridging of thermal insulation max. (mm) |
|---|---|---|---|---|---|---|
| 110 | 110 | 255 | 45 | 260 | 90 | 230 |
| 160 | 160 | 200 | 25 | 293 | 70 | 210 |
Performance text
Installation Examples
Downloads
Article selection

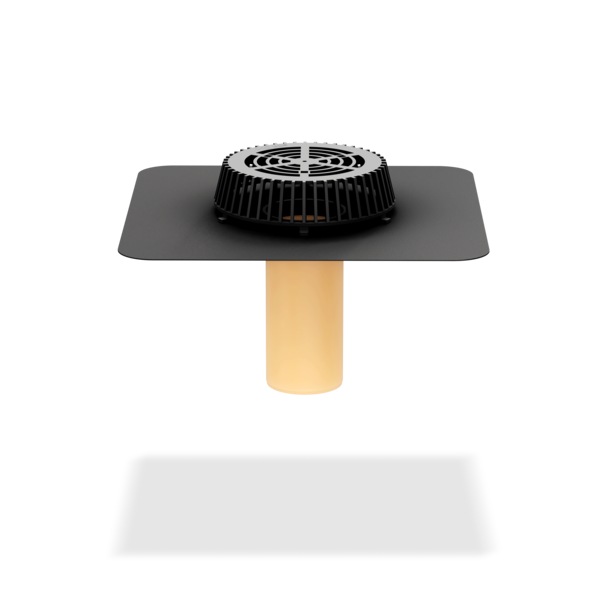

SitaSani® Disc extension unit, made of polyurethane, for bridging the thermal insulation. With large integrated connection sleeve (495 mm x 495 mm) for homogeneous connection to the roof waterproofing, with fixing ring for additional securing of the connection sleeve and for holding the dome grate. Supply complete, including dome grate, and install to professional standards.

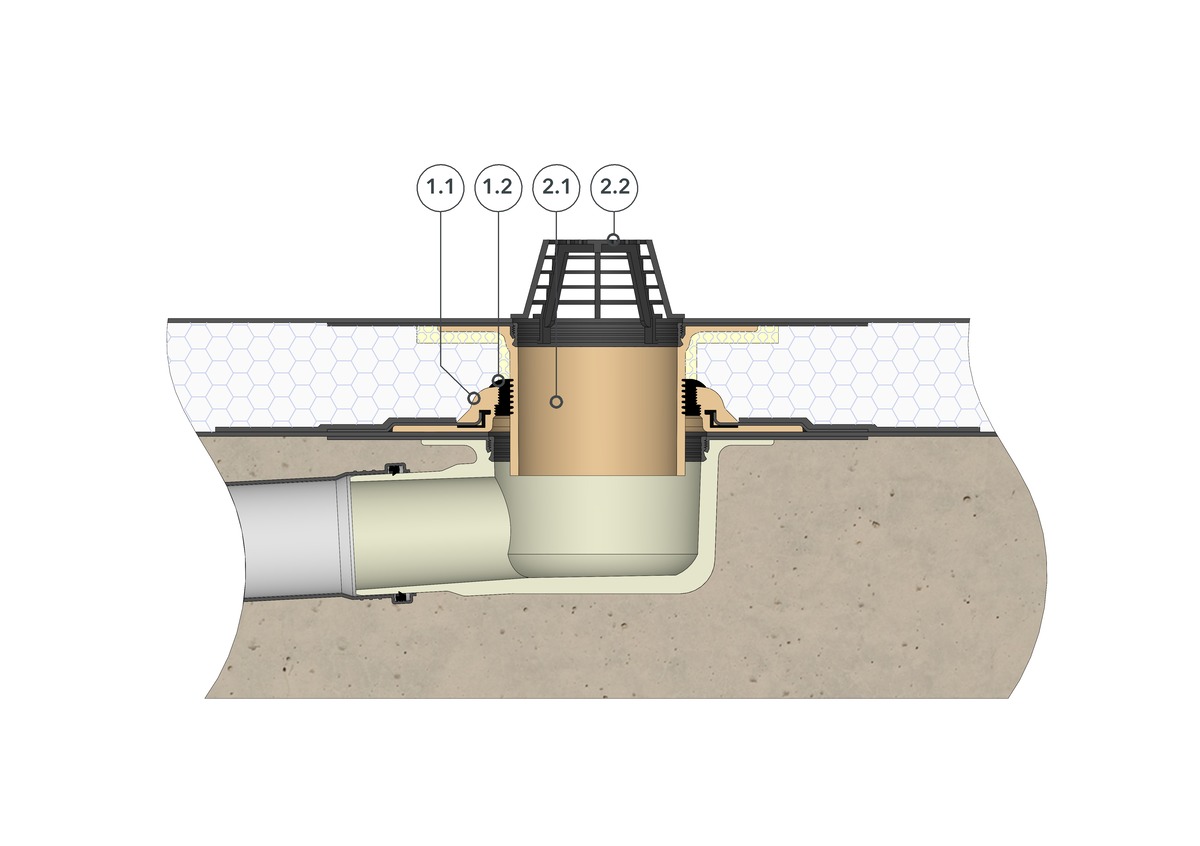

SitaSani® Disc and SitaSani® Disc extension unit for renovation in non-ventilated roof structures
SitaSani® Disc consisting of:
1.1 Base body with connection sleeve of choice
1.2 Sealing ring
1.3 Dome grate
SitaSani® Disc extension unit consisting of:
2.1 Base body with connection sleeve of choice
2.2 Dome grate
1.1 Base body with connection sleeve of choice
1.2 Sealing ring
1.3 Dome grate
SitaSani® Disc extension unit consisting of:
2.1 Base body with connection sleeve of choice
2.2 Dome grate
Non-ventilated roof structure to the general rules of engineering with:
- Waterproofing
- Thermal insulation
- Vapour barrier
- Substructure
