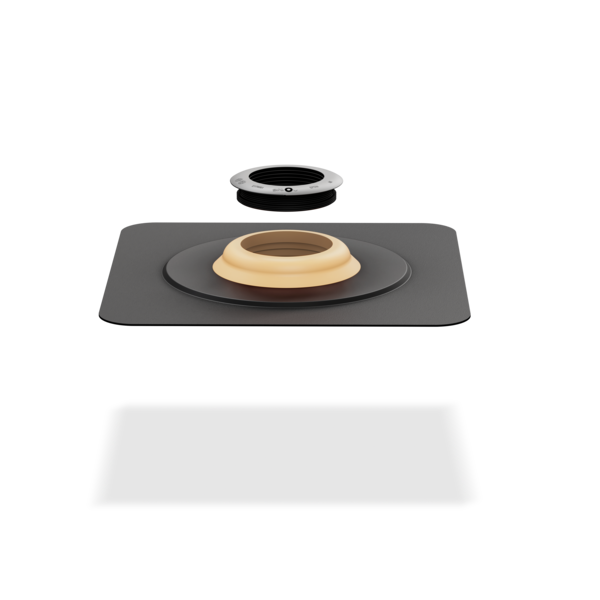

SitaSani® Disc
Refurbishment outlet
Attributes
- Thermally insulated
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable
- Backflow safe up to a water column of 2 m

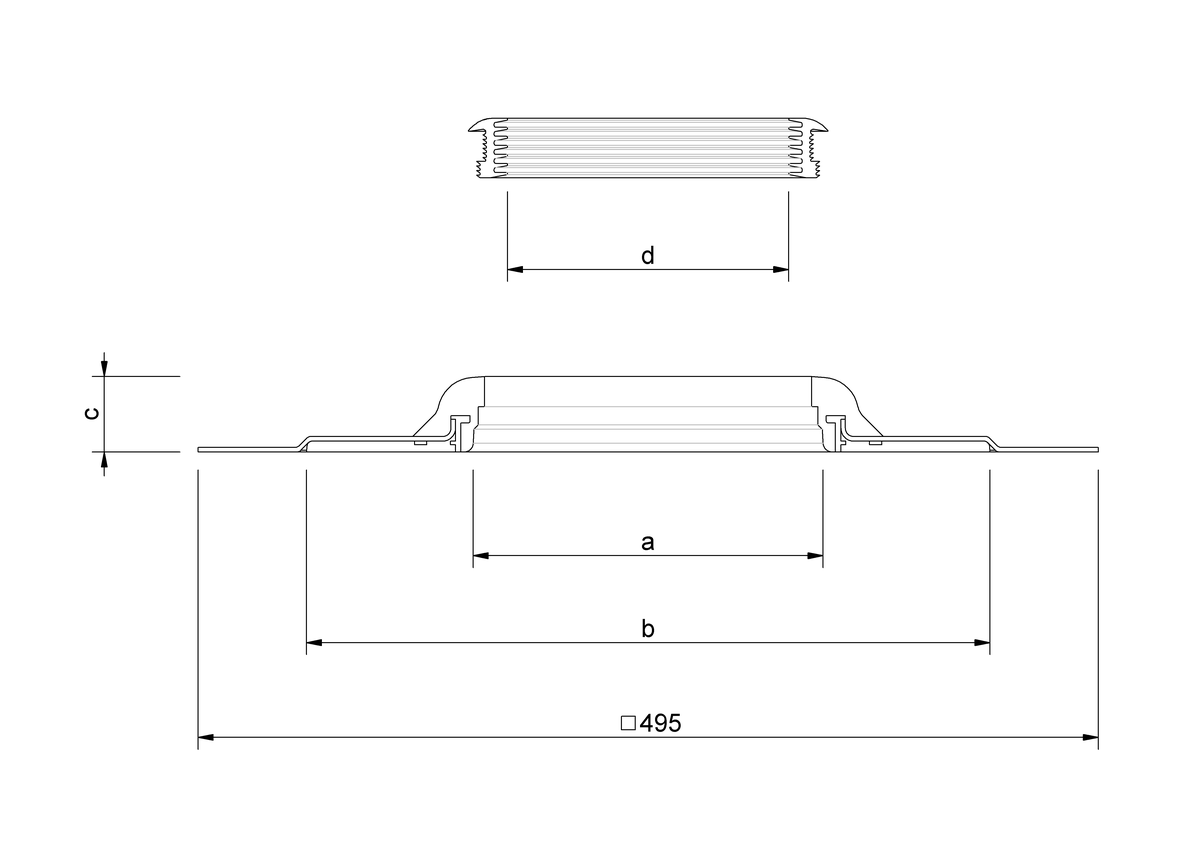

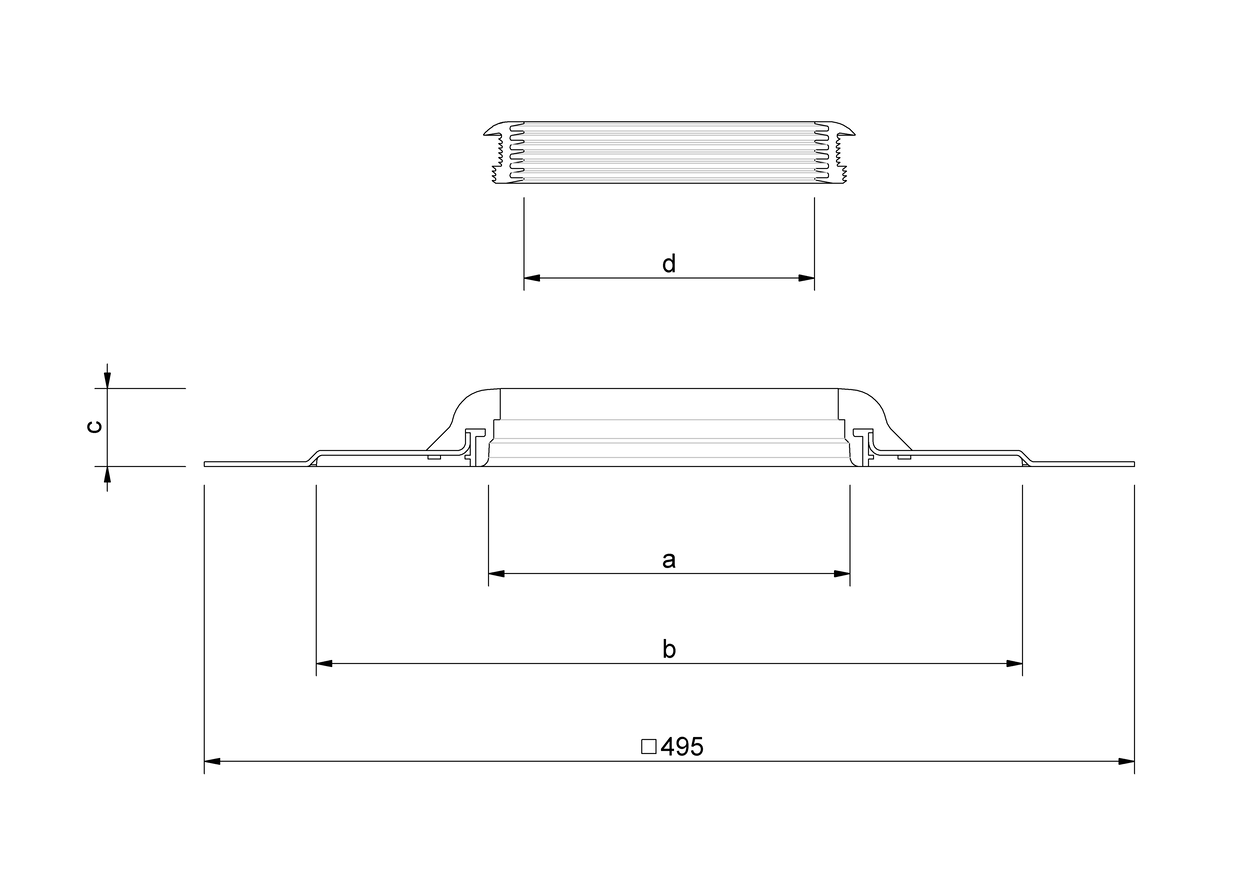

Technical drawing
| Size DN | a (mm) | b (mm) | c (mm) | d (mm) | Backflow safe for refurbishing internal diameters from– to (mm) with lip sealing ring |
|---|---|---|---|---|---|
| 110 | 141 | 340 | 42 | 105 | 112 - 170 |
| 160 | 193 | 376 | 42 | 155 | 162 -210 |
