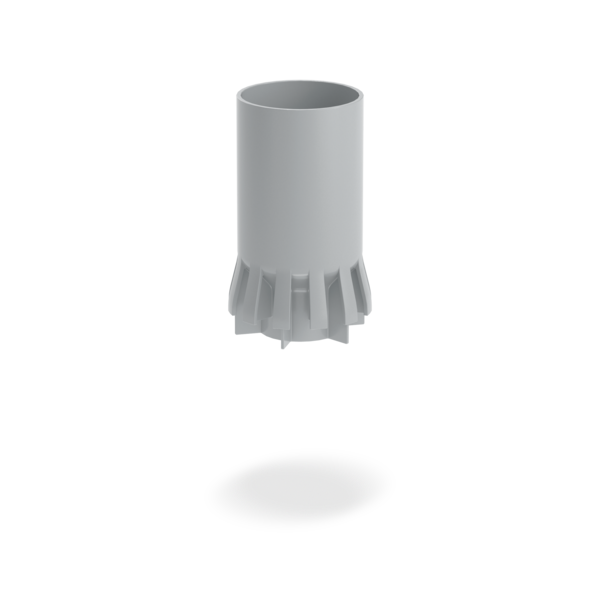

SitaCompact Fluid

Pipe holder

Foto_S_SitaCompact_Fluid_Rohraufnhame.tif

Attributes

Resistant to normal environmental influences
Impact and shock resistant
Durable
Used as a pipe holder in linear drainage

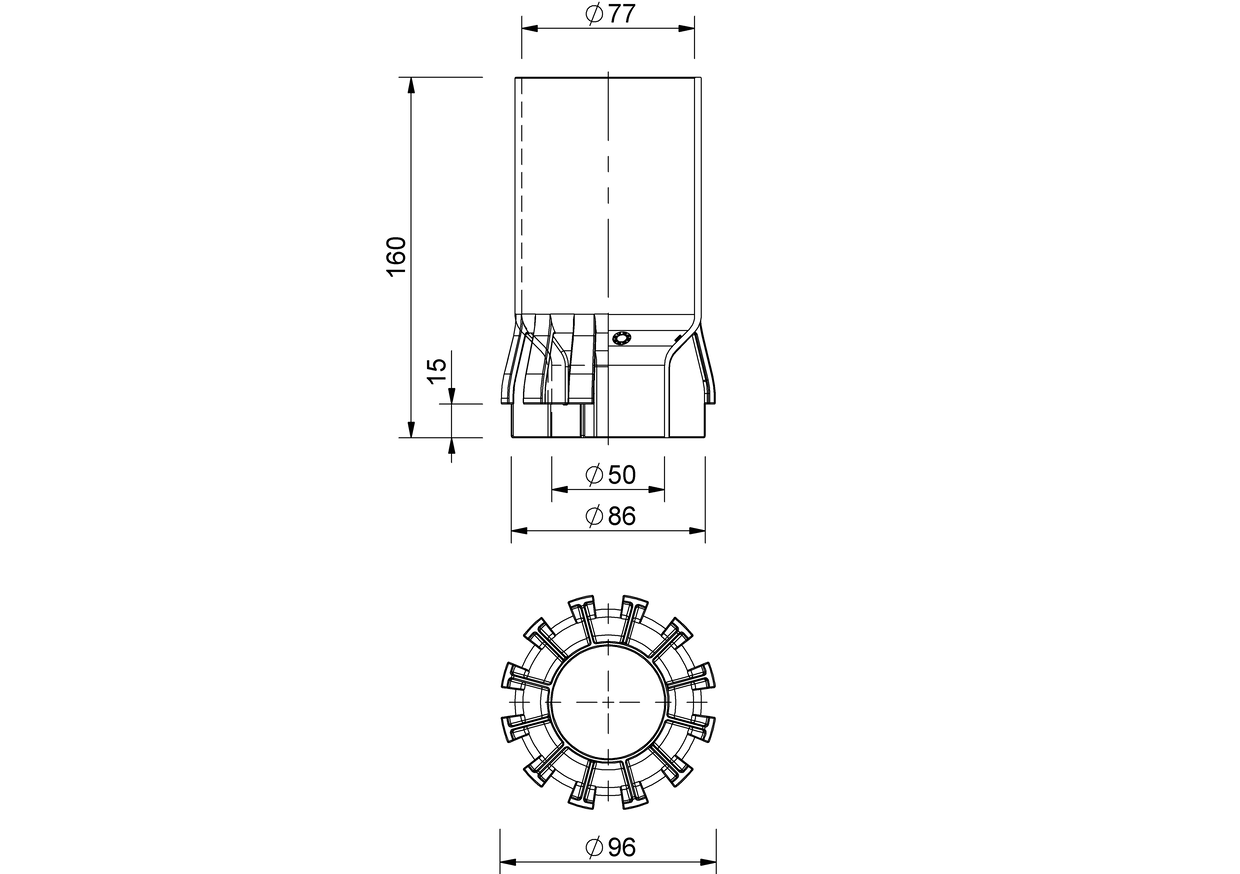

Technical drawing

Installation Examples

SitaCompact Fluid linear drainage for balconies with liquid applied waterproofing and slab paving

1 SitaPipe Edelstahl pipe
2 SitaAttika cladding cover plate
3 SitaCompact Fluid grating
4 SitaCompact Fluid
5 SitaCompact Fluid flat grate
6 SitaPipe Edelstahl pipe clamp
7 SitaCompact Fluid height compensation piece
8 SitaCompact Fluid pipe holder

Roof structure 1 with liquid applied waterproofing according to the general rules of engineering with:

Sealing with liquid applied waterproofing
Substructure

Roof structure 2 with liquid applied waterproofing according to the general rules of engineering with:

Slab paving
Protective mat
Sealing with liquid applied waterproofing
Substructure

SitaCompact Fluid linear drainage for balconies with liquid applied waterproofing

1 SitaAttika cladding cover plate
2 SitaCompact Fluid flat grate
3 SitaCompact Fluid grating
4 SitaCompact Fluid
5 SitaPipe Edelstahl pipe
6 SitaPipe Edelstahl pipe clamp
7 SitaCompact Fluid pipe holder

Roof structure 1 & 2 with liquid applied waterproofing according to the general rules of engineering with:

Sealing with liquid applied waterproofing
Substructure

Downloads

SitaCompact Fluid		Article no.
Pipe holder
Pipe holder	SitaCompact Fluid, SitaConcrete	199023	Show product
