SitaCompact

Extension unit

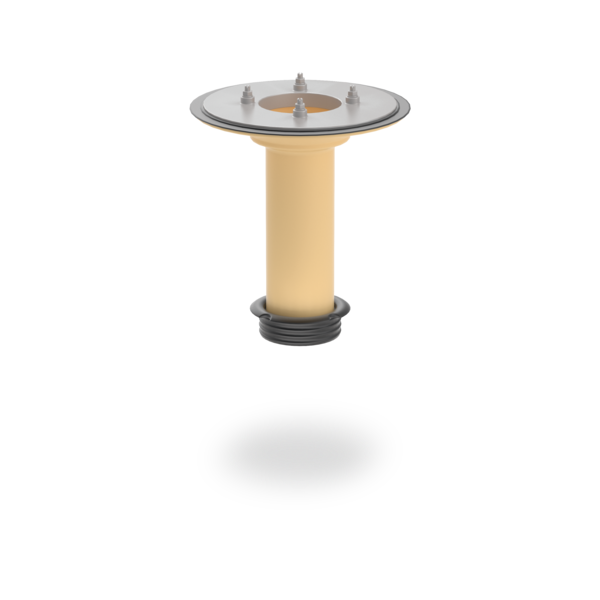

Foto_S_SitaCompact_Schraubflansch_Aufstockelement.tif

Attributes

Heat-insulated
Excellent resistance to weather (UV/IR radiation)
Resistant to normal environmental influences
Impact and shock resistant
Long lifespan

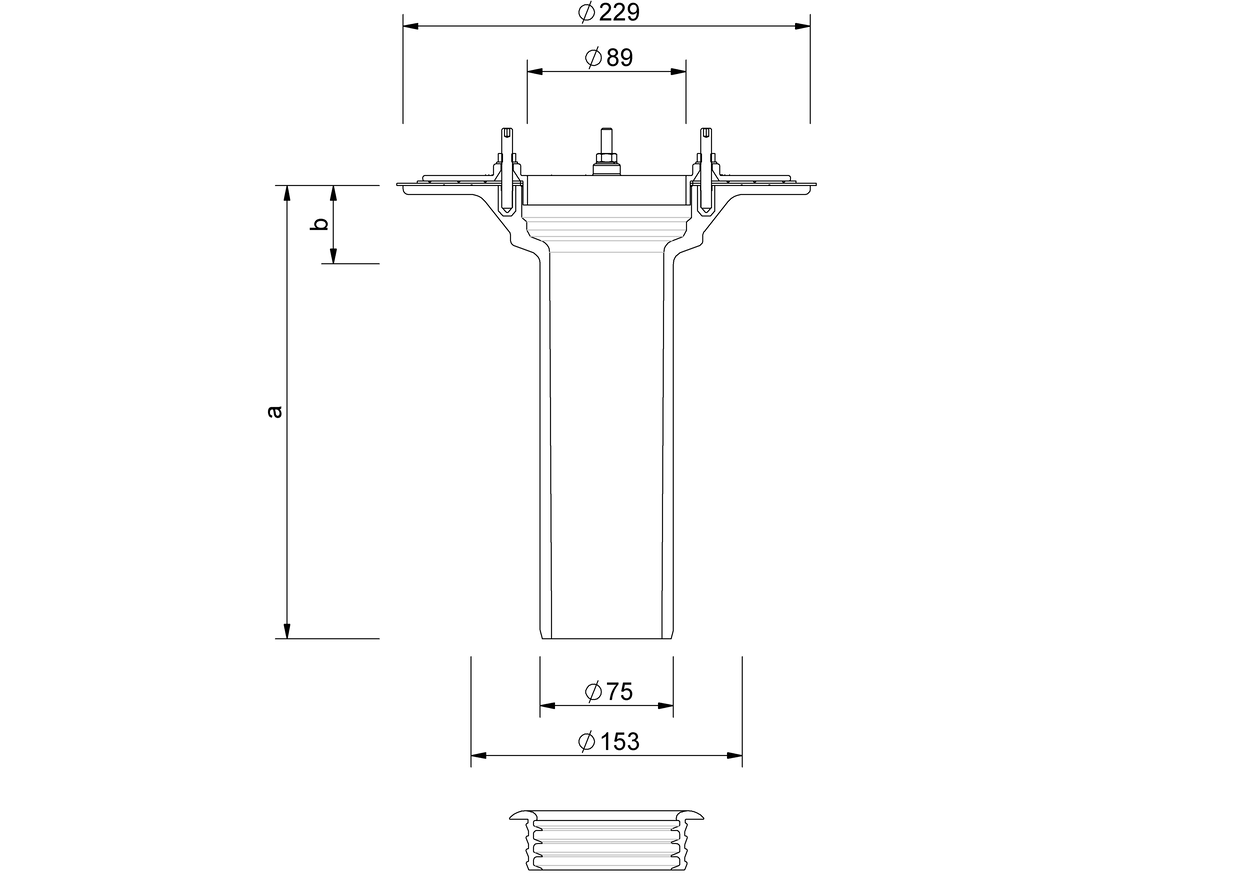

Technical drawing

a (mm)	b (mm)	Bridging of thermal insulation min. (mm)	Bridging of thermal insulation max. (mm)
255	44	50	220

Performance text

SitaCompact screw-on flange extension unit, made of polyurethane, thermally insulated, to DIN EN 1253-2, for SitaCompact balcony outlets, for bridging thermal insulation from 50 – 220 mm. With screw-on flange made of aluminium for clamping of bitumen, plastic or EPDM roofing membranes and foamed-in aluminium ring with four M6 threaded sleeves to hold the supplied threaded rods, with hexagon nuts and washers, including multi-lip sealing ring for backflow protection and two sealing sleeves, supply and install to professional standards.

Installation Examples

SitaCompact in a non-ventilated roof structure with SitaCompact balcony outlet grating and slab paving

1 SitaCompact insulating body
2 SitaCompact vertical

SitaCompact extension unit consisting of:
3.1 Sealing ring
3.2 Base body

SitaCompact balcony outlet grating consisting of:
4.1 End grate
4.2 Housing
4.3 Inlet filter grille

Non-ventilated roof structure with slab paving on support pads to the general rules of engineering with:

Slab paving on support pad
Protective mat
Sealing
Thermal insulation
Vapour barrier
Substructure

SitaCompact with retaining ring in a non-ventilated roof structure with slab paving

1 SitaCompact insulating body
2 SitaCompact vertical

SitaCompact extension unit consisting of:
3.1 Sealing ring
3.2 Base body

SitaCompact retaining ring consisting of:
4.1 Retaining ring
4.2 Sealing ring

SitaDrain® Terra consisting of:
5.1 Inspection grate
5.2 Height-adjustable rubber feet
5.3 Frame

6 SitaPipe Edelstahl pipe clamp
7 SitaPipe Edelstahl pipe
8 SitaPipe Edelstahl bend
9 SitaPipe Edelstahl safety clamp

Non-ventilated roof structure with slab paving on support pads to the general rules of engineering with:

Slab paving on support pad
Protective mat
Sealing
Thermal insulation
Vapour barrier
Substructure
