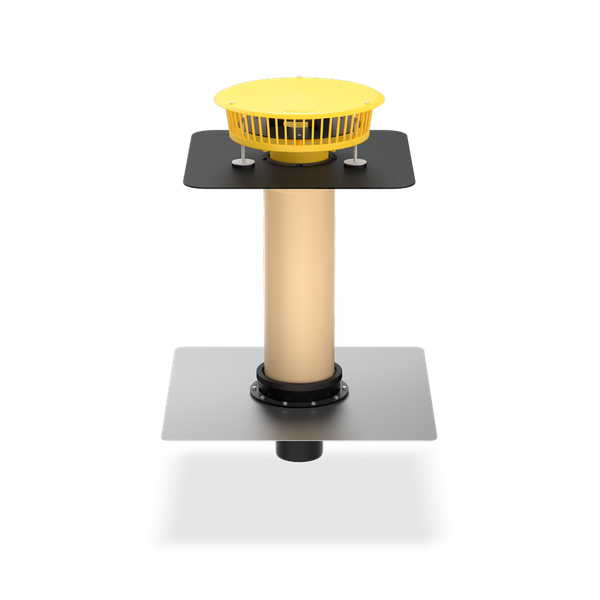

SitaDSS Fireguard®
Fire protection outlet
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

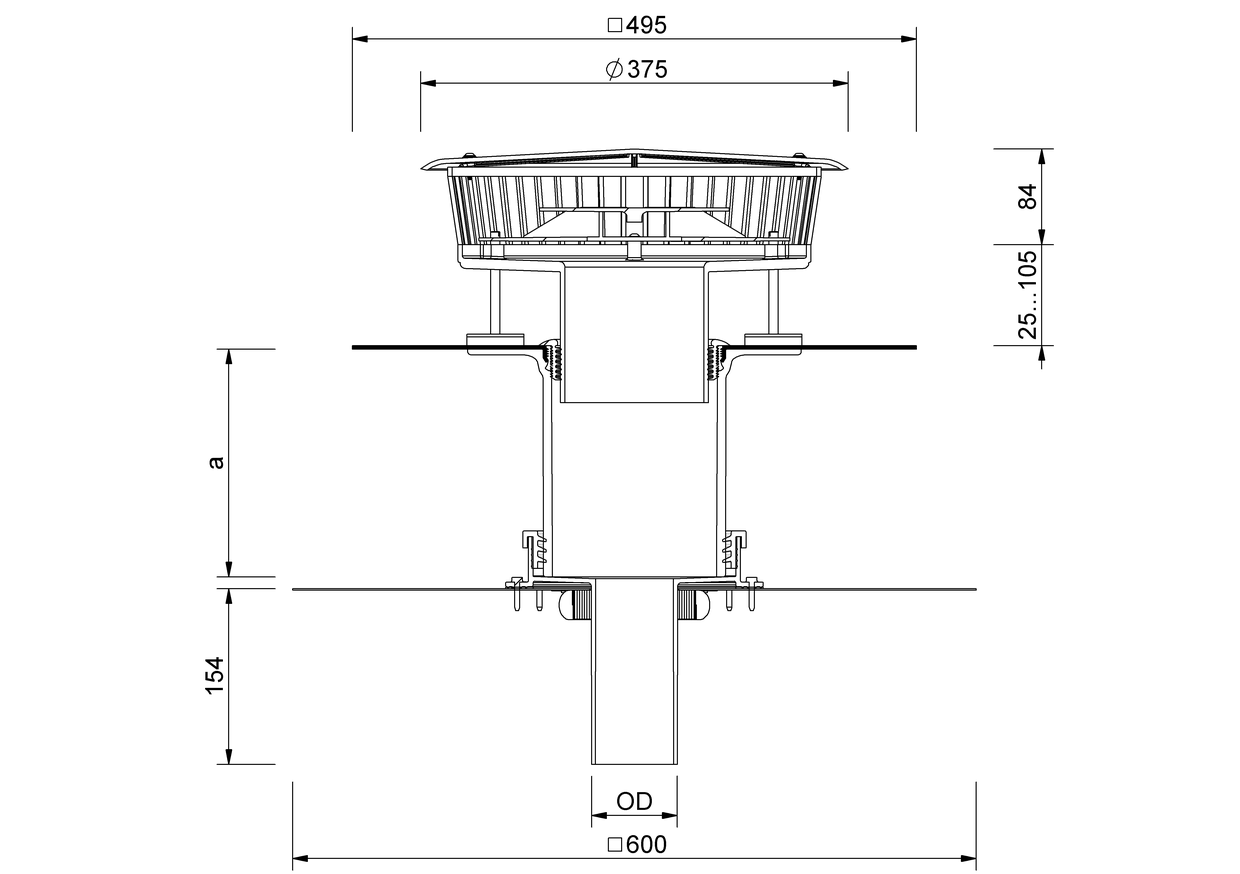

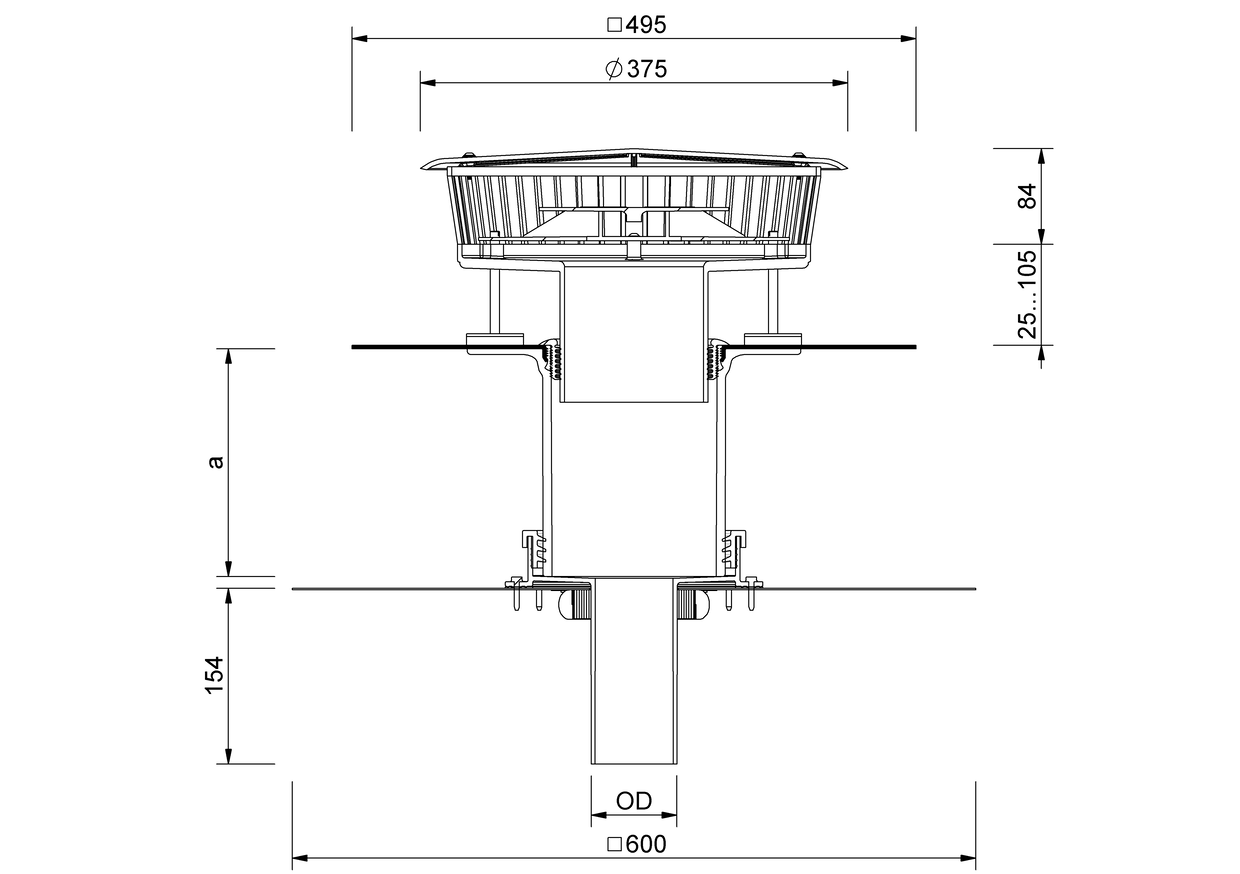

Technical drawing
| Size DN | External diameter OD (mm) | Opening/Core borehole (mm) | Recess dimension (mm x mm) | a (mm) | Bridging of thermal insulation min. (mm) | Bridging of thermal insulation max. (mm) | Height adjustment min (mm) | Height setting, max (mm) |
|---|---|---|---|---|---|---|---|---|
| 70 | 75 | 185 | 150 x 150 | 200 | 65 | 210 | 25 | 105 |
| 70 | 75 | 185 | 150 x 150 | 550 | 105 | 570 | 25 | 105 |
SitaDSS Fireguard® with retaining element, DN 70, for preventive fire protection and to prevent the spread of fire from below where there are small penetrations according to DIN 18234 Part 3 and 4, in two parts, consisting of: PE base body with collar for fixing to the reinforcement plate and for clamping the vapour barrier, to DIN EN 1253-2, retaining height. Including extension unit for insulating material thicknesses from 65 mm to 210 mm or 105 mm to 570 mm made of PUR with large connection sleeve of choice and retaining element with Airstop. For direct connection to PE pipes (butt welding or with electrofusion socket), for siphonic drainage, with a sealing sleeve and a reinforcement plate to DIN EN 1090-4, with pre-assembled fire protection sleeve, supply complete and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70 | 0.7 | 1.9 | 3 | 4.3 | 5.5 | 8.1 | 10.7 | 13.7 | 16.7 | 16.9 | 17.1 | 17.2 | 17.3 | 17.4 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| 70 | 0.7 | 1.9 | 3 | 4.3 | 5.5 | 8.1 | 10.7 | 13.7 | 16.7 | 16.9 | 17.1 | 17.2 | 17.3 | 17.4 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |

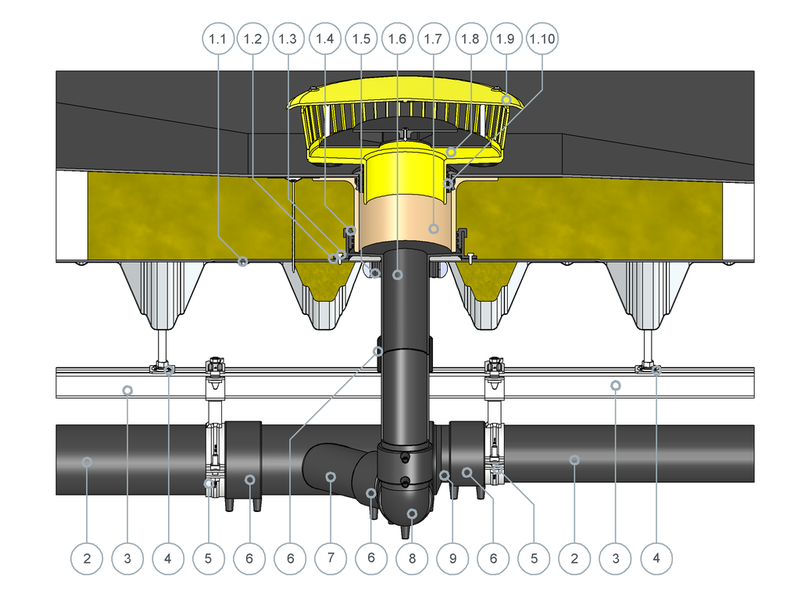

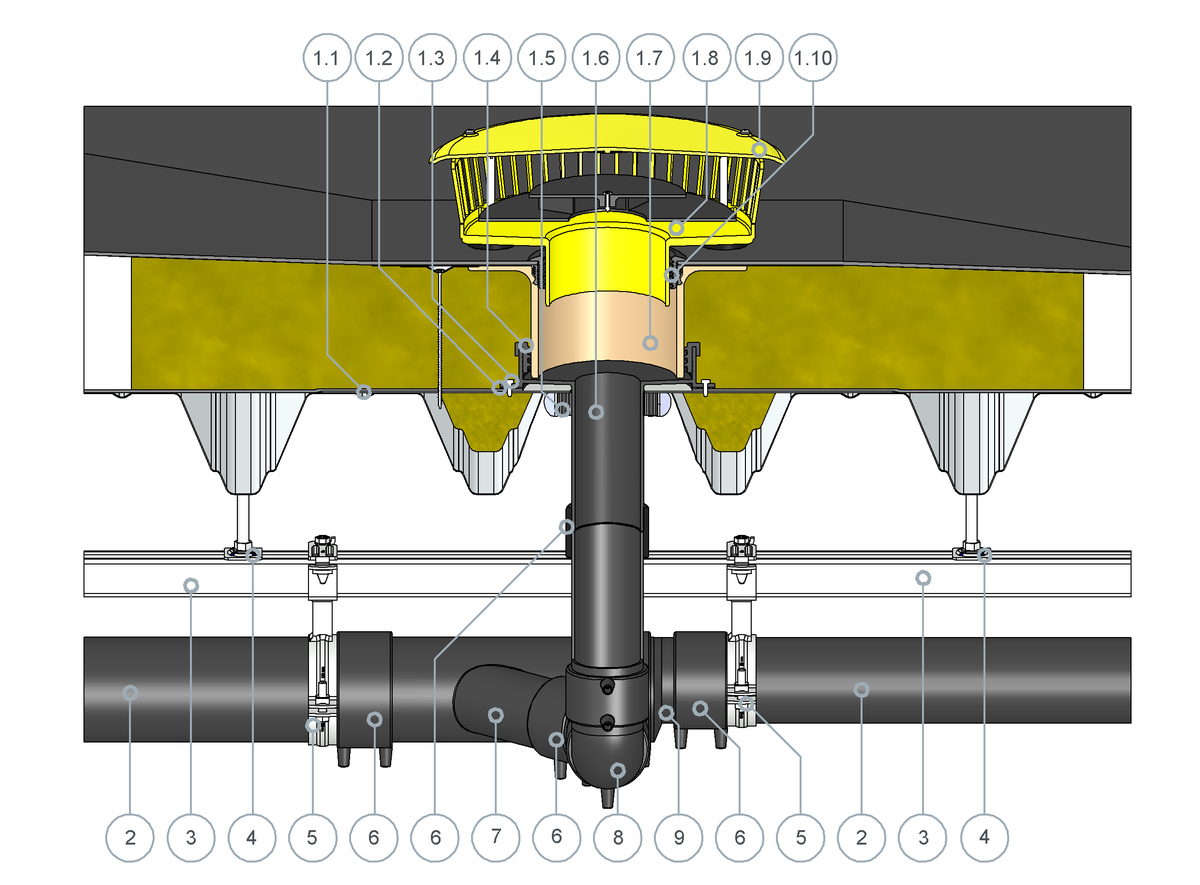

SitaDSS Fireguard® for emergency drainage in a non-ventilated roof structure
1.1 Reinforcement plate
1.2 Sealing sleeve
1.3 Self-tapping screw
1.4 Seal
1.5 Fire protection sleeve
1.6 PE base body
1.7 Extension unit
1.8 Retaining element base body
1.9 Retaining element cover
1.10 Retaining element fastening ring
2 SitaPipe PE pipe
3 SitaDSS Rail mounting rail
4 SitaDSS Rail suspension unit rigid
5 SitaDSS clamp fastening unit
6 SitaPipe PE electrofusion socket
7 SitaPipe PE branch 45°
8 SitaPipe PE bend 88.5°
9 SitaPipe PE reduction piece
- Sealing
- Thermal insulation non-flammable, min. 1.0 m x 1.0 m
- Vapour barrier

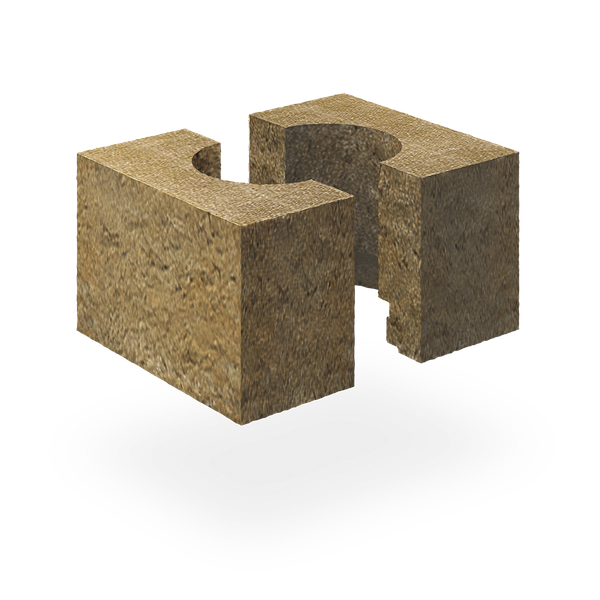

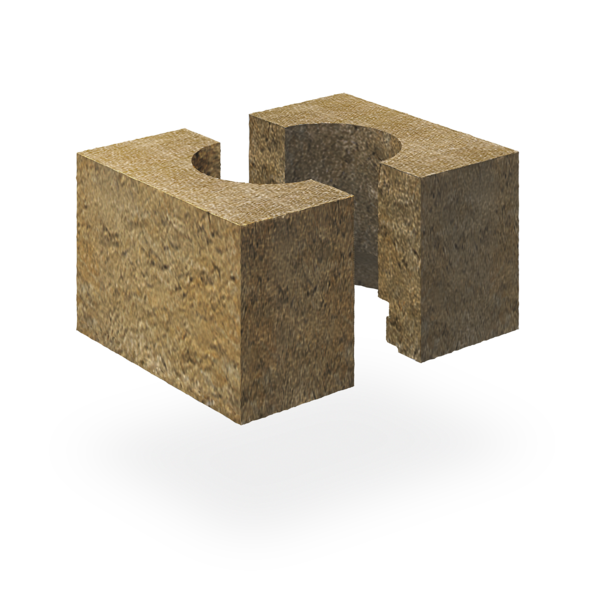

- Non-flammable section fillers
- Steel trapezoidal section
