SitaDSS Multi

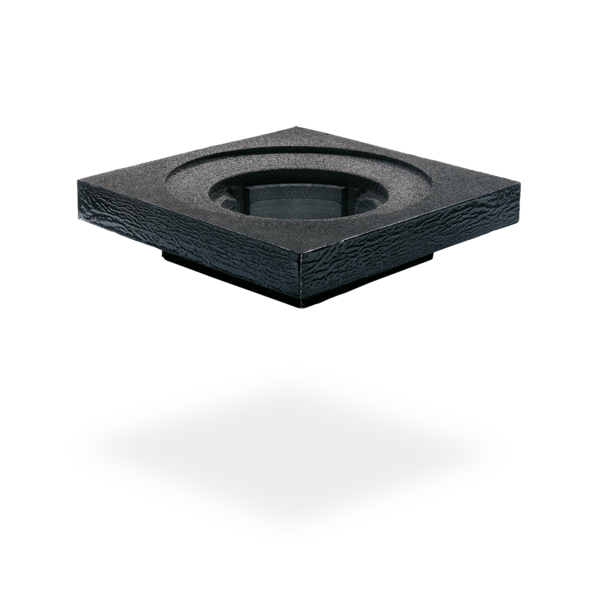

Insulating body for rainwater outlet

Foto_S_SitaDSS_Multi_Daemmkoerper_Gully.tif

Attributes

Water-tight
Steam-tight
Non-combustible
Resistant to pests
Pressure-resistant
Maintains dimensions
Acid-resistant

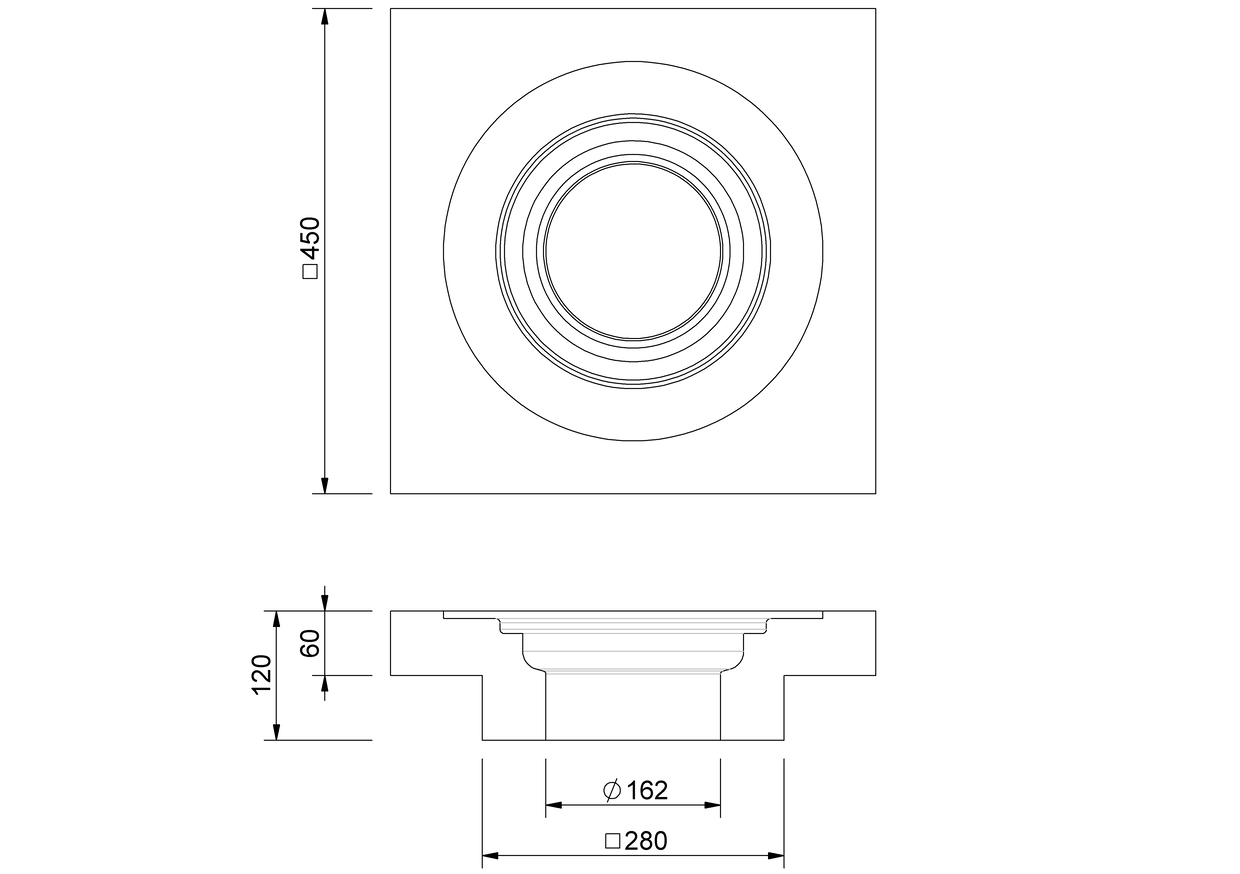

Technical drawing

SitaDSS Multi insulating blocks for outlet, made of cellular glass, dimensions 450 mm x 450 mm x 120 mm, rated thermal conductivity λʙ = 0.046 W/mK, compressive strength 900 kPa. For thermal insulation of the SitaDSS Multi roof outlet in the concrete ceiling. Can be used as concealed formwork for concreting, supply and install to professional standards.

Installation Examples

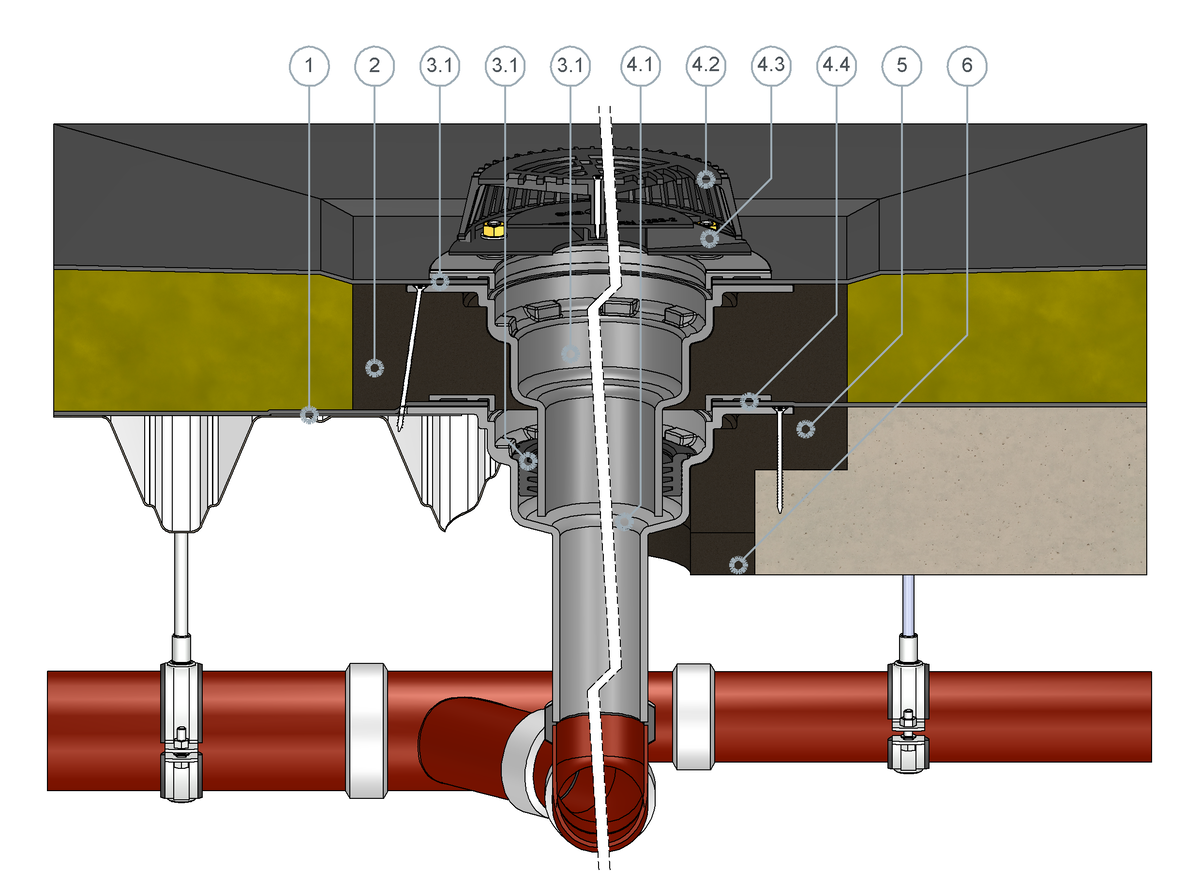

SitaDSS Multi in a non-ventilated roof structure

1 SitaMore reinforcement plate
2 SitaDSS Multi insulating body for extension unit

SitaDSS Multi extension unit consisting of:
3.1 Screw-on flange, nuts and sealing sleeves
3.2 Sealing ring
3.3 Base body

SitaDSS Multi consisting of:
4.1 Base body
4.2 Dome grate
4.3 Airstop
4.4 Screw-on flange, nuts and sealing sleeves

5 SitaDSS Multi insulating body for outlet
6 SitaDSS Multi compensating ring

Non-ventilated roof structure to the general rules of engineering with:

Waterproof membrane
Thermal insulation
Vapour barrier
Substructure
