SitaDSS Profi
Insulating body for extension element
- Products
Accessories
Insulating body for extension element
Attributes
- Pressure-resistant
- Stable dimensions
- Resistant to rotting

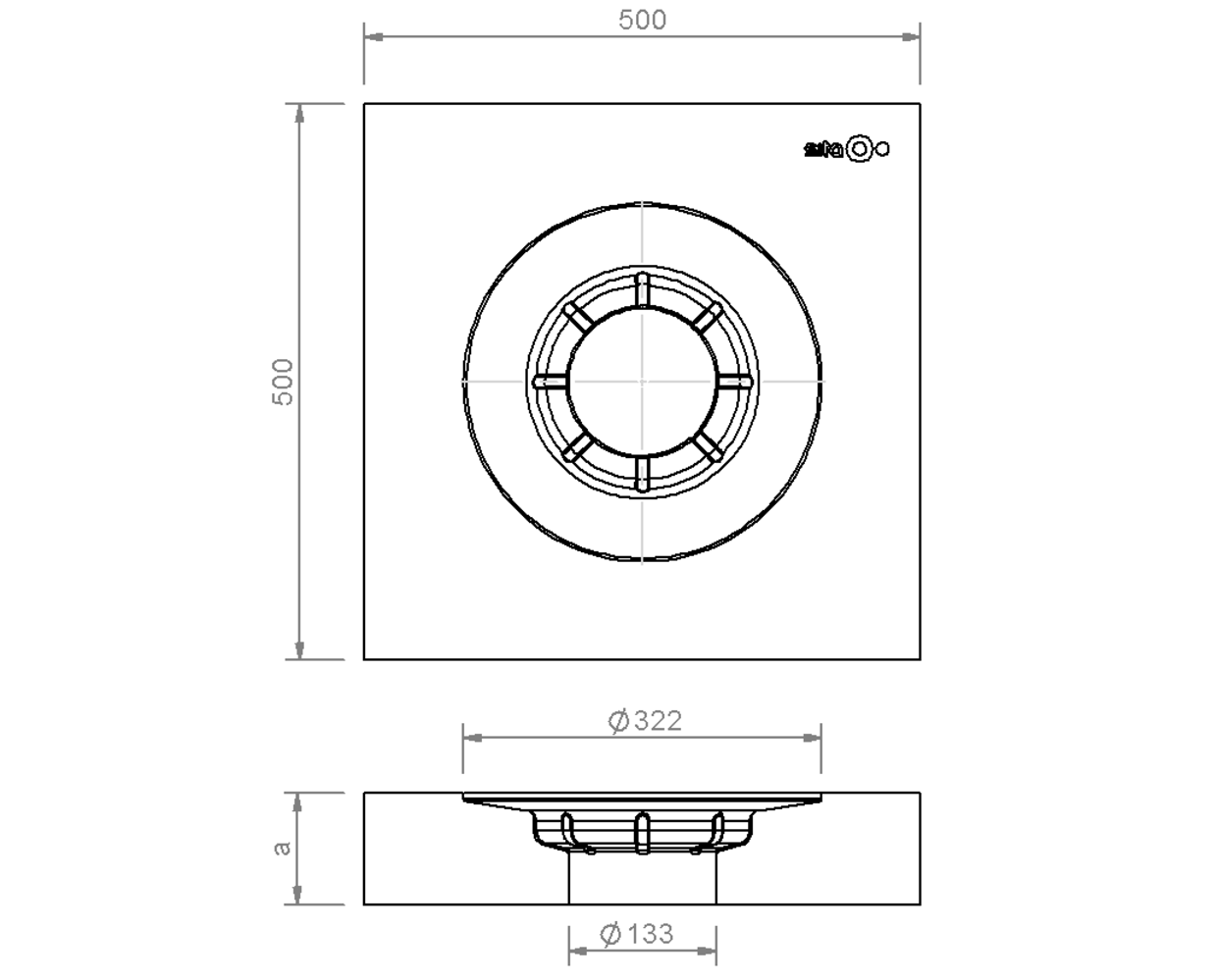

Technical drawing
| a (mm) |
|---|
| 60 |
| 100 |
Performance text
Installation Examples
MultiCAD und BIM-Daten
Downloads
Article selection
SitaDSS Profi insulating block for extension element, made of polyurethane, for easy bonding to the vapour barrier, without mechanical fastening of the extension element by bonding to the insulation body, size 500 x 500 x 60 mm or 500 x 500 x 100 mm, rated thermal conductivity λD=0.025 W/mK, compressive strength 200 kPa, bulk density approx. 50 kg/m³, as an installation aid and thermal insulation for the prevention of thermal bridges, supply and install to professional standards.
SitaDSS Profi in a non-ventilated roof structure
SitaDSS Profi consisting of:
1.1 PE plug-in coupler with sealing ring
1.2 Base body
1.3 Fastening ring for Airstop
1.4 Gravel trap
1.5 Airstop
SitaDSS Profi extension element consisting of:
2.1 Base body
2.2 Sealing ring
3 SitaDSS Profi insulating block for extension element
4 SitaMore reinforcement plate
5 SitaPipe PE pipe
6 SitaPipe PE electrofusion socket
7 SitaPipe PE branch
8 SitaPipe PE bend
9 SitaPipe PE reduction piece
10 SitaDSS Clamp
11 SitaDSS Rail mounting rail
12 SitaDSS Rail suspension unit
1.1 PE plug-in coupler with sealing ring
1.2 Base body
1.3 Fastening ring for Airstop
1.4 Gravel trap
1.5 Airstop
SitaDSS Profi extension element consisting of:
2.1 Base body
2.2 Sealing ring
3 SitaDSS Profi insulating block for extension element
4 SitaMore reinforcement plate
5 SitaPipe PE pipe
6 SitaPipe PE electrofusion socket
7 SitaPipe PE branch
8 SitaPipe PE bend
9 SitaPipe PE reduction piece
10 SitaDSS Clamp
11 SitaDSS Rail mounting rail
12 SitaDSS Rail suspension unit
Non-ventilated roof structure to the general rules of engineering with:
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure
SitaDSS Profi with SitaDSS Profi retaining element for emergency drainage in a non-ventilated roof structure
SitaDSS Profi consisting of:
1.1 PE plug-in coupler with sealing ring
1.2 Base body
SitaDSS Profi extension element consisting of:
2.1 Sealing ring
2.2 Airstop
2.3 Base body
SitaDSS Profi extension element consisting of:
3.1 Base body
3.2 Sealing ring
4 SitaDSS Profi insulating block for extension element
5 SitaMore reinforcement plate
6 SitaDSS PE pipe
7 SitaDSS PE electrofusion socket
8 SitaDSS PE branch
9 SitaDSS PE bend
10 SitaDSS PE reduction piece
11 SitaDSS Clamp
12 SitaDSS Rail mounting rail
13 SitaDSS Rail suspension unit
1.1 PE plug-in coupler with sealing ring
1.2 Base body
SitaDSS Profi extension element consisting of:
2.1 Sealing ring
2.2 Airstop
2.3 Base body
SitaDSS Profi extension element consisting of:
3.1 Base body
3.2 Sealing ring
4 SitaDSS Profi insulating block for extension element
5 SitaMore reinforcement plate
6 SitaDSS PE pipe
7 SitaDSS PE electrofusion socket
8 SitaDSS PE branch
9 SitaDSS PE bend
10 SitaDSS PE reduction piece
11 SitaDSS Clamp
12 SitaDSS Rail mounting rail
13 SitaDSS Rail suspension unit
Non-ventilated roof structure to the general rules of engineering with:
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
| SitaDSS Profi | Article no. | |||
|---|---|---|---|---|
Insulating body for extension element | ||||
| 100 mm | SitaDSS Profi extension unit | 145005 | Show product | |
| 60 mm | SitaDSS Profi extension unit | 145006 | Show product |
