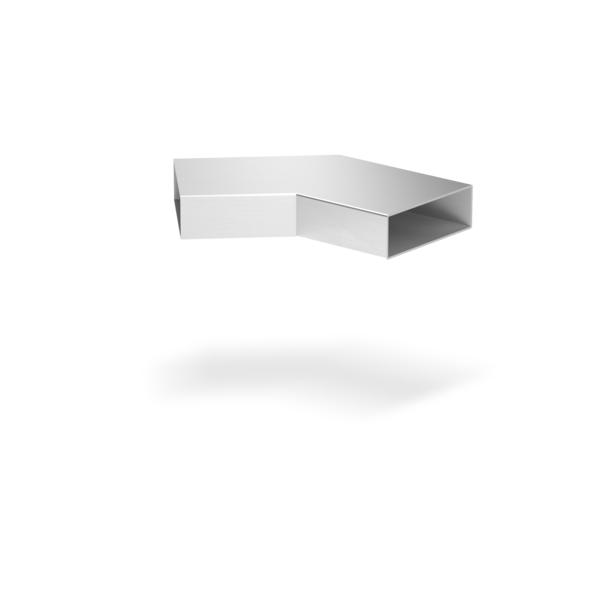

SitaKaskade Flat

Bend

Attributes

Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
Impact and shock resistant
Durable

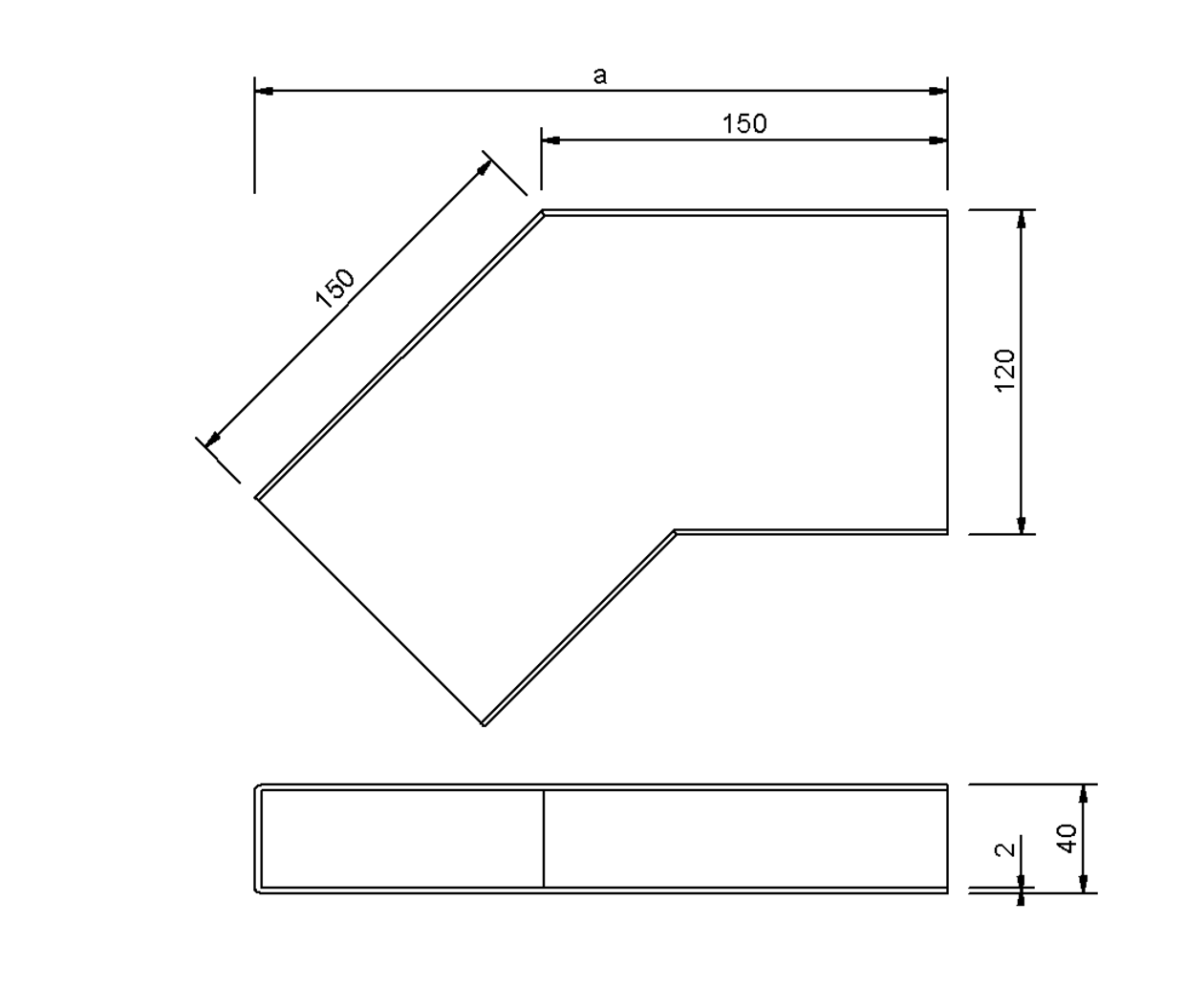

Technical drawing

Bend	a (mm)
45°	256
15°	295

Performance text Installation Examples

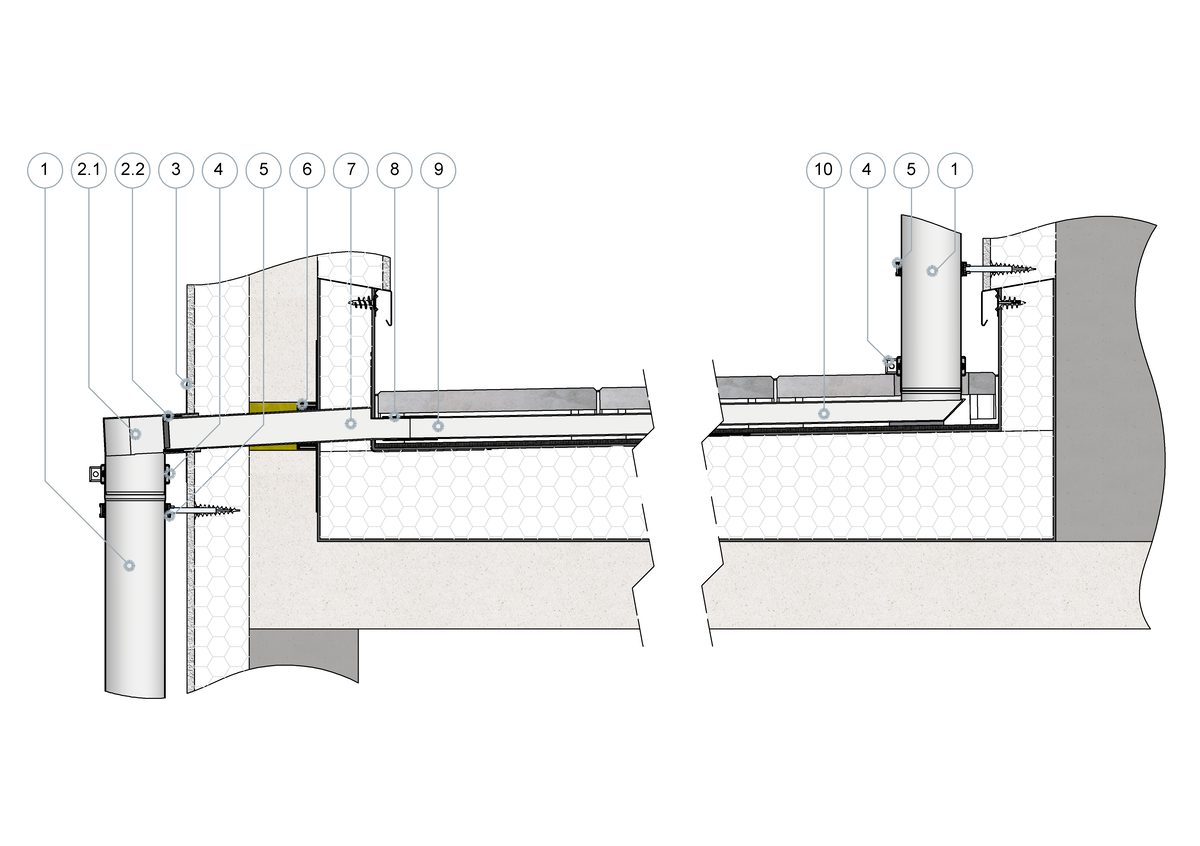

SitaKaskade Flat in a non-ventilated roof structure, with a used roof surface

1 SitaPipe Edelstahl pipe

SitaTurbo transition piece to SitaPipe Edelstahl pipe consisting of:

2.1 Transition piece
2.2 Sealing ring

3 SitaTurbo cladding cover plate
4 SitaPipe Edelstahl safety clamp
5 SitaPipe Edelstahl pipe clamp
6 SitaTurbo vapour barrier plate
7 SitaKaskade Flat parapet lead-through
8 SitaKaskade Flat connector
9 SitaKaskade Flat flat channel
10 SitaKaskade Flat downpipe holder

Non-ventilated roof structure with slab paving on support pads to the general rules of engineering with:

Slab paving on support pads
Protective mat
Sealing
Thermal insulation
Vapour barrier
Substructure

MultiCAD und BIM-Daten

In order for the external content to be displayed at this location, you must accept the cookies of the category "Preferences".
You can adjust the cookie settings here.

Downloads

SitaKaskade Flat		Article no.
Bend
	45°	330406	Show product
	15°	330407	Show product
