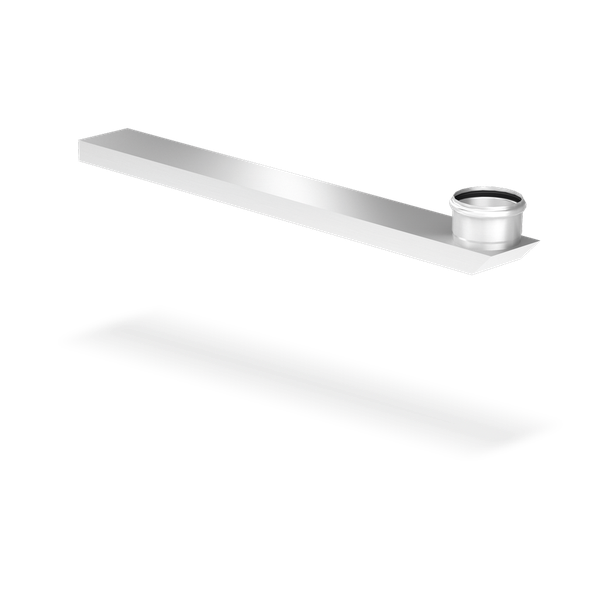

SitaKaskade Flat
Downpipe holder
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

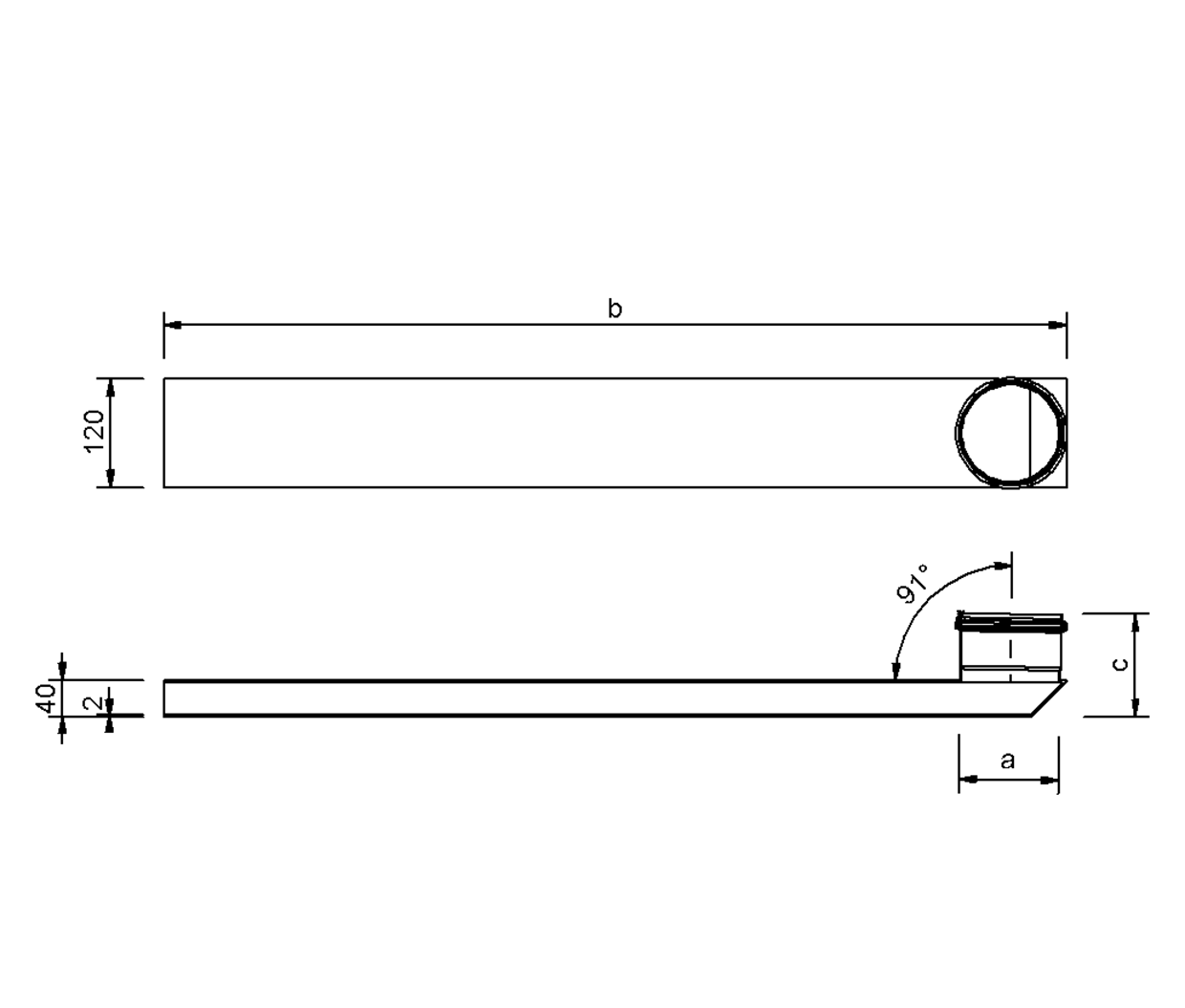

Technical drawing
| Size DN | External diameter OD (mm) | a (mm) | b (mm) | c (mm) |
|---|---|---|---|---|
| 70 | 75 | 75 | 2000 | 106 |
| 100 | 110 | 110 | 2000 | 114 |
| 70 | 75 | 75 | 1000 | 106 |
| 100 | 110 | 110 | 1000 | 114 |
