SitaMulti

Grating frame

Attributes

Resistant to normal environmental influences
Impact and shock resistant
Long lifespan
Height adjustment from 90 - 130 mm in steps of 10 mm

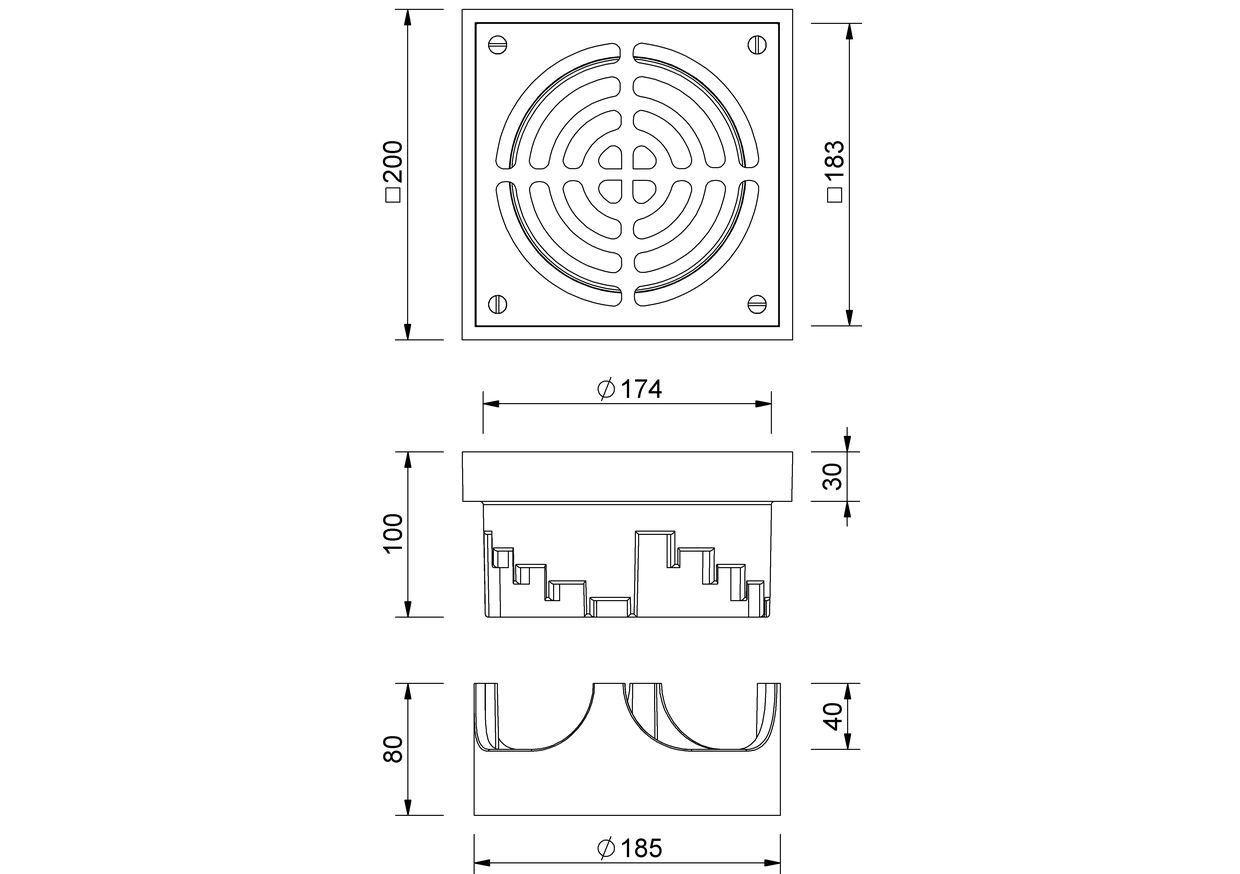

Technical drawing

Height adjustment min (mm)	Height setting, max (mm)
90	130

Performance text

SitaMulti top frame, made of cast iron, material EN-GJS-500-7, in accordance with DIN EN 1253-1, consisting of frame, support ring and bolted end grating, classification M125 in cast-in installation. To transfer the loads via the SitaMulti roof outlet into the supporting structure, for a height adjustment of 90 - 130 mm, supply and install to professional standards.

Installation Examples

SitaMulti with SitaMulti grating frame in a non-ventilated roof structure

1 SitaMulti insulating body for extension unit

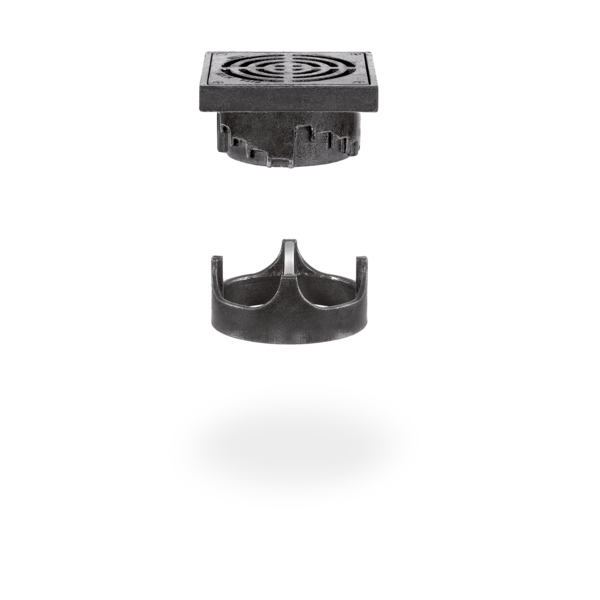

SitaMulti grating frame, consisting of:
2.1 Support ring
2.2 Grating with bolted end grate

3 SitaMulti height compensation piece

SitaMulti extension unit, consisting of:
4.1 Base body
4.2 Screw-on flange, nuts, washers and sealing sleeves
4.3 Sealing ring

SitaMulti consisting of:
5.1 Screw-on flange, nuts, washers and sealing sleeves
5.2 Base body

6 SitaMulti insulating body compensating ring
7 SitaMulti insulating body for outlet

Non-ventilated roof structure with slab paving on support pads to the general rules of engineering with:

Slab paving
Support pads
Protective mat
Sealing
Thermal insulation
Sloping screed
Vapour barrier
Substructure
