SitaMulti

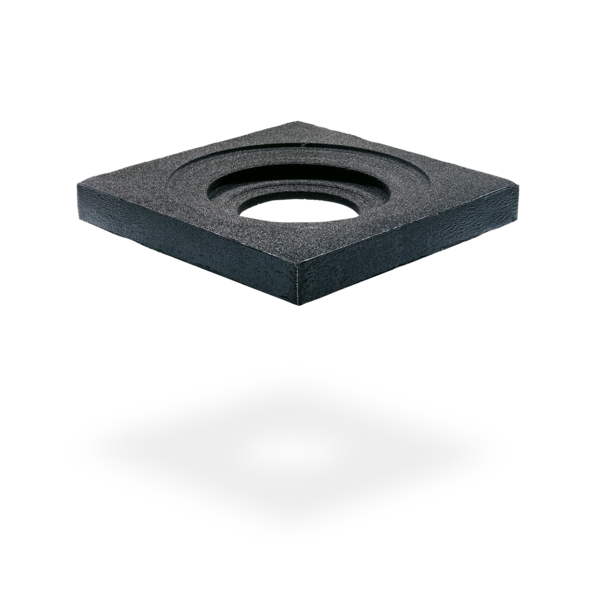

Insulating body for extension element
Attributes
- Water-tight
- Steam-tight
- Non-combustible
- Resistant to pests
- Pressure-resistant
- Maintains dimensions
- Acid-resistant

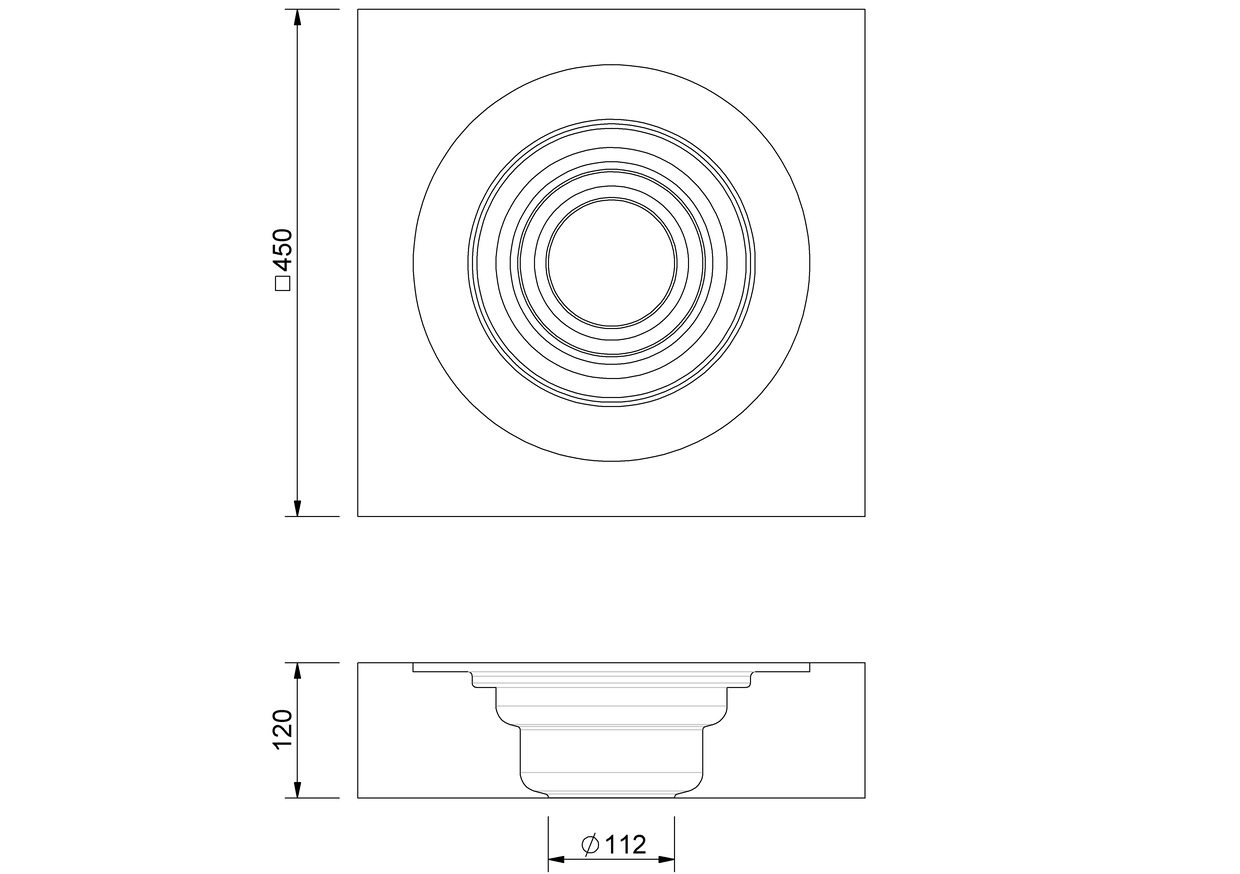

Technical drawing
Performance text
Installation Examples
MultiCAD und BIM-Daten
Downloads
Article selection
SitaMulti insulating body for extension unit, made of foam glass, WLG 050. For thermal insulation and to hold the extension unit, 120 mm in height, supply and installation to professional standards.

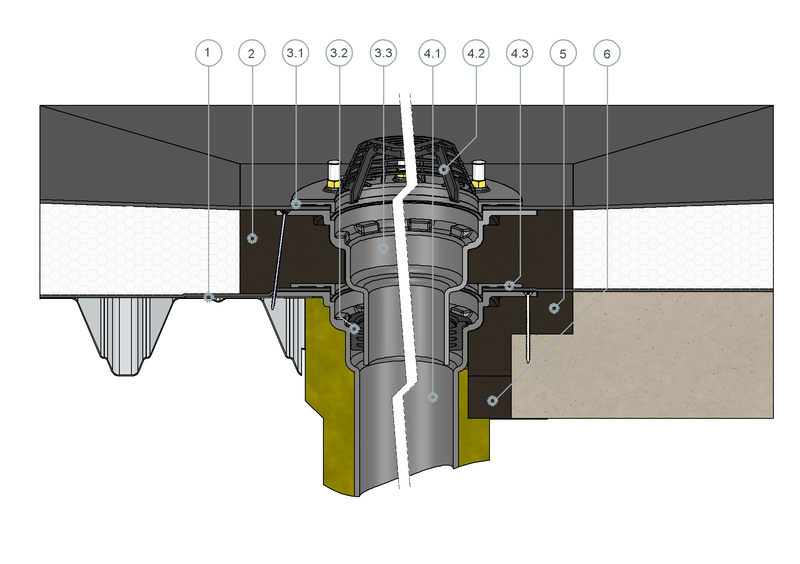

SitaMulti in a ventilated roof structure
1 SitaMore reinforcement plate
2 SitaMulti insulating body for extension unit
SitaMulti extension unit, consisting of:
3.1 Screw-on flange, nuts, washers and sealing sleeves
3.2 Sealing ring
3.3 Base body
SitaMulti consisting of:
4.1 Base body
4.2 Dome grate
4.3 Screw-on flange, nuts, washers and sealing sleeves
5 SitaMulti insulating body for outlet
6 SitaMulti insulating body compensating ring
2 SitaMulti insulating body for extension unit
SitaMulti extension unit, consisting of:
3.1 Screw-on flange, nuts, washers and sealing sleeves
3.2 Sealing ring
3.3 Base body
SitaMulti consisting of:
4.1 Base body
4.2 Dome grate
4.3 Screw-on flange, nuts, washers and sealing sleeves
5 SitaMulti insulating body for outlet
6 SitaMulti insulating body compensating ring
Non-ventilated roof structure to the general rules of engineering with:
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure

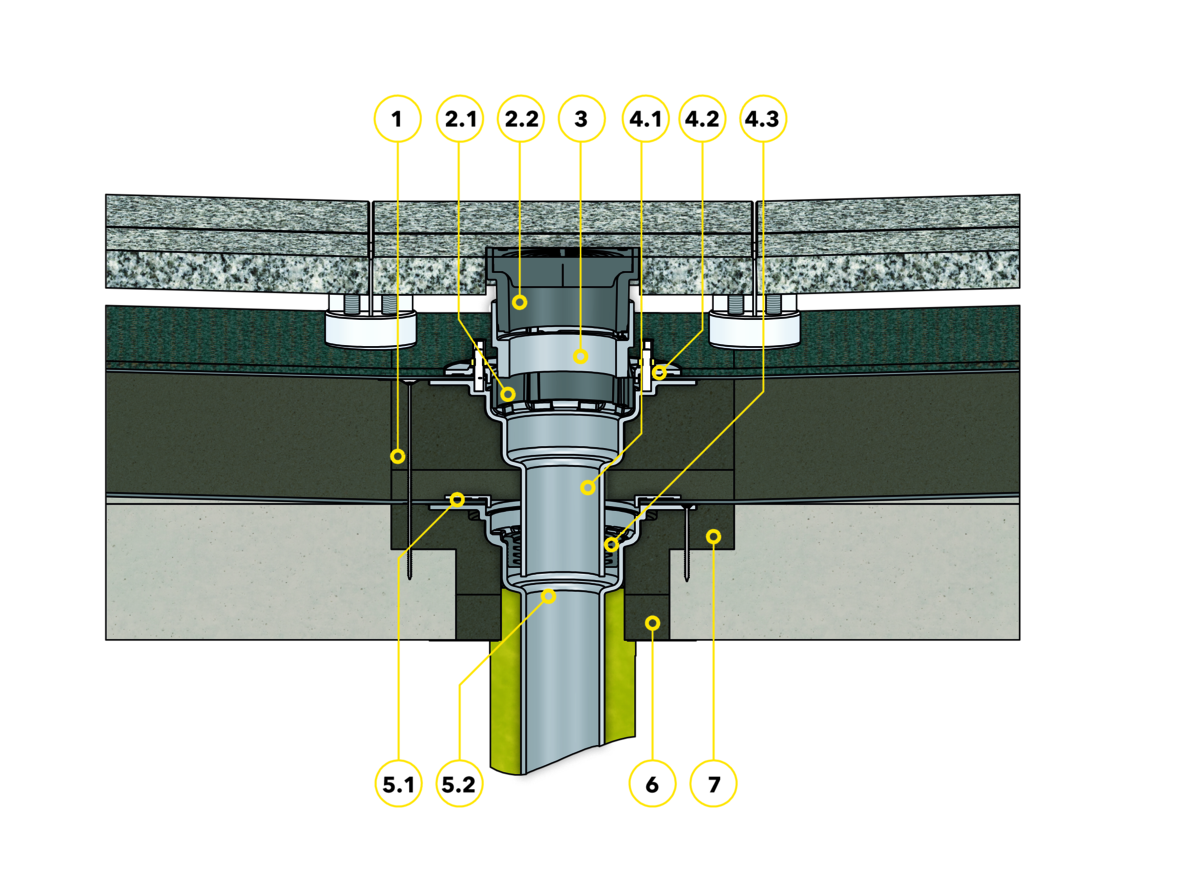

SitaMulti with SitaMulti grating frame in a non-ventilated roof structure
1 SitaMulti insulating body for extension unit
SitaMulti grating frame, consisting of:
2.1 Support ring
2.2 Grating with bolted end grate
3 SitaMulti height compensation piece
SitaMulti extension unit, consisting of:
4.1 Base body
4.2 Screw-on flange, nuts, washers and sealing sleeves
4.3 Sealing ring
SitaMulti consisting of:
5.1 Screw-on flange, nuts, washers and sealing sleeves
5.2 Base body
6 SitaMulti insulating body compensating ring
7 SitaMulti insulating body for outlet
SitaMulti grating frame, consisting of:
2.1 Support ring
2.2 Grating with bolted end grate
3 SitaMulti height compensation piece
SitaMulti extension unit, consisting of:
4.1 Base body
4.2 Screw-on flange, nuts, washers and sealing sleeves
4.3 Sealing ring
SitaMulti consisting of:
5.1 Screw-on flange, nuts, washers and sealing sleeves
5.2 Base body
6 SitaMulti insulating body compensating ring
7 SitaMulti insulating body for outlet
Non-ventilated roof structure with slab paving on support pads to the general rules of engineering with:
- Slab paving
- Support pads
- Protective mat
- Sealing
- Thermal insulation
- Sloping screed
- Vapour barrier
- Substructure
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
| SitaMulti | Article no. | ||
|---|---|---|---|
Insulating body for extension element | |||
| SitaMulti extension unit | E409006 | Show product |
