SitaMulti

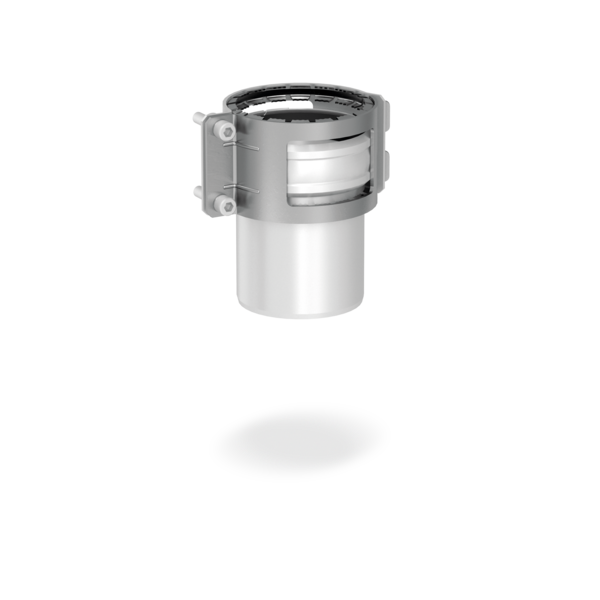

Connector set
Attributes
- Stable shape
- Robust
- Installed in a few easy steps

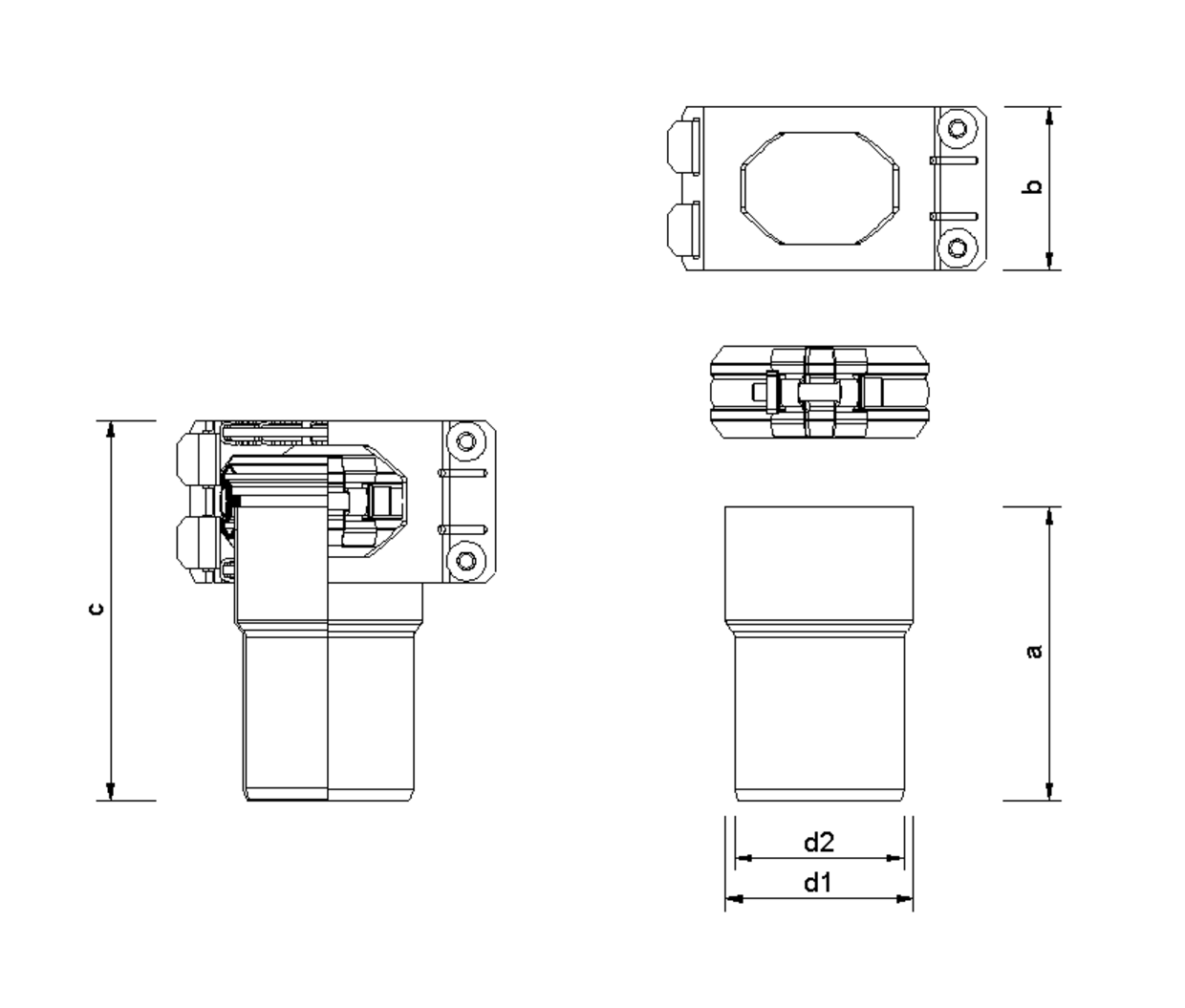

Technical drawing
| Size DN | a (mm) | b (mm) | c (mm) | d1 (mm) | d2 (mm) |
|---|---|---|---|---|---|
| 100 | 130 | 87 | 176 | 110 | 110 |
| 80 | 130 | 72 | 169 | 83 | 75 |
Accessories
Connector set
| Size DN | a (mm) | b (mm) | c (mm) | d1 (mm) | d2 (mm) |
|---|---|---|---|---|---|
| 100 | 130 | 87 | 176 | 110 | 110 |
| 80 | 130 | 72 | 169 | 83 | 75 |
SitaMulti connector set, for the transition from SitaMulti to SitaPipe stainless steel pipe, consisting of an adapter made of rust-proof stainless steel, material number 1.4301, a Rapid connector and a retaining claw, supply and install to professional standards.
| SitaMulti | Article no. | |||
|---|---|---|---|---|
Connector set | ||||
| DN 100 | to SitaPipe Edelstahl pipe DN 100 | 407011 | Show product | |
| DN 80 | to SitaPipe Edelstahl pipe DN 70 | 407083 | Show product |
