SitaPipe Stainless Steel
blanch 87,5°
- Products

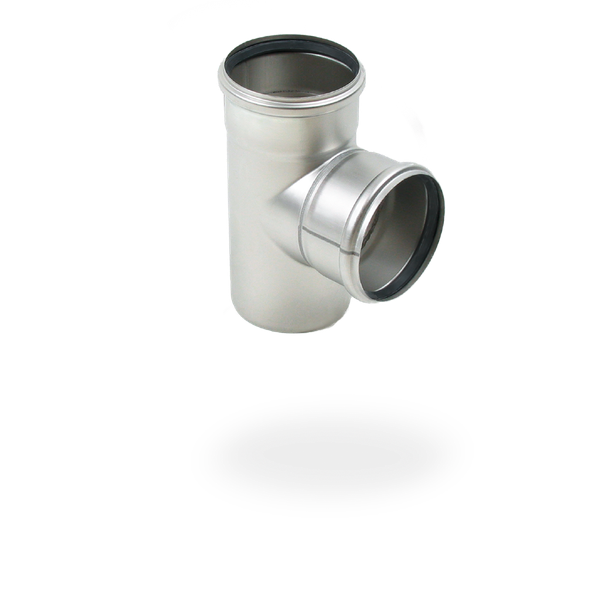

SitaPipe stainless steel
blanch 87,5°
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

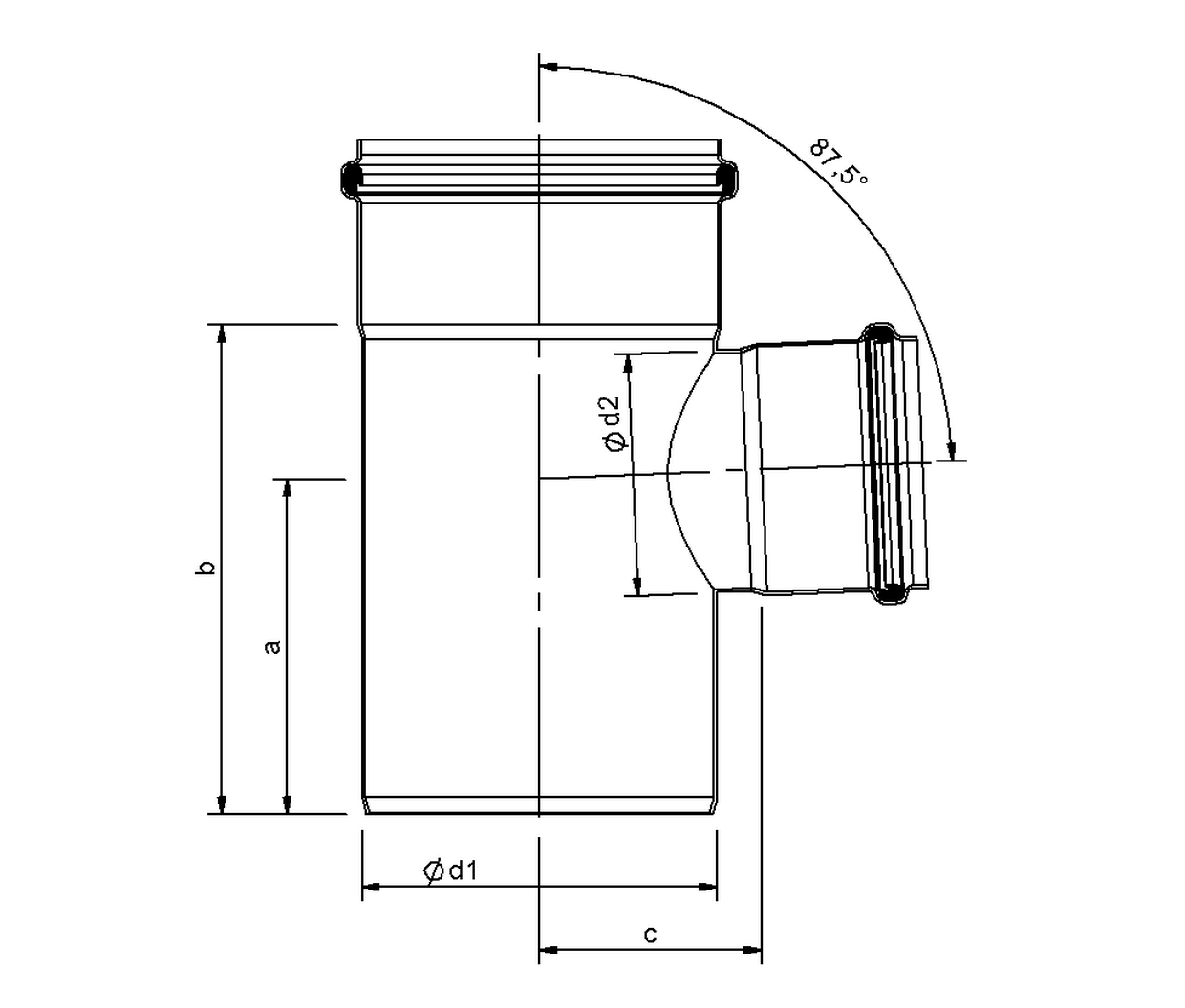

Technical drawing
| Size DN | External diameter OD (mm) | a (mm) | b (mm) | c (mm) | d1 (mm) | d2 (mm) |
|---|---|---|---|---|---|---|
| 100 | 110 | 117 | 183 | 69 | 110 | 110 |
| 100 | 110 | 93 | 132 | 66 | 110 | 50 |
| 100 | 110 | 104 | 152 | 69 | 110 | 75 |
| 125 | 125 | 127 | 205 | 77 | 125 | 110 |
| 125 | 125 | 110 | 187 | 77 | 125 | 75 |
| 70 | 75 | 90 | 139 | 52 | 75 | 75 |
| 250 | 250 | 220 | 352 | 155 | 250 | 200 |
| 250 | 250 | 245 | 407 | 152 | 250 | 250 |
| 315 | 315 | 253 | 416 | 189 | 315 | 250 |
| 315 | 315 | 286 | 481 | 196 | 315 | 315 |
| 40 | 40 | 69 | 101 | 30 | 40 | 40 |
| 50 | 50 | 71 | 106 | 35 | 50 | 40 |
| 80 | 82 | 99 | 154 | 55 | 82 | 75 |
| 80 | 82 | 103 | 162 | 56 | 82 | 82 |
Performance text
Installation Examples
MultiCAD und BIM-Daten
Downloads
DWG EB_SitaVasant_im_nicht_beluefteten_Dachaufbau.DWG
DWG EB_SitaDSS_Indra_HE_im_nicht_beluefteten_Dachaufbau.DWG
DWG EB_SitaDSS_Indra_NE_Fallrohr_im_nicht_beluefteten_Dachaufbau.DWG
DWG EB_SitaEasy_Go_HE_im_nicht_beluefteten_Dachaufbau.DWG
DWG EB_SitaRondo_NE_mit_Fallleitung_nicht_beluefteter_Dachaufbau.DWG
DWG EB_SitaKaskade_Durchfuehrung_Fluid_senkrecht_mit_SitaCompact.DWG
DWG EB_SitaKaskade_Inside_im_nicht_beluefteten_Dachaufbau_im_WDVS.DWG
DWG EB_SitaCompact_Fluid_Linienentwaesserung_bei_Plattenbelag.DWG
PDF SitaVasant_mit_Kiesfang_im_nicht_beluefteten_Dachaufbau.pdf
PDF SitaDSS_Indra_Hauptentwaesserungsset_im_nicht_beluefteten_Dachaufbau.pdf
PDF SitaDSS_Indra_Notentwaesserungsset_mit_Fallleitung_im_nicht_beluefteten_Dachaufbau.pdf
PDF SitaEasy_Go_fuer_die_Hauptentwaesserung_im_nicht_beluefteten_Dachaufbau.pdf
PDF SitaRondo_erhoeht_eingebaut_mit_Fallleitung_im_nicht_beluefteten_Dachaufbau.pdf
PDF SitaKaskade_Durchfuehrung_Fluid_senkrecht_mit_SitaCompact.pdf
PDF SitaKaskade_Inside_im_nicht_beluefteten_Dachaufbau_und_Platten_auf_Stelzlager_mit_Fallrohr_im_WDVS.pdf
PDF SitaCompact_Fluid_Linienentwaesserung_bei_Balkonen_mit_Fluessigkunststoffabdichtung_und_Plattenbelag.pdf
PDF TechnischeZeichnung_70061150_en.pdf
PDF TechnischeZeichnung_70061175_en.pdf
PDF TechnischeZeichnung_70061211_en.pdf
PDF TechnischeZeichnung_70061275_en.pdf
PDF TechnischeZeichnung_70062520_en.pdf
PDF TechnischeZeichnung_70062525_en.pdf
PDF TechnischeZeichnung_70063125_en.pdf
PDF TechnischeZeichnung_70063131_en.pdf
PDF TechnischeZeichnung_70064040_en.pdf
PDF TechnischeZeichnung_70065040_en.pdf
PDF TechnischeZeichnung_70067575_en.pdf
PDF TechnischeZeichnung_70068075_en.pdf
PDF TechnischeZeichnung_70068080_en.pdf
DWG TZ_DB_SitaPipe_Edelstahl_Abzweig_DN100_DN100_87_5.DWG
DWG TZ_DB_SitaPipe_Edelstahl_Abzweig_DN100_DN50_87_5.DWG
DWG TZ_DB_SitaPipe_Edelstahl_Abzweig_DN100_DN75_87_5.DWG
DWG TZ_DB_SitaPipe_Edelstahl_Abzweig_DN125_DN110_87_5.DWG
DWG TZ_DB_SitaPipe_Edelstahl_Abzweig_DN125_DN75_87_5.DWG
DWG TZ_DB_SitaPipe_Edelstahl_Abzweig_DN250_DN200_87_5.DWG
DWG TZ_DB_SitaPipe_Edelstahl_Abzweig_DN250_DN250_87_5.DWG
DWG TZ_DB_SitaPipe_Edelstahl_Abzweig_DN315_DN250_87_5.DWG
DWG TZ_DB_SitaPipe_Edelstahl_Abzweig_DN315_DN315_87_5.DWG
DWG TZ_DB_SitaPipe_Edelstahl_Abzweig_DN40_DN40_87_5.DWG
DWG TZ_DB_SitaPipe_Edelstahl_Abzweig_DN50_DN40_87_5.DWG
DWG TZ_DB_SitaPipe_Edelstahl_Abzweig_DN75_DN75_87_5.DWG
DWG TZ_DB_SitaPipe_Edelstahl_Abzweig_DN80_DN70_87_5.DWG
DWG TZ_DB_SitaPipe_Edelstahl_Abzweig_DN80_DN80_87_5.DWG
