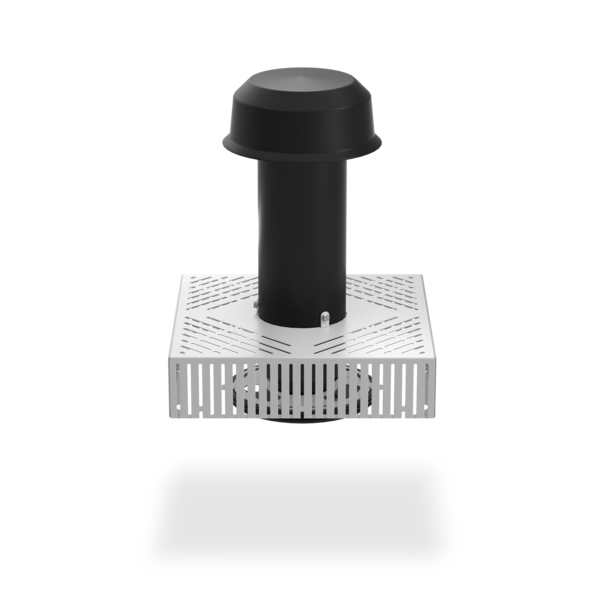

SitaRetention

Twist with dome grate

Foto_S_SitaRetention_Twist_mit_Kiesfang_fuer_SitaStandard.tif

Attributes

Simple insertion in the outlet
Can be individually shortened

Technical drawing

For model/series	a (mm)	b (mm)	c (mm)
SitaStandard, SitaIndra	75	196	48
SitaTrendy	40	153	46

Performance text

SitaRetention Twist with dome grate, made of polyamide (base plate and rain cover) and PE (ventilation pipe), with scaled adjusting slide made of stainless steel for the controlled discharge of rainwater, for installation in roof outlets of the SitaStandard, SitaIndra or SitaTrendy series. The ventilation pipe can be individually shortened on site, including sealing rings made of EPDM, supply and install to professional standards.

MultiCAD und BIM-Daten

In order for the external content to be displayed at this location, you must accept the cookies of the category "Preferences".
You can adjust the cookie settings here.

Downloads

Technical information

PDF Tech_Info_SitaRetention.pdf

Technical drawings

PDF TechnischeZeichnung_409201_en.pdf
PDF TechnischeZeichnung_409203_en.pdf
DWG TZ_DB_SitaRetention_Twist_mit_Kiesfang_fuer_SitaStandard.DWG
DWG TZ_DB_SitaRetention_Twist_mit_Kiesfang_fuer_SitaTrendy.DWG

Article selection

SitaRetention		Article no.
with dome grate
	SitaStandard, SitaIndra	409201	Show product
	SitaTrendy	409203	Show product
