SitaStandard

angled insulating body

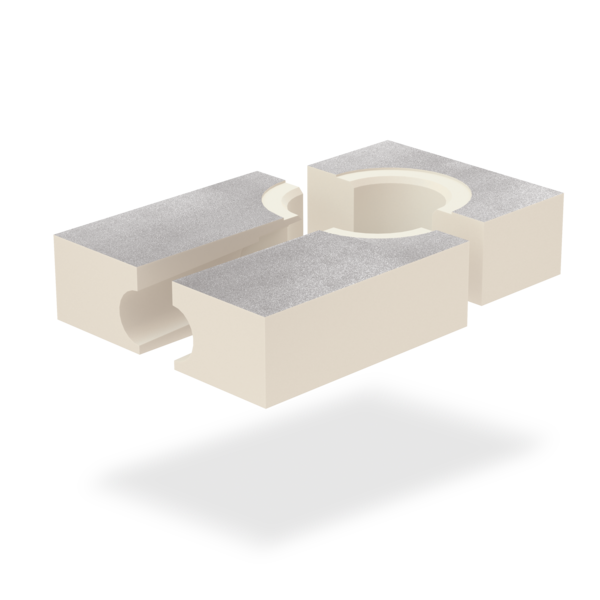

Foto_S_SitaStandard_abgewinkelt_DN_100_Daemmkoerper.tif

Attributes

Pressure-resistant
Stable dimensions
Resistant to rotting

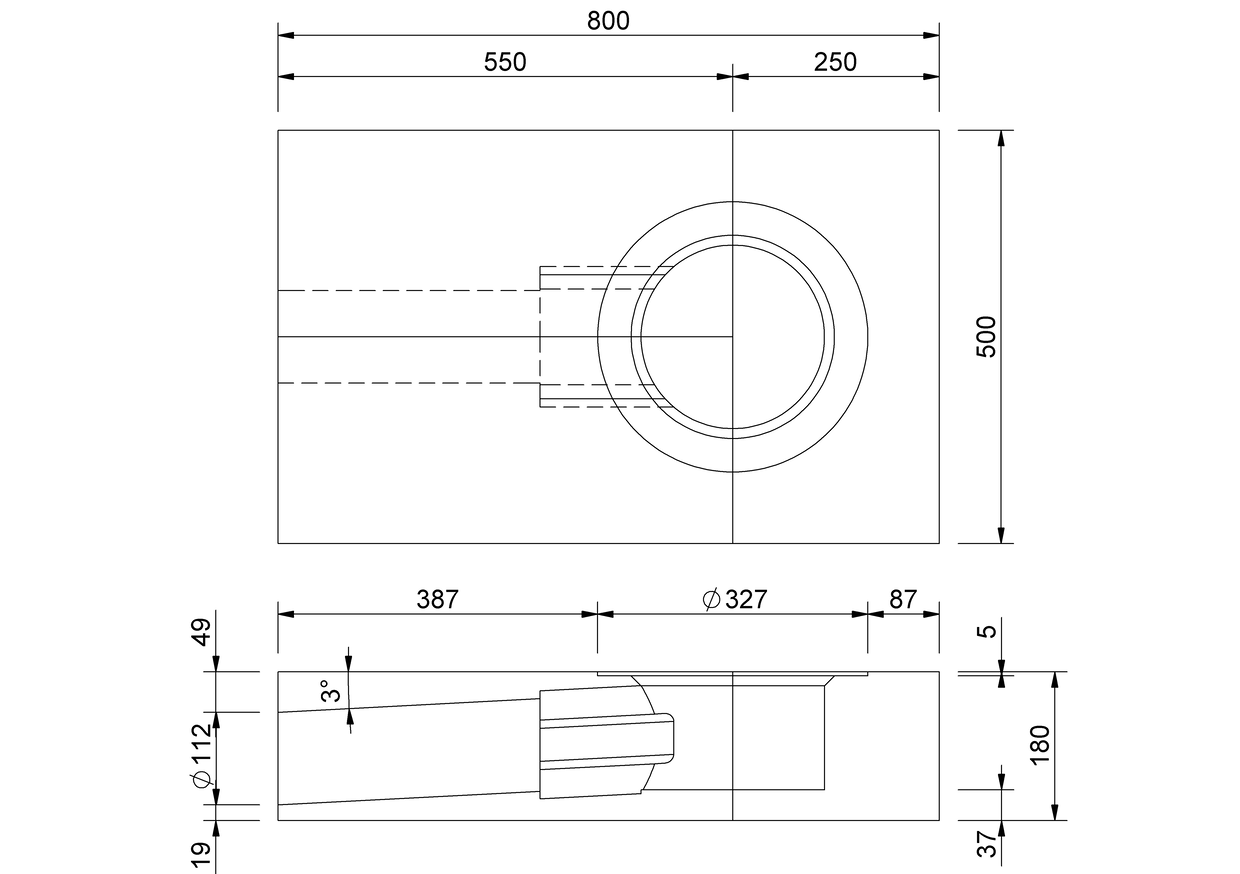

Technical drawing

SitaStandard angled insulating body, made of polyurethane with aluminium cover layers, three-part in size 800 x 500 x 180 mm, thermal conductivity lambda = 0.023 W/mK, compressive strength 120 kPa, to aid installation with accurate shaping and for thermal insulation to prevent thermal bridges, supply and install to professional standards.

Installation Examples

SitaStandard angled as emergency drainage in a non-ventilated roof structure

1 SitaPipe Edelstahl pipe
2 SitaAttika cladding cover plate
3 SitaMore sealing sleeve for WDVS
4 SitaMore vapour barrier plate flex
5 SitaStandard angled insulating body
6 SitaPipe Edelstahl safety clamp
7 SitaStandard angled

SitaMore retaining element consisting of:
8.1 Cover
8.2 Base body
8.3 Sealing ring
8.4 Height-adjustable rubber-metal buffers

Non-ventilated roof structure to the general rules of engineering with:

Waterproof membrane
Thermal insulation
Vapour barrier
Substructure

MultiCAD und BIM-Daten

In order for the external content to be displayed at this location, you must accept the cookies of the category "Preferences".
You can adjust the cookie settings here.

Downloads

SitaStandard		Article no.
angled insulating body
angled insulating body	SitaTrendy angled DN 100	109009	Show product
