SitaSteel

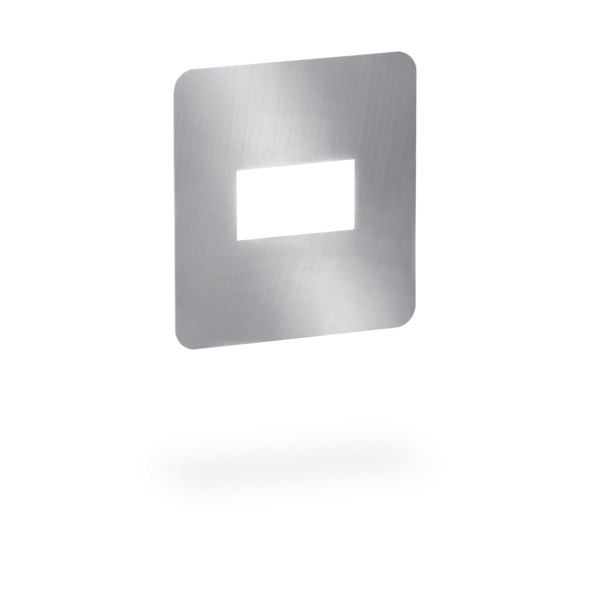

Cladding cover plate

Foto_S_SitaTurbo_Fassaden_Abdeckplatte.tif

Attributes

Screwless fastening
Smooth finish

Technical drawing

For model/series	Recess dimension (mm x mm)	a (mm)	b (mm)	c (mm)	d (mm)	e (mm)
SitaSteel rectangular waterspout 300 x 100	302 x 102	300	500	104	304	1

Performance text MultiCAD und BIM-Daten

In order for the external content to be displayed at this location, you must accept the cookies of the category "Preferences".
You can adjust the cookie settings here.

Downloads

Technical drawings

PDF TechnischeZeichnung_30111191_en.pdf
DWG TZ_DB_SitaSteel_Fassaden_Abdeckplatte_300x100.DWG

Installation Instructions

PDF Einbauanleitung_SitaSteel_E280032.pdf

Article selection

SitaSteel			Article no.
Cladding cover plate 300 x 100
Cladding cover plate 300 x 100	300 x 100 mm	SitaSteel rectangular waterspout 300 x 100	30111191	Show product
