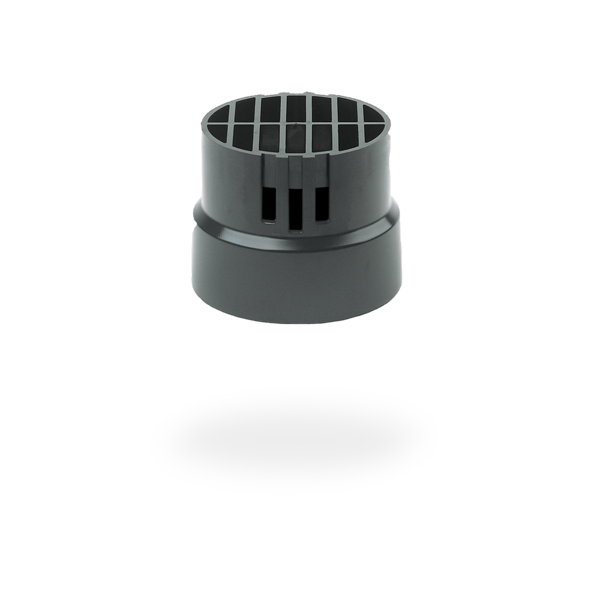

SitaVent
Protective grating
Attributes
- Toolless mounting
- Low pressure loss

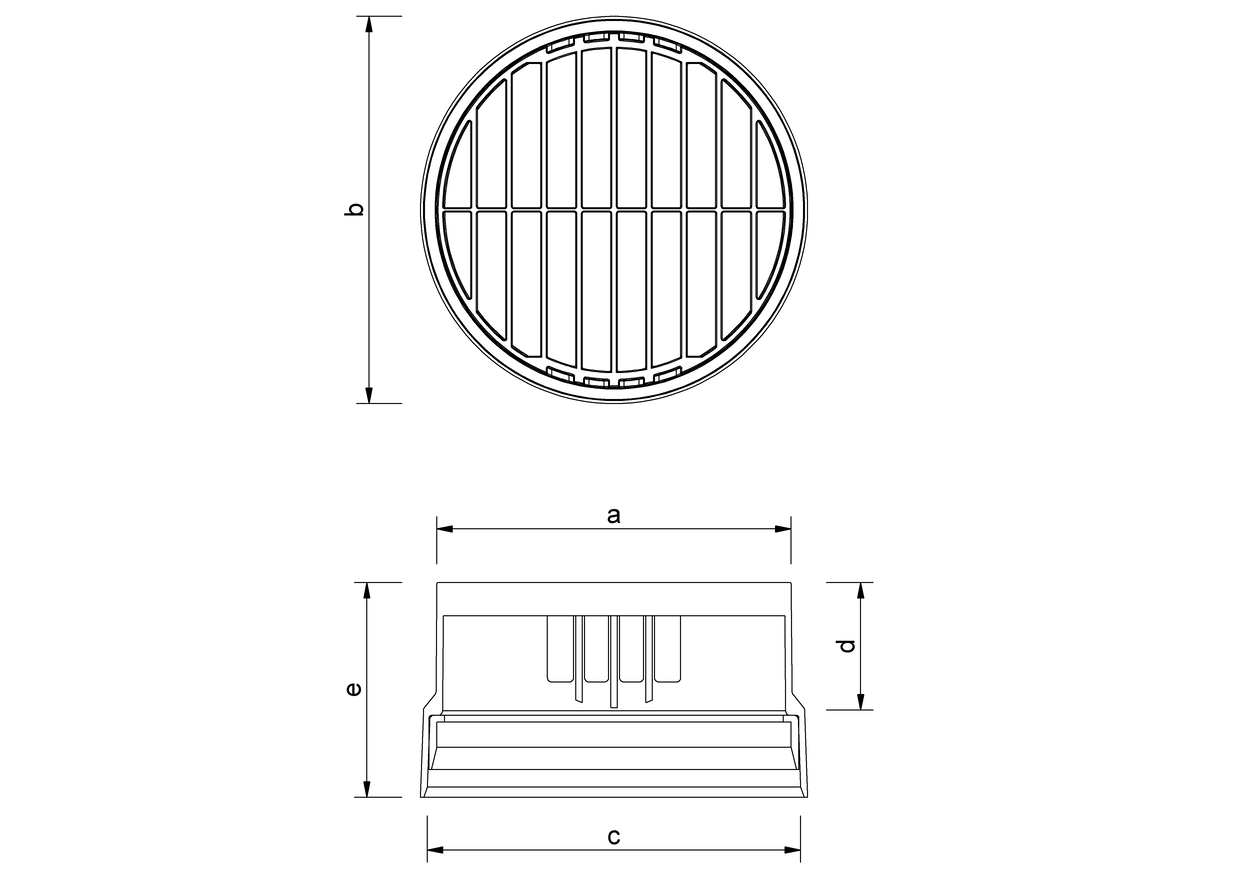

Technical drawing
| Size DN | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) |
|---|---|---|---|---|---|
| 100 | 110 | 123 | 117 | 56 | 99 |
| 150 | 160 | 175 | 169 | 58 | 97 |
Accessories
Protective grating
| Size DN | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) |
|---|---|---|---|---|---|
| 100 | 110 | 123 | 117 | 56 | 99 |
| 150 | 160 | 175 | 169 | 58 | 97 |
SitaVent protective grating, made of polyamide, for the SitaVent system vent and SitaVent refurbishment vent in sizes DN 100 or DN 150, prevents the ingress of foreign bodies, including EPDM fastening ring, supply and install to professional standards.
| SitaVent | Article no. | |||
|---|---|---|---|---|
Protective grating | ||||
| DN 100 | SitaVent system vent, SitaVent refurbishment vent | 179064 | Show product | |
| DN 150 | SitaVent system vent, SitaVent refurbishment vent | 179068 | Show product |
