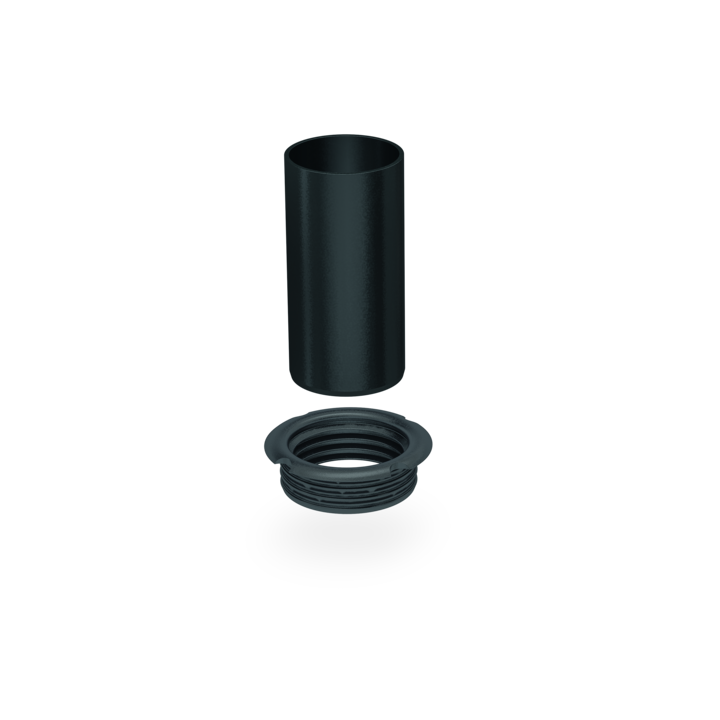

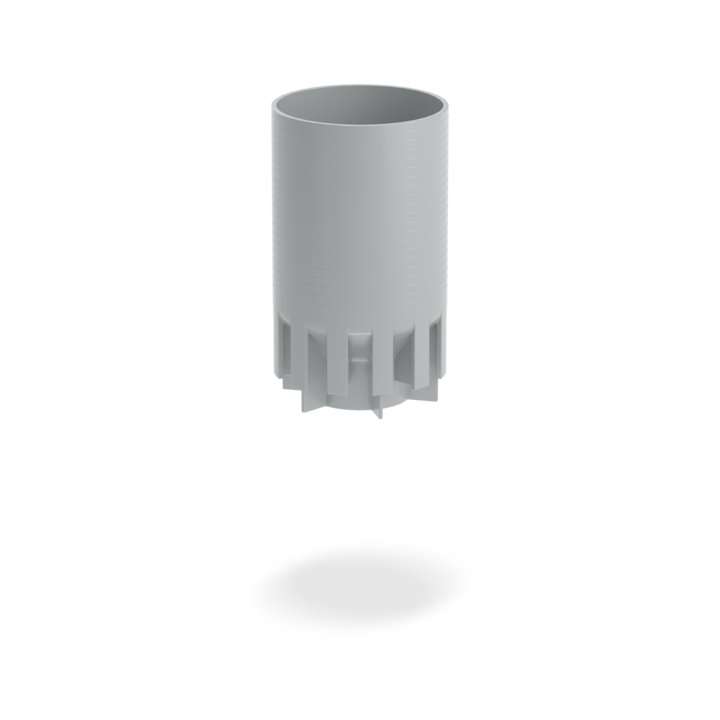

SitaConcrete DN 70

Balcony and terrace drainage rainwater outlet

Article number

340220

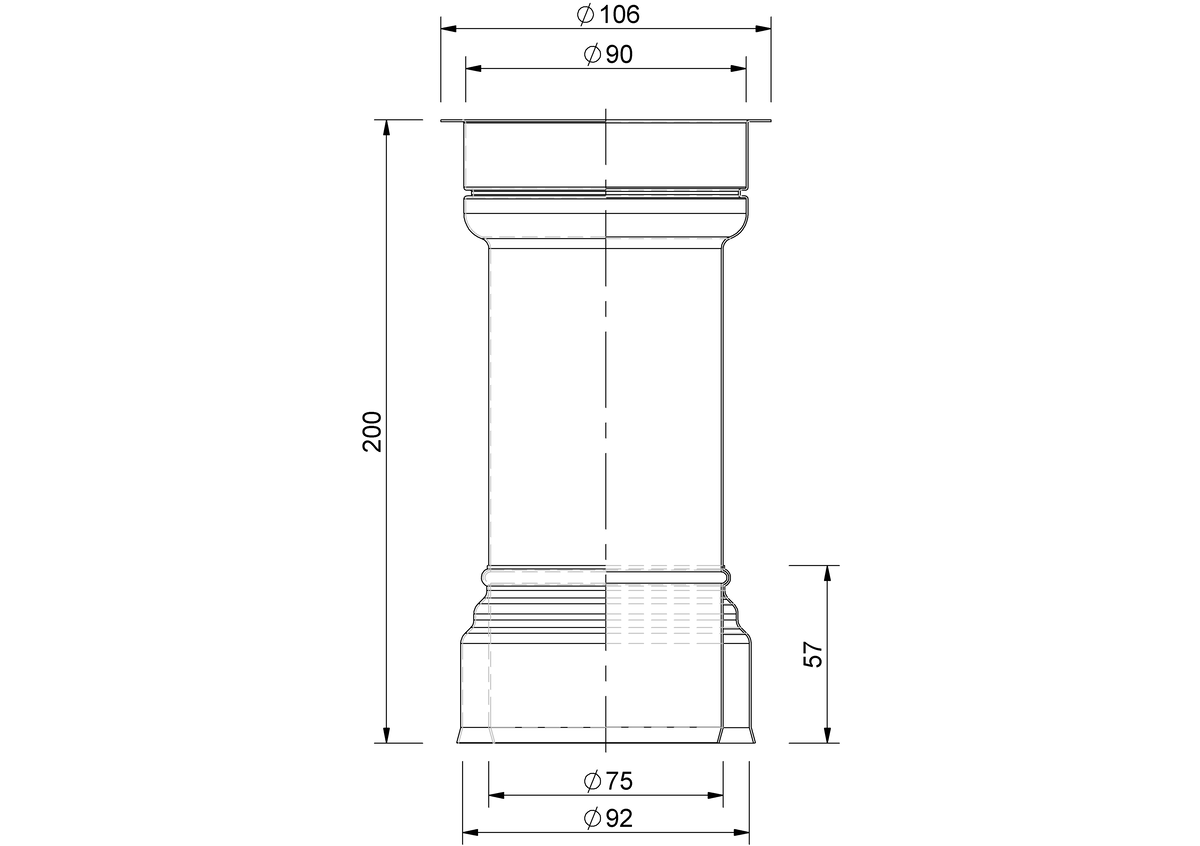

Height

200 mm

External diameter OD (mm)

75 mm

Pot inner diameter

90 mm

Temperature resistance, min.

-20 °C

Temperature resistance, max.

80 °C

Material class

Euroclass A1 /A1 non-flammable

Discharge rate according to DIN EN 1253-2 in l/s

	Back-up Heigh (mm)
DN	5	10	15	20	25	30	35	40	45	50	55	60	65	70	75	80	85	90	95	100
70	0.4	0.8	1.1	1.8	2.5	3	3.4	3.6	3.7	3.8	3.9	4.2	4.4	4.5	4.5	4.5	4.5	4.5	4.5	4.5
