SitaDrain® Terra
Drainage
- Products
SitaDrain Terra
Drainage
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable
- Infinitely adjustable height between 70 - 110 mm

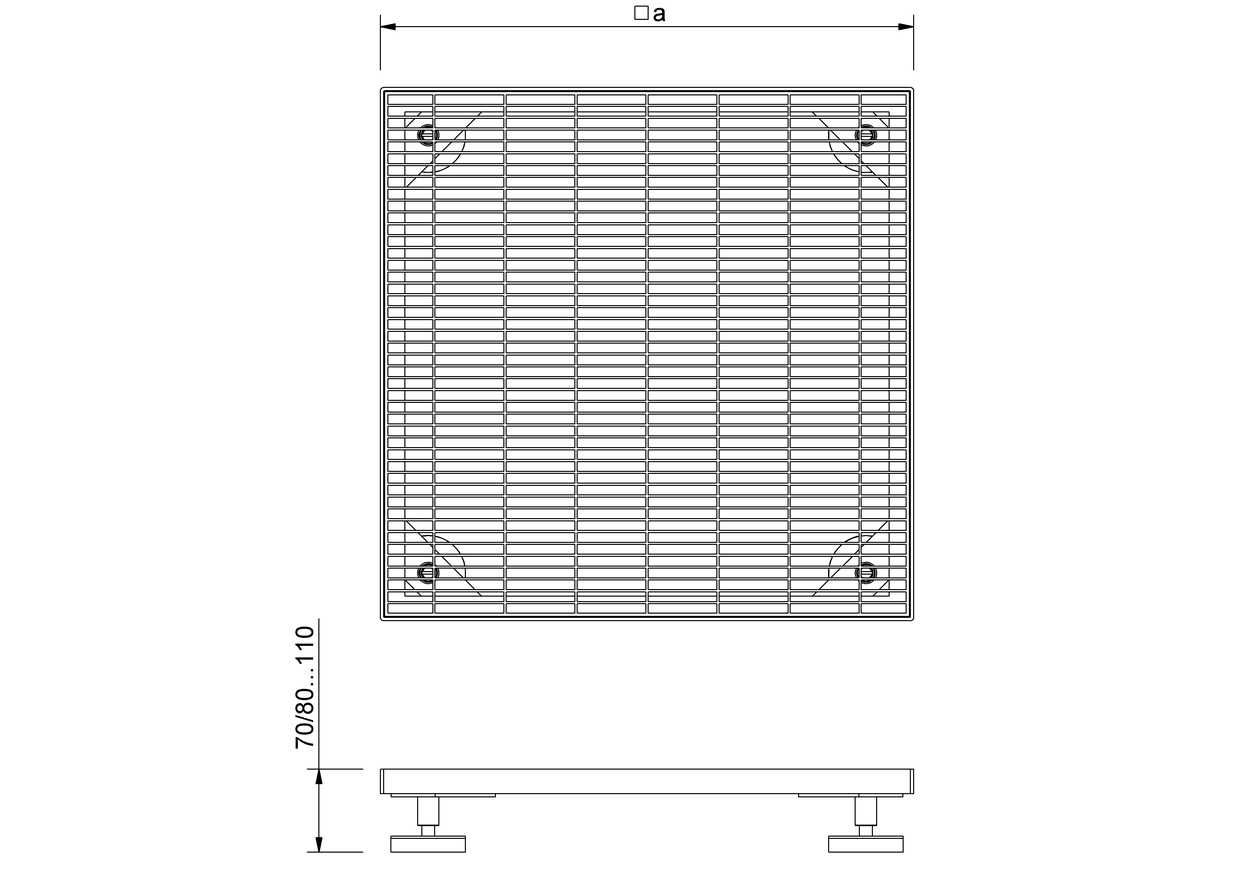

Technical drawing
| Grate design | a (mm) | Height adjustment min (mm) | Height setting, max (mm) |
|---|---|---|---|
| Grating | 300 | 70 | 110 |
Performance text
Installation Examples
MultiCAD und BIM-Daten
Downloads
DWG EB_SitaTrendy_mit_SitaDrain_Terra_HE_mit Plattenbelag_im_Splittbett.DWG
DWG EB_SitaEasy_Go_Notentwässerung_Balkon_Terrasse.DWG
DWG EB_SitaCompact_mit_Anstauring_im_nicht_beluefteten_Dachaufbau_mit_Plattenbelag.DWG
PDF SitaTrendy_und_SitaDrain_Terra_bei_Plattenbelag_auf_Splittbett_ohne_Waermedaemmung.pdf
PDF SitaEasy_Go_fuer_die_Notentwaesserung_im_nicht_beluefteten_Dachaufbau_bei_Plattenbelag_im_Splittbett.pdf
PDF SitaCompact_abgewinkelt_mit_SitaCompact_Anstauring_im_nicht_beluefteten_Dachaufbau_mit_Plattenbelag.pdf
Article selection
SitaDrain® Terra drainage grate, made of hot-dip galvanised steel, with surrounding steel frame to hold the mesh cover (mesh size 9 mm x 64 mm), with four press-fit threaded sockets M12 made of stainless steel to hold the pre-assembled rubber feet for infinite height adjustment from 70–110 mm, in the dimensions 300 x 300 mm, 400 x 400 mm or 500 x 500 mm, supply and install to professional standards.
SitaDrain Terra with SitaEasy in a non-ventilated roof structure with slab paving
1 SitaPipe Edelstahl pipe
2 SitaMore vapour barrier plate flex
3 SitaPipe Edelstahl safety clamp
4 SitaEasy
SitaDrain® Terra consisting of:
5.1 Inspection grate
5.2 Height-adjustable rubber feet
5.3 Frame
2 SitaMore vapour barrier plate flex
3 SitaPipe Edelstahl safety clamp
4 SitaEasy
SitaDrain® Terra consisting of:
5.1 Inspection grate
5.2 Height-adjustable rubber feet
5.3 Frame
Non-ventilated roof structure with slab paving on support pads to the general rules of engineering with:
- Slab paving on support pad
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
SitaTrendy and SitaDrain® Terra for the main drainage of slab paving on gravel bed without thermal insulation
1 SitaPipe Edelstahl pipe
2 SitaTrendy insulating body for outlet
3 SitaTrendy vertical
4 SitaDrain gravel strip
SitaDrain® Terra consisting of:
5.1 Inspection grate
5.2 Frame
5.3 Height-adjustable rubber-metal buffers
2 SitaTrendy insulating body for outlet
3 SitaTrendy vertical
4 SitaDrain gravel strip
SitaDrain® Terra consisting of:
5.1 Inspection grate
5.2 Frame
5.3 Height-adjustable rubber-metal buffers
Ventilated roof structure with slab paving in gravel bed to the general rules of engineering with:
- Slab paving
- Grit or gravel bed
- Drainage mat
- Protective mat
- Waterproof membrane
- Substructure

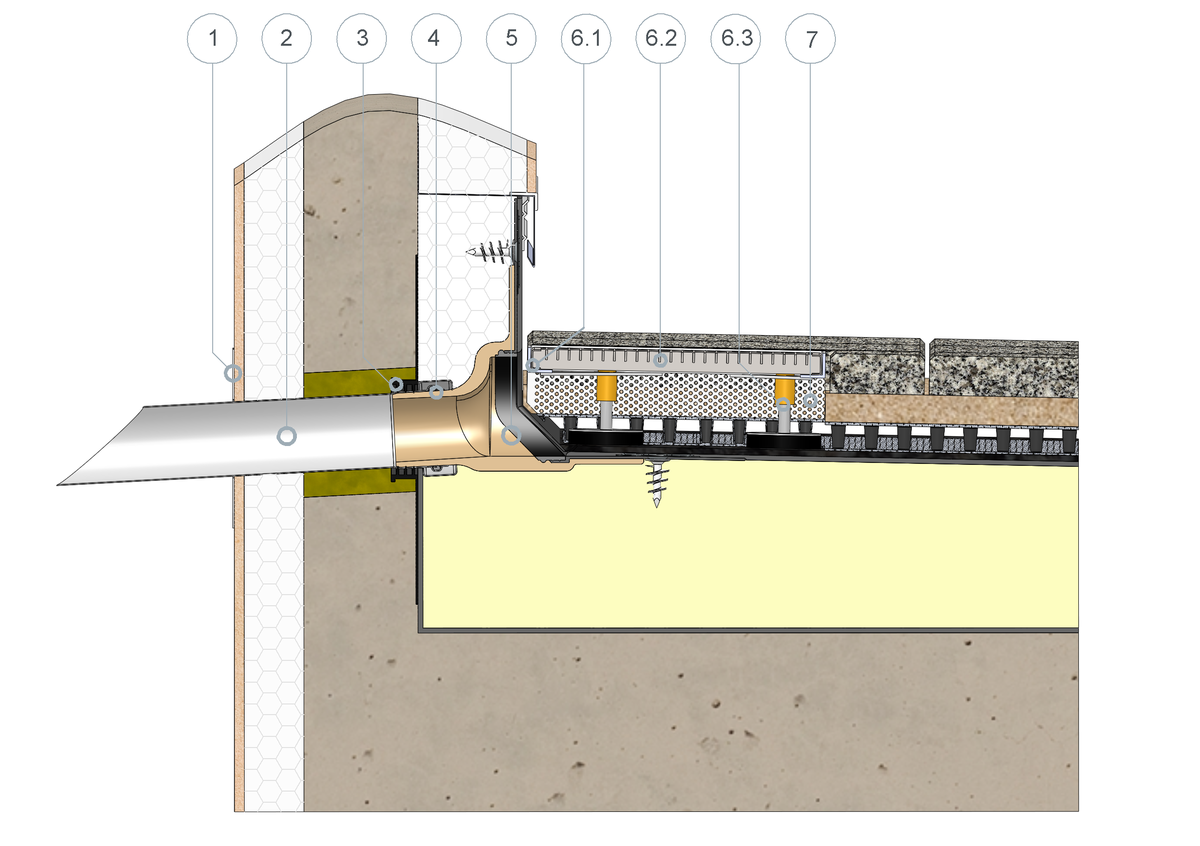

SitaEasy Go for emergency drainage in a non-ventilated roof structure with slab paving in a gravel bed
1 SitaAttika cladding cover plate
2 SitaPipe stainless steel pipe
3 SitaMore vapour barrier plate flex
4 SitaPipe Edelstahl safety clamp
5 SitaEasy Go
SitaDrain® Terra consisting of:
6.1 Frame
6.2 Inspection grate
6.3 Height-adjustable rubber feet
7 SitaDrain® gravel strip
2 SitaPipe stainless steel pipe
3 SitaMore vapour barrier plate flex
4 SitaPipe Edelstahl safety clamp
5 SitaEasy Go
SitaDrain® Terra consisting of:
6.1 Frame
6.2 Inspection grate
6.3 Height-adjustable rubber feet
7 SitaDrain® gravel strip
Non-ventilated roof structure with slab paving in a gravel bed to the general rules of engineering with:
- Slab paving
- Gravel bed
- Filter fabric
- Surface drainage
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
- Parapet lead-through with joint tape
SitaCompact angled with SitaCompact retaining ring in a non-ventilated roof structure with slab paving and SitaDrain Terra
1 SitaAttika cladding cover plate
2 SitaMore sealing sleeve for WDVS
3 SitaMore vapour barrier plate
4 SitaPipe stainless steel pipe
4 SitaPipe Edelstahl safety clamp
SitaCompact angled consisting of:
6.1 Base body
6.2 Connection sleeve of choice
SitaCompact retaining ring consisting of:
7.1 Retaining ring
7.2 Sealing ring
SitaDrain® Terra consisting of:
8.1 Inspection grate
8.2 Frame
8.3 Height-adjustable rubber feet
2 SitaMore sealing sleeve for WDVS
3 SitaMore vapour barrier plate
4 SitaPipe stainless steel pipe
4 SitaPipe Edelstahl safety clamp
SitaCompact angled consisting of:
6.1 Base body
6.2 Connection sleeve of choice
SitaCompact retaining ring consisting of:
7.1 Retaining ring
7.2 Sealing ring
SitaDrain® Terra consisting of:
8.1 Inspection grate
8.2 Frame
8.3 Height-adjustable rubber feet
Non-ventilated roof structure to the general rules of engineering with:
- Slab paving
- Waterproofing
- Thermal insulation
- Vapour barrier
- Substructure
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
AutoCAD
DWG EB_SitaEasy_NE_als_Speier_im_nicht_beluefteten_Dachaufbau_mit_Plattenbelag.DWGDWG EB_SitaTrendy_mit_SitaDrain_Terra_HE_mit Plattenbelag_im_Splittbett.DWG
DWG EB_SitaEasy_Go_Notentwässerung_Balkon_Terrasse.DWG
DWG EB_SitaCompact_mit_Anstauring_im_nicht_beluefteten_Dachaufbau_mit_Plattenbelag.DWG
Installation Examples
PDF SitaDrain_Terra_mit_SitaEasy_im_nicht_beluefteten_Dachaufbau_mit_Plattenbelag.pdfPDF SitaTrendy_und_SitaDrain_Terra_bei_Plattenbelag_auf_Splittbett_ohne_Waermedaemmung.pdf
PDF SitaEasy_Go_fuer_die_Notentwaesserung_im_nicht_beluefteten_Dachaufbau_bei_Plattenbelag_im_Splittbett.pdf
PDF SitaCompact_abgewinkelt_mit_SitaCompact_Anstauring_im_nicht_beluefteten_Dachaufbau_mit_Plattenbelag.pdf
| SitaDrain® Terra | Article no. | |||
|---|---|---|---|---|
Galvanised steel | ||||
| Grating | 300 mm | 189062 | Show product |
+
