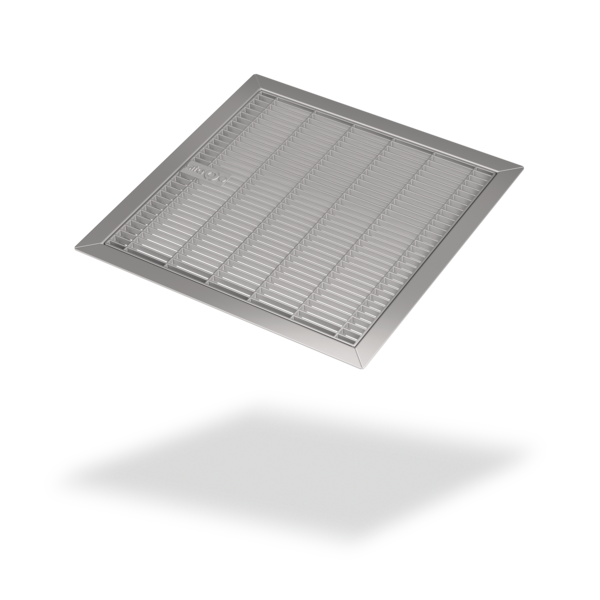

SitaDrain® area frame
Drainage
- Products
SitaDrain area frame
Drainage
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable
Technical drawing
| a (mm) |
|---|
| 450 |
Performance text
Installation Examples
MultiCAD und BIM-Daten
Downloads
PDF TechnischeZeichnung_25404041_en.pdf
PDF TechnischeZeichnung_25404042_en.pdf
PDF TechnischeZeichnung_25404043_en.pdf
PDF TechnischeZeichnung_25404044_en.pdf
PDF TechnischeZeichnung_25404045_en.pdf
DWG TZ_DB_SitaDrain_Flaechenrahmen_Bubblerost_Edelstahl.DWG
DWG TZ_DB_SitaDrain_Flaechenrahmen_Ellipsenrost_Edelstahl.DWG
DWG TZ_DB_SitaDrain_Flaechenrahmen_Gitterrost_Edelstahl.DWG
DWG TZ_DB_SitaDrain_Flaechenrahmen_Kreisrost_Edelstahl.DWG
DWG TZ_DB_SitaDrain_Flaechenrahmen_Laengsstabrost_Edelstahl.DWG
DWG TZ_DB_SitaDrain_Flaechenrahmen_Quadratrost_Edelstahl.DWG
Article selection
SitaDrain® area frame with grate insert for surface outlets, made of rust-proof stainless steel, material number 1.4301, load rating class K3 according to DIN EN 1253-2, can be travelled over in a wheelchair, cut-out dimensions 400 mm x 400 mm, with surrounding profile frame to hold the grate and supported on four sides on the slab paving, supply and install to professional standards.
SitaDrain area frame with SitaStandard in a non-ventilated roof structure with slab paving on support pads
1 SitaStandard insulating body for outlet
2 SitaStandard insulating body for extension unit
SitaStandard extension unit, consisting of:
3.1 Sealing ring
3.2 Base body
SitaDrain® area frame consisting of:
4.1 Inspection grate
4.2 Area frame
5 SitaStandard vertical
2 SitaStandard insulating body for extension unit
SitaStandard extension unit, consisting of:
3.1 Sealing ring
3.2 Base body
SitaDrain® area frame consisting of:
4.1 Inspection grate
4.2 Area frame
5 SitaStandard vertical
Non-ventilated roof structure with slab paving on support pad to the general rules of engineering with:
- Slab paving on support pad
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
SitaKaskade lead-through Fluid with SitaCompact for main drainage in a non-ventilated roof structure
1 SitaCompact insulating body
2 SitaCompact vertical
SitaCompact extension unit consisting of:
3.1 Base body
3.2 Sealing ring
SitaDrain® area frame consisting of:
4.1 Frame
4.2 Inspection grate
5 SitaKaskade lead-through Fluid
6 SitaPipe Edelstahl safety clamp
7 SitaPipe Edelstahl pipe
8 SitaPipe Edelstahl pipe clamp
9 SitaAttika cladding cover plate
10 SitaPipe Edelstahl bend
11 SitaMore vapour barrier plate flex
2 SitaCompact vertical
SitaCompact extension unit consisting of:
3.1 Base body
3.2 Sealing ring
SitaDrain® area frame consisting of:
4.1 Frame
4.2 Inspection grate
5 SitaKaskade lead-through Fluid
6 SitaPipe Edelstahl safety clamp
7 SitaPipe Edelstahl pipe
8 SitaPipe Edelstahl pipe clamp
9 SitaAttika cladding cover plate
10 SitaPipe Edelstahl bend
11 SitaMore vapour barrier plate flex
Non-ventilated roof structure with slab paving on support pads to the general rules of engineering with:
- Slab paving on support pad
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
Technical drawings
PDF TechnischeZeichnung_25404040_en.pdfPDF TechnischeZeichnung_25404041_en.pdf
PDF TechnischeZeichnung_25404042_en.pdf
PDF TechnischeZeichnung_25404043_en.pdf
PDF TechnischeZeichnung_25404044_en.pdf
PDF TechnischeZeichnung_25404045_en.pdf
DWG TZ_DB_SitaDrain_Flaechenrahmen_Bubblerost_Edelstahl.DWG
DWG TZ_DB_SitaDrain_Flaechenrahmen_Ellipsenrost_Edelstahl.DWG
DWG TZ_DB_SitaDrain_Flaechenrahmen_Gitterrost_Edelstahl.DWG
DWG TZ_DB_SitaDrain_Flaechenrahmen_Kreisrost_Edelstahl.DWG
DWG TZ_DB_SitaDrain_Flaechenrahmen_Laengsstabrost_Edelstahl.DWG
DWG TZ_DB_SitaDrain_Flaechenrahmen_Quadratrost_Edelstahl.DWG
| SitaDrain® area frame | Article no. | ||
|---|---|---|---|
Rust-proof stainless steel | |||
| circular design grating | 25404040 | Show product | |
| square design grating | 25404041 | Show product | |
| elliptical design grating | 25404042 | Show product | |
| bubble design grating | 25404043 | Show product | |
| grating | 25404044 | Show product | |
| longitudinal bar grating | 25404045 | Show product |
+
