SitaDrain Klassik
Drainage

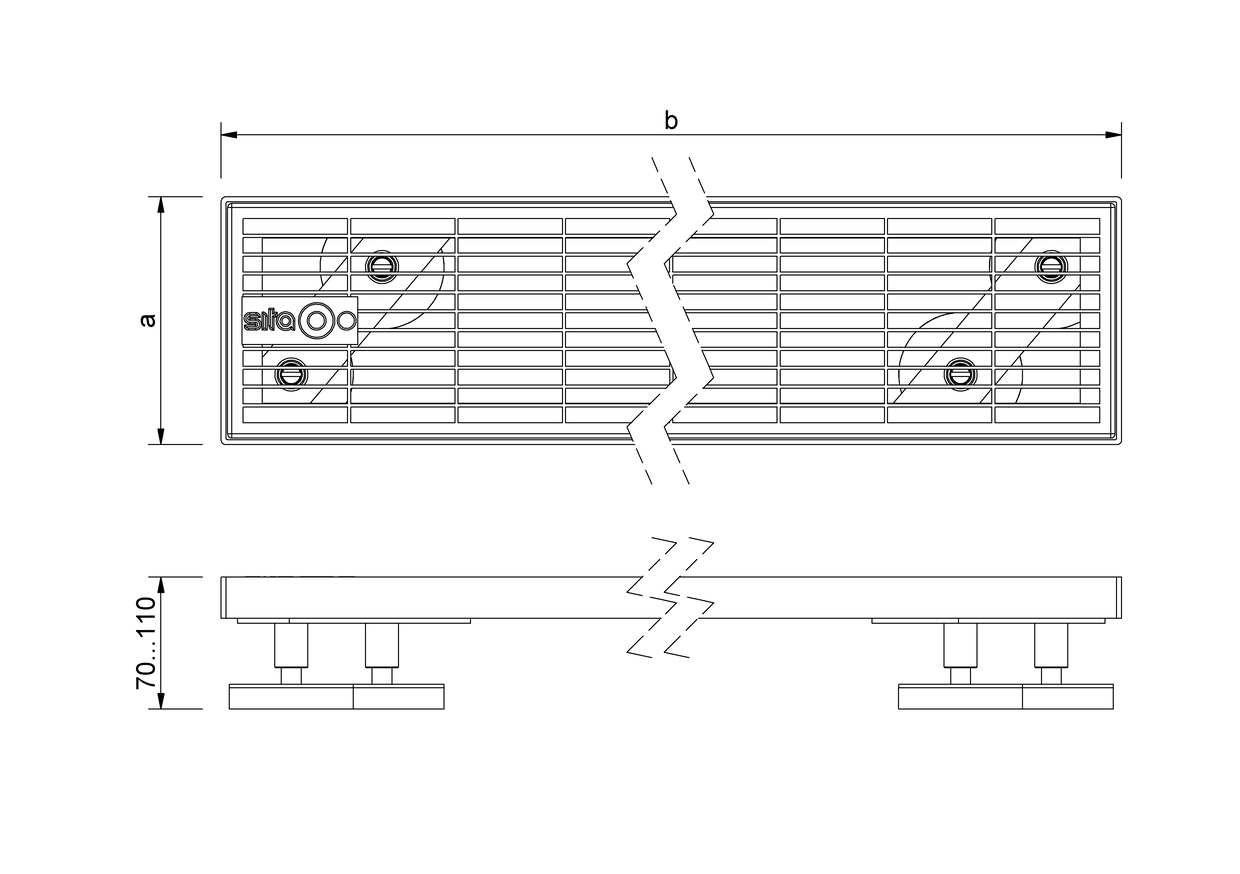

| a (mm) | b (mm) | Height adjustment min (mm) | Height setting, max (mm) |
|---|---|---|---|
| 100 | 1000 | 70 | 110 |
| 100 | 750 | 70 | 110 |
| 100 | 800 | 70 | 100 |
| 150 | 1000 | 70 | 110 |
| 150 | 500 | 70 | 110 |
| 150 | 750 | 70 | 110 |
| 250 | 1000 | 70 | 110 |
| 250 | 500 | 70 | 110 |
| 500 | 1000 | 70 | 110 |
SitaDrain® Klassik with mesh cover, made of galvanised steel, load rating class K3 according to DIN EN 1253-2, can be travelled over in a wheelchair, widths 100 mm, 150 mm 250 mm and 500 mm and lengths 500 mm, 750 mm, 800 mm and 1000 mm, with surrounding frame to hold the grate with mesh size 9 mm x 64 mm, with press-fit threaded sockets M12 made of brass to hold the pre-assembled rubber feet for infinite height adjustment from 70-110 mm, supply and install to professional standards.
| SitaDrain® Klassik | Article no. | |||
|---|---|---|---|---|
Galvanised steel | ||||
| 100 mm | 1000 mm | 201000 | Show product | |
| 100 mm | 750 mm | 201075 | Show product | |
| 100 mm | 800 mm | 201080 | Show product | |
| 150 mm | 1000 mm | 201500 | Show product | |
| 150 mm | 500 mm | 201550 | Show product | |
| 150 mm | 750 mm | 201575 | Show product | |
| 250 mm | 1000 mm | 202500 | Show product | |
| 250 mm | 500 mm | 202550 | Show product | |
| 500 mm | 1000 mm | 205000 | Show product |
