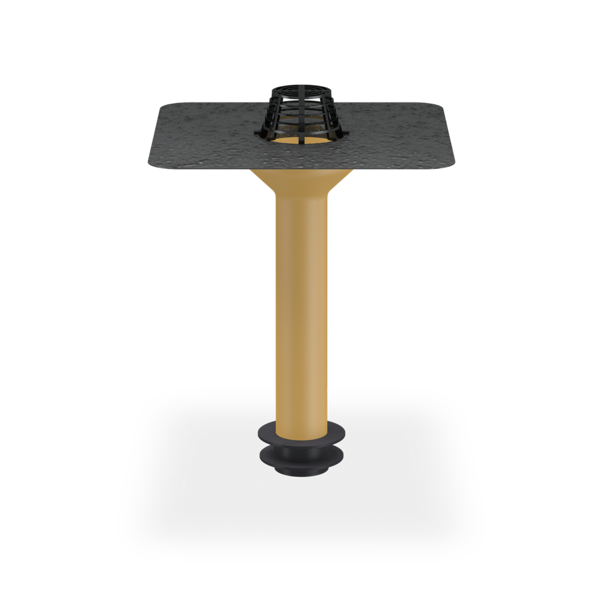

SitaSani®
Refurbishment outlet
Attributes
- Thermally insulated
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable
- Backflow safe up to a water column of 2 m

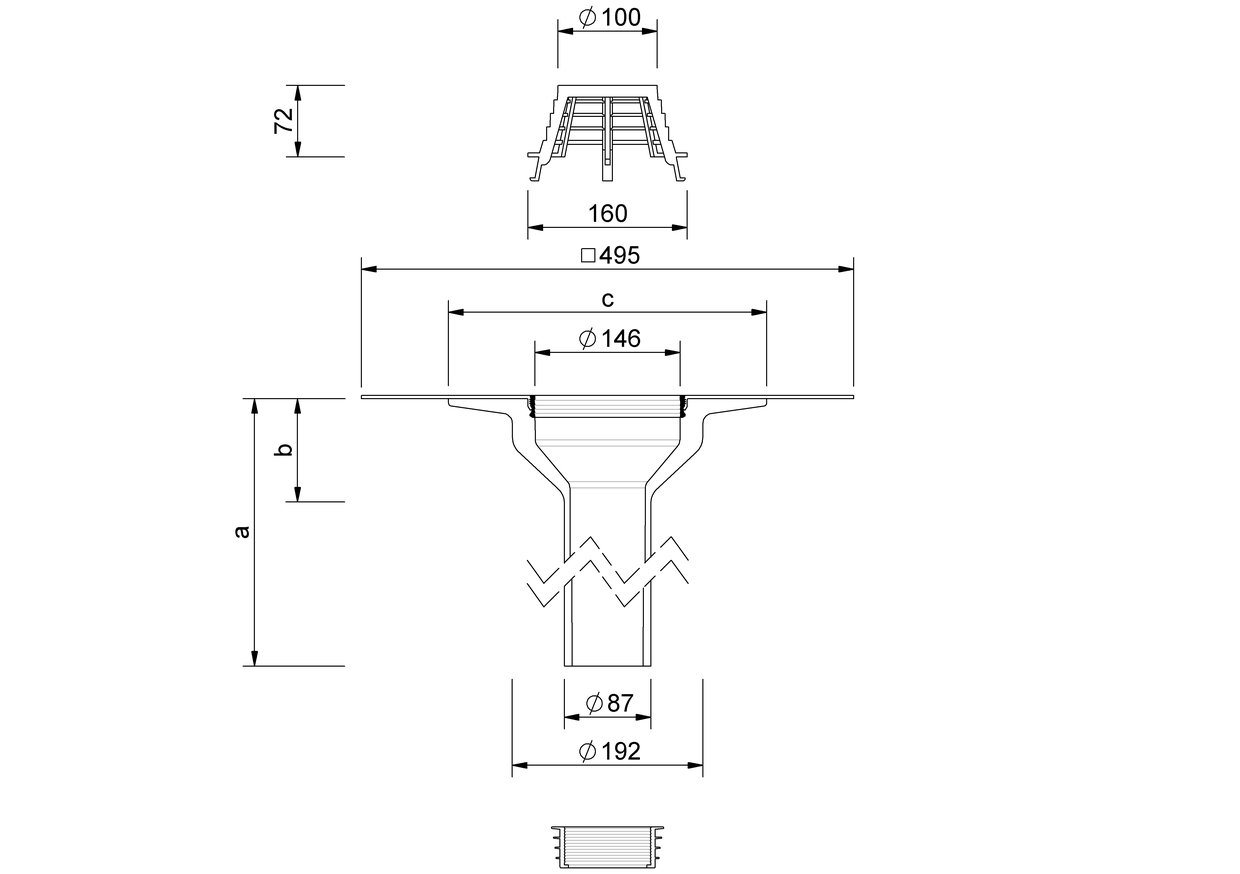

Technical drawing
| Size DN | External diameter OD (mm) | a (mm) | b (mm) | c (mm) | Backflow safe for refurbishing internal diameters from– to (mm) with lip sealing ring | Backflow safe for refurbishing internal diameters from– to (mm) with profiled sealing ring |
|---|---|---|---|---|---|---|
| 105 | 87 | 550 | 105 | 320 | 105 - 134 | - |
Performance text
Streamflow
Discharge rate according to DIN EN 1253-2 in l/s
Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.
Installation Examples
Downloads
Article selection
SitaSani® 105 refurbishment outlet, made of polyurethane, height 550 mm, thermally insulated, to DIN EN 1253-2, discharge rate 7.2 l/s at 45 mm retaining height, for refurbishment of internal diameters of 105-134 mm. With large foamed-in connection sleeve of choice (495 mm x 495 mm) for homogeneous connection of the roofing membrane. With fixing ring for addition securing of the connection sleeve and to hold the dome grate. Complete including dome grate, lubricant and multi-lip sealing ring for backflow protection, supply and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Execution | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 550 mm | 0.5 | 1.2 | 2.1 | 3 | 3.9 | 4.8 | 5.6 | 6.4 | 7.2 | 8 | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 |
SitaSani as pot refurbishment in a non-ventilated roof structure
SitaSani® consisting of:
1.1 Profiled sealing ring
1.2 Base body
1.3 Dome grate
1.1 Profiled sealing ring
1.2 Base body
1.3 Dome grate
Non-ventilated roof structure to the general rules of engineering with:
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure
SitaSani as pipe refurbishment in a non-ventilated roof structure
SitaSani® 63/90/105 consisting of:
1.1 Sealing ring
1.2 Base body
1.3 Dome grate
2 SitaSani® 63/90/105 insulating body
1.1 Sealing ring
1.2 Base body
1.3 Dome grate
2 SitaSani® 63/90/105 insulating body
Non-ventilated roof structure to the general rules of engineering with:
- New sealing
- New thermal insulation
- Existing sealing
- Existing thermal insulation
- Vapour barrier
- Substructure
+
