SitaTrendy
Extension unit
Attributes
- Heat-insulated
- Excellent resistance to weather (UV/IR radiation)
- Resistant to normal environmental influences
- Impact and shock resistant
- Long lifespan

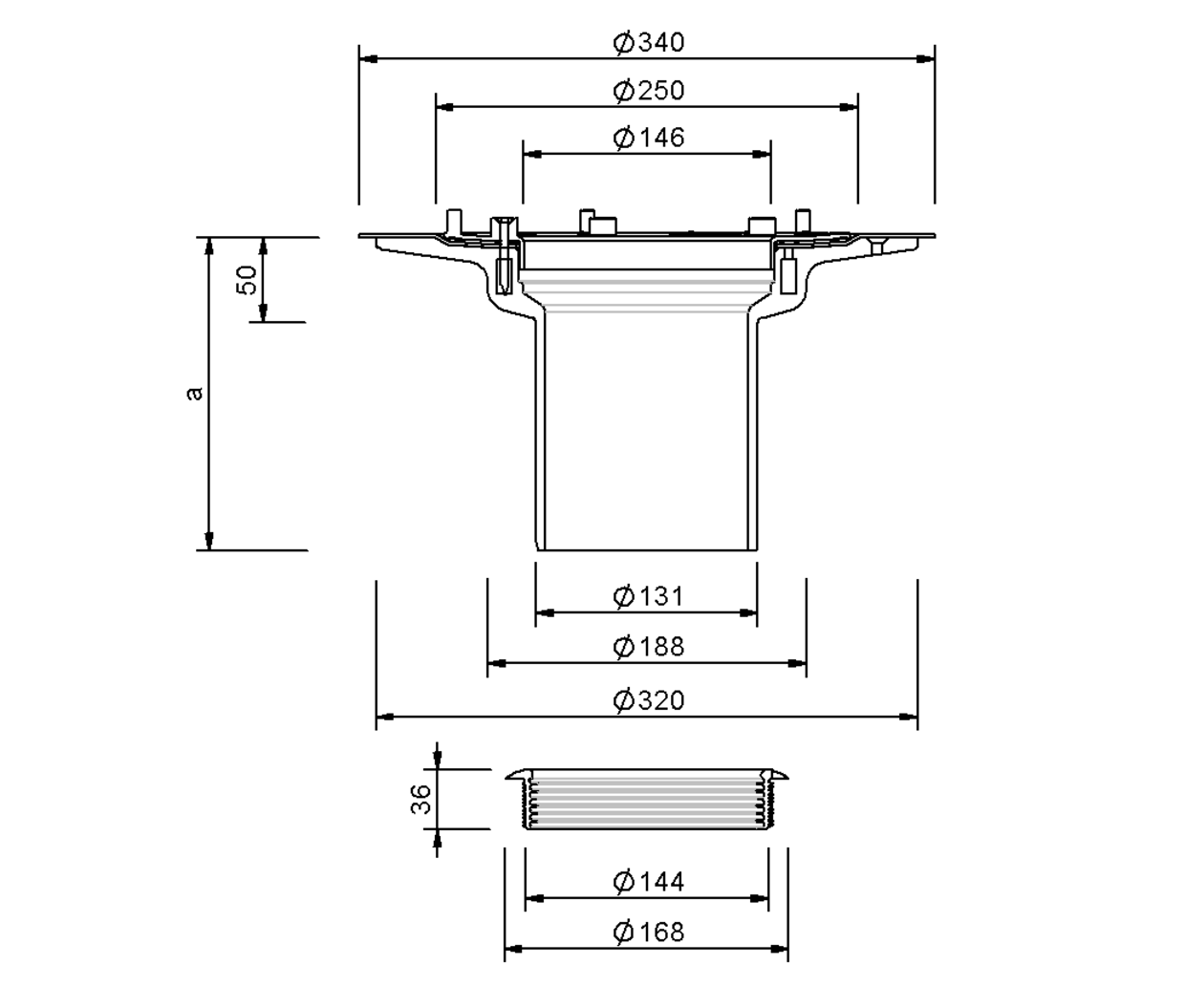

Technical drawing
| a (mm) | Bridging of thermal insulation min. (mm) | Bridging of thermal insulation max. (mm) |
|---|---|---|
| 185 | 60 | 150 |
| 255 | 60 | 220 |
| 355 | 60 | 320 |
Performance text
Installation Examples
MultiCAD und BIM-Daten
Downloads
PDF TechnischeZeichnung_152699_en.pdf
PDF TechnischeZeichnung_152799_en.pdf
DWG TZ_DB_SitaTrendy_Schraubflansch_Aufstockelement_150mm.DWG
DWG TZ_DB_SitaTrendy_Schraubflansch_Aufstockelement_220mm.DWG
DWG TZ_DB_SitaTrendy_Schraubflansch_Aufstockelement_320mm.DWG
Article selection

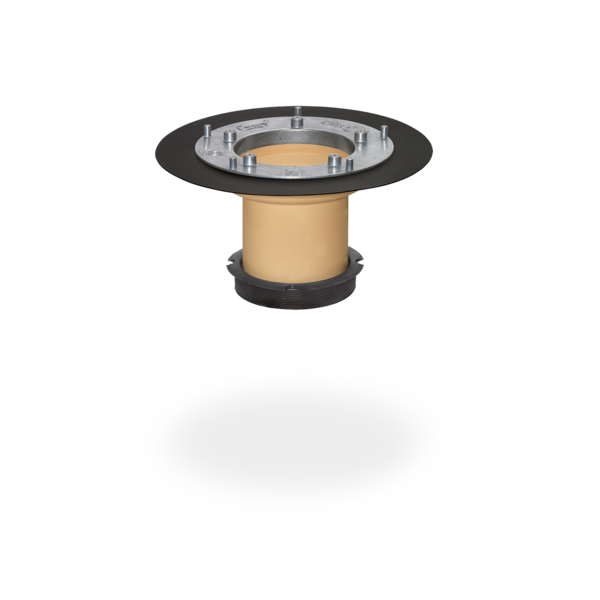

SitaTrendy screw-on flange extension unit, made of polyurethane, to DIN EN 1253-2, for insulating material thicknesses of 60-320 mm, with pre-drilled holes to secure the component in the substructure. With foamed-in insert ring for the supplied screws, loose aluminium flange and two sealing sleeves for clamping bitumen, plastic or EPDM roofing membranes, complete including dome grate, supply and install to professional standards.
SitaTrendy screw-on flange in a non-ventilated roof structure with terrace slabs in a gravel bed
1 SitaTrendy insulating body for extension unit
SitaTrendy extension unit consisting of:
2.1 Sealing ring
2.2 Base body
SitaMore terrace kit consisting of:
3.1 End grate
3.2 Housing
3.3 Height adjustment ring
SitaTrendy screw-on flange vertical consisting of:
4.1 Base body
4.2 Loose flange, seals and screws
5 SitaTrendy insulating body for outlet
SitaTrendy extension unit consisting of:
2.1 Sealing ring
2.2 Base body
SitaMore terrace kit consisting of:
3.1 End grate
3.2 Housing
3.3 Height adjustment ring
SitaTrendy screw-on flange vertical consisting of:
4.1 Base body
4.2 Loose flange, seals and screws
5 SitaTrendy insulating body for outlet
Non-ventilated roof structure with slab paving in gravel bed to the general rules of engineering with:
- Slab paving
- Grit or gravel bed
- Drainage mat
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
SitaTrendy in a non-ventilated roof structure
1 SitaMore reinforcement plate
2 SitaTrendy insulating body for extension unit
SitaTrendy screw-on flange extension unit, consisting of:
3.1 Sealing sleeves and screw-on flange
3.2 Sealing ring
3.3 Base body
SitaTrendy vertical consisting of:
4.1 Dome grate cover
4.2 Dome grate base body
4.3 Base body with connection sleeve of choice
5 SitaTrendy insulating body for outlet
2 SitaTrendy insulating body for extension unit
SitaTrendy screw-on flange extension unit, consisting of:
3.1 Sealing sleeves and screw-on flange
3.2 Sealing ring
3.3 Base body
SitaTrendy vertical consisting of:
4.1 Dome grate cover
4.2 Dome grate base body
4.3 Base body with connection sleeve of choice
5 SitaTrendy insulating body for outlet
Non-ventilated roof structure to the general rules of engineering with:
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure
SitaTrendy retaining element for emergency drainage as a waterspout in a ventilated roof structure
SitaMore retaining element consisting of:
1.1 Height-adjustable rubber-metal buffers
1.2 Closed cover
1.3 Sealing ring
1.4 Base body
SitaTrendy extension unit consisting of:
2.1 Base body
2.2 Sealing ring
3 SitaTrendy insulating body for extension unit
4 SitaTrendy vertical
5 SitaPipe Edelstahl safety clamp
6 SitaPipe Edelstahl bend
7 SitaPipe Edelstahl pipe clamp
8 SitaPipe Edelstahl pipe
9 SitaAttika cladding cover plate
1.1 Height-adjustable rubber-metal buffers
1.2 Closed cover
1.3 Sealing ring
1.4 Base body
SitaTrendy extension unit consisting of:
2.1 Base body
2.2 Sealing ring
3 SitaTrendy insulating body for extension unit
4 SitaTrendy vertical
5 SitaPipe Edelstahl safety clamp
6 SitaPipe Edelstahl bend
7 SitaPipe Edelstahl pipe clamp
8 SitaPipe Edelstahl pipe
9 SitaAttika cladding cover plate
Non-ventilated roof structure to the general rules of engineering with:
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
- Parapet lead-through with joint tape
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
Technical drawings
PDF TechnischeZeichnung_152599_en.pdfPDF TechnischeZeichnung_152699_en.pdf
PDF TechnischeZeichnung_152799_en.pdf
DWG TZ_DB_SitaTrendy_Schraubflansch_Aufstockelement_150mm.DWG
DWG TZ_DB_SitaTrendy_Schraubflansch_Aufstockelement_220mm.DWG
DWG TZ_DB_SitaTrendy_Schraubflansch_Aufstockelement_320mm.DWG
| SitaTrendy | Article no. | |||
|---|---|---|---|---|
Screw-on flange Extension unit | ||||
| 150 mm | Screw-on flange | 152599 | Show product | |
| 220 mm | Screw-on flange | 152699 | Show product | |
| 320 mm | Screw-on flange | 152799 | Show product |
