SitaCompact
Insulating body for rainwater outlet
- Products
Accessories
Insulating body for rainwater outlet
Attributes
- Pressure-resistant
- Stable dimensions
- Insensitive to moisture
- Resistant to rotting

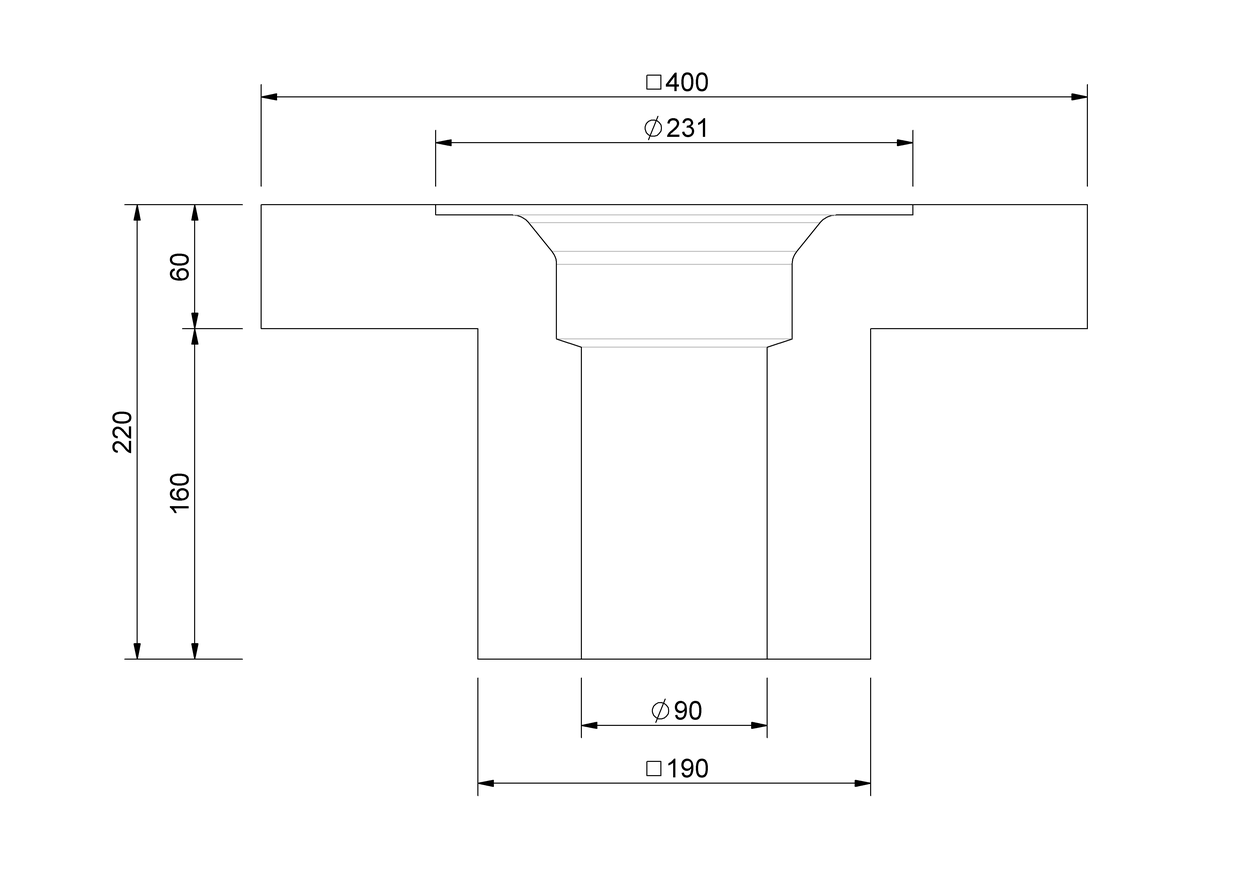

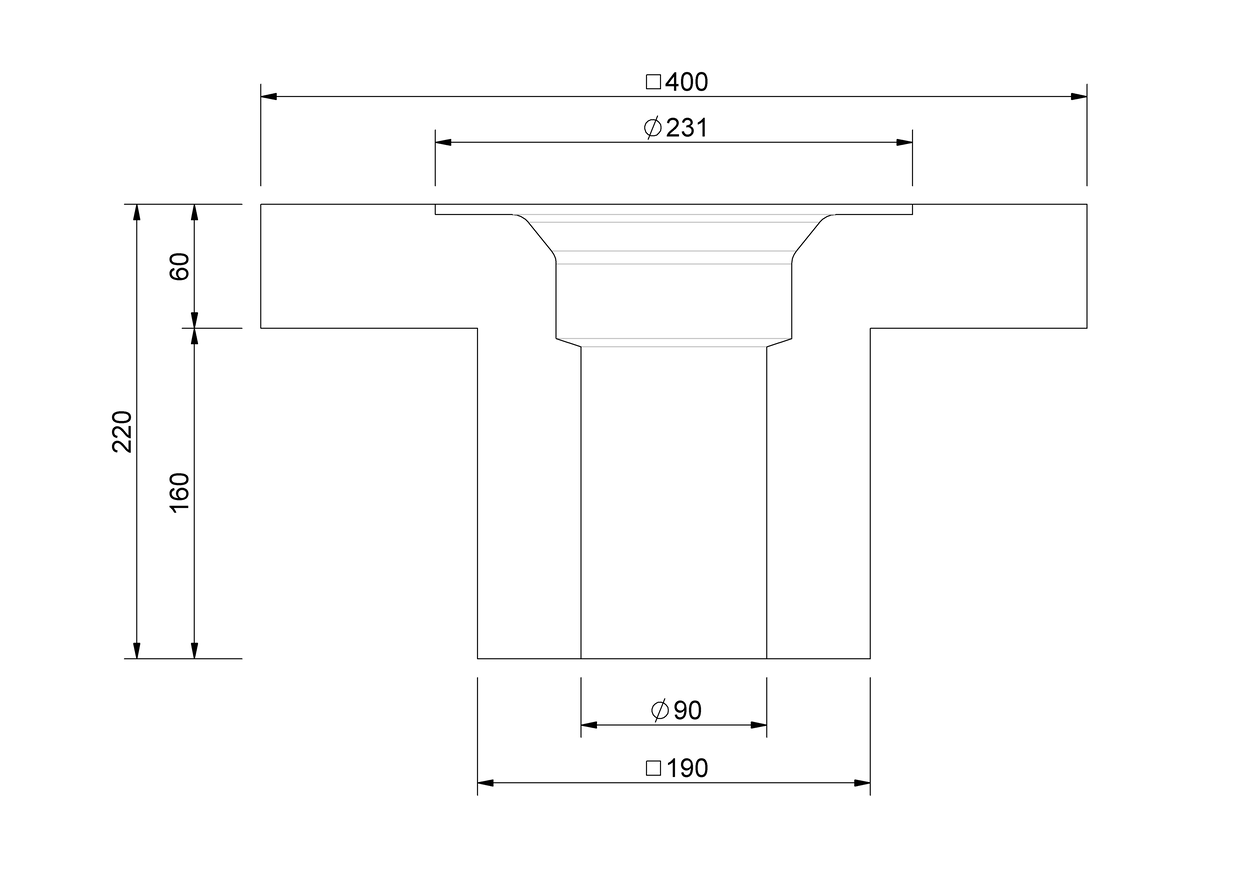

Technical drawing
Performance text
Installation Examples
MultiCAD und BIM-Daten
Downloads
Article selection
SitaCompact insulating body for outlet for SitaCompact and SitaCompact screw-on flange made of extruded polystyrene foam, WLG 040, 400 x 400 x 220 mm, fire classification Euroclass E, to EN 13501-1. For thermal insulation and for use as concealed formwork, supply and installation to professional standards.
SitaCompact in a non-ventilated roof structure with SitaCompact balcony outlet grating and slab paving
1 SitaCompact insulating body
2 SitaCompact vertical
SitaCompact extension unit consisting of:
3.1 Sealing ring
3.2 Base body
SitaCompact balcony outlet grating consisting of:
4.1 End grate
4.2 Housing
4.3 Inlet filter grille
2 SitaCompact vertical
SitaCompact extension unit consisting of:
3.1 Sealing ring
3.2 Base body
SitaCompact balcony outlet grating consisting of:
4.1 End grate
4.2 Housing
4.3 Inlet filter grille
Non-ventilated roof structure with slab paving on support pads to the general rules of engineering with:
- Slab paving on support pad
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
SitaCompact with retaining ring in a non-ventilated roof structure with slab paving
1 SitaCompact insulating body
2 SitaCompact vertical
SitaCompact extension unit consisting of:
3.1 Sealing ring
3.2 Base body
SitaCompact retaining ring consisting of:
4.1 Retaining ring
4.2 Sealing ring
SitaDrain® Terra consisting of:
5.1 Inspection grate
5.2 Height-adjustable rubber feet
5.3 Frame
6 SitaPipe Edelstahl pipe clamp
7 SitaPipe Edelstahl pipe
8 SitaPipe Edelstahl bend
9 SitaPipe Edelstahl safety clamp
2 SitaCompact vertical
SitaCompact extension unit consisting of:
3.1 Sealing ring
3.2 Base body
SitaCompact retaining ring consisting of:
4.1 Retaining ring
4.2 Sealing ring
SitaDrain® Terra consisting of:
5.1 Inspection grate
5.2 Height-adjustable rubber feet
5.3 Frame
6 SitaPipe Edelstahl pipe clamp
7 SitaPipe Edelstahl pipe
8 SitaPipe Edelstahl bend
9 SitaPipe Edelstahl safety clamp
Non-ventilated roof structure with slab paving on support pads to the general rules of engineering with:
- Slab paving on support pad
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
| SitaCompact | Article no. | ||
|---|---|---|---|
Insulating body for rainwater outlet | |||
| SitaCompact vertical | E199003 | Show product |
