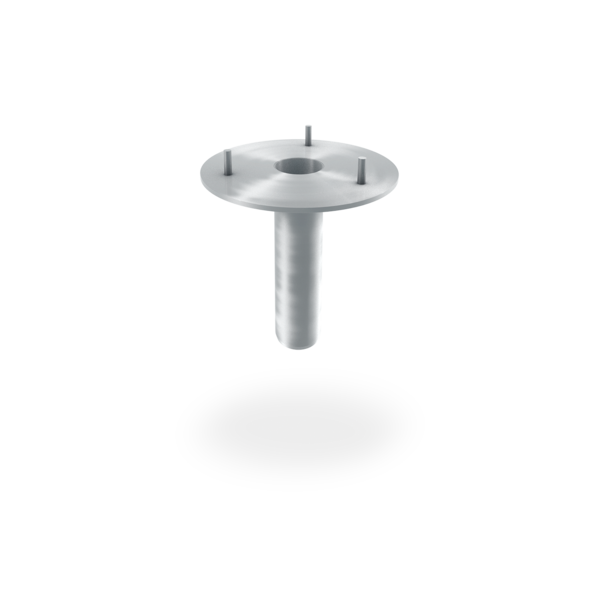

SitaDSS Ravana

Retaining element

Attributes

Resistant to normal environmental influences
Impact and shock resistant
Heat-resistant
Durable
Universal for any seal

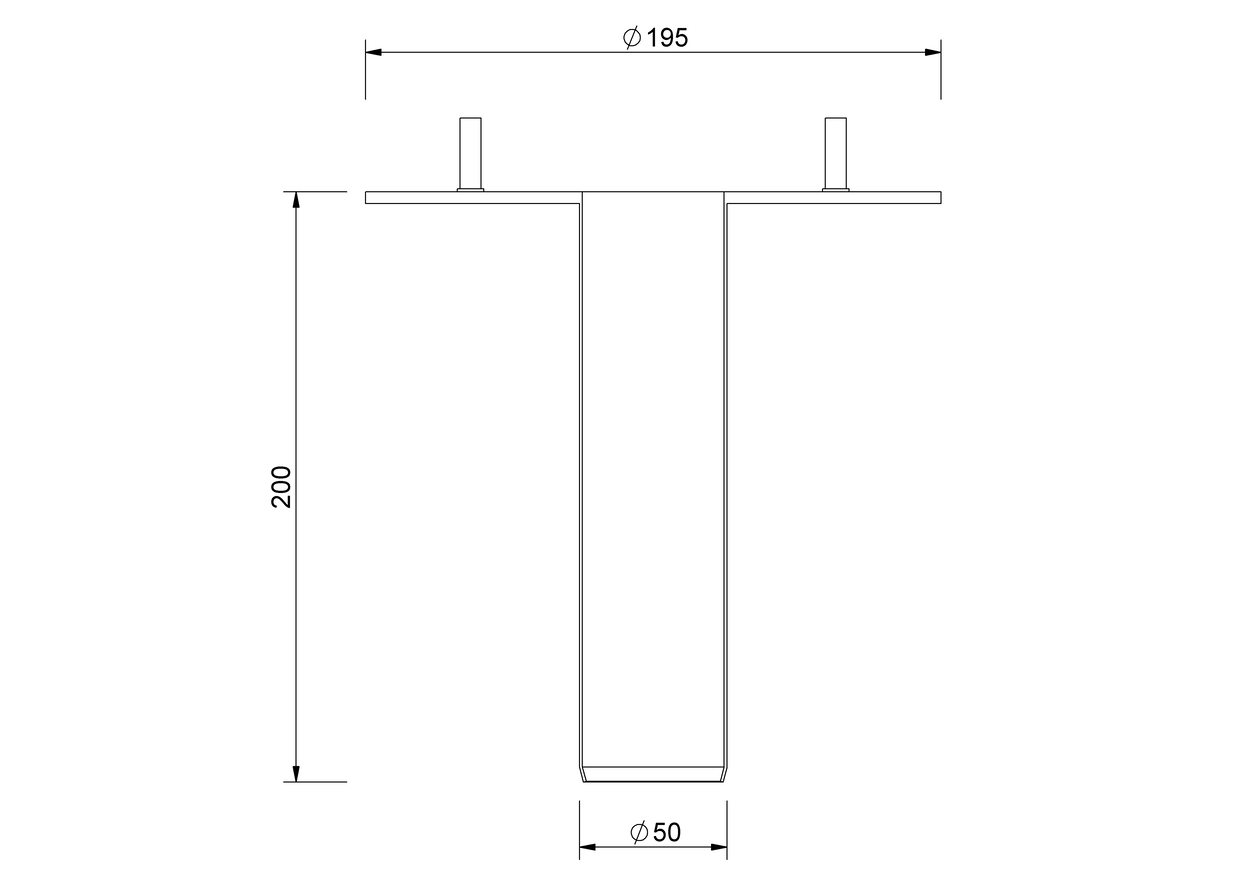

Technical drawing

Damming height from-to (mm)
30 - 150

Performance text

SitaDSS Ravana retaining element for emergency drainage for SitaDSS Ravana siphonic drain, made of stainless steel, material no. 1.4301, to DIN EN 1253-2, retaining height from 30 to 150 mm, with a discharge rate of 14.1 l/s full fill at a water column of 43 mm, to prEN 1253-2:2013, supply and install to professional standards.

Installation Examples

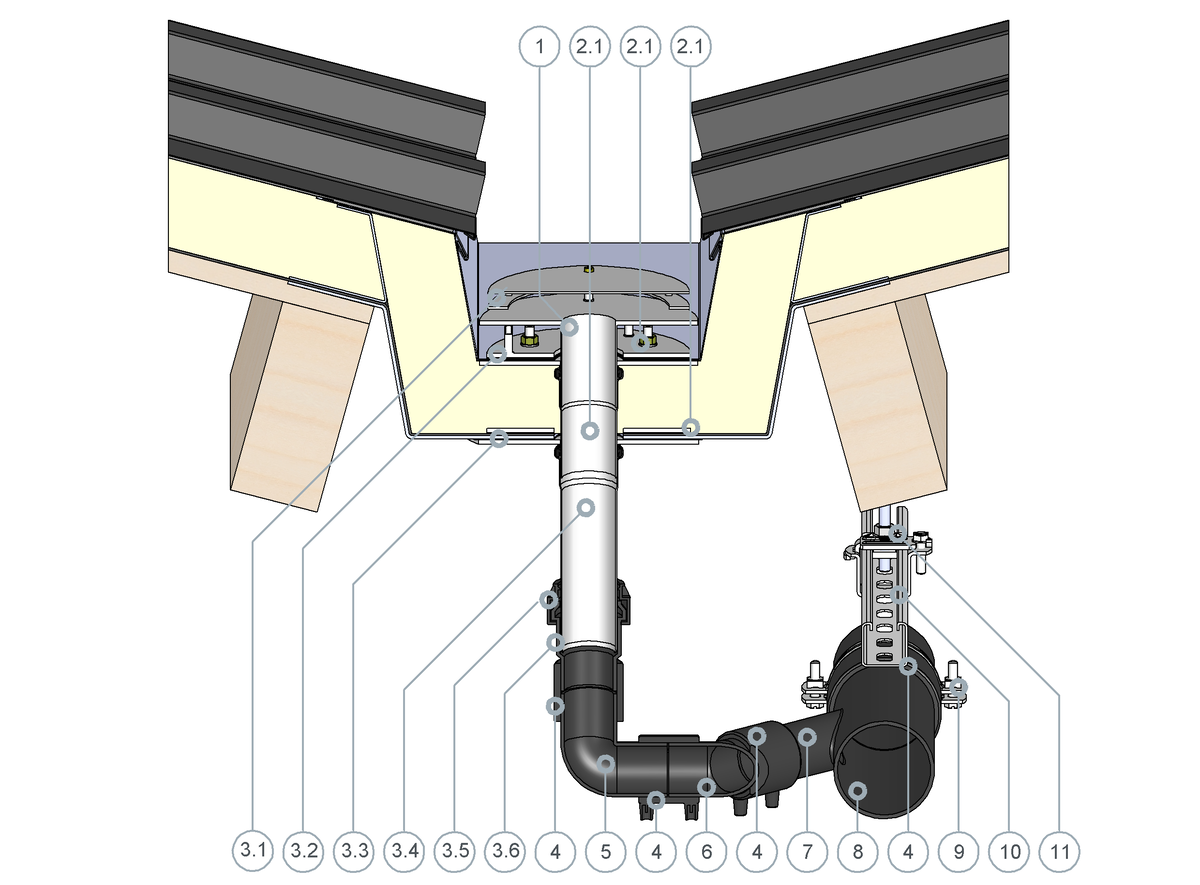

SitaDSS Ravana with SitaDSS Ravana Retaining element for emergency drainage in an internal gutter

1 SitaDSS Ravana retaining element

SitaDSS Ravana extension unit consisting of:
2.1 Base body
2.2 Washer, nuts and sealing sleeves
2.3 Loose flange

SitaDSS Ravana consisting of:
3.1 Airstop
3.2 Loose flange
3.3 Washers, nuts and sealing sleeves
3.4 Base body
3.5 Safety clamp
3.6 PE-HD plug-in coupler

4 SitaDSS PE electrofusion socket
5 SitaDSS PE bend 88.5°
6 SitaDSS PE bend 45°
7 SitaDSS PE branch
8 SitaDSS PE pipe system
9 SitaDSS Clamp fixing
10 SitaDSS Rail mounting rail
11 SitaDSS Rail suspension unit

Non-ventilated roof structure to the general rules of engineering with:

Roofing
Thermal insulation
Vapour barrier
Substructure

MultiCAD und BIM-Daten

In order for the external content to be displayed at this location, you must accept the cookies of the category "Preferences".
You can adjust the cookie settings here.

Downloads

SitaDSS Ravana			Article no.
Retaining element
Retaining element	SitaDSS Ravana	30 - 150	289001	Show product
