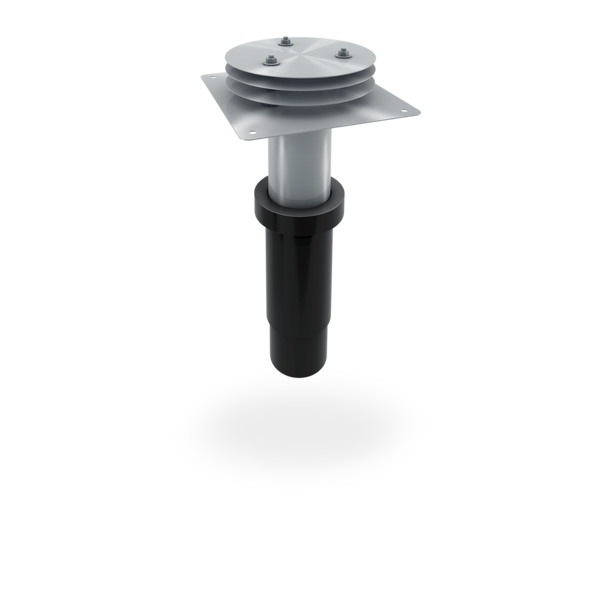

SitaDSS Ravana Plus

Siphonic drainage outlet

Attributes

Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
Impact and shock resistant
Durable

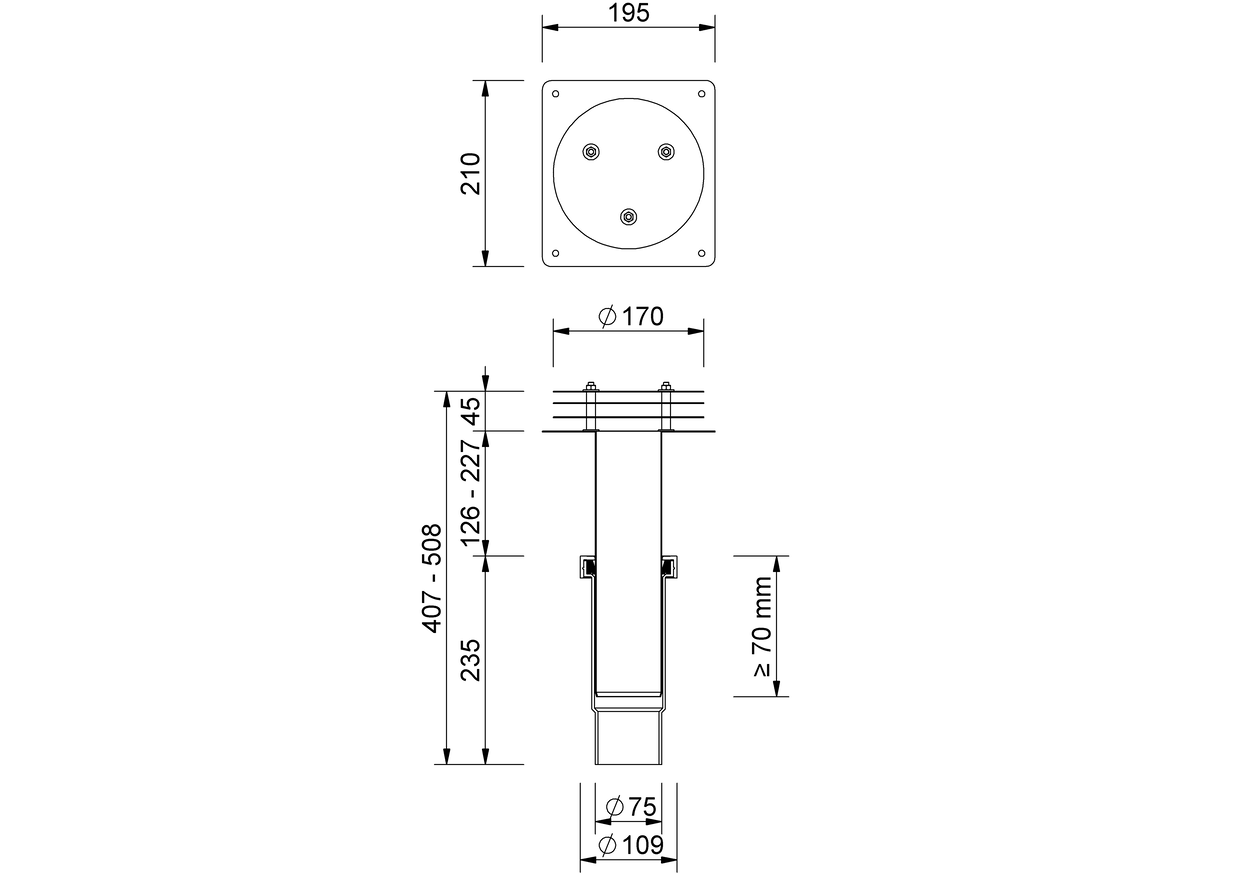

Technical drawing

Size DN	External diameter OD (mm)	Opening/Core borehole (mm)
70	75	100

Performance text

SitaDSS Ravana Plus, gutter rainwater outlet for siphonic drainage for liquid applied waterproofing, made of stainless steel, material No. 1.4301, to DIN EN 1253-2, in size DN/OD 70/75, with an adapter consisting of a plug-in coupler DN 70 and an EPDM seal, suitable for electrofusion sockets, for direct connection to PE pipes to DIN EN 1519. With a discharge rate to DIN EN 1253-2:2015-03 of 29.8 l/s with a retaining height of 70 mm and full filling, with pre-drilled holes to secure the component in the substructure, with three M6 x 55 threaded rods, washers and hexagon nuts, to hold the Airstop, complete including Airstop, supply and install to professional standards.

Installation Examples

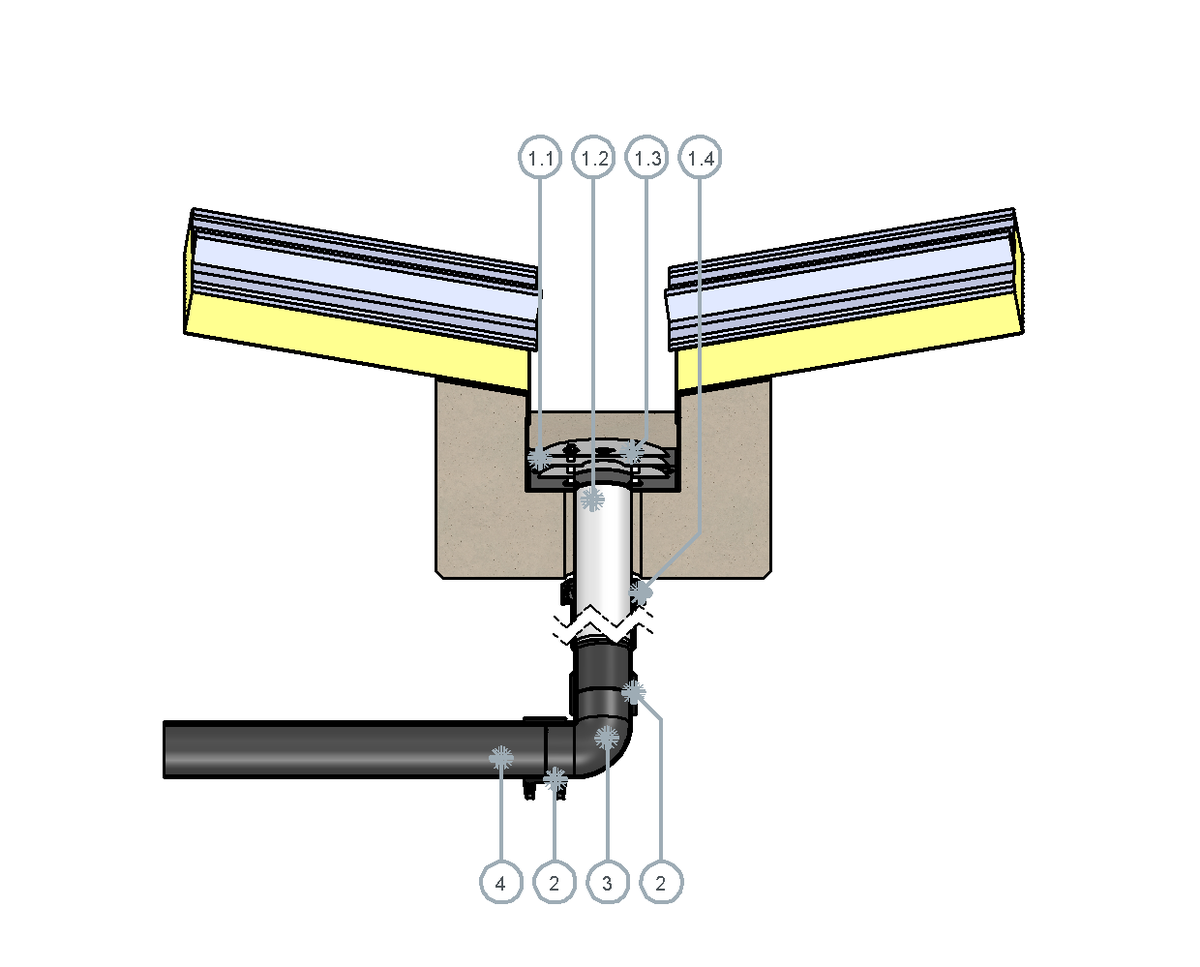

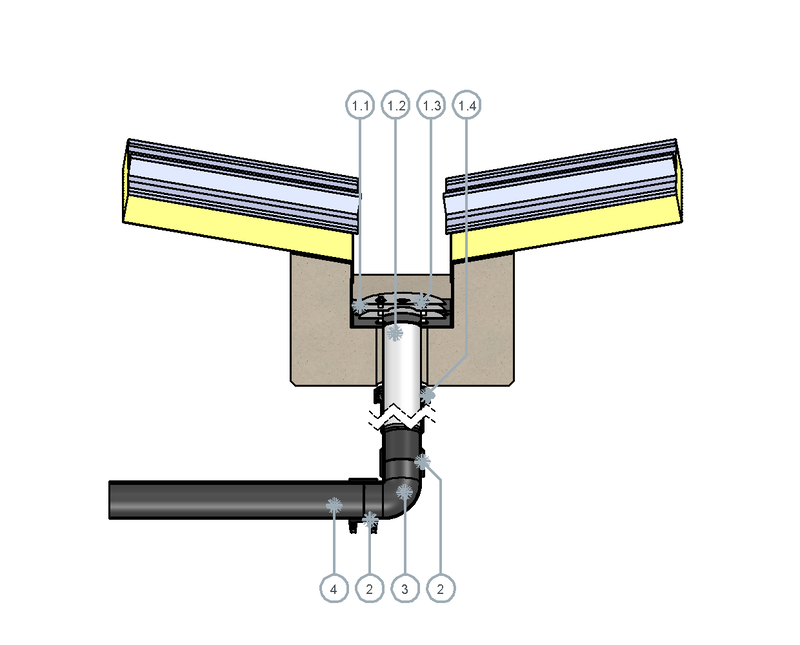

SitaDSS Ravana Plus in internal gutter

SitaDSS Ravana Plus consisting of:
1.1 Airstop
1.2 Base body
1.3 Mounting mandrel for Airstop, washers and fastening nuts
1.4 Expansion socket

2 SitaPipe PE electrofusion socket
3 SitaPipe PE bend
4 SitaPipe PE pipe

Roof structure with internal gutter according to the generally accepted rules of engineering with:

Sandwich element
Sealing with liquid plastic
Substructure
