SitaEasy Go
Dome grate
Attributes
- Easy to insert
- Height-adjustable

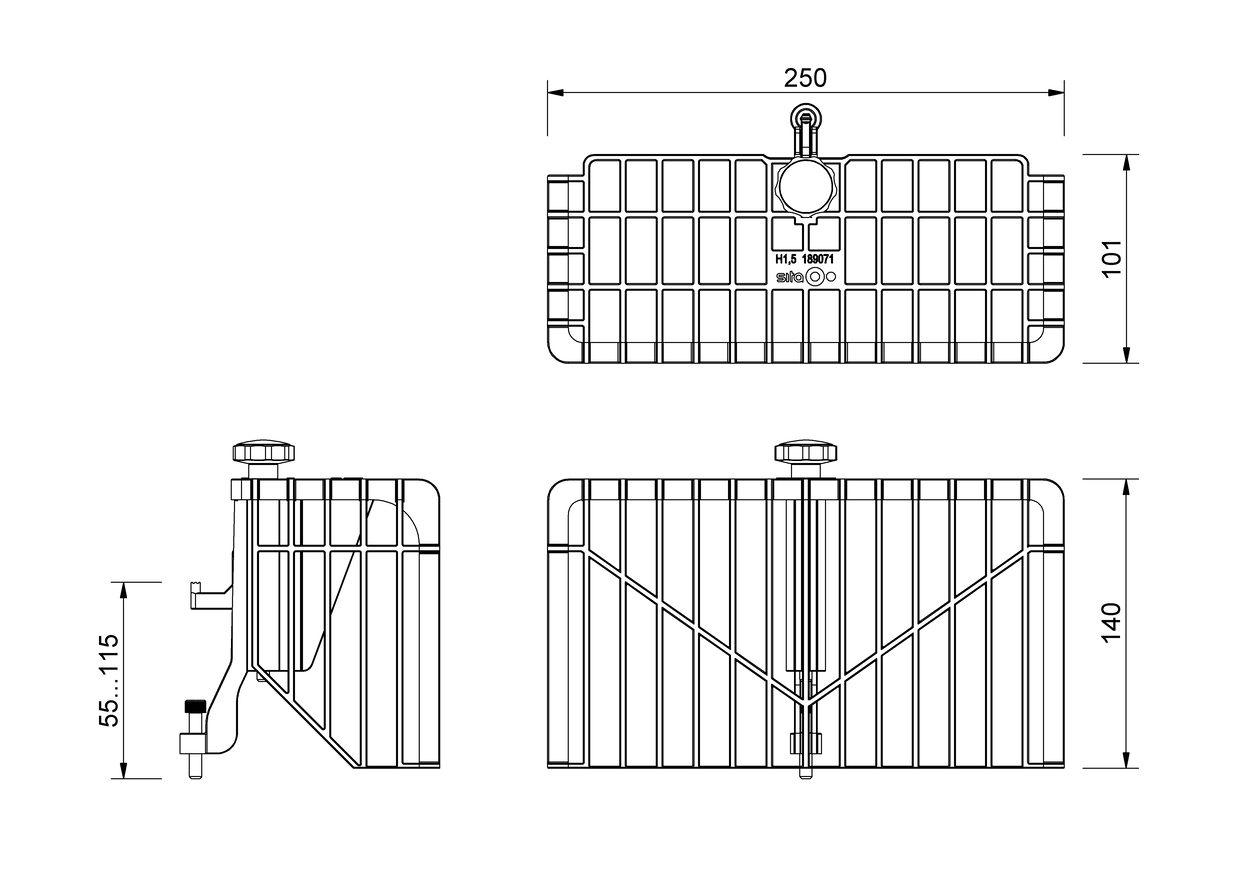

Technical drawing
Performance text
Installation Examples
MultiCAD und BIM-Daten
Downloads
Article selection
SitaEasy Go dome grate, made of polyamide, for sizes DN 70 and DN 100. For clamping to the fixing ring, with two height adjustment elements, supply and install to professional standards.
SitaEasy Go for main drainage in a non-ventilated roof structure
1 SitaPipe Edelstahl pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl bend
5 SitaAttika cladding cover plate
6 SitaMore vapour barrier plate flex
7 SitaEasy Go
SitaEasy dome grate consisting of:
8.1 Latch
8.2 Dome grate basket
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl bend
5 SitaAttika cladding cover plate
6 SitaMore vapour barrier plate flex
7 SitaEasy Go
SitaEasy dome grate consisting of:
8.1 Latch
8.2 Dome grate basket
9 SitaPipe Edelstahl cleaning pipe
Non-ventilated roof structure to the general rules of engineering with:
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
- Parapet lead-through with joint tape
SitaEasy Go for emergency drainage, installed higher in a non-ventilated roof structure
1 SitaPipe Edelstahl pipe
2 SitaMore vapour barrier plate flex
3 SitaPipe Edelstahl safety clamp
4 SitaEasy Go
SitaEasy Go dome grate consisting of:
5.1 Latch
5.2 Dome grate basket
2 SitaMore vapour barrier plate flex
3 SitaPipe Edelstahl safety clamp
4 SitaEasy Go
SitaEasy Go dome grate consisting of:
5.1 Latch
5.2 Dome grate basket
Non-ventilated roof structure to the general rules of engineering with:
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
- Parapet lead-through with joint tape
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
| SitaEasy Go | Article no. | ||
|---|---|---|---|
Dome grate | |||
| For DN 70 - DN 100 | 189071 | Show product |
