Sealing sleeve
- Products
Accessories
Sealing sleeve
Attributes
- Render-compatible fleece sleeve for use on walls that will be rendered
- Easy waterproofing even in confined spaces
- Permanently flexible seal compensates for movements of the building

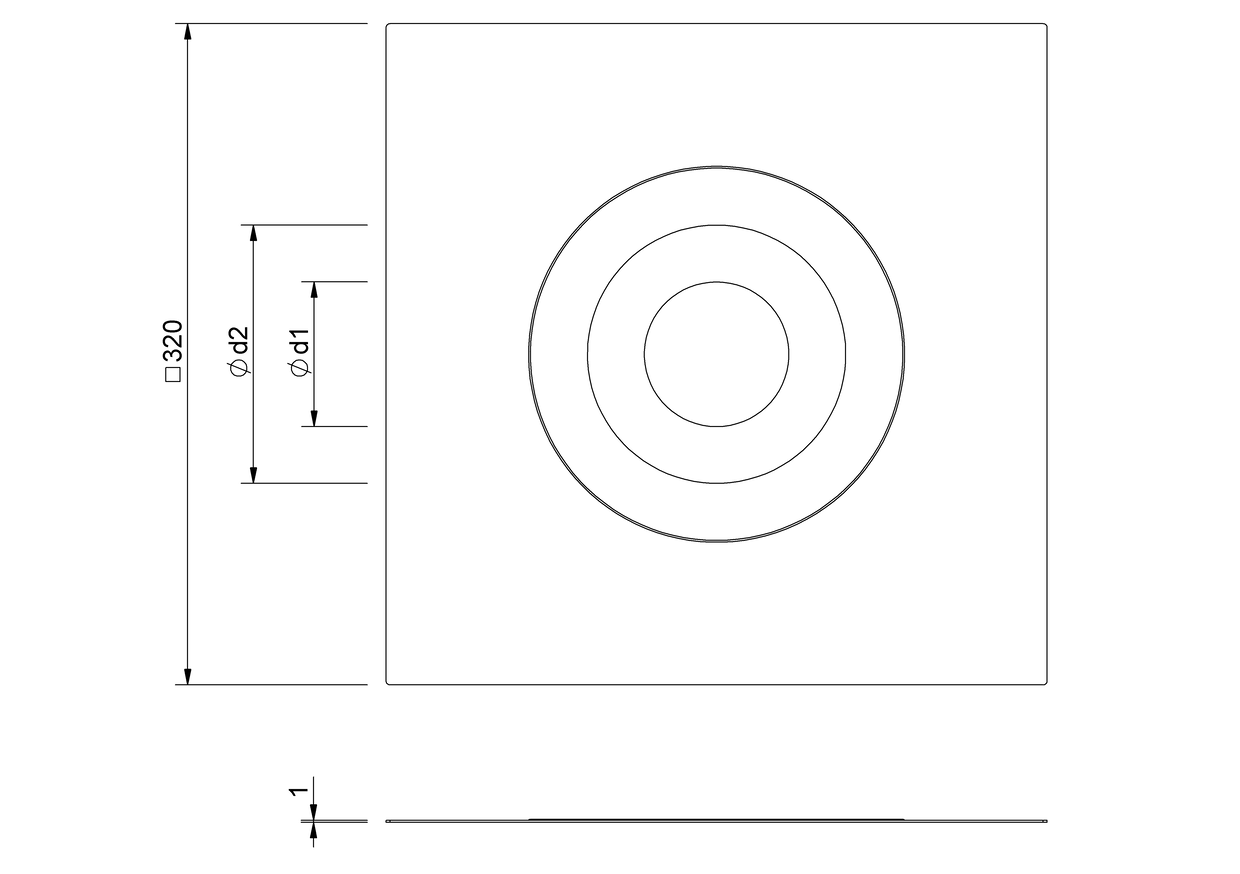

Technical drawing
| Size DN | d1 (mm) | d2 (mm) |
|---|---|---|
| 100 | 70 | 125 |
| 70 | 45 | 110 |
SitaMore sealing sleeve for WDVS, made of fleece-butyl, one-part render-compatible air sealing sleeve designed to be concealed in plastic, for the rapid and airtight sealing of pipe fairleads in the thermal insulation composite system according to DIN 4108-7 and GEG, in sizes DN 70 and DN 100, measuring 320 x 320 mm, with highly flexible EPDM seal, self-adhesive render-compatible fleece butyl collar for permanent bonding to the substrate (adhesion primer may be necessary) and between the fleece bonding surface and the render, supply and install to professional standards.

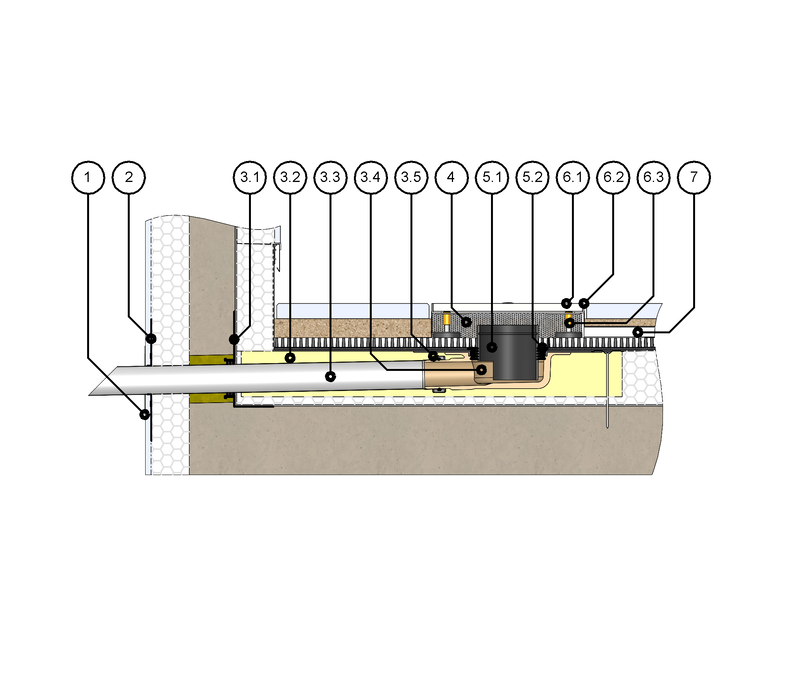

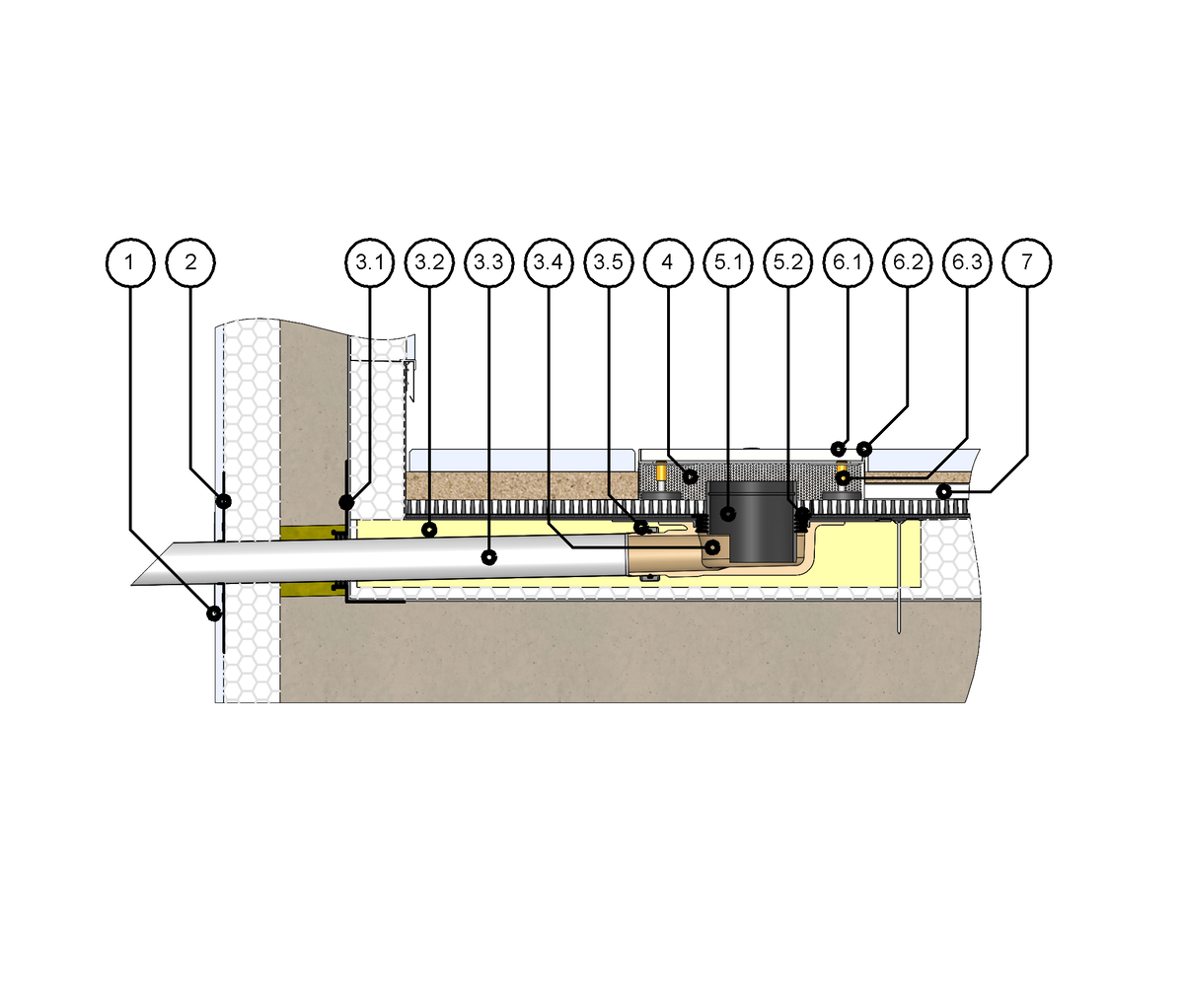

SitaIndra with SitaMore retaining ring in a non-ventilated roof structure with slabs and junction channel in a gravel bed
2 SitaMore sealing sleeve for WDVS
SitaIndra without dome grate consisting of:
3.1 SitaMore vapour barrier plate flex
3.2 SitaIndra insulating body
3.3 SitaPipe Edelstahl pipe
3.4 SitaIndra base body
3.5 SitaPipe Edelstahl safety clamp
4 SitaDrain® gravel strip
SitaMore retaining ring consisting of:
5.1 Retaining ring
5.2 Sealing ring
SitaDrain® Terra consisting of:
6.1 Inspection grate
6.2 Frame
6.3 Height-adjustable rubber feet
7 SitaDrain® junction channel
- Slab paving in gravel bed
- Drainage
- Protective mat
- Waterproofing
- Thermal insulation
- Vapour barrier
- Substructure
- Attic breakthrough with joint tape

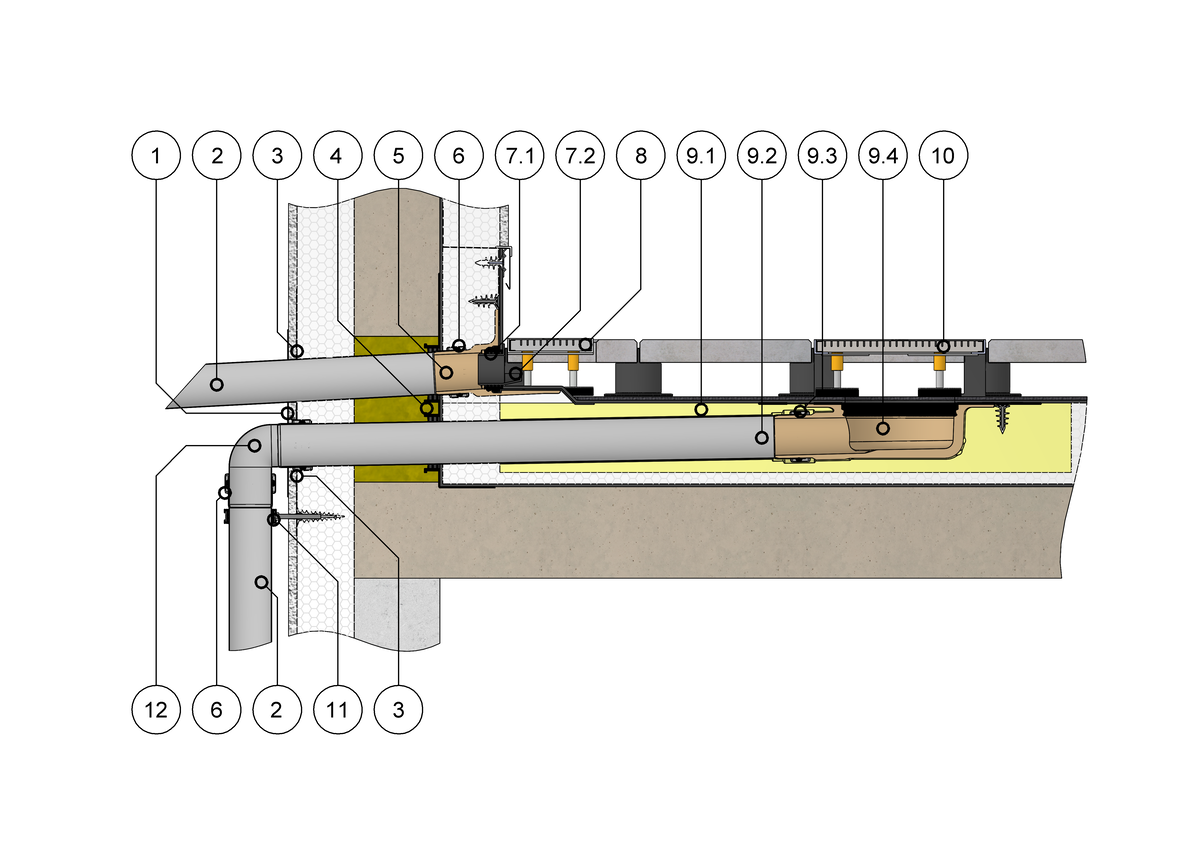

SitaMore vapour barrier plate Duoflex with SitaIndra and SitaEasy
2 SitaPipe Edelstahl pipe
3 SitaMore sealing sleeve WDVS
4 SitaMore vapour barrier plate Duoflex
5 SitaEasy
6 SitaPipe Edelstahl safety clamp
SitaEasy retaining element consisting of:
7.1 Sealing ring
7.2 Base body
8 SitaDrain® Klassik
SitaIndra without dome grate consisting of:
9.1 Insulating body
9.2 Stainless steel connection pipe
9.3 Safety clamp
9.4 Inlet pot
10 SitaDrain® Terra
11 SitaPipe Edelstahl pipe clamp
12 SitaPipe Edelstahl bend
- Slab paving
- Support pad
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
You can adjust the cookie settings here.
| SitaMore | Article no. | |||
|---|---|---|---|---|
Sealing sleeve | ||||
| DN 100 | SitaPipe Edelstahl pipe system, SitaRondo, SitaSpy | 180011 | Show product | |
| DN 70 | SitaPipe Edelstahl pipe system, SitaRondo, SitaSpy | 180075 | Show product |
