SitaTurbo

Cover plate

Attributes

Excellent resistance to weather (UV/IR radiation)
Resistant to normal environmental influences
Impact and shock resistant
Long lifespan

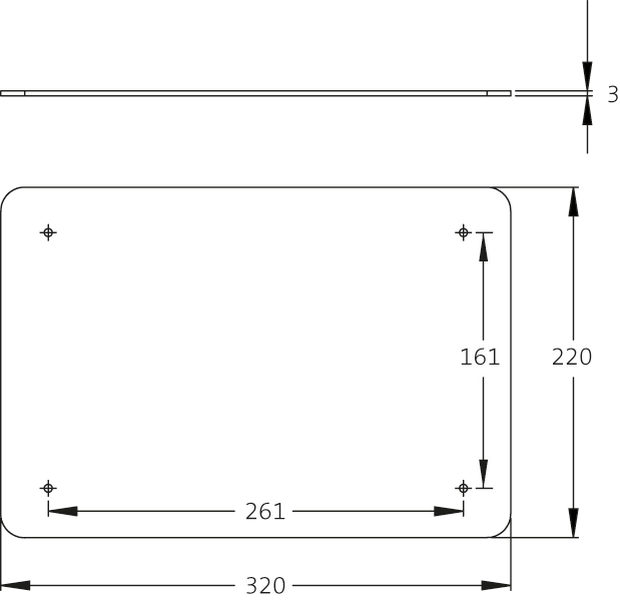

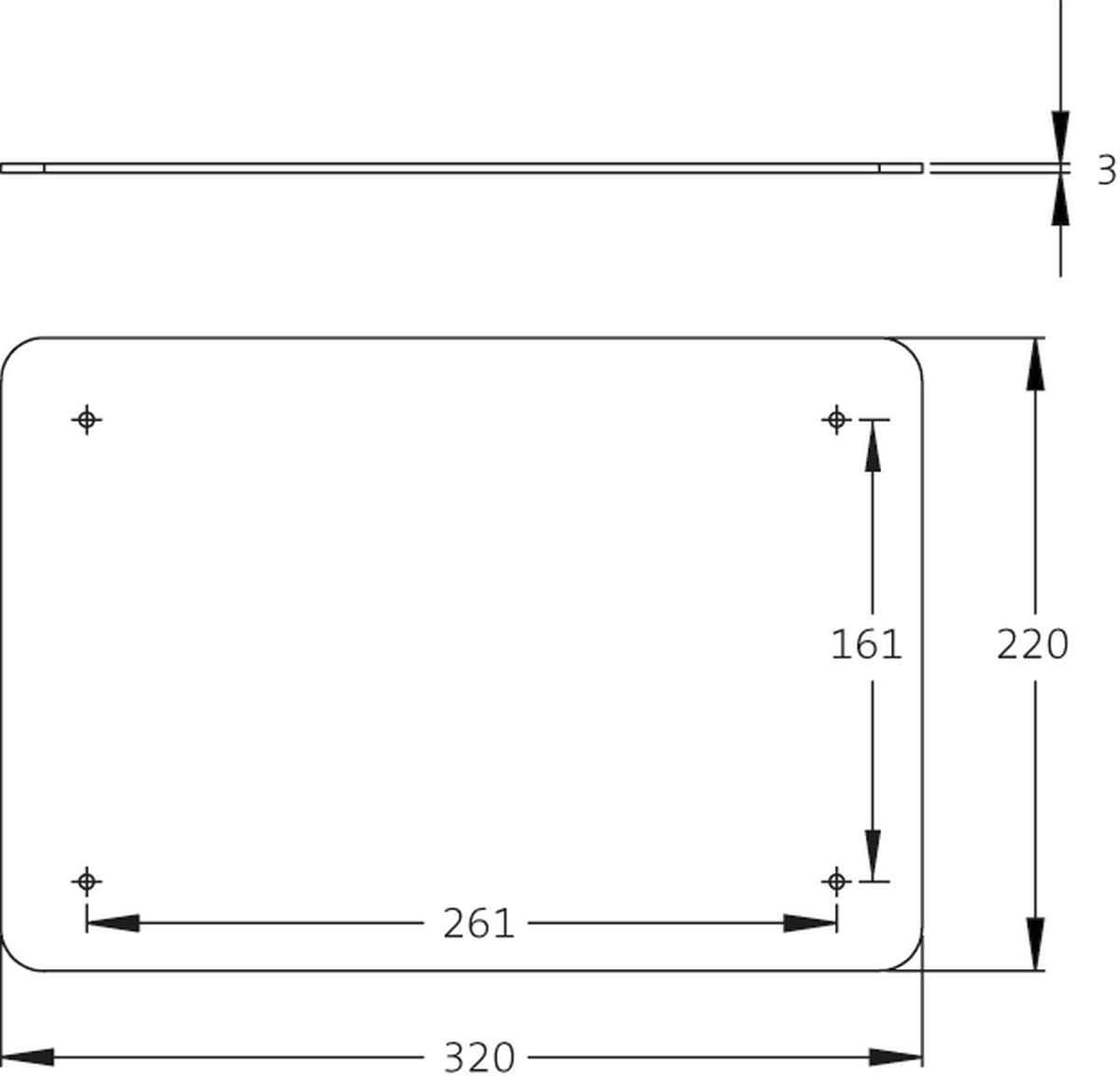

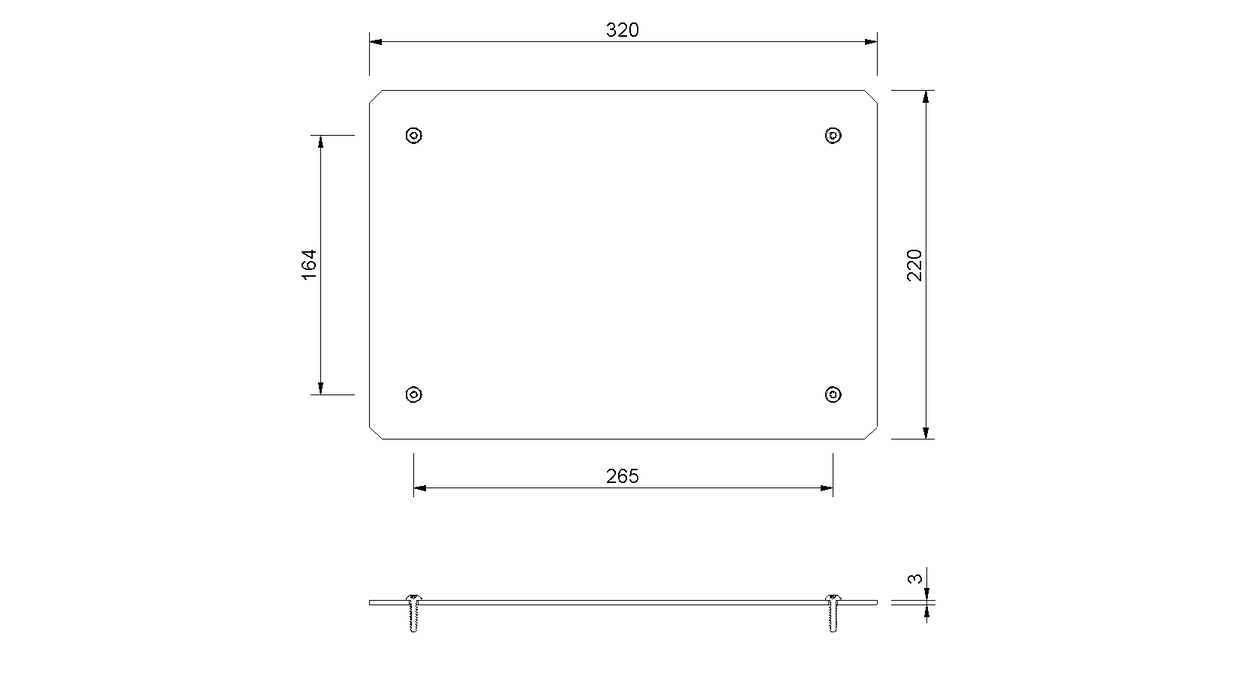

Technical drawing

Performance text Installation Examples

SitaTurbo for emergency drainage with downpipe in a non-ventilated roof structure

1 SitaPipe Edelstahl pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp

SitaTurbo transition piece consisting of:
4.1 Transition piece to round downpipe
4.2 Multi-disk seal

5 SitaTurbo cladding cover plate
6 SitaTurbo vapour barrier plate flex
7 SitaTurbo insulating body

SitaTurbo for emergency drainage consisting of:
8.1 SitaTurbo base body
8.2 Sealing sleeves
8.3 Washers, nuts and protective caps
8.4 Loose retaining flange
8.5 Dome grate

9 SitaTurbo cover plate
10 SitaTurbo connection sleeve
11 SitaPipe Edelstahl bend 45°

Non-ventilated roof structure to the general rules of engineering with:

Sealing
Waterproofing membrane
Thermal insulation
Vapour barrier
Substructure
Parapet opening with joint tape

SitaTurbo inverted roof for emergency drainage in an inverted roof

1 SitaTurbo cladding cover plate

SitaTurbo inverted roof consisting of:
2.1 Fixed flange plate
2.2 Washers, nuts and protective caps
2.3 SitaTurbo base body with welded loose flange plate
2.4 Loose retaining flange
2.5 Dome grate

3 SitaTurbo cover plate
4 SitaTurbo insulating body XPS for inverted roof

Inverted roof structure to the general rules of engineering with:

Gravel
Roofing fabric
Thermal insulation
Sealing
Substructure
Parapet lead-through with joint tape

MultiCAD und BIM-Daten

In order for the external content to be displayed at this location, you must accept the cookies of the category "Preferences".
You can adjust the cookie settings here.

Downloads

SitaTurbo		Article no.
Cover plate
Cover plate	SitaTurbo, SitaTurbo Max, SitaTurbo inverted roof	189114	Show product
