SitaVent Fireguard®
Fire protection vent
- Products
Ventilation
Fire protection vent
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

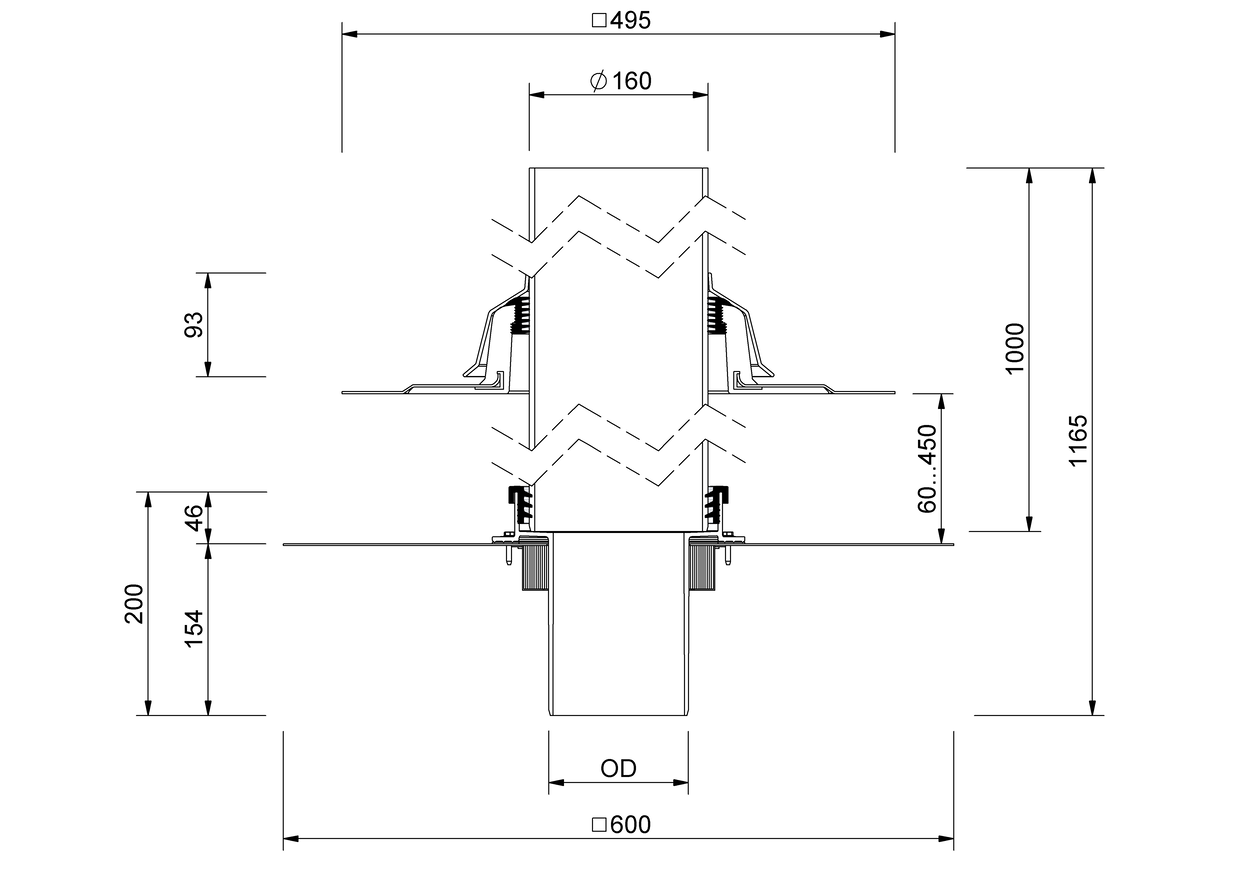

Technical drawing
| Size DN | External diameter OD (mm) | Opening/Core borehole (mm) | Recess dimension (mm x mm) | Bridging of thermal insulation min. (mm) | Bridging of thermal insulation max. (mm) |
|---|---|---|---|---|---|
| 125 | 125 | 255 | 200 mm x 200 mm | 60 | 450 |
| 150 | 160 | 300 | 300 mm x 300 mm | 60 | 450 |
| 70 | 75 | 185 | 150 mm x 150 mm | 60 | 450 |
| 100 | 110 | 235 | 190 mm x 190 mm | 60 | 450 |

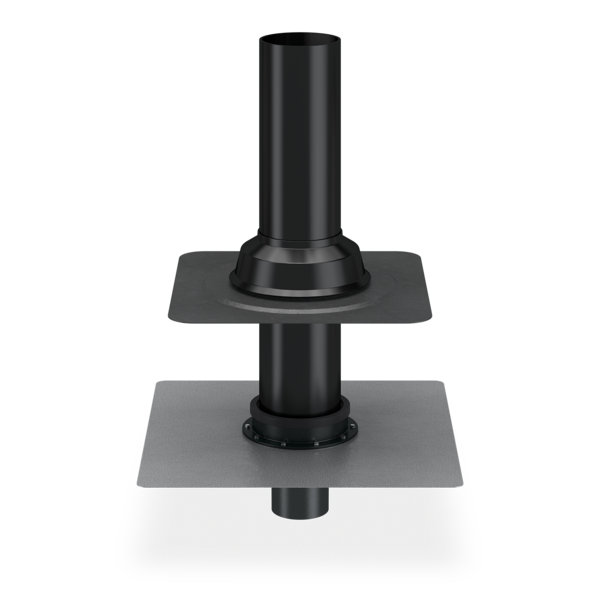

SitaVent Fireguard® for preventive fire protection and to prevent the spread of fire from below where there are small flammable penetrations to DIN 18234 part 3 and 4, consisting of: PE base body, collar for fixing to the reinforcement plate and for clamping the vapour barrier, base plate with foamed-in connection sleeve of choice (495 mm x 495 mm), PE pipe, DN/OD 150/160, 1000 mm long, for insulating material thicknesses from 60 to 450 mm, seven-lip sealing ring and rain deflector made of polyamide. For direct connection to pipes with plug-in coupler, with sealing sleeve and reinforcement plate to DIN EN 1090-4, with pre-assembled fire protection sleeve, supply and installation to professional standards.

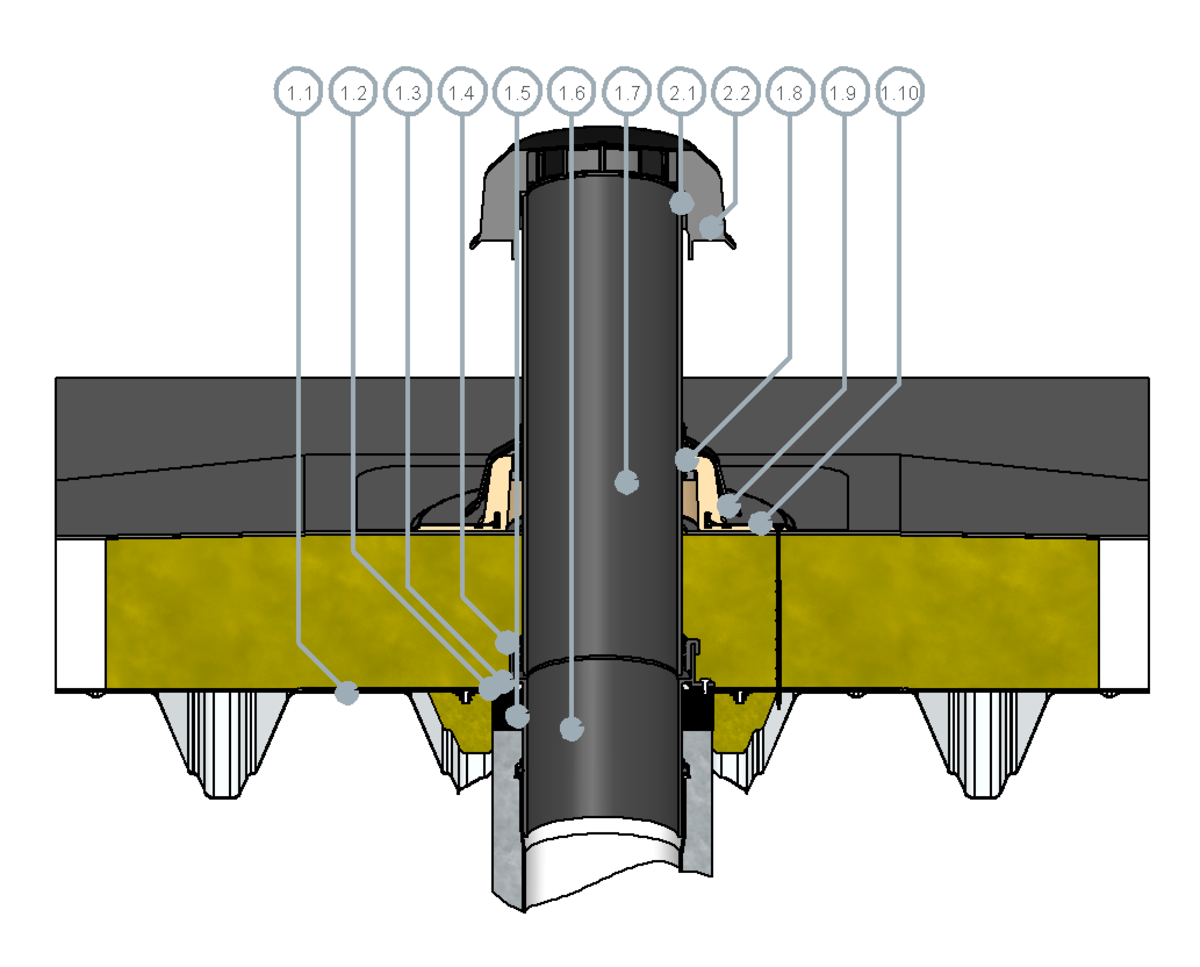

SitaVent Fireguard® in a non-ventilated roof structure
1.1 Reinforcement plate
1.2 Sealing sleeve
1.3 Self-tapping screw
1.4 Seal
1.5 Fire protection sleeve
1.6 PE base body
1.7 Connection pipe
1.8 Sealing ring
1.9 Rain deflector
1.10 Base plate

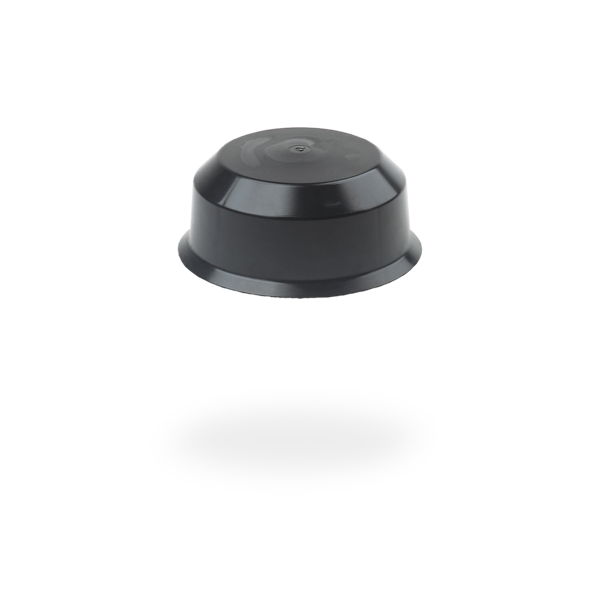

SitaVent rain cover consisting of:
2.1 Fastening ring
2.2 Base body
- Sealing

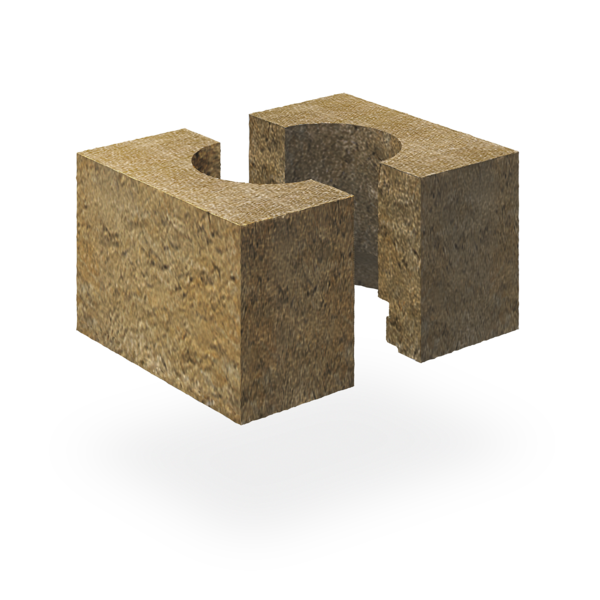

- Thermal insulation non-flammable, min. 1.0 m x 1.0 m
- Vapour barrier
- Non-flammable section fillers
- Steel trapezoidal section
