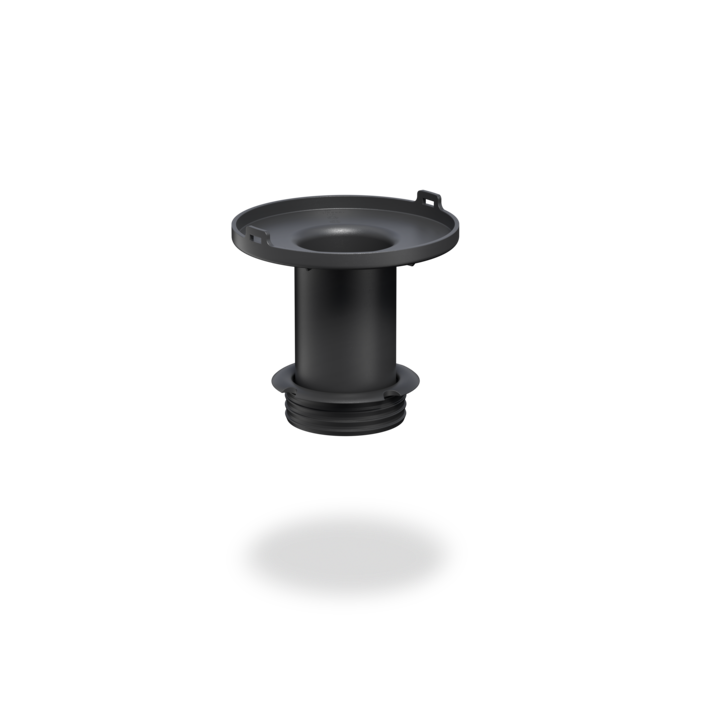

SitaCompact DN 50

Balcony and terrace drainage rainwater outlet

Attributes

Standards

DIN EN 1253-2

Article number

190076

connection

Sarnafil-TG 66-15 grey-sleeve

External diameter OD (mm)

50 mm

Opening/Core borehole (mm)

153 mm

Support length

52 mm

Pot height

77 mm

Pot inner diameter

90 mm

Temperature resistance, min.

-40 °C

Temperature resistance, max.

80 °C

Material class

Euroclass E / B2 normal flammability

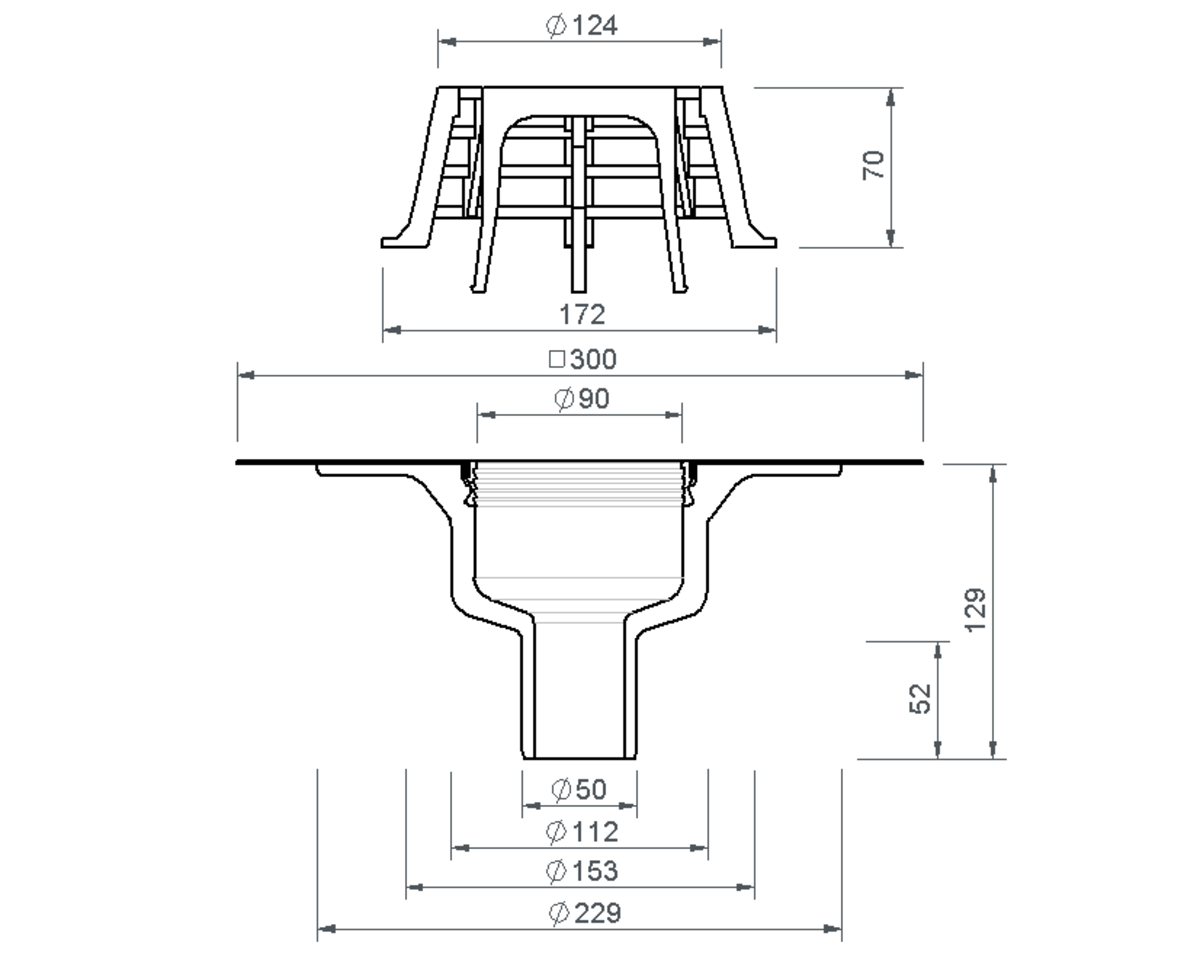

Technical drawing

Small yet particularly efficient balcony outlet versions are required on small flat roofs, terraces, balconies and garages to ensure good drainage due to the often constricted space available. The SitaCompact balcony outlet series was specially designed for this area of application.

Invitations to tenderStreamflow

Discharge rate according to DIN EN 1253-2 in l/s

	Back-up Heigh (mm)
DN	5	10	15	20	25	30	35	40	45	50	55	60	65	70	75	80	85	90	95	100
50	0.4	0.9	1.4	1.9	2.4	3.3	4.2	5	5.7	6.2	6.6	6.7	6.8	6.8	6.8	6.8	6.8	6.8	6.8	6.8

Installation Examples

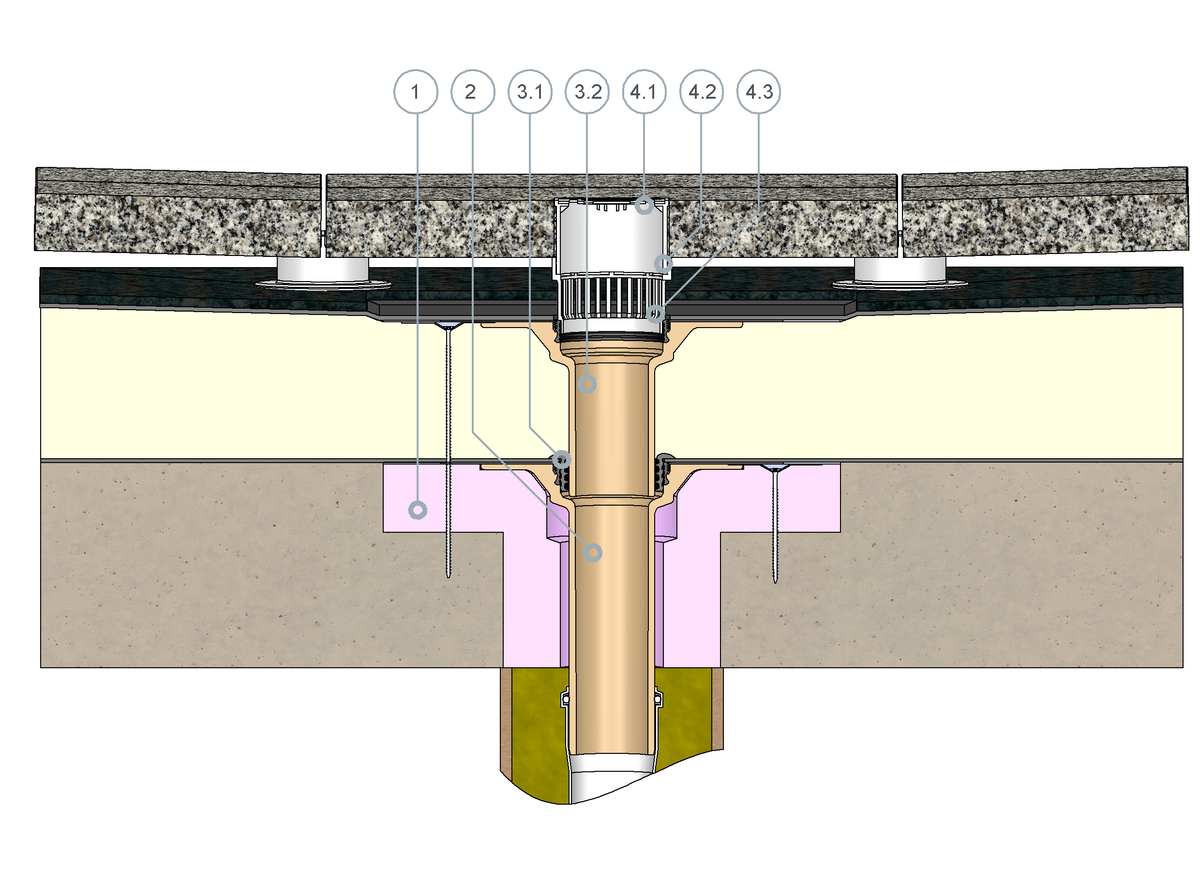

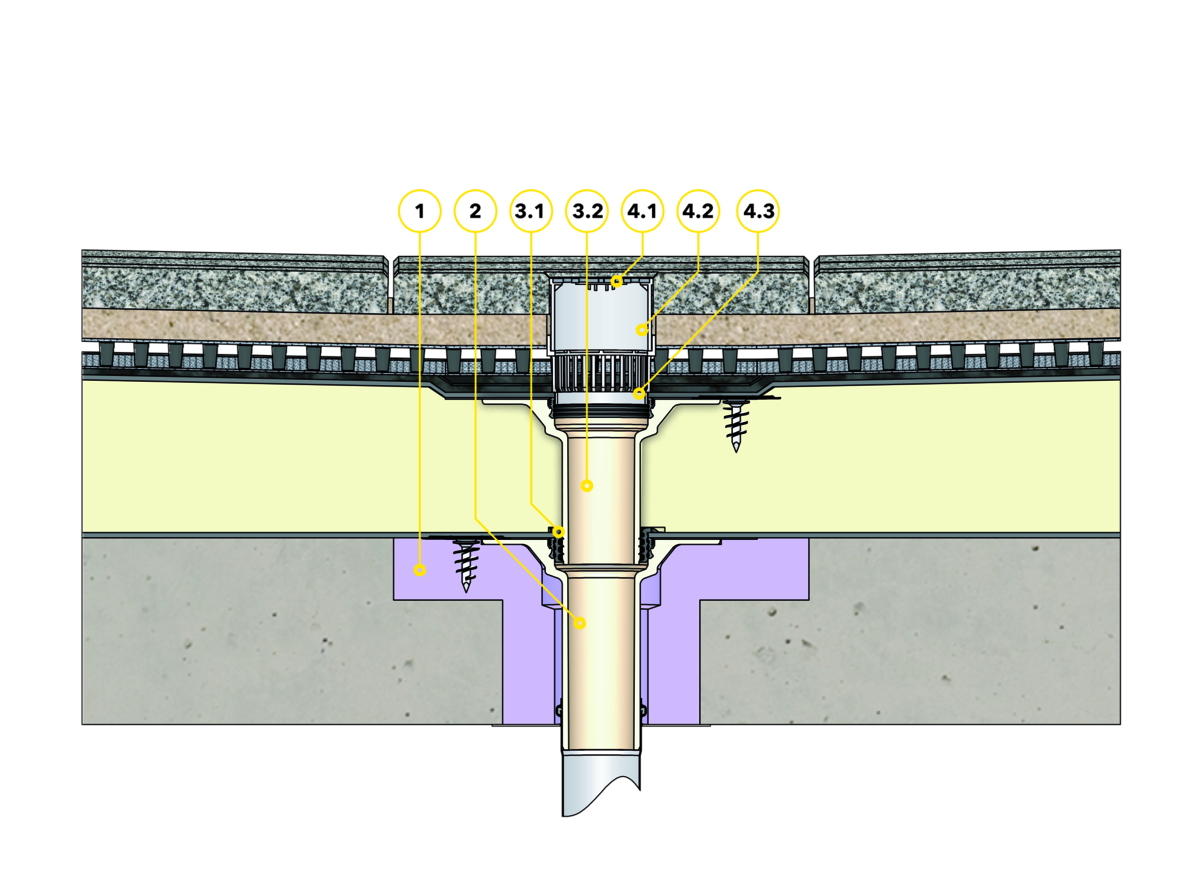

SitaCompact in a non-ventilated roof structure with SitaCompact balcony outlet grating and slab paving

1 SitaCompact insulating body
2 SitaCompact vertical

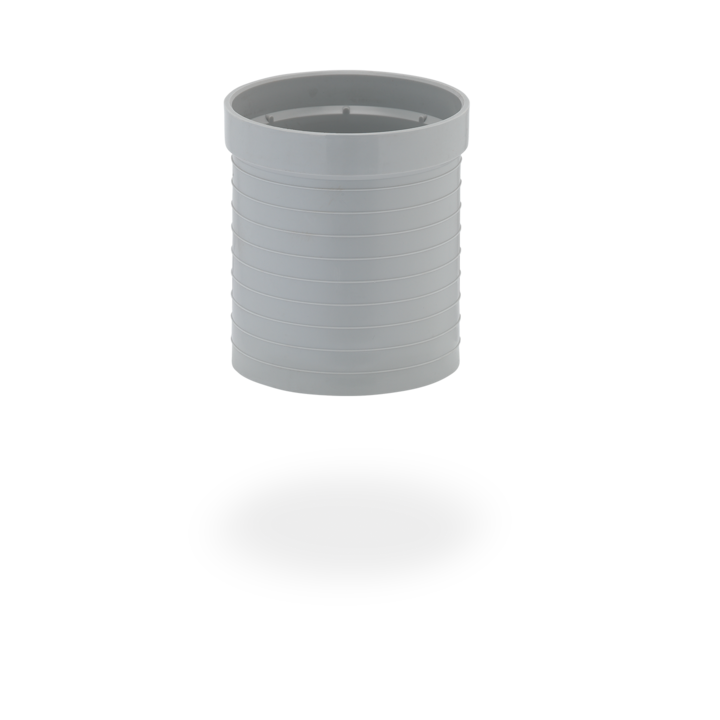

SitaCompact extension unit consisting of:
3.1 Sealing ring
3.2 Base body

SitaCompact balcony outlet grating consisting of:
4.1 End grate
4.2 Housing
4.3 Inlet filter grille

Non-ventilated roof structure with slab paving on support pads to the general rules of engineering with:

Slab paving on support pad
Protective mat
Sealing
Thermal insulation
Vapour barrier
Substructure

SitaCompact with retaining ring in a non-ventilated roof structure with slab paving

1 SitaCompact insulating body
2 SitaCompact vertical

SitaCompact extension unit consisting of:
3.1 Sealing ring
3.2 Base body

SitaCompact retaining ring consisting of:
4.1 Retaining ring
4.2 Sealing ring

SitaDrain® Terra consisting of:
5.1 Inspection grate
5.2 Height-adjustable rubber feet
5.3 Frame

6 SitaPipe Edelstahl pipe clamp
7 SitaPipe Edelstahl pipe
8 SitaPipe Edelstahl bend
9 SitaPipe Edelstahl safety clamp

Non-ventilated roof structure with slab paving on support pads to the general rules of engineering with:

Slab paving on support pad
Protective mat
Sealing
Thermal insulation
Vapour barrier
Substructure

SitaCompact for main drainage in a non-ventilated roof structure with slab paving in a gravel bed

1 SitaCompact insulating body for outlet
2 SitaCompact vertical

SitaCompact extension unit consisting of:
3.1 Seal
3.2 Base body

SitaCompact balcony outlet grating consisting of:
4.1 End grate
4.2 Housing
4.3 Inlet filter grille

Non-ventilated roof structure with slab paving in a gravel bed to the general rules of engineering with:

Slab paving
Gravel bed
Filter fabric
Surface drainage
Protective mat
Sealing
Thermal insulation
Vapour barrier
Substructure

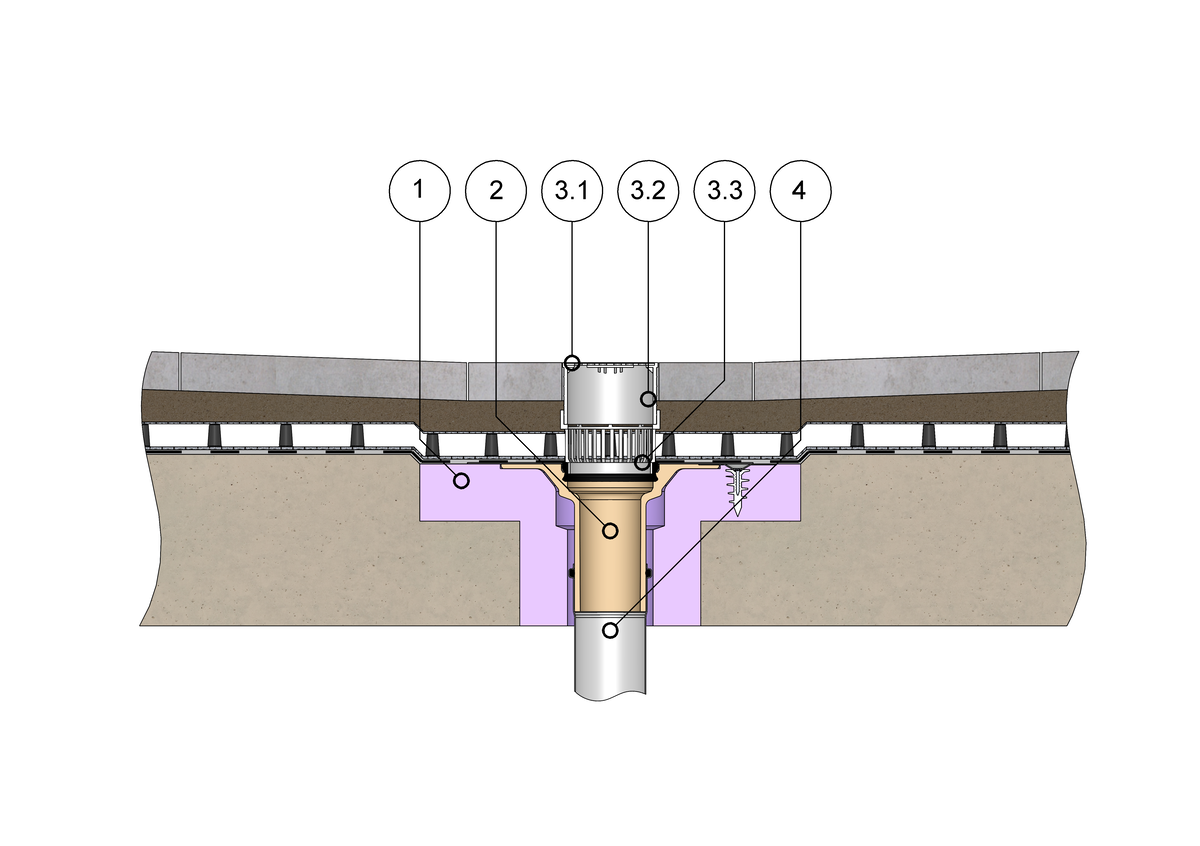

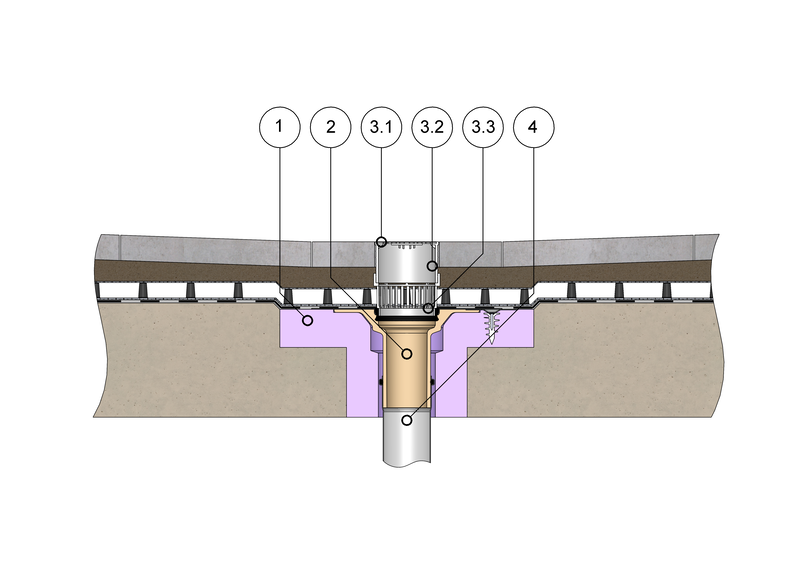

SitaCompact for main drainage with balcony outlet grating and slab paving in gravel bed without thermal insulation

1 SitaCompact insulating body
2 SitaCompact vertical

SitaCompact balcony outlet grating consisting of:
3.1 End grate
3.2 Height compensation piece
3.3 Inlet filter grille

4 SitaPipe Edelstahl pipe

Ventilated roof structure with slab paving in gravel bed to the general rules of engineering with:

Slab paving
Grit or gravel bed
Drainage mat
Protective mat
Waterproof membrane
Substructure

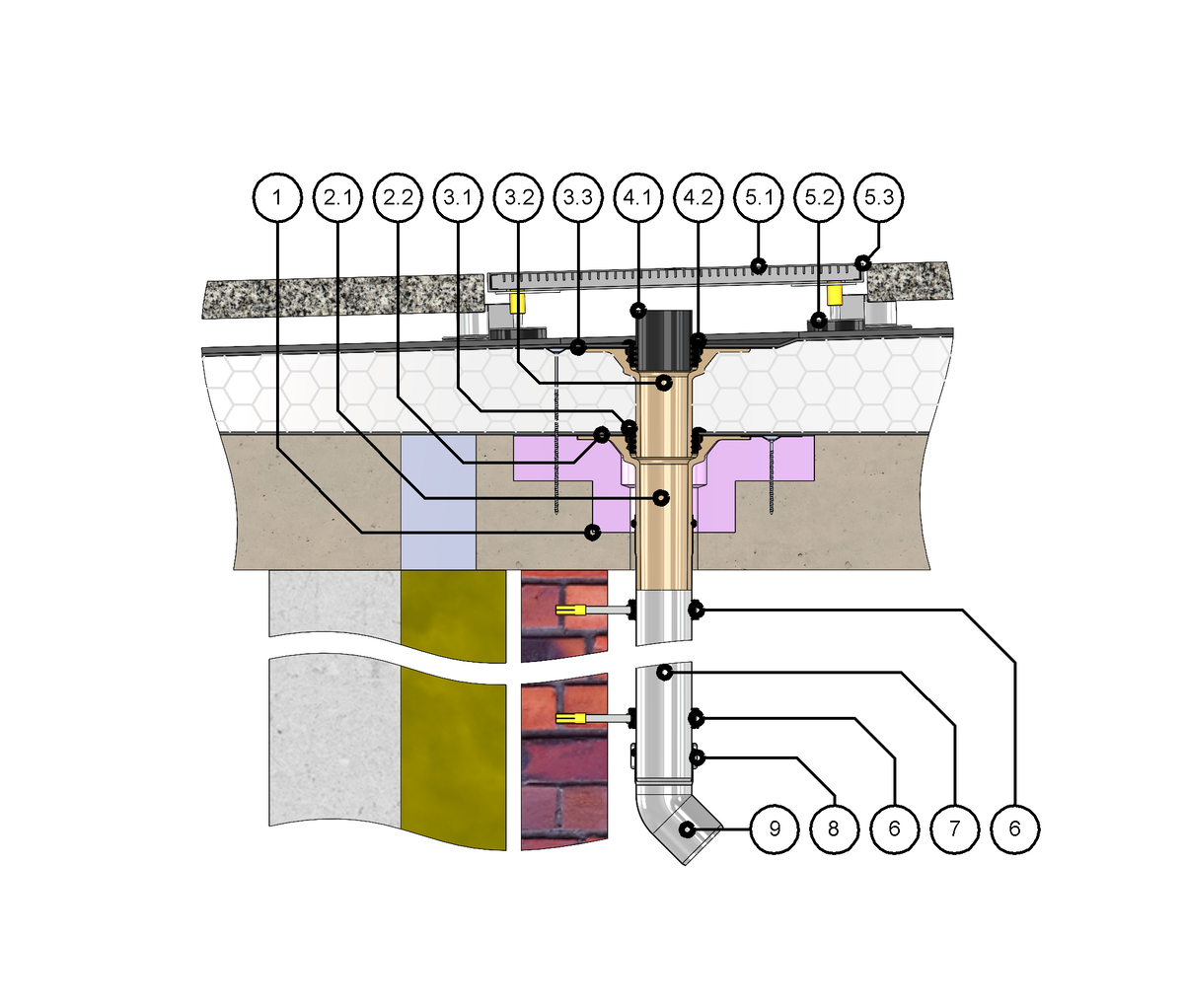

SitaKaskade lead-through Fluid with SitaCompact for main drainage in a non-ventilated roof structure

1 SitaCompact insulating body
2 SitaCompact vertical

SitaCompact extension unit consisting of:

3.1 Base body
3.2 Sealing ring

SitaDrain® area frame consisting of:

4.1 Frame
4.2 Inspection grate

5 SitaKaskade lead-through Fluid
6 SitaPipe Edelstahl safety clamp
7 SitaPipe Edelstahl pipe
8 SitaPipe Edelstahl pipe clamp
9 SitaAttika cladding cover plate
10 SitaPipe Edelstahl bend
11 SitaMore vapour barrier plate flex

Non-ventilated roof structure with slab paving on support pads to the general rules of engineering with:

Slab paving on support pad
Protective mat
Sealing
Thermal insulation
Vapour barrier
Substructure

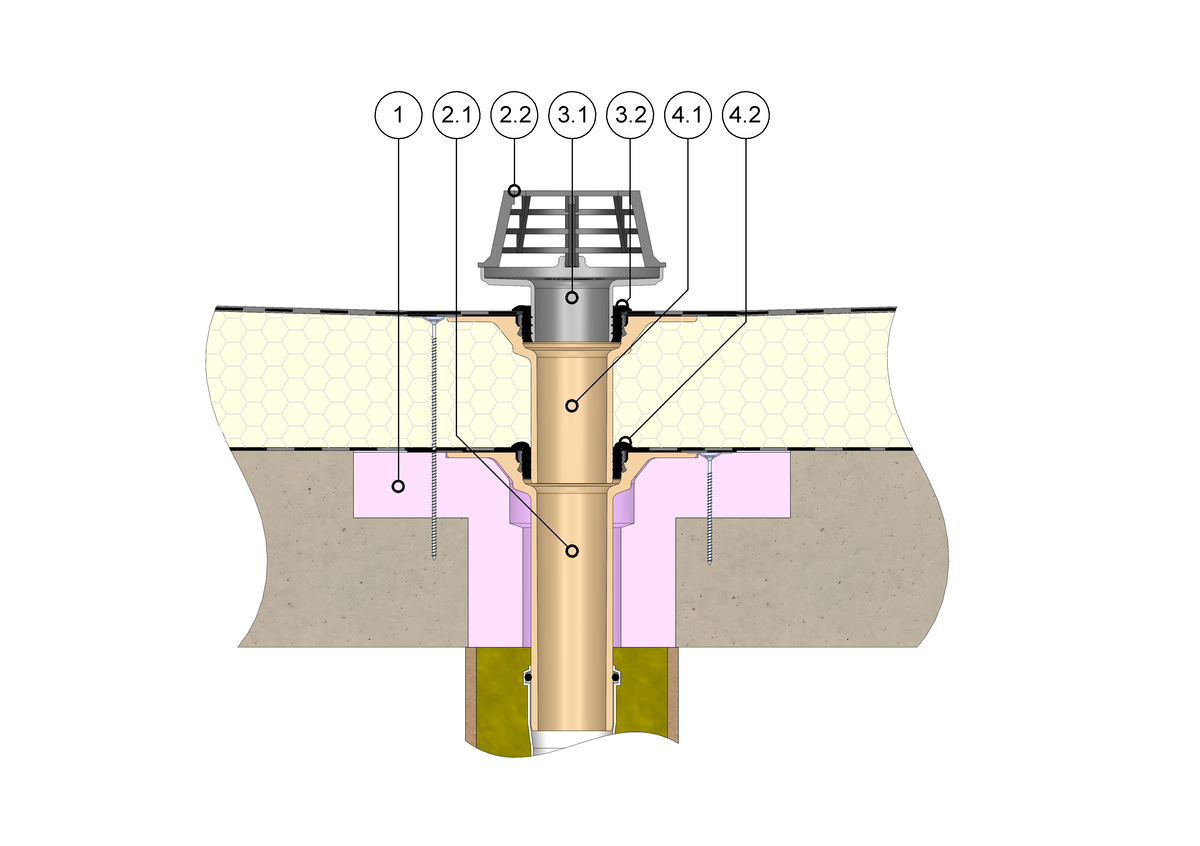

SitaCompact mit SitaCompact Anstauelement im nicht belüfteten Dachaufbau

1 SitaCompact Dämmkörper

SitaCompact senkrecht bestehend aus:
2.1 Grundkörper Gully
2.2 Kiesfang

SitaCompact Anstauelement bestehend aus:
3.1 Grundkörper Anstauelement
3.2 Dichtring

SitaCompact Aufstockelement bestehend aus:
4.1 Grundkörper Aufstockelement
3.2 Dichtring

Nicht belüfteter Dachaufbau nach den aaRdT mit:

Abdichtung
Wärmedämmung
Dampfsperre
Unterkonstruktion
