SitaStandard DN 100
Conventional outlet
Attributes
Standards
DIN EN 1253-2
Article number
10160109
connection
EverGuard weiß-sleeve
External diameter OD (mm)
110 mm
Recess dimension (mm x mm)
250 x 350 mm
Pot height
145 mm
Pot inner diameter
189 mm
Temperature resistance, min.
-40 °C
Temperature resistance, max.
80 °C
Material class
Euroclass E / B2 normal flammability

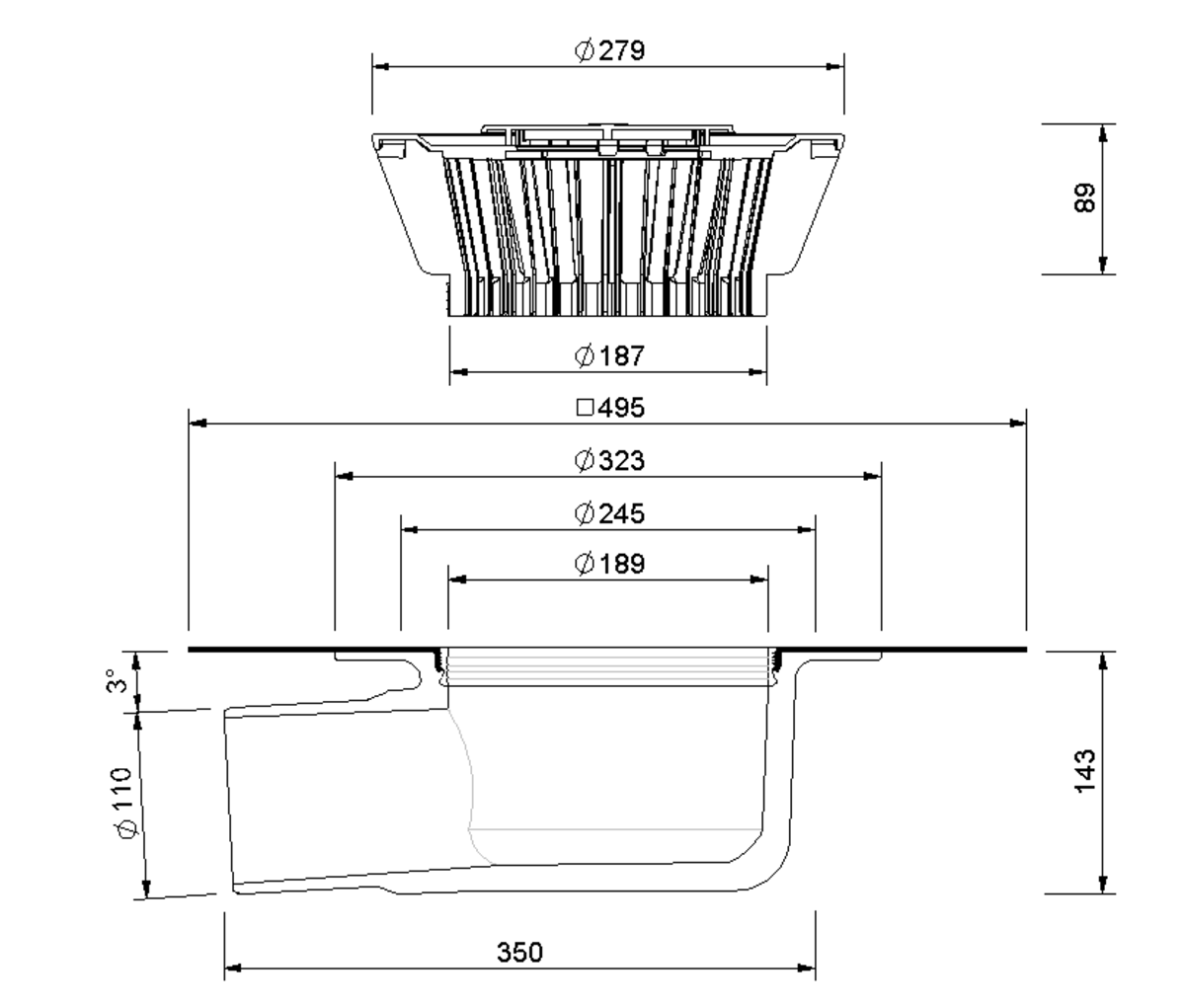

Technical drawing
The classic Sita item is ideal for almost any installation situation: the SitaStandard. Thanks to the thermally insulated roof outlet body made of rigid polyurethane integral foam, it can withstand compressive forces and is also resistant to normal environmental effects. The SitaStandard features a large inlet pot and a high discharge rate resulting out of that.
+
