Details

SitaTurbo

Parapet outlet

Attributes

Article number

187399

Material

Rust-proof stainless steel

Material number

1.4301

Design

2000 mm

Standards

DIN EN 1253-2

Loose flange height

35 mm

Colour

Silver

Finish

Smooth

Opening/Core borehole (mm)

170 mm

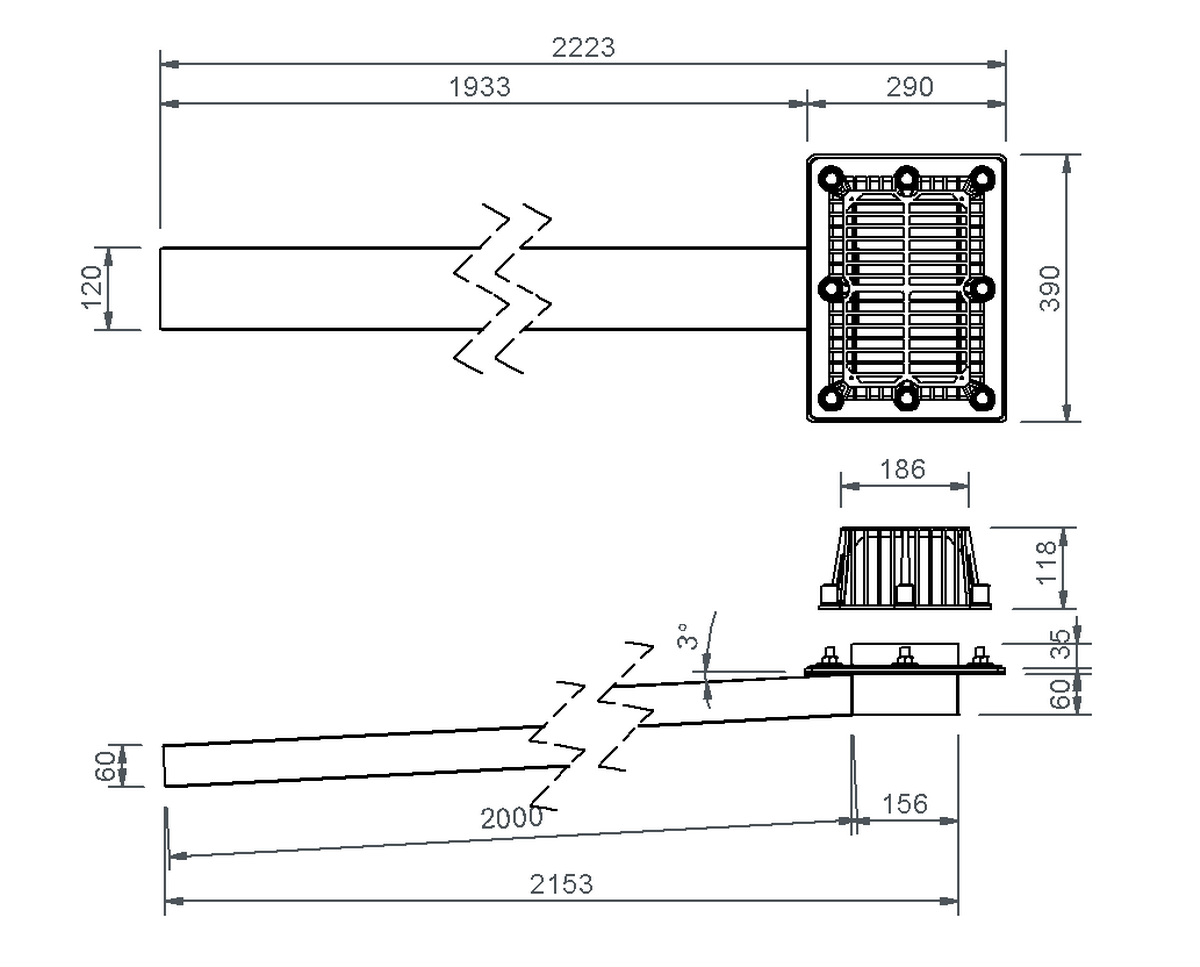

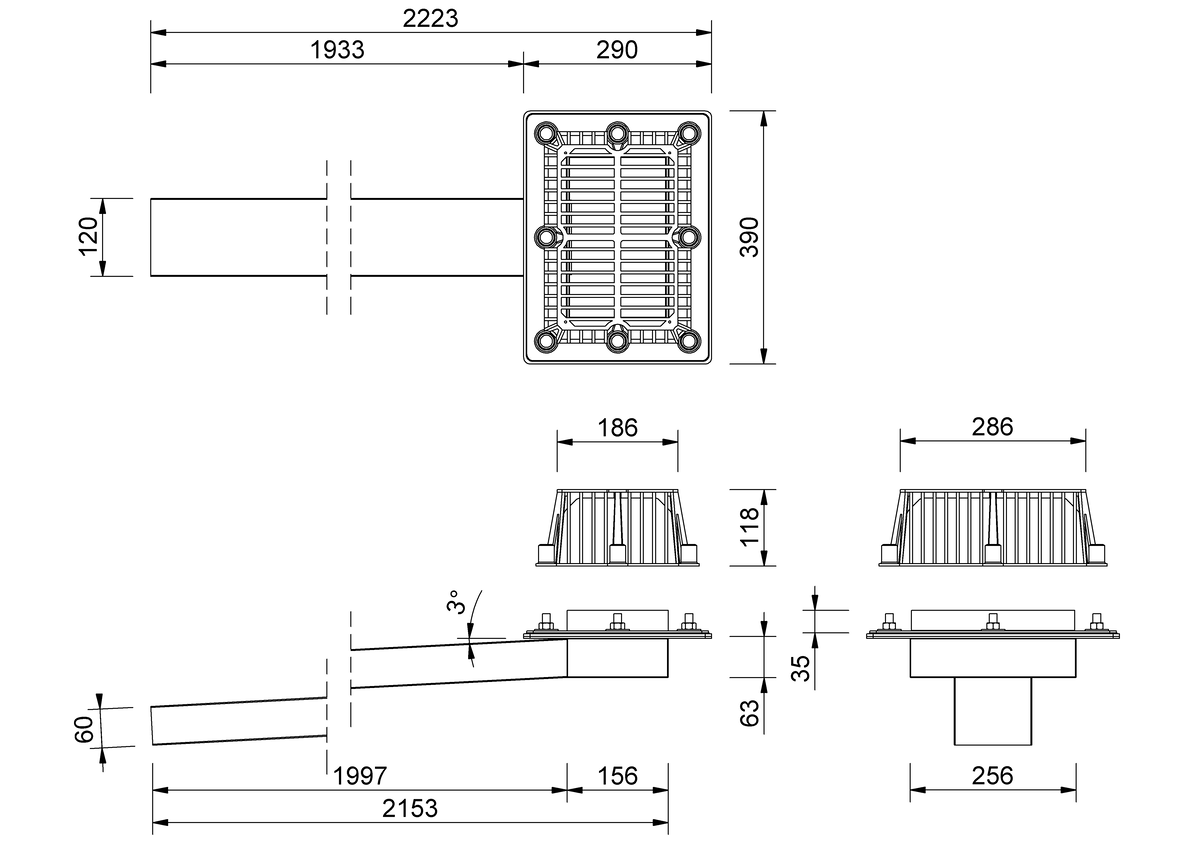

Technical drawing

The SitaTurbo is something really special. When installed in the roof surface, this robust and extremely flat roof outlet routes water outwards through the parapet. Minimal weakening of the thermal insulation and the external pipeline system minimise thermal bridges. The standard Turbo is great for piped drainage, but the SitaTurbo Max has a round inlet to optimise flow characteristics, making it perfect for use with a spout.

Invitations to tenderStreamflow

Discharge rate according to DIN EN 1253-2 in l/s

	Back-up Heigh (mm)
DN	5	10	15	20	25	30	35	40	45	50	55	60	65	70	75	80	85	90	95	100
	0.6	1.5	2.3	3	3.6	3.9	4.1	4.3	4.4	4.5	4.6	4.8	5	5	5	5	5	5	5	5

Installation Examples

SitaTurbo for main drainage in a non-ventilated roof structure

1 SitaPipe Edelstahl pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp

SitaTurbo transition piece consisting of:
4.1 Transition piece to round downpipe
4.2 Multi-disk seal

5 SitaTurbo cladding cover plate
6 SitaTurbo vapour barrier plate flex
7 SitaTurbo insulating body

SitaTurbo consisting of:
8.1 SitaTurbo base body
8.2 Sealing sleeves
8.3 Washers, nuts and protective caps
8.4 Loose flange
8.5 Dome grate

9 SitaTurbo connection sleeve
10 SitaPipe Edelstahl cleaning pipe

Non-ventilated roof structure to the general rules of engineering with:

Sealing
Thermal insulation
Vapour barrier
Substructure
Parapet lead-through with joint tape

SitaTurbo for emergency drainage with downpipe in a non-ventilated roof structure

1 SitaPipe Edelstahl pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp

SitaTurbo transition piece consisting of:
4.1 Transition piece to round downpipe
4.2 Multi-disk seal

5 SitaTurbo cladding cover plate
6 SitaTurbo vapour barrier plate flex
7 SitaTurbo insulating body

SitaTurbo for emergency drainage consisting of:
8.1 SitaTurbo base body
8.2 Sealing sleeves
8.3 Washers, nuts and protective caps
8.4 Loose retaining flange
8.5 Dome grate

9 SitaTurbo cover plate
10 SitaTurbo connection sleeve
11 SitaPipe Edelstahl bend 45°

Non-ventilated roof structure to the general rules of engineering with:

Sealing
Waterproofing membrane
Thermal insulation
Vapour barrier
Substructure
Parapet opening with joint tape

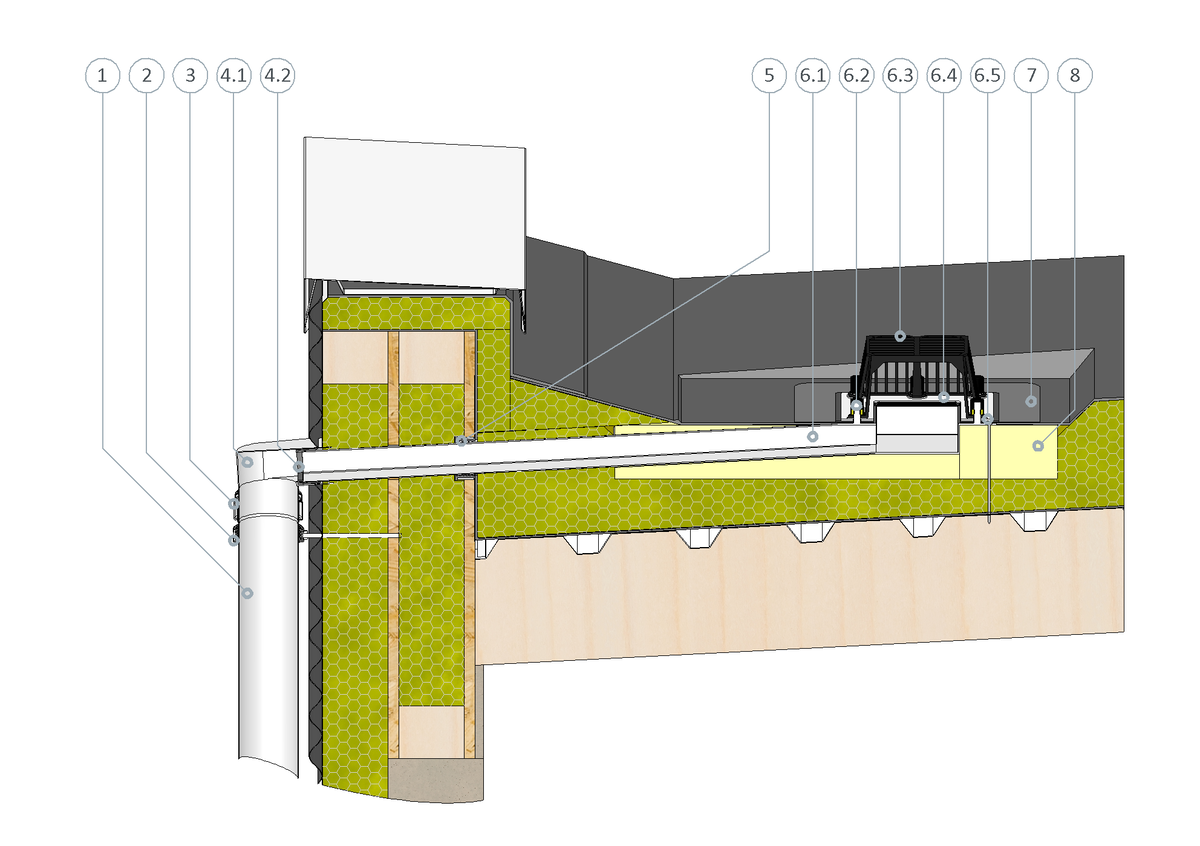

SitaTurbo for main drainage in a non-ventilated roof structure for industrial roofs

1 SitaPipe Edelstahl pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp

SitaTurbo transition piece consisting of:
4.1 SitaTurbo transition piece to round downpipe
4.2 SitaTurbo transition piece multi-disk seal

5 SitaTurbo vapour barrier plate flex

SitaTurbo consisting of:
6.1 SitaTurbo base body
6.2 Washers, nuts and protective caps
6.3 Dome grate
6.4 Loose flange
6.5 Sealing sleeves

7 SitaTurbo connection sleeve
8 SitaTurbo insulating body

Non-ventilated roof structure to the general rules of engineering with:

Sealing
Thermal insulation
Vapour barrier
Substructure
Parapet opening with joint tape

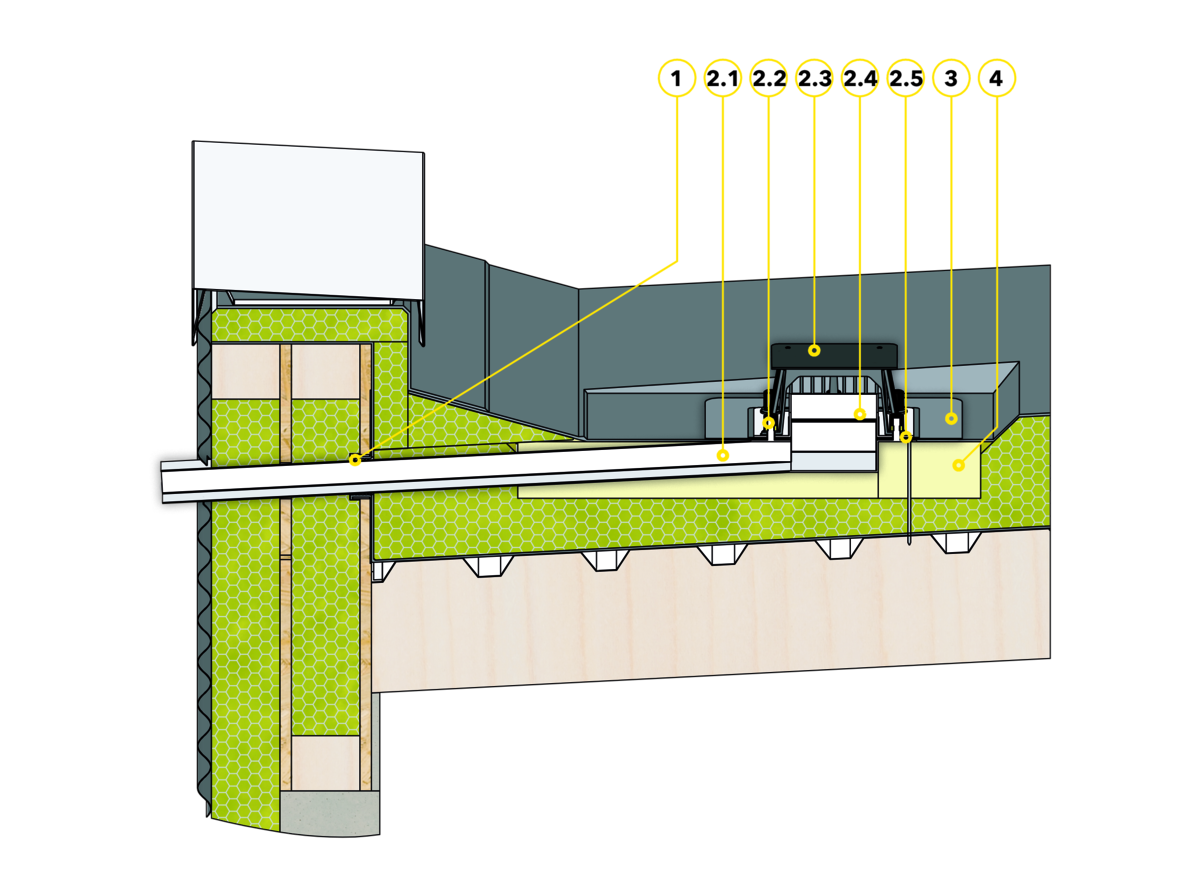

SitaTurbo for emergency drainage in a non-ventilated roof structure

1 SitaTurbo vapour barrier plate flex

SitaTurbo for emergency drainage consisting of:
2.1 SitaTurbo base body
2.2 Washers, nuts and protective caps
2.3 Dome grate with cover plate
2.4 Loose retaining flange
2.5 Sealing sleeves

3 SitaTurbo connection sleeve
4 SitaTurbo insulating body

Non-ventilated roof structure to the general rules of engineering with:

Sealing
Thermal insulation
Vapour barrier
Substructure
Parapet lead-through with joint tape
