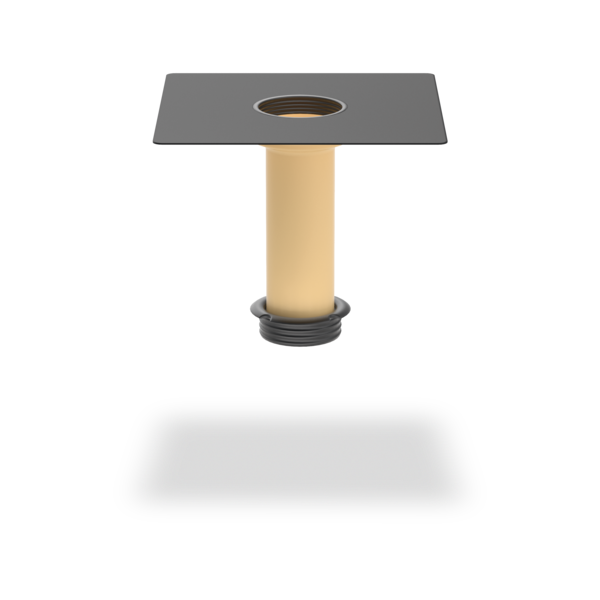

SitaSani®
Refurbishment outlet
Attributes
- Thermally insulated
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable
- Backflow safe up to a water column of 2 m

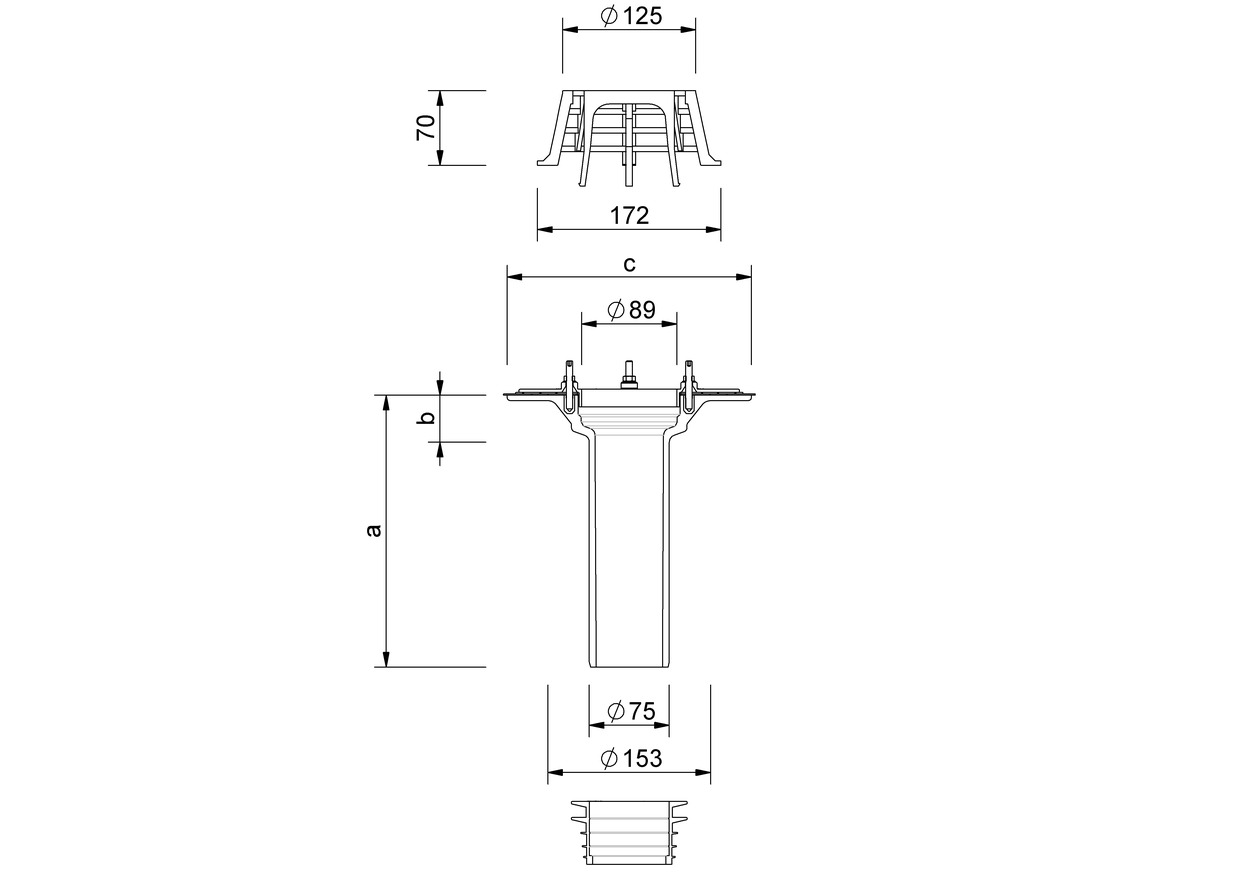

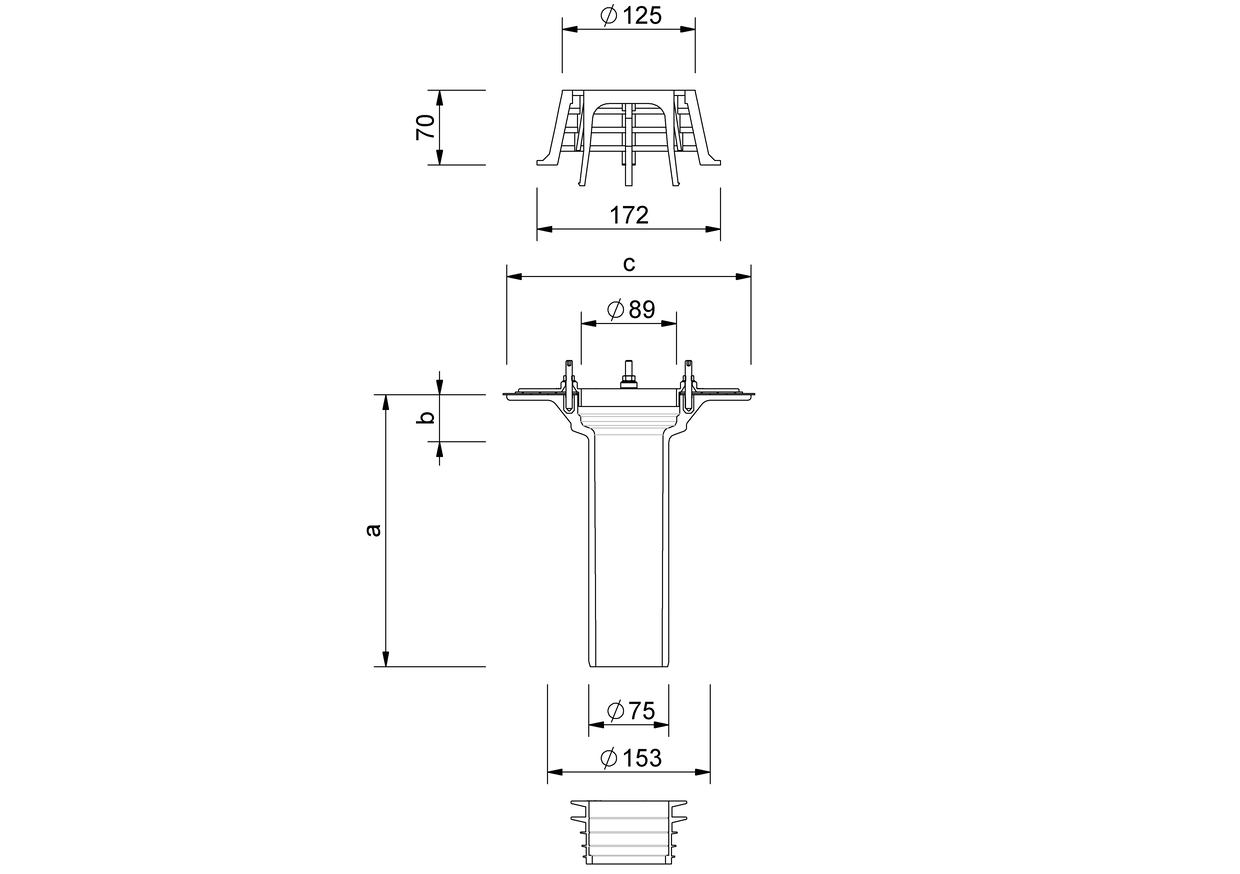

Technical drawing
| Size DN | External diameter OD (mm) | a (mm) | b (mm) | c (mm) | Backflow safe for refurbishing internal diameters from– to (mm) with lip sealing ring | Backflow safe for refurbishing internal diameters from– to (mm) with profiled sealing ring |
|---|---|---|---|---|---|---|
| 70 | 75 | 255 | 44 | 229 | 82 - 103 | - |
Performance text
Streamflow
Discharge rate according to DIN EN 1253-2 in l/s
Discharge rate according to DIN EN 1253-2 in l/s
Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.
Installation Examples
Downloads
Article selection

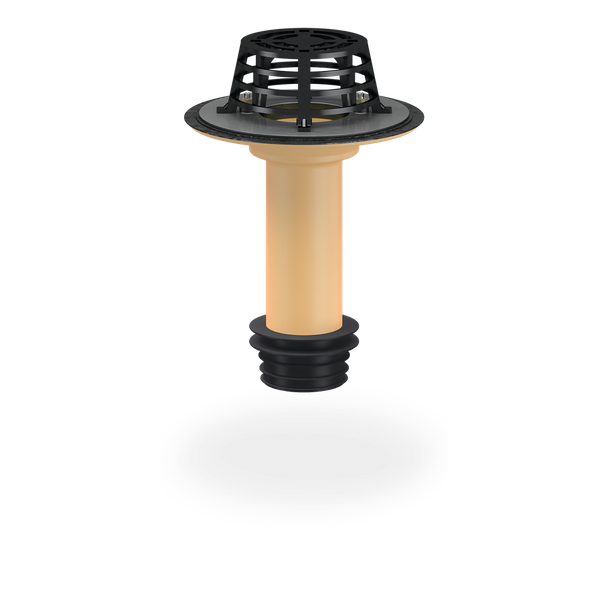

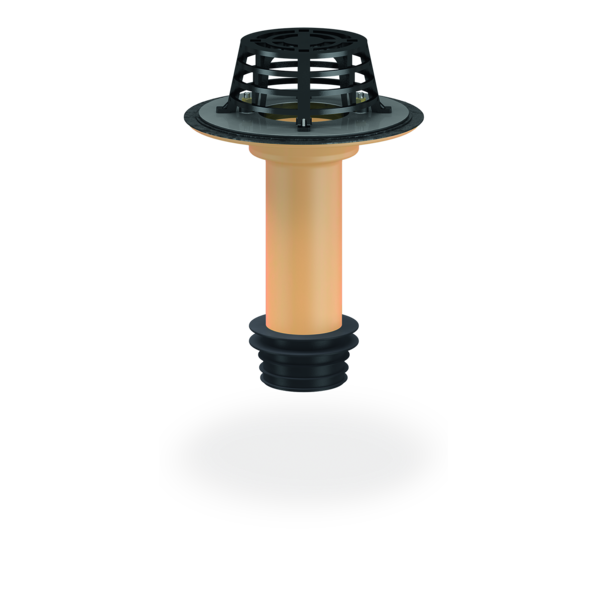

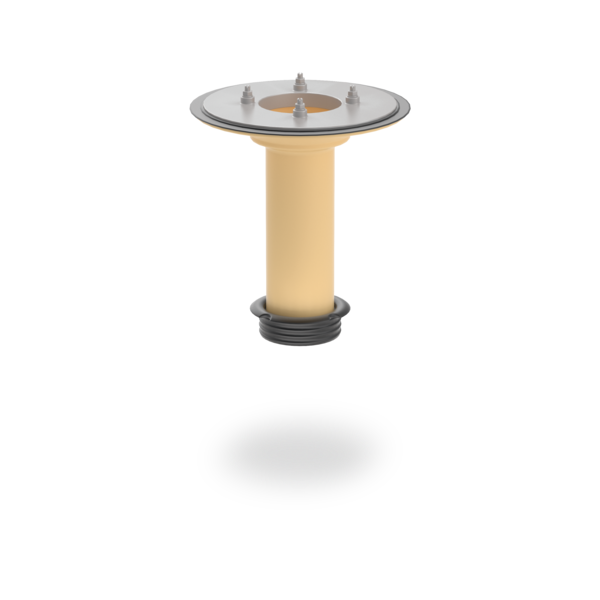

SitaSani® 70 screw-on flange refurbishment outlet, made of polyurethane, height 255 mm, thermally insulated, to DIN EN 1253-2, discharge rate 4.1 l/s at 35 mm retaining height, for refurbishment of internal diameters of 82 - 103 mm, with pre-drilled holes to secure the component in the substructure. With foamed-in insert ring for the supplied screws, loose aluminium flange and two sealing sleeves for clamping bitumen, plastic or EPDM roofing membranes. Including dome grate, lubricant and multi-lip sealing ring for backflow protection, supply and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Execution | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 255 mm | 0.7 | 1.2 | 1.7 | 2.2 | 2.5 | 3.4 | 4.1 | 4.7 | 5.3 | 5.9 | 6.8 | 7.6 | 9 | 10 | 10.6 | 10.6 | 10.6 | 10.6 | 10.6 | 10.6 |
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Execution | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 255 mm | 0.7 | 1.2 | 1.7 | 2.2 | 2.5 | 3.4 | 4.1 | 4.7 | 5.3 | 5.9 | 6.8 | 7.6 | 9 | 10 | 10.6 | 10.6 | 10.6 | 10.6 | 10.6 | 10.6 |

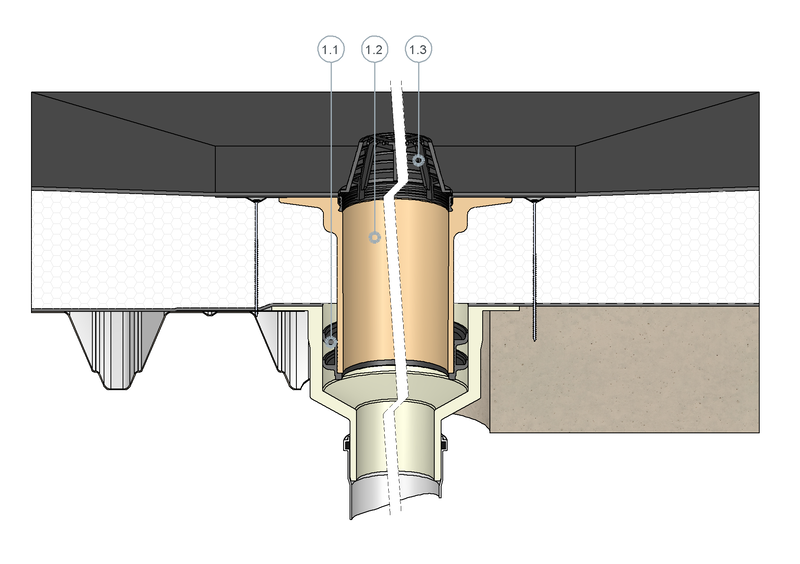

SitaSani® as pot refurbishment in a non-ventilated roof structure
SitaSani® consisting of:
1.1 Profiled sealing ring
1.2 Base body
1.3 Dome grate
1.1 Profiled sealing ring
1.2 Base body
1.3 Dome grate
Non-ventilated roof structure to the general rules of engineering with:
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure

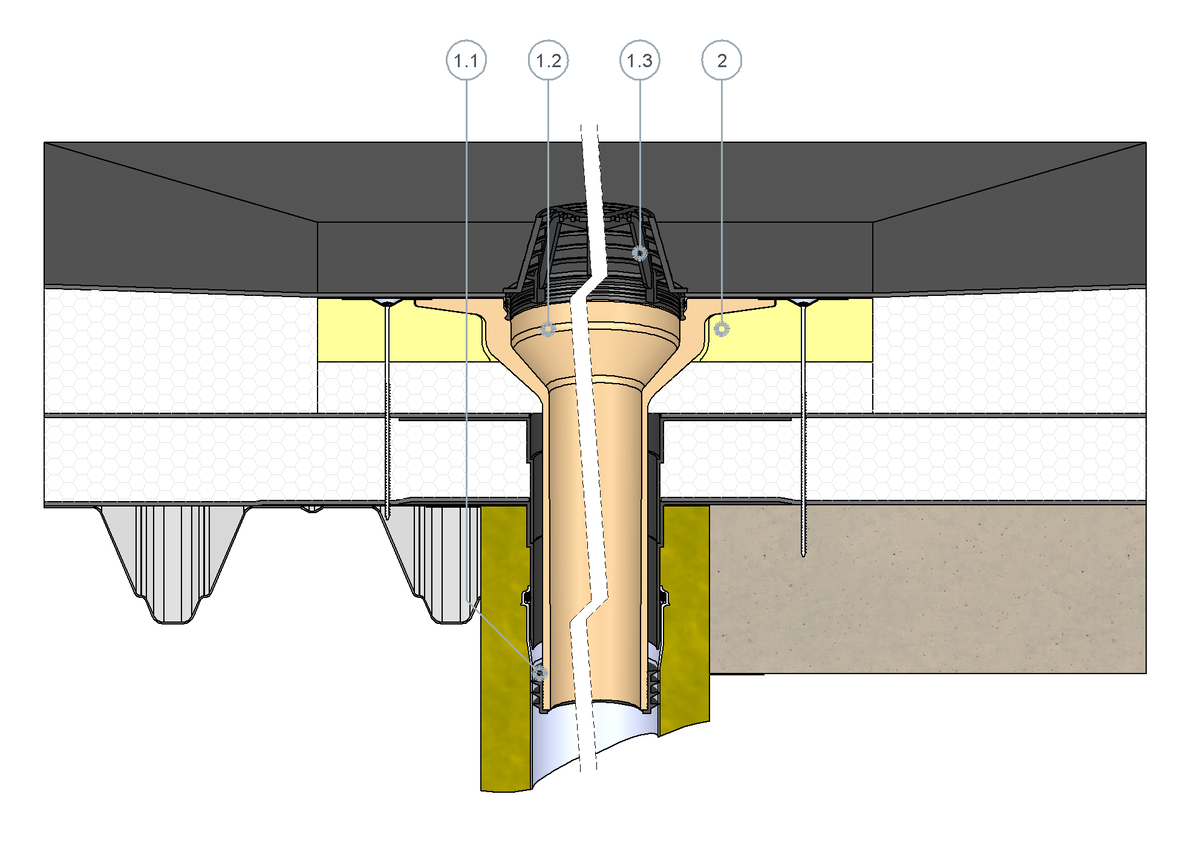

SitaSani® as pipe refurbishment in a non-ventilated roof structure
SitaSani® 63/90/105 consisting of:
1.1 Sealing ring
1.2 Base body
1.3 Dome grate
2 SitaSani® 63/90/105 insulating body
1.1 Sealing ring
1.2 Base body
1.3 Dome grate
2 SitaSani® 63/90/105 insulating body
Non-ventilated roof structure to the general rules of engineering with:
- New sealing
- New thermal insulation
- Existing sealing
- Existing thermal insulation
- Vapour barrier
- Substructure
| SitaSani® | Article no. | |||
|---|---|---|---|---|
70 Screw-on flange | ||||
| Screw-on flange | 255 mm | 103699 | Show product |
+
