SitaCompact Fluid
Grating
- Products
Accessories
Grating
Attributes
- Resistant to normal environmental influences
- Impact and shock resistant
- Durable
- For top layer thicknesses of 4 or 6 mm

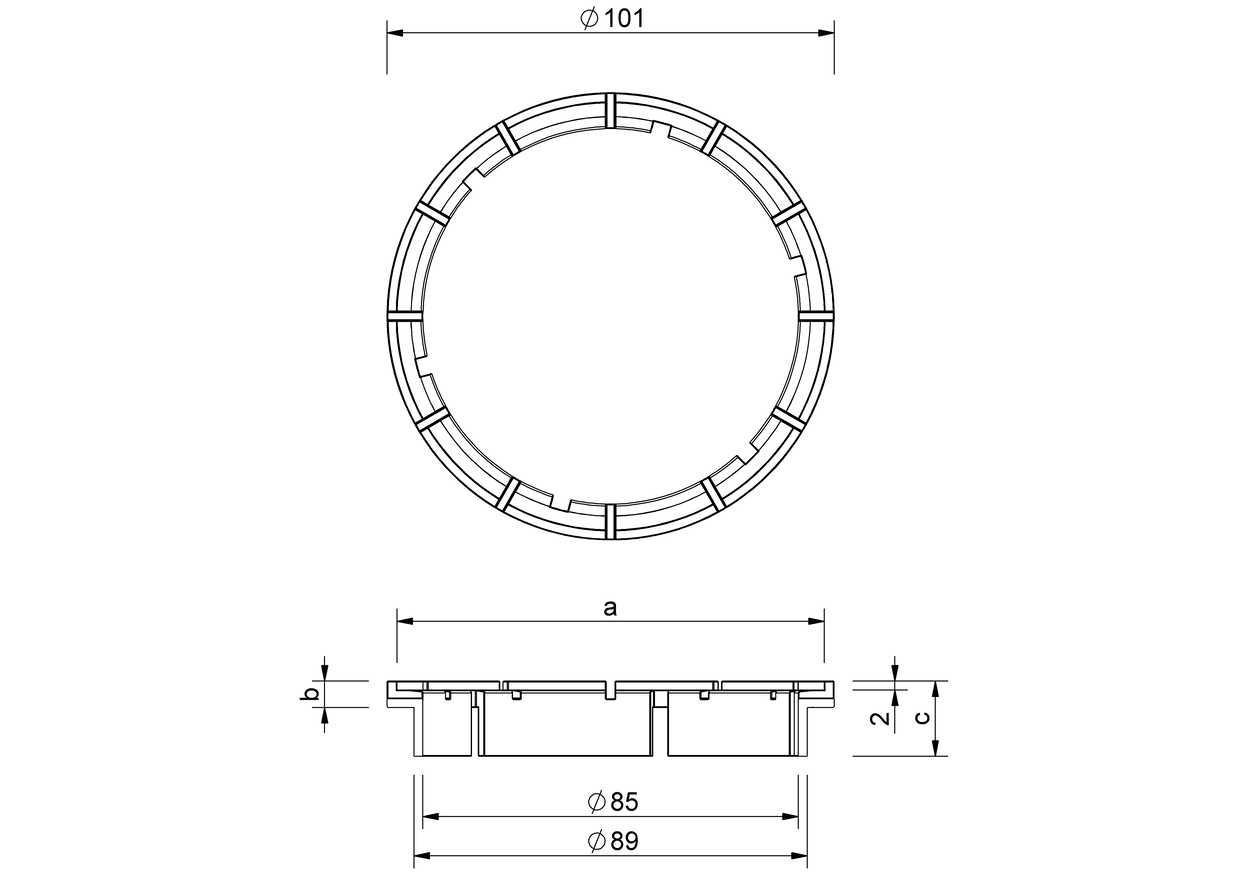

Technical drawing
| a (mm) | b (mm) | c (mm) |
|---|---|---|
| 96 | 6 | 17 |
| 97 | 4 | 15 |
Performance text
Installation Examples
Downloads
Article selection
SitaCompact Fluid grating, made of ABS (acrylonitrile butadiene styrene), for draining rainwater from the top layer to the outlet, for top layers from 4 mm to 6 mm, supply and install to professional standards.

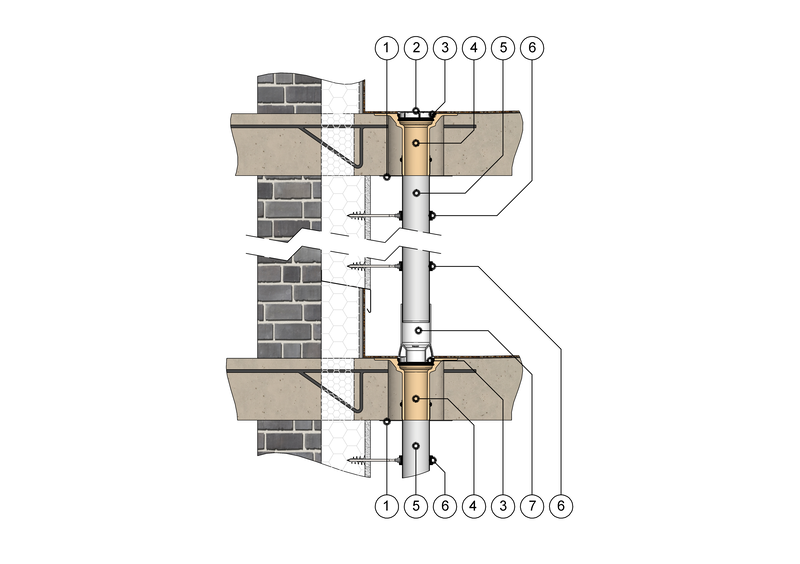

SitaCompact Fluid linear drainage for balconies with liquid applied waterproofing and slab paving
1 SitaPipe Edelstahl pipe
2 SitaAttika cladding cover plate
3 SitaCompact Fluid grating
4 SitaCompact Fluid
5 SitaCompact Fluid flat grate
6 SitaPipe Edelstahl pipe clamp
7 SitaCompact Fluid height compensation piece
8 SitaCompact Fluid pipe holder
2 SitaAttika cladding cover plate
3 SitaCompact Fluid grating
4 SitaCompact Fluid
5 SitaCompact Fluid flat grate
6 SitaPipe Edelstahl pipe clamp
7 SitaCompact Fluid height compensation piece
8 SitaCompact Fluid pipe holder
Roof structure 1 with liquid applied waterproofing according to the general rules of engineering with:
Roof structure 2 with liquid applied waterproofing according to the general rules of engineering with:
- Sealing with liquid applied waterproofing
- Substructure
Roof structure 2 with liquid applied waterproofing according to the general rules of engineering with:
- Slab paving
- Protective mat
- Sealing with liquid applied waterproofing
- Substructure

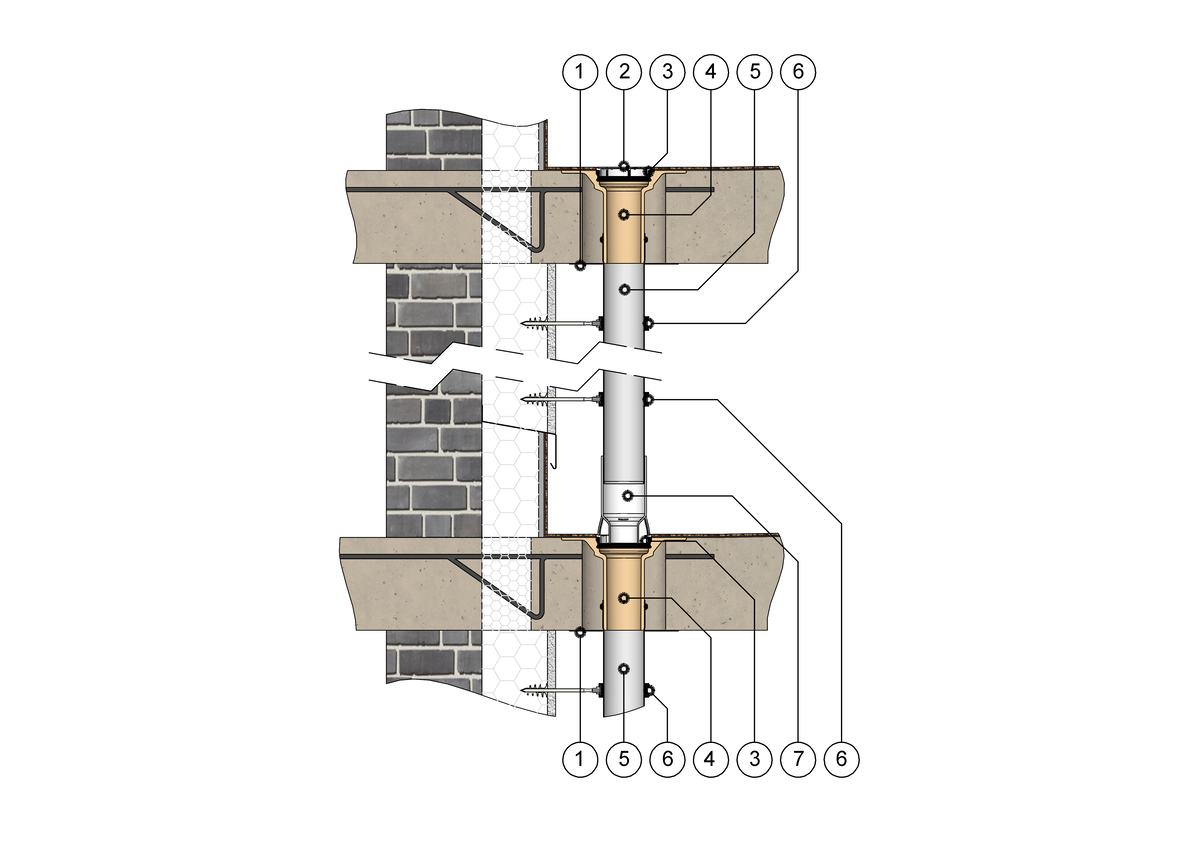

SitaCompact Fluid linear drainage for balconies with liquid applied waterproofing
1 SitaAttika cladding cover plate
2 SitaCompact Fluid flat grate
3 SitaCompact Fluid grating
4 SitaCompact Fluid
5 SitaPipe Edelstahl pipe
6 SitaPipe Edelstahl pipe clamp
7 SitaCompact Fluid pipe holder
2 SitaCompact Fluid flat grate
3 SitaCompact Fluid grating
4 SitaCompact Fluid
5 SitaPipe Edelstahl pipe
6 SitaPipe Edelstahl pipe clamp
7 SitaCompact Fluid pipe holder
Roof structure 1 & 2 with liquid applied waterproofing according to the general rules of engineering with:
- Sealing with liquid applied waterproofing
- Substructure
| SitaCompact Fluid | Article no. | |||
|---|---|---|---|---|
Grating | ||||
| 4 mm | SitaCompact Fluid | 199020 | Show product | |
| 6 mm | SitaCompact Fluid | 199021 | Show product |
