SitaDSS Profi

Extension unit

Foto_S_SitaDSS_Profi_Schraubflansch_Aufstockelement.tif

Attributes

Heat-insulated
Excellent resistance to weather (UV/IR radiation)
Resistant to normal environmental influences
Impact and shock resistant
Long lifespan

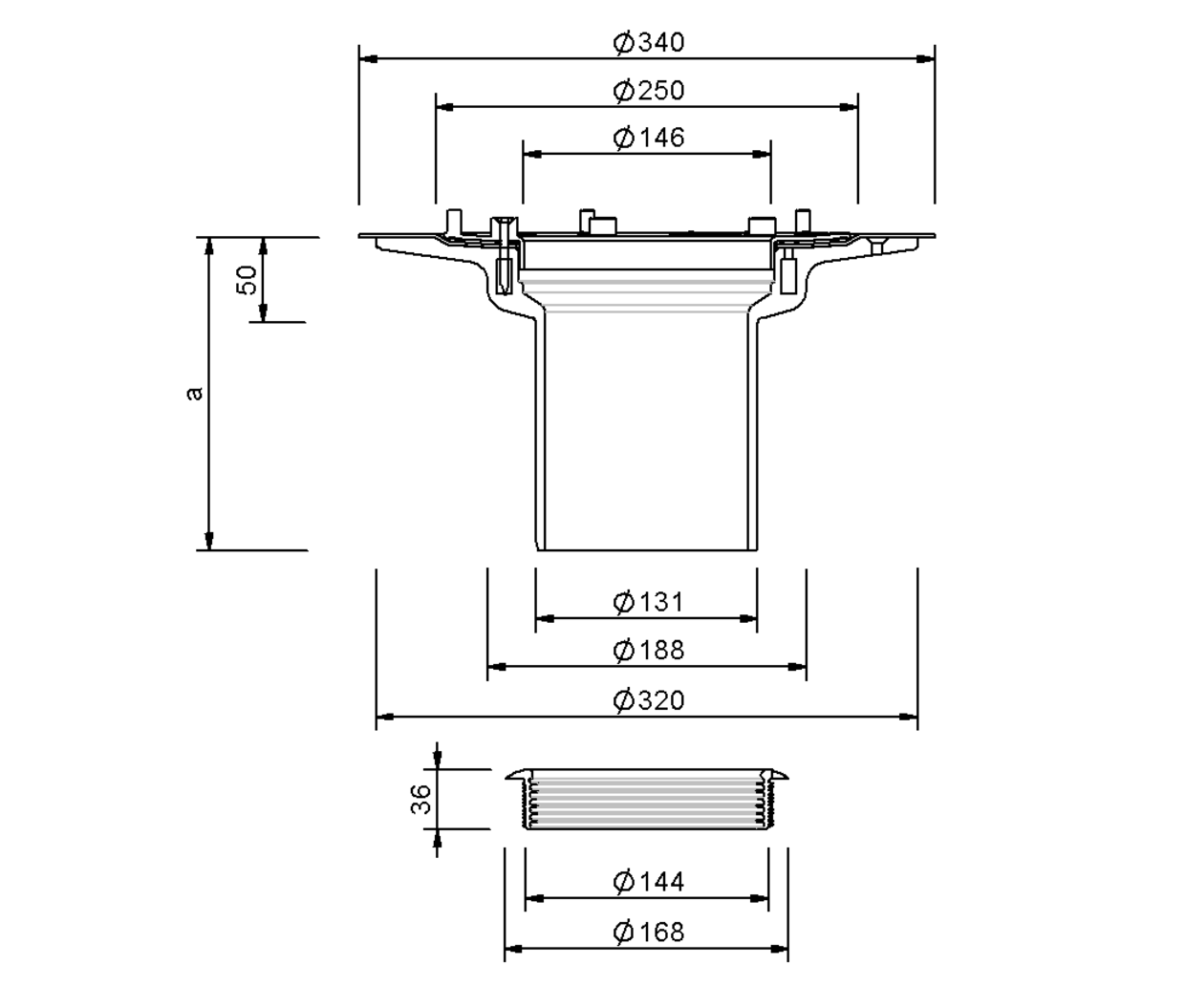

Technical drawing

a (mm)	Bridging of thermal insulation min. (mm)	Bridging of thermal insulation max. (mm)
255	60	220
355	60	320
185	60	150

Performance text

SitaDSS Profi screw-on flange extension unit, made of polyurethane, to DIN EN 1253-2, for insulating material thicknesses of 60 - 320 mm, with pre-drilled holes to secure the component in the substructure. With foamed-in insert ring for the supplied screws, loose aluminium flange and two sealing sleeves for clamping bitumen, plastic or EPDM roofing membranes. Complete including multi-lip angled sealing ring for backflow protection, supply and install to professional standards.

Installation Examples

SitaDSS Profi in a non-ventilated roof structure

SitaDSS Profi consisting of:
1.1 PE plug-in coupler with sealing ring
1.2 Base body
1.3 Fastening ring for Airstop
1.4 Gravel trap
1.5 Airstop

SitaDSS Profi extension element consisting of:
2.1 Base body
2.2 Sealing ring

3 SitaDSS Profi insulating block for extension element
4 SitaMore reinforcement plate
5 SitaPipe PE pipe
6 SitaPipe PE electrofusion socket
7 SitaPipe PE branch
8 SitaPipe PE bend
9 SitaPipe PE reduction piece
10 SitaDSS Clamp
11 SitaDSS Rail mounting rail
12 SitaDSS Rail suspension unit

Non-ventilated roof structure to the general rules of engineering with:

Waterproof membrane
Thermal insulation
Vapour barrier
Substructure

SitaDSS Profi with SitaDSS Profi retaining element for emergency drainage in a non-ventilated roof structure

SitaDSS Profi consisting of:
1.1 PE plug-in coupler with sealing ring
1.2 Base body

SitaDSS Profi extension element consisting of:
2.1 Sealing ring
2.2 Airstop
2.3 Base body

SitaDSS Profi extension element consisting of:
3.1 Base body
3.2 Sealing ring

4 SitaDSS Profi insulating block for extension element
5 SitaMore reinforcement plate
6 SitaDSS PE pipe
7 SitaDSS PE electrofusion socket
8 SitaDSS PE branch
9 SitaDSS PE bend
10 SitaDSS PE reduction piece
11 SitaDSS Clamp
12 SitaDSS Rail mounting rail
13 SitaDSS Rail suspension unit

Non-ventilated roof structure to the general rules of engineering with:

Waterproof membrane
Thermal insulation
Vapour barrier
Substructure

SitaDSS Profi and SitaPipe stainless steel pipe system for main drainage in non-ventilated roof structures

SitaDSS Profi with Airstop consisting of:
1.1 PE plug-in coupler
1.2 Base body
1.3 Fastening ring for Airstop
1.4 Airstop
1.5 Dome grate

SitaDSS Profi extension unit consisting of:
2.1 Base body
2.2 Sealing ring

3 SitaDSS Profi insulating body for extension unit
4 SitaPipe Edelstahl pipe
5 SitaPipe Edelstahl safety clamp
6 SitaPipe stainless steel mounting bracket
7 SitaPipe stainless steel branch 45°
8 SitaPipe Edelstahl bend
9 SitaPipe stainless steel transition eccentric

Non-ventilated roof structure to the general rules of engineering with:

Waterproof membrane
Thermal insulation
Vapour barrier
Substructure

MultiCAD und BIM-Daten

In order for the external content to be displayed at this location, you must accept the cookies of the category "Preferences".
You can adjust the cookie settings here.

Downloads

SitaDSS Profi			Article no.
Screw-on flange Extension unit
	150 mm	Screw-on flange	142599	Show product
	220 mm	Screw-on flange	142699	Show product
	320 mm	Screw-on flange	142799	Show product
