SitaTurbo
Adapter
Attributes
- Can be installed without tools
- Simple attachment
- Backwater safe

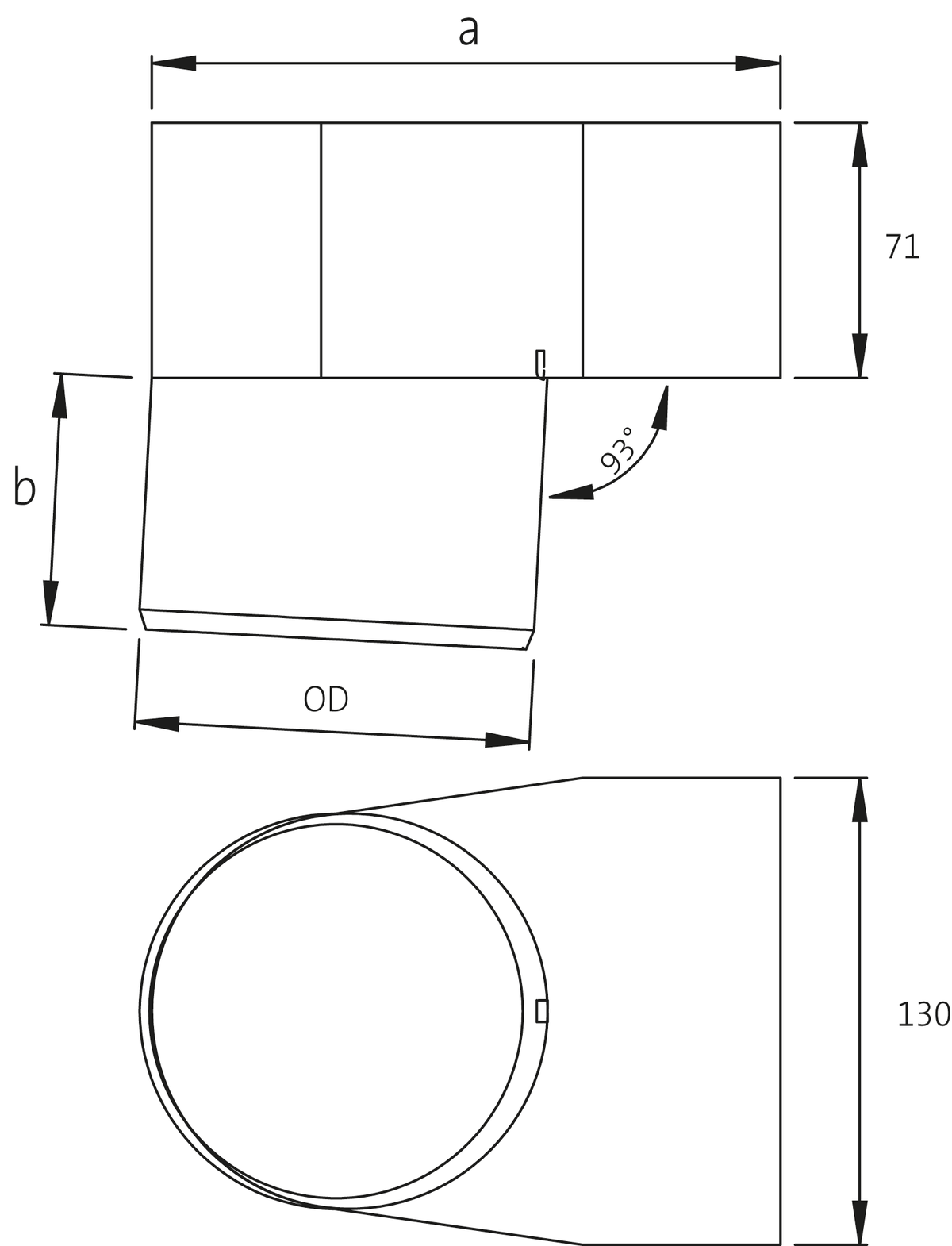

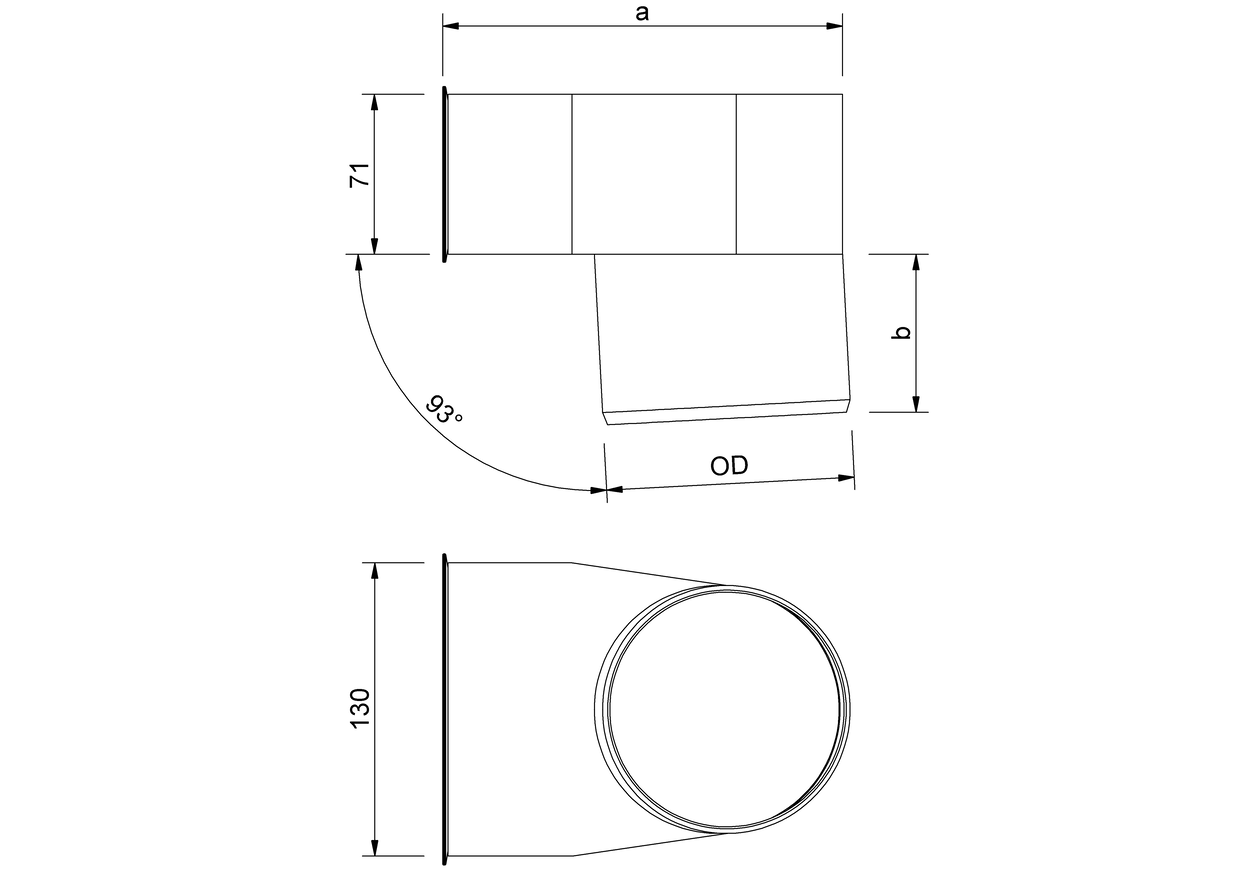

Technical drawing
| Size DN | External diameter OD (mm) | a (mm) | b (mm) |
|---|---|---|---|
| 50 | 50 | 115 | 52 |
| 125 | 125 | 190 | 70 |
| 70 | 75 | 140 | 58 |
| 100 | 110 | 175 | 70 |
| Size DN | External diameter OD (mm) | a (mm) | b (mm) |
|---|---|---|---|
| 50 | 50 | 115 | 52 |
| 125 | 125 | 190 | 70 |
| 70 | 75 | 140 | 58 |
| 100 | 110 | 175 | 70 |

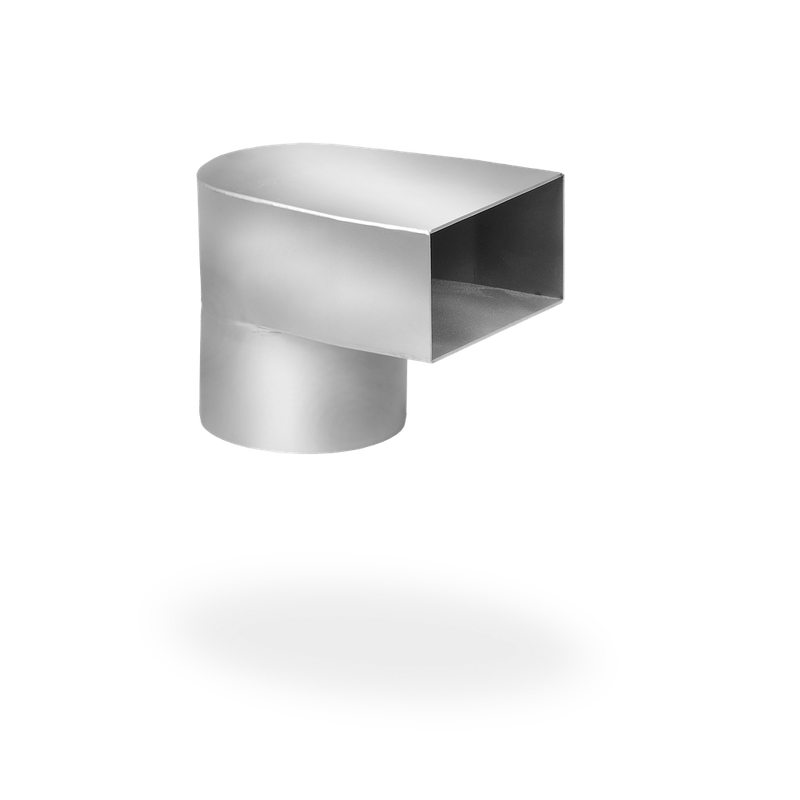

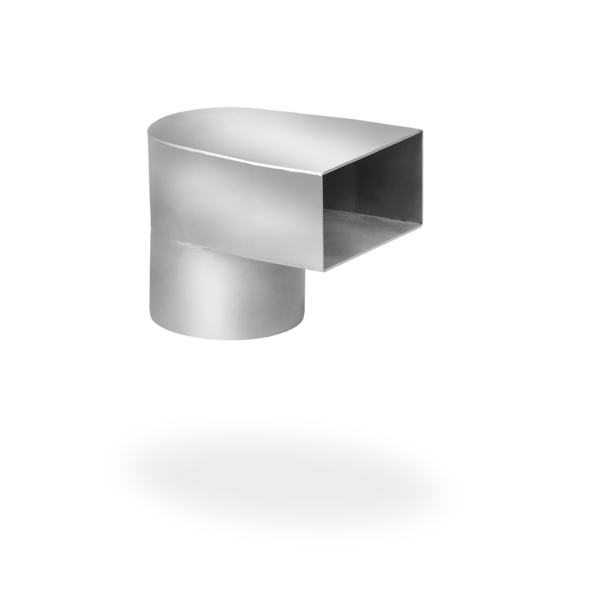

SitaTurbo transition piece to SitaPipe Edelstahl pipe, made of rust-proof stainless steel, material number: 1.4301, for transition from the SitaTurbo parapet outlet to a SitaPipe Edelstahl pipe according to DIN EN 1122-2, in sizes DN 50, DN 70, DN 100 and DN 125, with lubricant and sealing ring, supply and install to professional standards.
