SitaVent

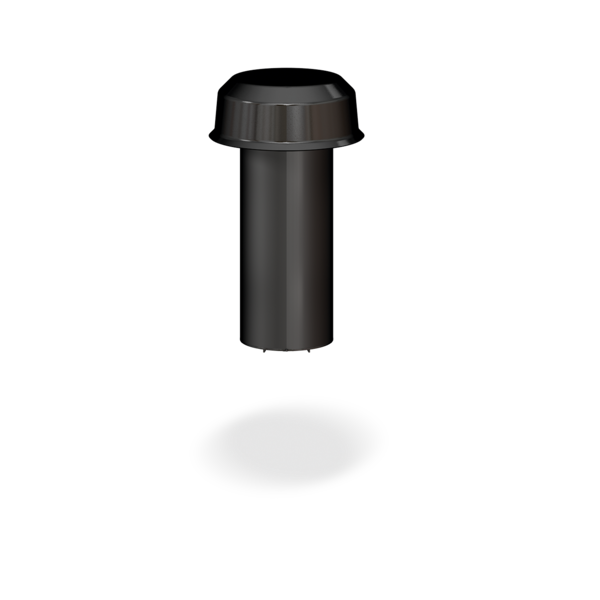

Condensation deflector
Attributes
- Large discharge openings
- Easy to install

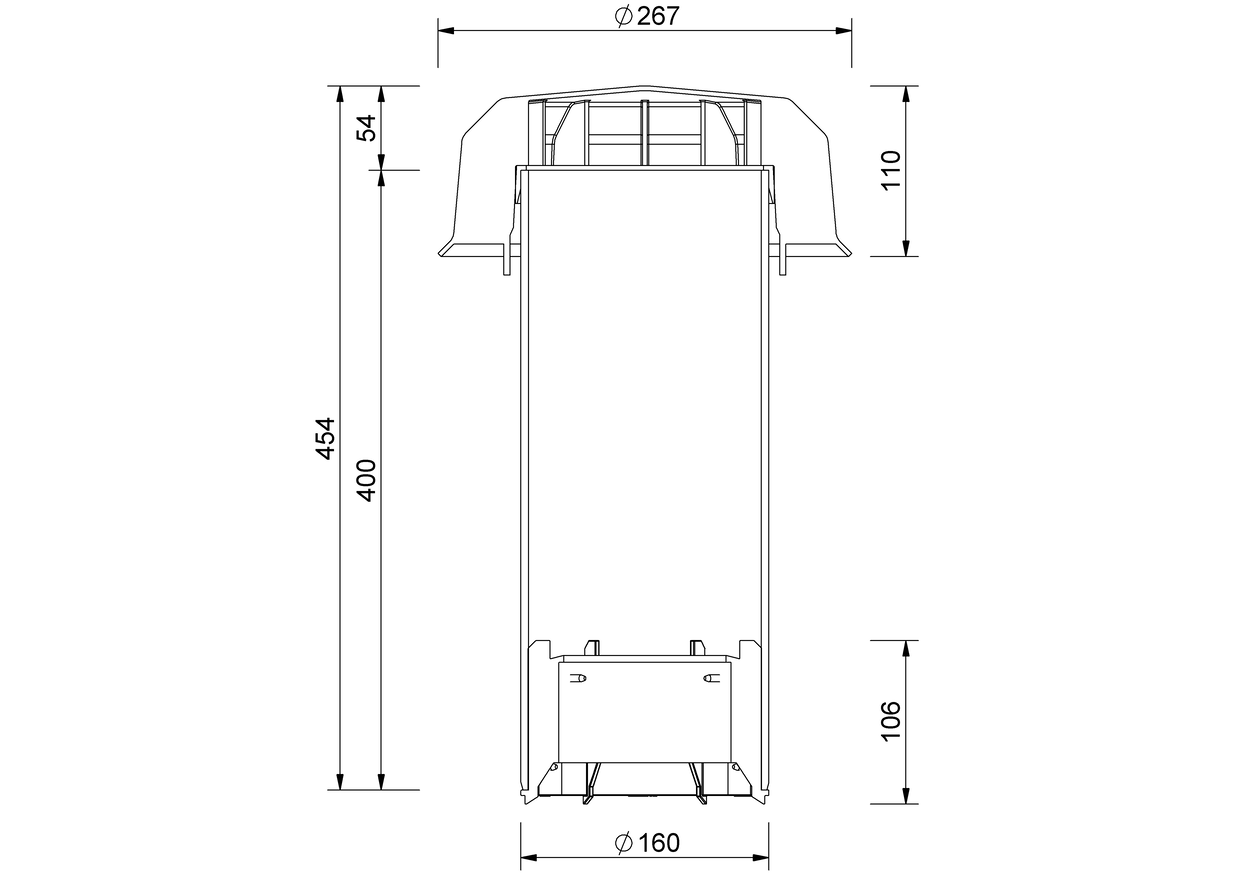

Technical drawing
Performance text
Installation Examples
MultiCAD und BIM-Daten
Downloads
Article selection
SitaVent condensation deflector for SitaVent system vent DN 70, DN 90, DN 100 and SitaVent refurbishment vent DN 63, DN 75, DN 90, DN 110, to divert condensation water from ventilation lines onto the roofing membrane level, consisting of an adapter for condensation deflector pipe, a condensation deflector pipe, a rain cover and 6 installation screws, supply and install to professional standards.
SitaVent system vent with SitaVent condensation deflector in a non-ventilated roof structure
1 SitaMore reinforcement plate
SitaVent base plate consisting of:
2.1 Base plate
2.2 Sealing ring
SitaVent condensation deflector consisting of:
3.1 Adapter for condensation deflector pipe
3.2 Rain cover
3.3 Condensation deflector pipe
SitaVent system vent consisting of:
4.1 Connection pipe
4.2 Sealing ring
4.3 Rain deflector
4.4 Base plate
5 SitaVent base plate insulating body
SitaVent base plate consisting of:
2.1 Base plate
2.2 Sealing ring
SitaVent condensation deflector consisting of:
3.1 Adapter for condensation deflector pipe
3.2 Rain cover
3.3 Condensation deflector pipe
SitaVent system vent consisting of:
4.1 Connection pipe
4.2 Sealing ring
4.3 Rain deflector
4.4 Base plate
5 SitaVent base plate insulating body
Non-ventilated roof structure to the general rules of engineering with:
- Waterproofing membrane
- Thermal insulation
- Vapour barrier
- Substructure
SitaVent refurbishment vent with SitaVent condensation deflector in a non-ventilated roof structure
1 SitaMore reinforcement plate
SitaVent base plate consisting of:
2.1 Base plate
2.2 Sealing ring
SitaVent condensation deflector consisting of:
3.1 Adapter for condensation deflector pipe
3.2 Rain cover
3.3 Condensation deflector pipe
SitaVent refurbishment vent consisting of:
4.1 Connection pipe
4.2 Sealing ring
4.3 Rain deflector
4.4 Base plate
4.5 Seal
5 SitaVent base plate insulating body
SitaVent base plate consisting of:
2.1 Base plate
2.2 Sealing ring
SitaVent condensation deflector consisting of:
3.1 Adapter for condensation deflector pipe
3.2 Rain cover
3.3 Condensation deflector pipe
SitaVent refurbishment vent consisting of:
4.1 Connection pipe
4.2 Sealing ring
4.3 Rain deflector
4.4 Base plate
4.5 Seal
5 SitaVent base plate insulating body
Non-ventilated roof structure to the general rules of engineering with:
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
| SitaVent | Article no. | ||
|---|---|---|---|
Condensation deflector | |||
| SitaVent system vent DN 70, DN 90, DN 100, SitaVent refurbishment vent DN 63, DN 75, DN 90, DN 110 | 171200 | Show product |
